Norton 8000 Series Door Closer 8340ST 8540ST 8340STH 8340STH Pull Side Slide Track Non-Hold Open or Hold Open Template

Aluminum or Wood Fasteners Door or Frame Drill Sizes # 14 type "A" S.M. screw Wood 7/32" (5.56mm) Closer: 1-1/4" (32mm) Track: 2-3/4" (70mm) 1/4" -20 machine Metal drill:# 7 (.201") screw tap: 1/4" -20 Sex-nuts and bolts Hollow Metal 9/32" (7.00mm) through 3/8" (9.50mm) door-face opposite to closer 3/8" (9.50mm) through Through-bolts and 9/32" (7.00mm) through; Preparation for Fasteners

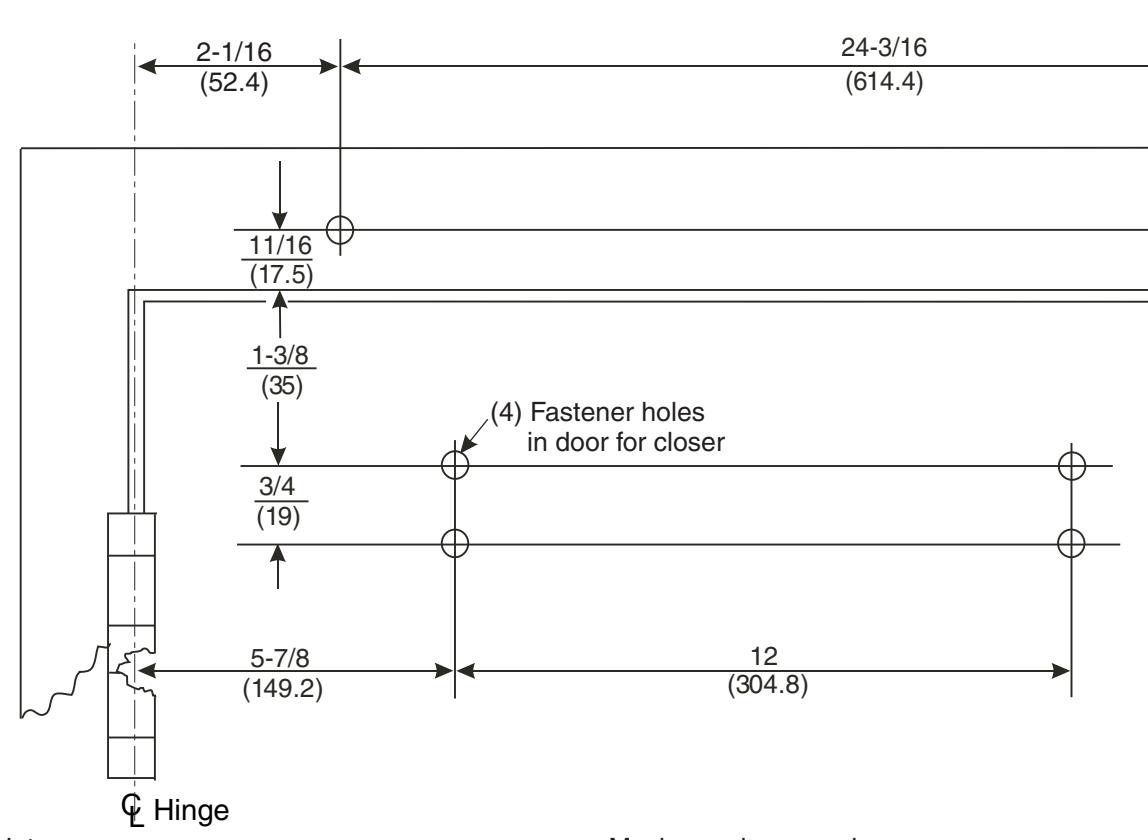

(2) Fastener holes in frame for track

grommet-nuts All 3/8" (9.50mm) dia. ^x

face opposite to closer (Optional)

Notes:

• Right hand door is shown.
• Do not scale drawing.
• .1046 (2.7mm) minimum thickness recommended for hollow metal door and frame reinforcement.
• From centerline of hinge to end of track 26-3/4" (679.5mm).
• Minimum ceiling clearance for track is 1-1/2" (38.1mm).
• Dimensions are given in inches (mm).

• Maximum door opening: 110° recommended with cushion stop in track. 180° without cushion stop.
• Use of auxiliary door stop may be required to prevent damage to door, frame, or hinges.

8340ST, 8540ST Series Non Hold Open Door Closer 8340STH, 8540STH Series Hold Open Door Closer Pull (Hinge) Side Slide Track Application Closer Sizes 1, 4, 5, or 6

3/8" (10mm) deep door-

www.nortondoorcontrols.com

7380-1501 TEMPLATE NUMBER DATE

09-08
