Norton 8000 Series Door Closer 8100 8300 8500 with 8146 Back Plate for 1-3-4 Top Rail Regular Arm Non-Hold Open Template
Open the original PDF document
View PDF

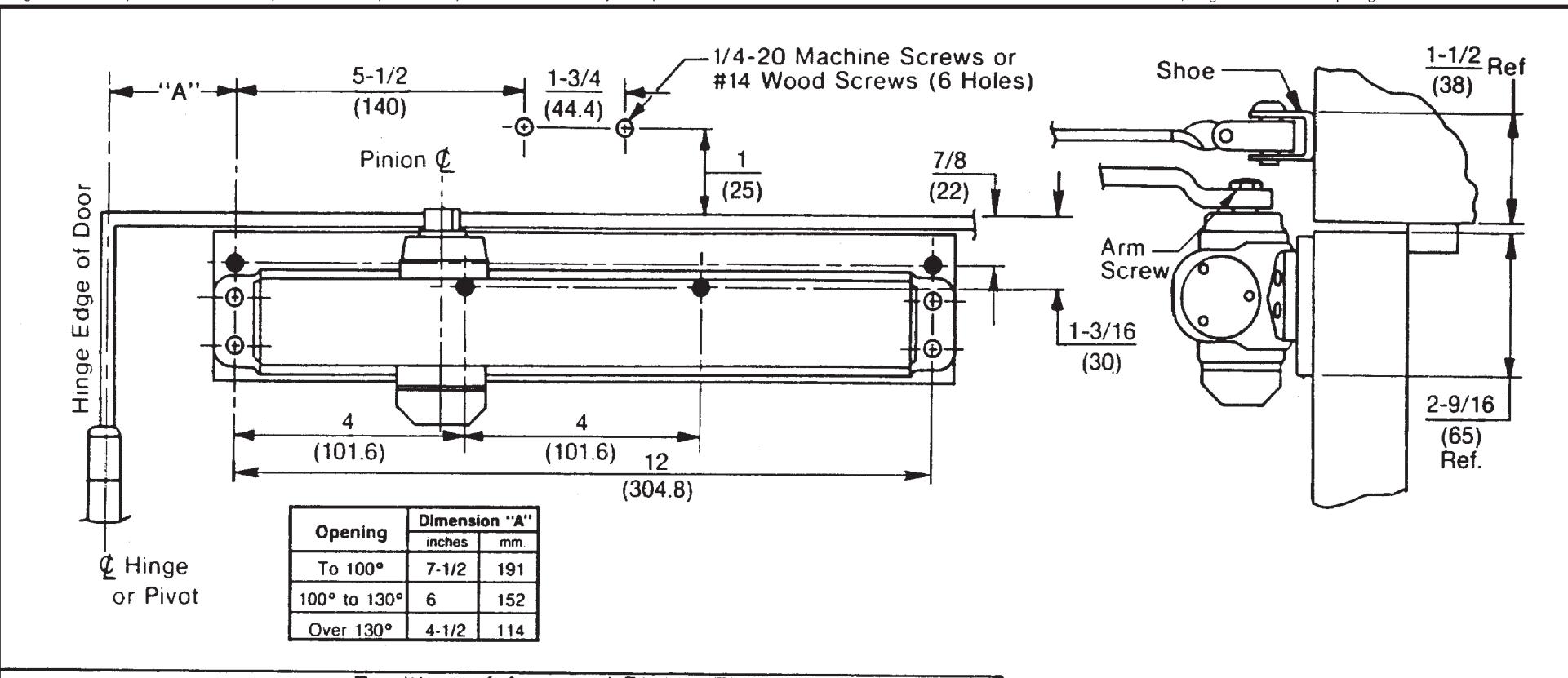

8000 Series Door Closer Regular Arm Application With 8146 Back Plate for 1-3/4 Top Rail 8100, 8300, and 8500 Sizes 1 Thru 6
www.nortondoorcontrols.com
TEMPLATE NUMBER DATE
7380-0104 09-08
