Norton 8000 Series Door Closer 8080 8180 8380 8580 Regular Arm Low Ceiling with or without 8146 Back Plate Non-Hold Open Template
Open the original PDF document
View PDF

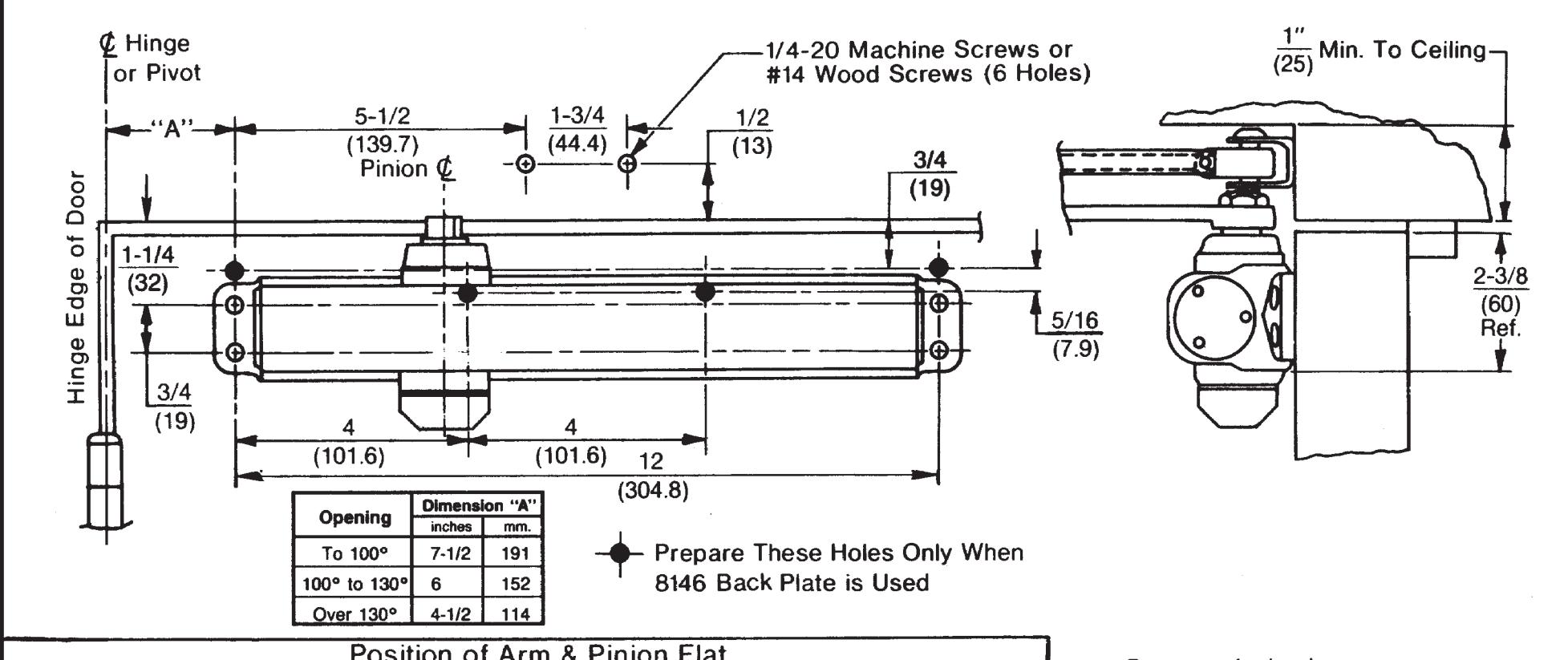

8080 Series Door Closer Regular Low Ceiling Arm Application With or Without 8146 Back Plate 8180, 8380, and 8580 Sizes 1 Thru 6
www.nortondoorcontrols.com
7380-0110
TEMPLATE NUMBER DATE
09-08
