Installation Instructions

80-9380-2212-020 (06-09)

8040 & 8050 Slide Track Door Closers

Non Hold Open & Models Hold Open

Note: Hold open models are not permitted to be installed in Listed fire door assemblies.

PULL SIDE MOUNTED		PUSH SIDE MOUNTED
Non Hold Open	Hold Open	Non Hold Open	Hold Open
8340ST,	8350ST,	P8340ST,	P8350ST,
8341ST,	8351ST,	P8341ST,	P8351ST,
8540ST,	8550ST,	P8540ST,	P8550ST,
8541ST	8551ST	P8541ST	P8551ST

• With or without "DL" suffix, delayed action closing feature.
• With or without "M" suffix, Metal Cover.

The closing force for these series of door closers is adjustable from a size 1 to a size 6, as outlined in ANSI Standard A156.4. When these series of door closers are installed and adjusted to conform to ADA reduced opening force rerequirements (5 lbs max.) for interior doors, they may not have adequate closing

force to reliably close and latch the door. Power adjustments charted on Page 5 are recommended, where possible, to insure proper door control.

• have 50% power increase capability. Closer size 4 has the weakest power, closer size 6 has the strongest power. Sized Door Closers 8340/8540 & 8350/8550
• can be adjusted from size 1 thru 6. Multi-Sized Closer 8341/8541 & 8351/8551

CAUTION

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury.These instructions should be followed to avoid the possibility of misapplication or misadjustment.

For Use on Doors with 4½" or 5" (115-127mm) Wide Butt Hinges

8050 Series Hold Open Units Are Not Permitted To Be Installed In Fire Door Assemblies

• Maximum pull side frame reveal is 1/8" (3mm).
• Minimum frame face for pull side is 1-3/8" (35 mm).
• All components are non handed.
• The use of ball bearing hinges is recommended for the door on which the closer will be installed. Door must swing freely.
• Where severe or abusive conditions are expected a separate door stop, supplied by others, is recommended to assist in preventing damage to the door closer, closer arm; or to the door, frame or adjacent walls.
• Door and frame must be properly reinforced, or the use of special fasteners employed, to prevent door collapse or the mounting screws from pulling out.
• All dimensions are given in inches with corresponding metric dimensions (millimeters) in parentheses.

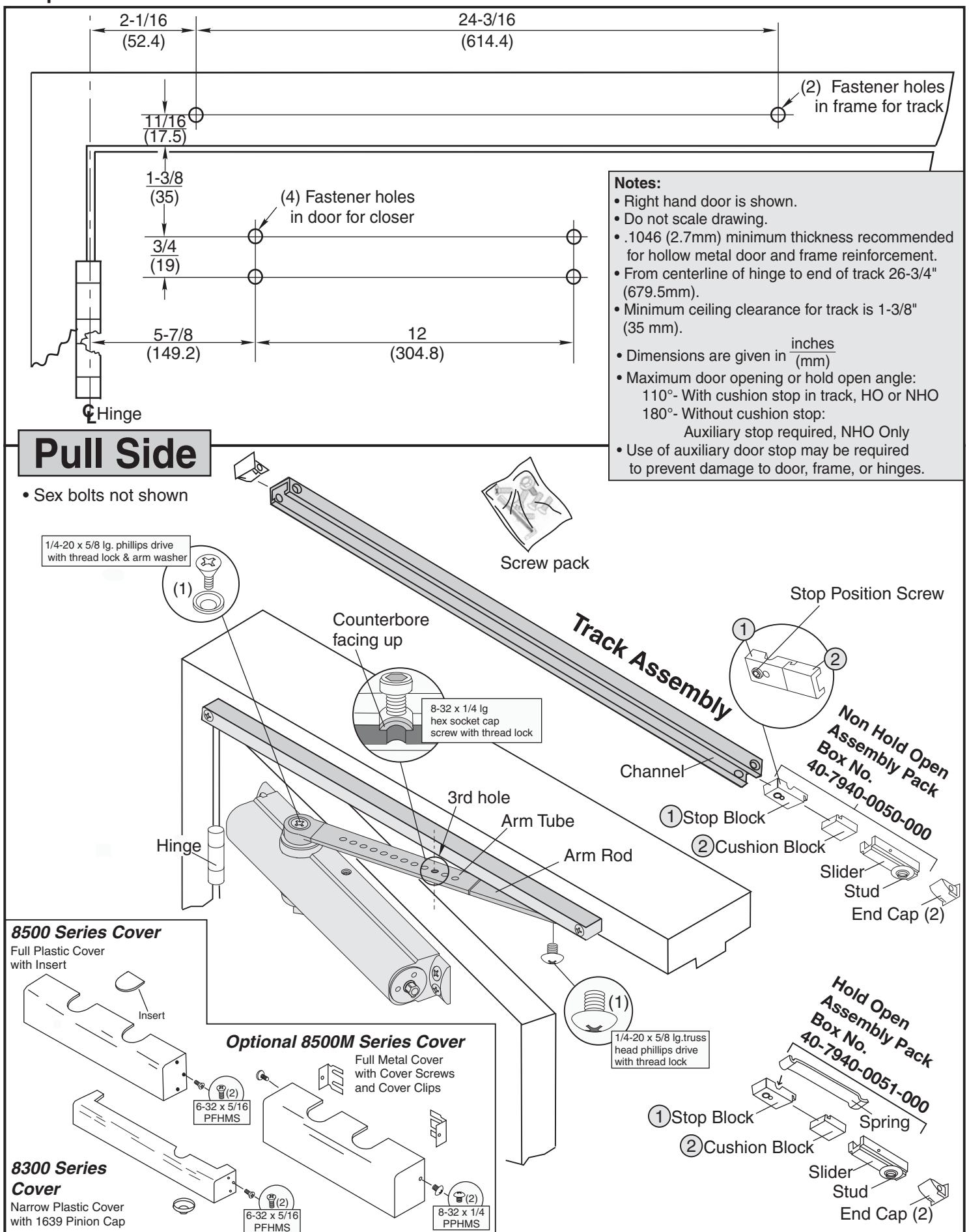

Pull Side Installation

Page 2 80-9380-2212-020 (06-09)

Installation Sequence Pull or Push Side Mount

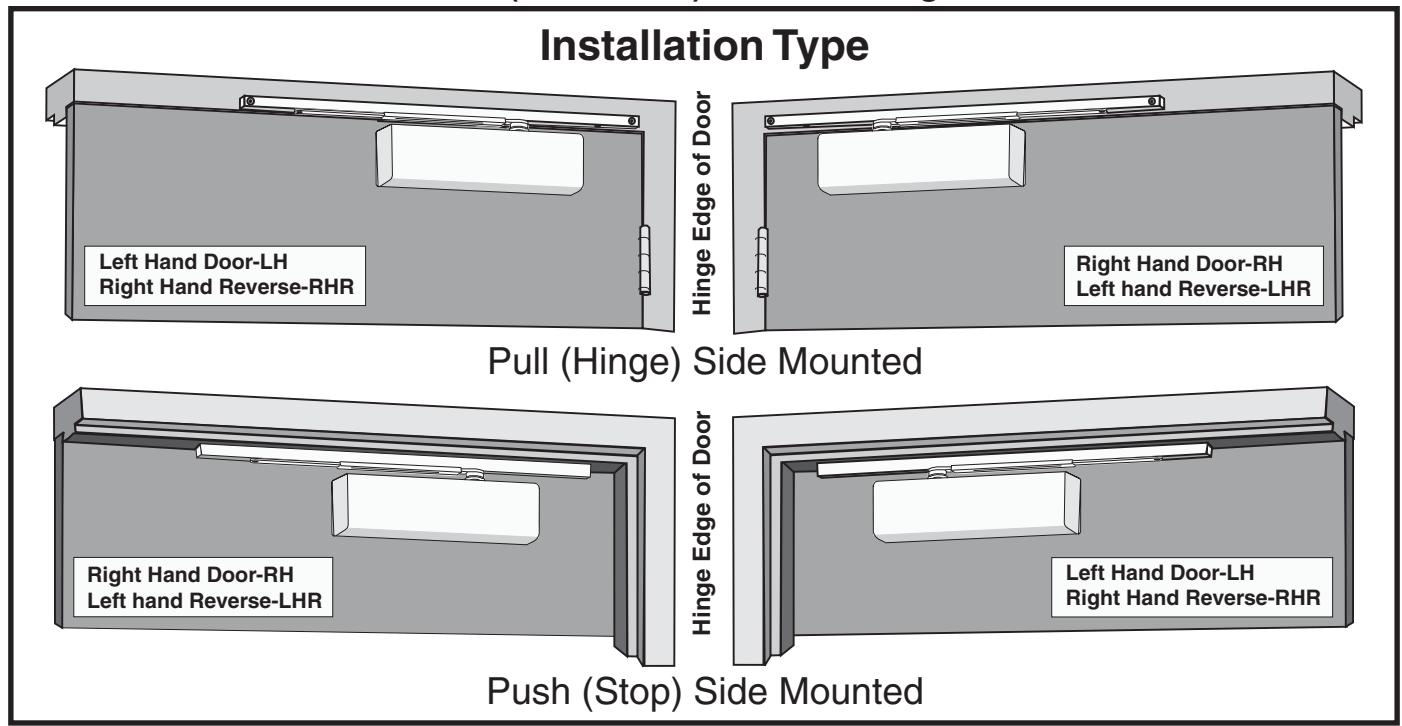

• from illustrations on Page 1. • Determine hand of door and type of installation

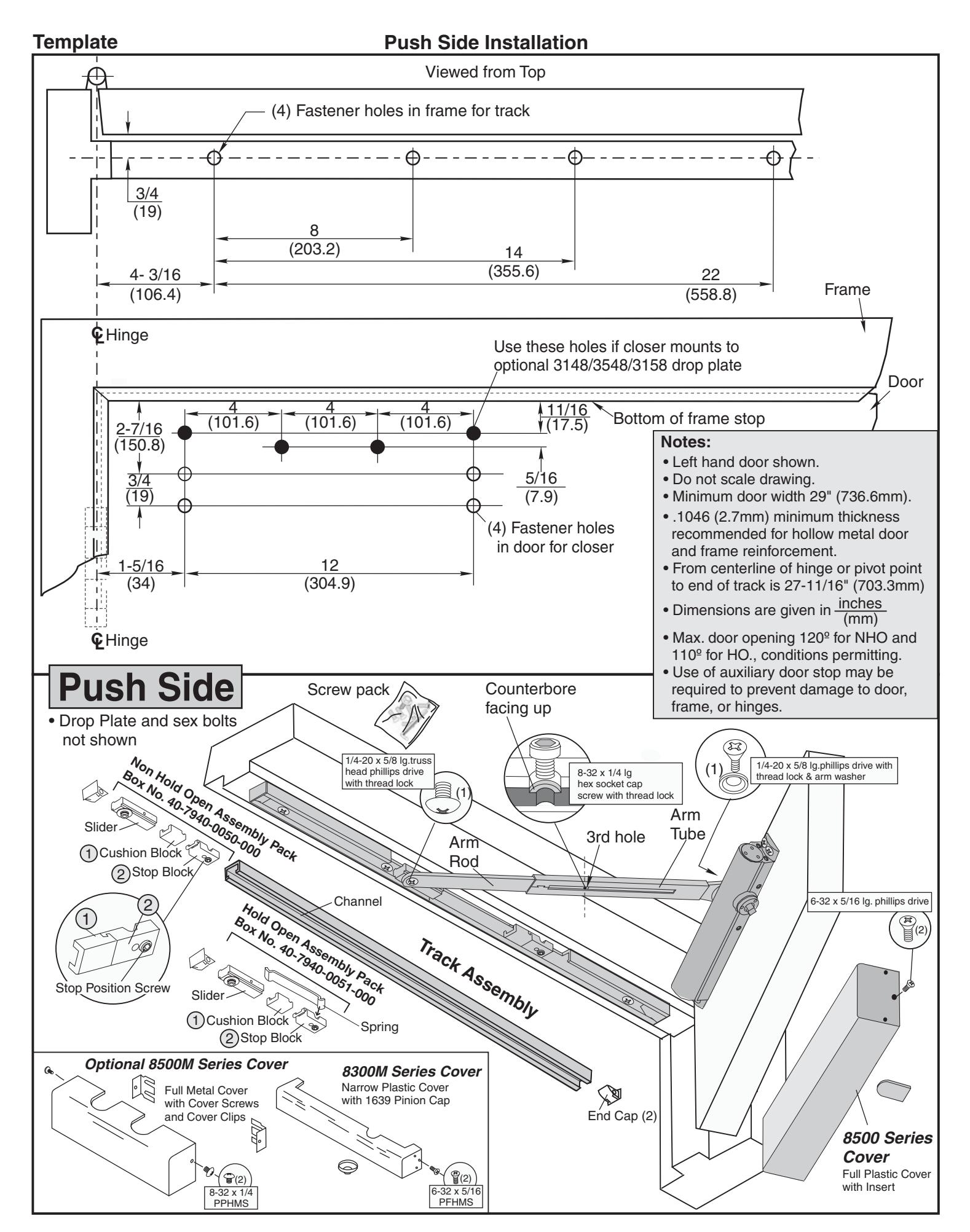

• on Page 2 or Page 4 to locate fastener holes on door and frame. See "Preparation for Fasteners" chart. • Use template dimensions

Prepare the frame for mounting track. Drill and tap holes for 1/4-20 machine screws or #14 wood screws. Frame:

Prepare the door for mounting closer. Drill and tap (4) Door:

holes for 1/4-20 machine screws, #14 wood screws, 3/8 diameter sex-nuts, or through bolts and grommet-nuts.

If drop plate is used (see Page 4), prepare holes for Note:

8148/8548/8158 drop plate instead of closer.

Secure drop plate before mounting closer.

Position closer with: - power adjustment shaft from hinge - power adjustment shaft hinge Secure mounting screws. • Fasten closer to door or drop plate. Pull side away Push side toward

If using full metal cover, mounting clips must be slipped under ends of closer when closer is being mounted. Clips should project 1/4" (6 mm) from each end of closer. Note:

• Insert flat arm rod into arm tube with the counterbore screw hole facing up. Align counterbore with the 3rd hole in the arm tube and secure with 8-32 x 1/4 long hex socket cap screw. See illustration on Page 2 or 4. • Assemble Slide Arm.

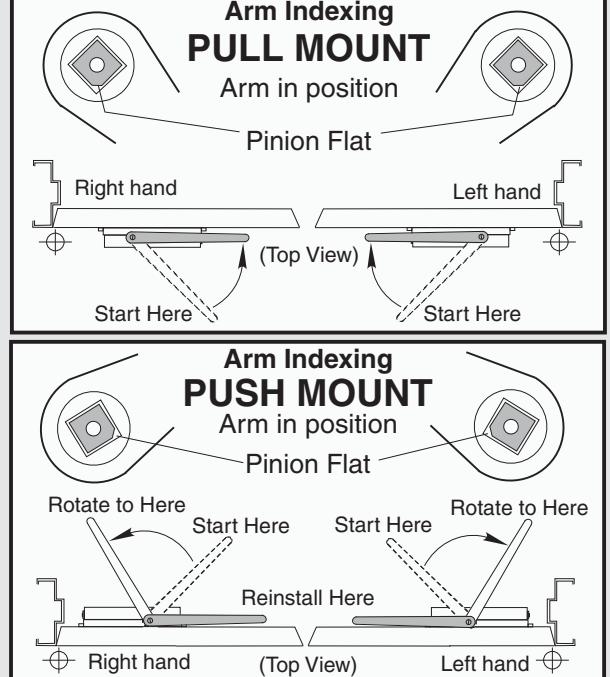

• Install arm on closer pinion -see arm indexing illustrations below.

Pull mount: Position slide arm with counterbore facing up and align with pinion flat as

illustrated. Install onto pinion.

Push mount:

With "S" & "L" valves closed, place arm on closer pinion shaft with arm at a 45° angle to frame face. Rotate arm toward hinge at least 50°. Remove arm and reinstall on pinion with arm almost parallel to frame face, before pinion shaft can rotate far enough to create interference with door.

• Secure arm with washer and flat head phillips drive arm screw with thread lock.

Preparation for Fasteners
Fasteners	Door or Frame	Drill Sizes
#14 type "A" S.M. screw Closer: 1-1/4" (32mm) Track: 2-3/4" (70mm)	Wood	7/32" (5.56mm)
1/4" -20 machine screw	Metal	drill: #7 (.201") tap: 1/4" -20
Sex-nuts and bolts	Hollow Metal	9/32" (7.00mm) through 3/8" (9.50mm) door-face opposite to closer
	Aluminum or Wood	3/8" (9.50mm) through
Through-bolts and grommet-nuts (Optional)	All	9/32" (7.00mm) through; 3/8" (9.50mm) dia. x 3/8" (10mm) deep door face opposite to closer

• Track Assembly

Remove slider assembly parts from box # 40-7940-0050-000 for Non Hold Open or # 40-7940-0051-000 for Hold Open and insert into channel in the order shown. See illustration on Page 2 or 4.

Use of the hold open assembly pack on a non hold open device will void the UL® listing for this product.

Insert end caps into ends of track prior to installing.

• Place the assembled slide track against frame with the open side down, stop and cushion blocks toward the hinge. Move the slider to the opposite end of the slide track. Secure slide track with 1/4-20 flat head phillips drive mounting screws. • Install track to frame.
• Connect arm to track.

With door closed. With door open slightly. Rotate arm to slider and place end over stud. Push up on arm and tap gently to seat (to prevent stud from turning during assembly). Secure with 1/4-20 x 5/8" long truss (rounded) head phillips drive screw with thread lock. CAUTION: Closer arm is under spring tension and may be difficult to rotate. Pull side: Push side:

• Open door to the angle you want the door to stop. With the door held at that location, slide stop with cushion block against slider. Tighten the stop position screw (large set screw) with 3/16" hex wrench (from screw pack) until secure. Release door. • Set door stop angle.
• (see Page 5) before installing cover. • Adjust closer
• Install Cover.

Slide insert into unused cover slot (see illustration on Page 2 or 4). Full Cover: Install cover using screws provided.

Install cover using screws provided. Thread pinion cap into pinion shaft. Do not overtighten. Narrow Cover:

Fasten cover to mounting clips with screws provided. Full Metal Cover:

Page 3 80-9380-2212-020 (06-09)

80-9380-2212-020 (06-09) Page 4

Closer Adjustments

Closing Power

8340/8540 & 8350/8550 Models come in three different sizes (4 through 6); each power size can be increased by 50%. Adjust as required. See Figure 1.

8341/8541 & 8351/8551 Models are

adjustable sizes 1 thru 6.

For proper sizing see power adjustment chart below right.

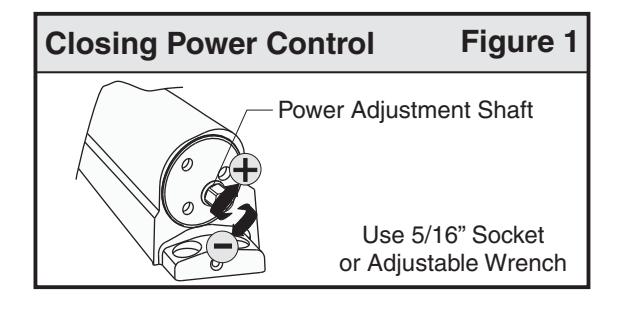

To adjust closer power, see Figure 1 . Increase or decrease power as necessary.

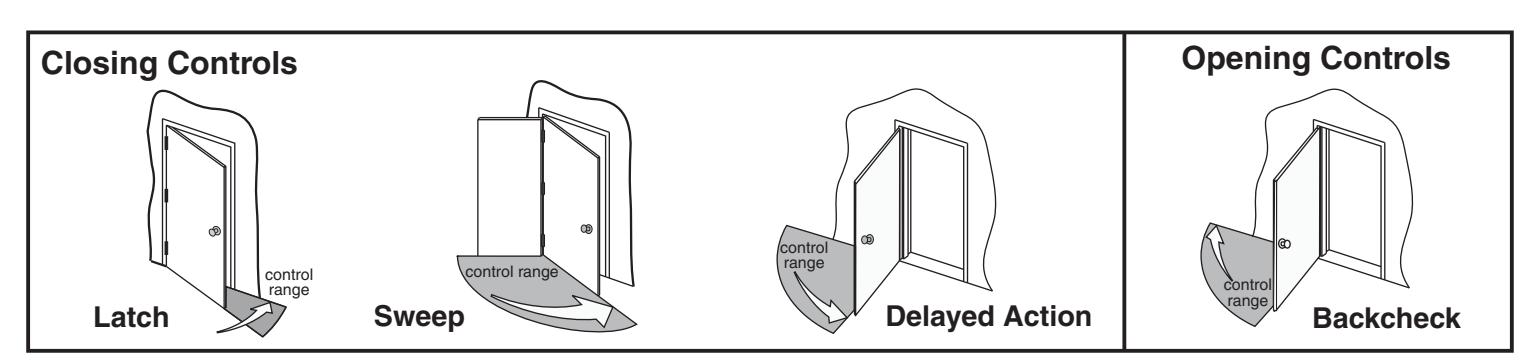

Closing Cycle (see illustrations above).

Valve "L" controls door speed in Latch Range .

Valve "S" controls door speed in Sweep Range.

Valve "D" (Optional) controls door speed in Delay Range.

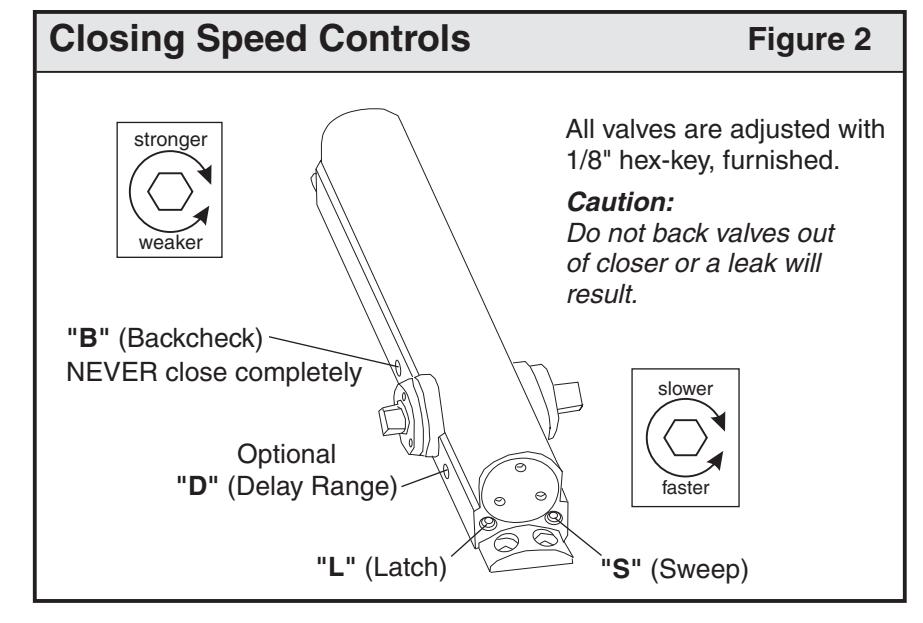

Use 1/8" hex-key furnished and adjust as shown in Figure 2 .

Attention: Adjust closing speed to between 4 to 7 seconds from 90°. Use of door by handicapped, elderly or small children may require greater closing time.

Opening Cycle (see illustration above). Valve "B" cushions (slows) door opening in the Backcheck Range.

NOTE: Never close this valve completely or damage to closer may occur.

Power A	djustmen
Door Size Inches (meters)	Full Clockwise Turns of Closer Power Adjustment Shaft		Note: Power adjustments charted are
(meters)	Interior Door	Exterior Door	recommended where possible to insure
28-32 (0.07-0.80)	10	13	proper door control. See Note on Page 1 where codes may dictate reducing these recommended adjustments.
33-36 (0.85-0.90)	12	15
37-42 (0.95-11.05)	14	17
43-48 (1.10-1.20)	17	19

NOTE : Maximum of 20 turns (360°) of Power Adjustment Shaft.

Set closing power, as charted. Closer is shipped at power setting as circled. See Figure 1 at left for illustration of how to make these adjustments.
