Power

Unitrol®

Parallel Arm Door Controls

ASSA ABLOY UNI-7500 (DA) (H) Series UNI-7700 (DA) (H) Series

ASSA ABLOY

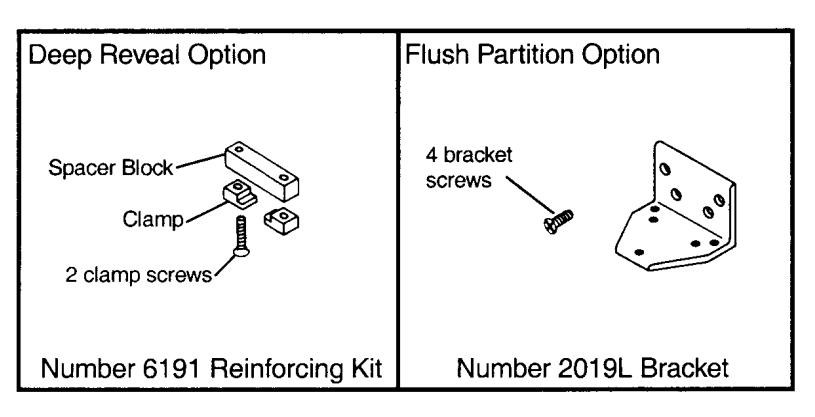

Components

Use these instructions for installing all models of these series on 1-3/4" (45mm) doors hung on 4-1/2" (114mm) wide hinges or 3/4" (19mm) offset pivots.

DOOR WIDTH determines the location of the closer. Use ONLY the template chart corresponding to your door width.

Use ONLY the dimensions given in each template chart for the door total OPENING angle or the HOLD-OPEN angle desired.

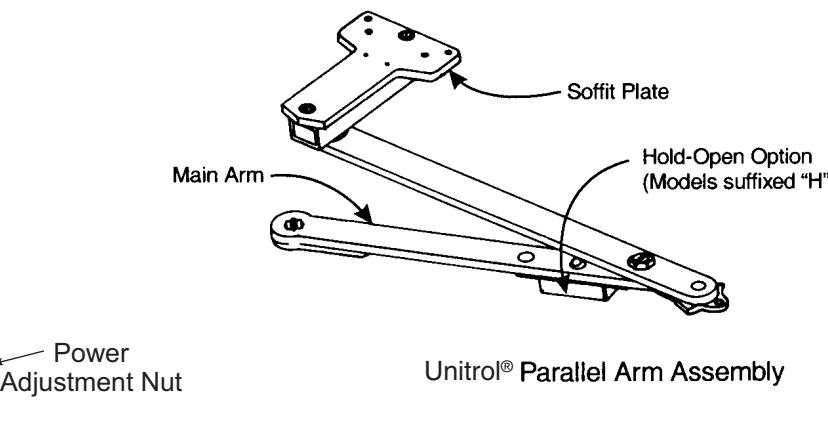

Unitrol® parallel arms are supplied in one of three lengths, according to door width specified on order. To verify that the ARM you have is CORRECT FOR THE DOOR WIDTH, check the number stamped on the arm against the chart below.

DOOR WIDTH	Non-Holder Arm	Hold-Open Arm
28"-32" 0.70-0.80M	6100-11	6100-1
33"-41" 0.85-1.00M	6100-13	6100-3
42"-48" 1.05-1.20M	6100-14	6100-4

Standard Closer (4 Valves) DA Option Closer (5 Valves) Tube

DIMENSIONS FOR DOORS 28" TO 32" WIDE
Opening		Dimension	Dimonaian	Dimension
Hold-Open	Stop	Dimension A	Dimension B	C
85°	90°	10-1/4	10-1/2	4-1/2
90°	95°	9-5/8	9-7/8	3-7/8
95°	100°	9-1/8	9-3/8	3-3/8
100°	105°	8-3/4	9	3
105°	110°	8-3/8	8-5/8	2-5/8
110°	115°	8	8-1/4	2-1/4

DIMENSIONS FOR DOORS 33" TO 41" WIDE
Opening		Dimension	Dimension	Dimension
Hold-Open	Stop	A	B	C
85°	90°	12-3/4	12-7/8	7
90°	95°	12	12-1/8	6-1/4
95°	100°	11-1/2	11-5/8	5-3/4
100°	105°	10-7/8	11	5-1/8
105°	110°	10-1/2	10-5/8	4-3/4
110°	115°	10	10-1/8	4-1/4

		. •	10 1/0	. ,, ,
DIMENSIONS FOR DOORS 42" TO 48" WIDE
Openi	ng	Dimension	Dimension	Dimension
Hold-Open	Stop	A	B	C
85°	90°	14-7/8	15-1/8	9-1/8
90°	95°	14	14-1/4	8-1/4
95°	100°	13-3/8	13-5/8	7-5/8
100°	105°	12-3/4	13	7
105°	110°	12-1/4	12-1/2	6-1/2
110°	115°	11-7/8	12-1/8	6-1/8

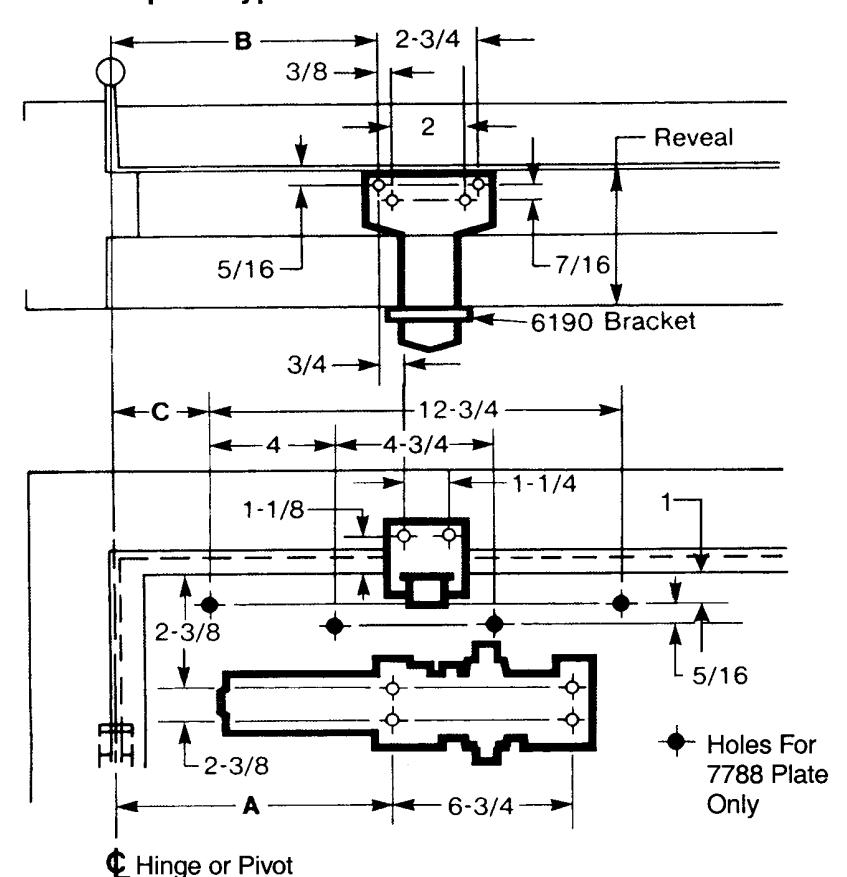

• Door template is typical for all installations.
• ASSA ABLOY
• Frame template must be selected according to reveal.

inches	mm	inches	mm	inches	mm	inches	mm
5/16	8.0	2-3/4	69.9	8-3/8	213	11-7/8	302
3/8	9.5	3	76	8-5/8	219	12	305
7/16	11.1	3-3/8	86	8-3/4	222	12-1/8	308
1/2	12.7	3-7/8	98.5	9	229	12-1/4	311
3/4	19.1	4	101.6	9-1/8	232	12-1/2	318
1	25	4-1/4	108	9-3/8	238	12-3/4	323.9
1-1/8	29	4-3/8	111	9-5/8	244	12-7/8	327
1-1/4	31.8	4-1/2	114	9-7/8	251	13	330
1-1/2	38.1	4-3/4	120.7	10	254	13-3/8	340
1-3/4	44	5-1/8	130	10-1/8	257	13-5/8	346
1-7/8	48	5-3/4	146	10-1/4	260	14	356
2	50.8	6-1/4	159	10-1/2	267	14-1/4	362
2-1/8	54	6-3/4	171.5	10-5/8	270	14-7/8	378
2-1/4	57	7	177.8	10-7/8	276	15-1/8	384
2-3/8	60.5	8	203	11-1/2	292
2-5/8	67	8-1/4	210	11-5/8	295

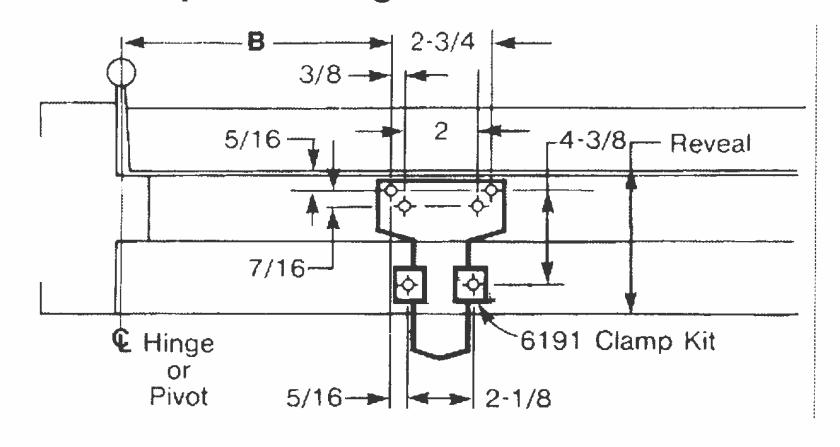

Frame Template for Reveals Over 4-5/8 Door Template on Page 2

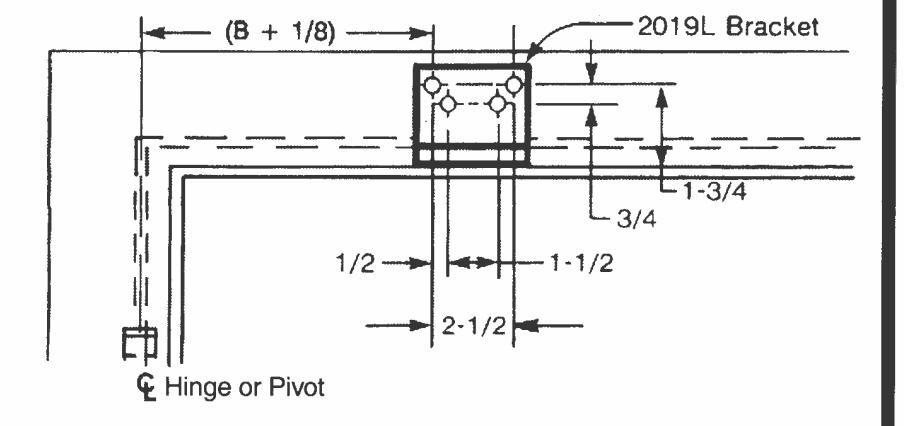

Frame Template for Flush Partitions Door Template on Page 2

ASSA ABLOY

Installation Sequence

• Read Front Page.

Installation ground rules and components identification are on this page.

· Match hardware to opening.

Follow "Template Information" on Page 2.

· Mark mounting holes location.

Use dimensions for hold-open or door stop angle desired. Mark position of 4 holes on door for closer (or drop plate) and 6 holes on frame for soffit plate (or 4 for 2019L angle bracket).

· Prepare holes for fasteners.

See chart below.

Mount closer to door.

Drop plate first, if used. Place spring tube end toward the hinge edge of the door; closer with valves up for right hand door, with valves down for left hand door.

Mount arm to frame.

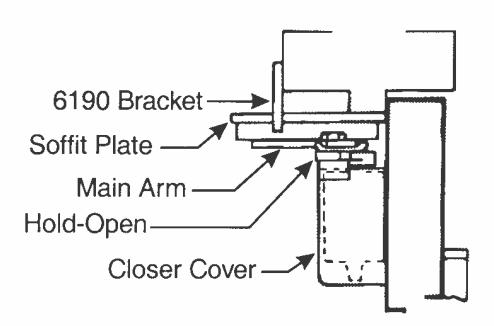

Fasten soffit plate (or angle bracket if flush partition) to frame. Mount 6190 bracket or 6191 clamps to hold soffit plate flat.

• Install arm on pinion top.

Close valve "S". Rotate pinion over 45° to align main arm letter "R" (right hand) or "L" (left hand) with pinion flat. Fasten with arm screw. See "Typical Installation" figure below.

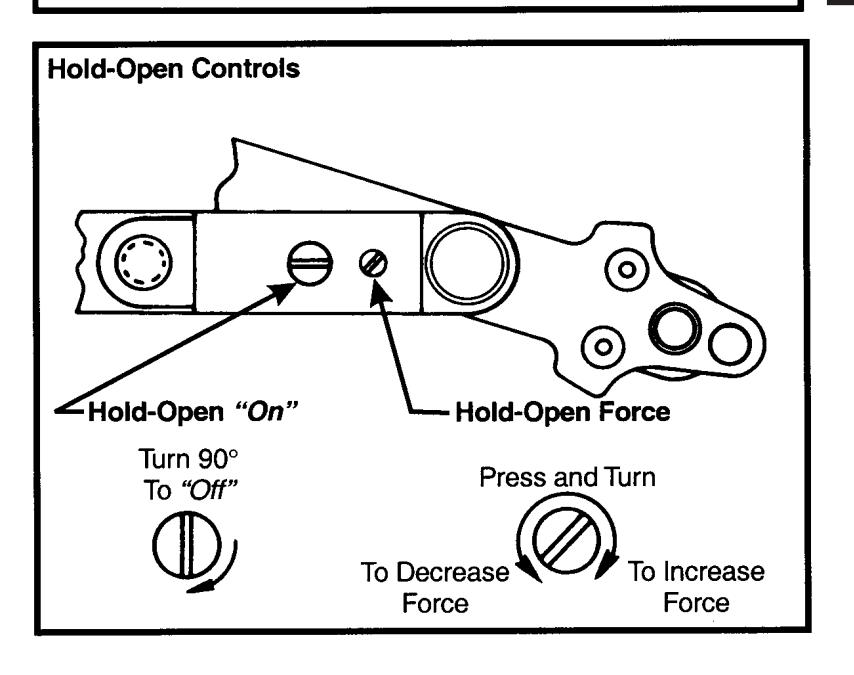

Adjust closer.

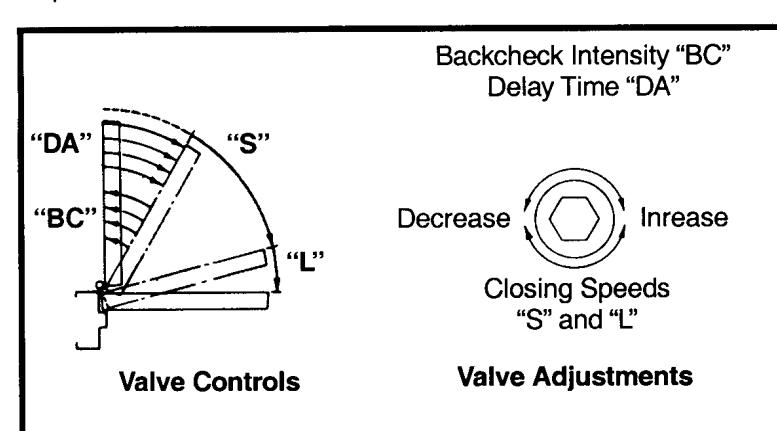

See "Unit Adjustment" on page 4.

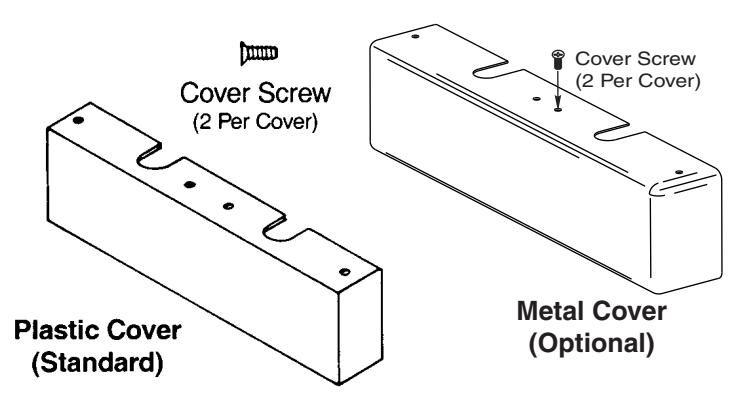

Install cover.

See front page.

Fastener	Frame	Door	Drill
1/4-20 machine screw	metal	none #7 (.201 dia.) or 5.10mm. drill1/
#14 type "A" sheet metal screw	wood	none	3/16" (4.30mm.)
SNB	none	hollow-metal	9/32" (7.00mm.) thru 3/8" (9.50mm.) door face opposite to closer
		aluminum or wood	3/8" (9.50mm.) thru

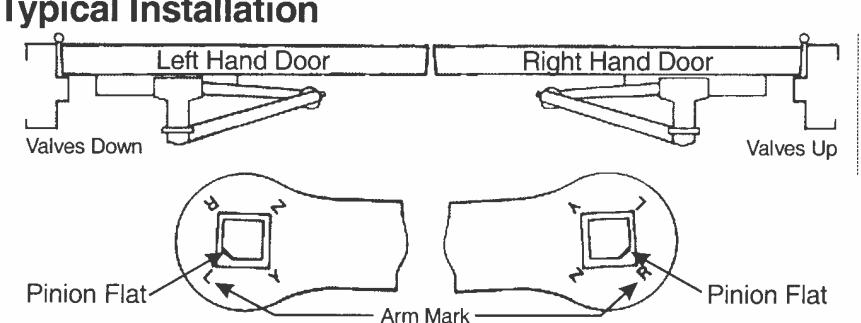

Typical Installation		0 :

Closing Power Control

ASSA ABLOY For 7500 Series Only

Set closer to desired size. For recommended sizes, refer to the Power Adjustment Chart below.

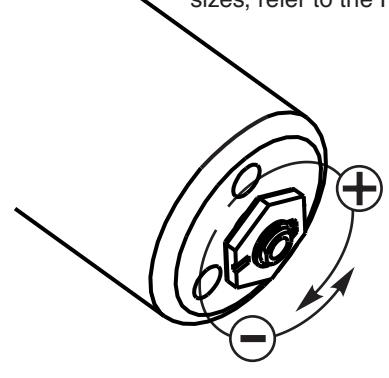

Install closer per instructions with the proper pre-load applied to the arm then adjust spring power. The power adjustment will not work properly if the closer spring is not pre-loaded. To increase power, use 11/16" wrench to turn power adjustment nut clockwise. To decrease power, turn nut counter clockwise.

DO NOT use a power drill or driver to turn adjustment nut.This will damage closer and void warranty.

Power Setting - Multi size Closers
Door Size		Turns from Zero
Inches	Series UNI-7500
(M)	Interior Door	Exterior Door
28-32 (0.70-0.80)	1	3
33-41 (0.85-1.00)	6	8
42-48 (1.05-1.20)	9	12

ASSA ABLOY

3000 Highway 74 East • Monroe, NC 28112 Tel: (877)-974-2255 • Fax: (800)-338-0965 www.nortondoorcontrols.com
