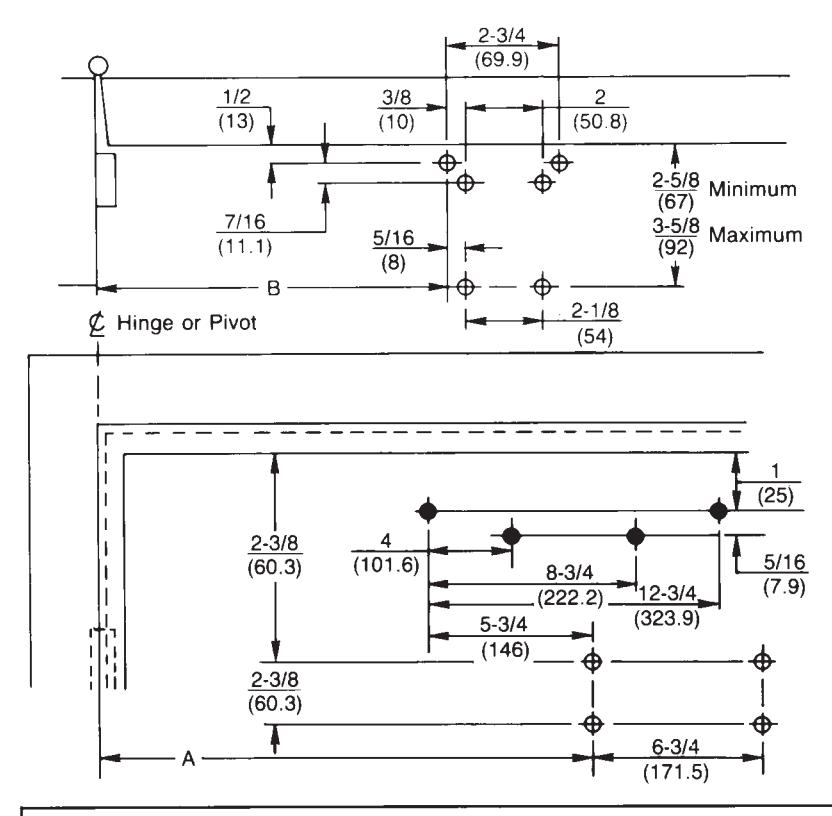

Norton 7500 Series Door Closer UNI-7500 UNI-7700 Unitrol Parallel Arm with 6191 Reinforcing Kit Non-Hold Open or Hold Open with or without 7788 Drop Plate Template

7788 drop plate mounting holes only

	Narrow Soffit Frame
Spacer Block	1
Anchor Tab
Soffit Plate	5/8 (16)
ı	Wide Soffit Frame

Anchor Tab Soffit Plate 5/8 (16)

Notes:

• Do not scale drawing.
• All dimensions shown in inches (mm.).
• · Left hand door shown.
• Caution: Hollow metal doors require channel or box type reinforcement.

Door Opening Angle		Dimensions*
	Dead	Butts and Offset Pivots			Center Pivots
	Stop	Dimension A		Dimension B		Dimension A		Dimension B
		Inches	mm.	Inches	mm.	Inches	mm.	Inches	mm.
85°	90°	12¾	324	121/8	327	13¾	349	131/8	352
90°	95°	12	305	121/8	308	121/8	327	13	330
95°	100°	111/2	292	115/8	295	121/4	311	123/8	314
100°	105°	101/8	276	11	279	115/8	295	113⁄4	298
105°	110°	101/2	267	105/8	270	111/8	283	111/4	286
110°	115°	10	254	101/8	257	103/4	273	101/8	276

• * "A" and "B" dimensions measured from centerline of hinge or pivot.
• ** Door must be free to swing up to 5° beyond hold open position.

Preparation for Fasteners Drill Sizes Application Door or Frame Fasteners 9/32" (7.00mm.) through Sex nuts and bolts Closer, Hollow Metal Drop plate 3/8" (9.50mm.) door face opposite to closer Aluminum 3/8" (9.50mm.) through or Wood #14 x 1-1/4" (32mm.) Soffit-plate Wood 3/16" (4.30mm.) type "A" S.M. screws 6190 Bracket Metal drill: #7 (.201"dia.) tap: 1/4-20 1/4-20 machine screw ΑII 9/32" (7.00mm.) through Through bolts and Optional 3/8" (9.50mm.) dia. x 3/8" (10mm.) grommet nuts deep, door face opposite to closer

Unitrol® with 6191 Reinforcing Kit Series UNI-7500 & UNI-7700 Doors 33"-41" (0.85-1.00m) Wide

Parallel Arm Installation Template Stop Only or Hold Open Unitrol® Backcheck or Delayed Action Door Closer With or Without 7788 Drop Plate

www.nortondoorcontrols.com

TEMPLATE NUMBER 7377-1358

07-08
