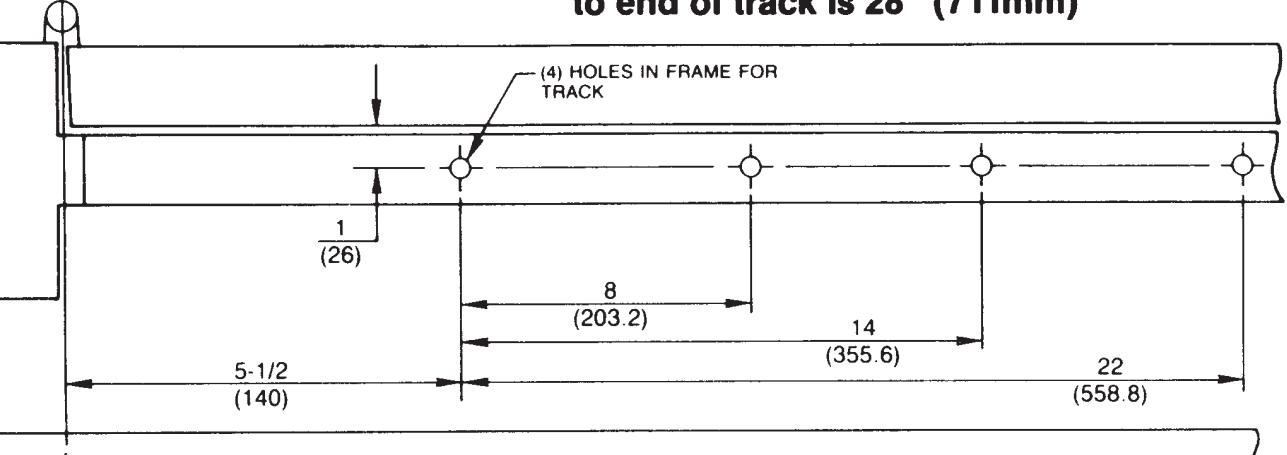

Norton 7500 Series Door Closer PS7500ST(H) PS7700ST(H) Push Side Slide Track Non-Hold Open or Hold Open with or without 7788 Drop Plate Template
Open the original PDF document
View PDF
| 12-3/4 | i | |
|---|---|---|
| 20/16 | 4 4-3/4 (323.9) | |
| 2-9/16 | (101.6) (120.7) | 1 |
| (65) | _ | |
| (6) | 5/16 | 1-5/16 |
| (0) — | (4) HOLES IN DOOR \ (7.9) | (33) |
| 2-3/8 | FOR CLOSER OR | , , |
| (60.3) | FOR 7788 DROP | |
| h (50.5) | PLATE———— | |
| 41 | -\-\-\-\-\-\-\-\-\-\-\-\-\-\-\-\-\-\-\ | |
| 6-3/8 | 6-3/4 | |
| (162) | (171.5) |
| Preparation for Fasteners | |||
|---|---|---|---|
| Fasteners |
Door or
Frame |
Drill-Sizes | |
|
#14 type "A"
S.M. screw |
Wood | 7/32" (5.5mm) | |
|
1/4 "-20 machine-
screw |
Metal |
drill: #7 (.201*)
tap: ¼ *-20 |
|
|
Sex-nuts and bolts
(Optional) |
Hollow-
Metal |
9/32" (7.00mm.) through;
3/8" (9.50mm.) door-face opposite to closer |
|
| Atuminum or Wood | 3/8" (9.50mm.) through | ||
| Through-bolts and grommet-nuts (Optional) | All |
9/32" (7.00mm.) through;
3/8" (9.50mm.) dia. x 3/8" (10mm.) deep door- face opposite to closer |
|
PS7700ST/PS7500ST Series Non Hold Open Door Closer PS7700ST-H/PS7500ST-H Series Hold Open Door Closer Push Side Slide Track Application With or Without 7788 Drop Plate
www.nortondoorcontrols.com
TEMPLATE NUMBER DATE
7377-0520
07-08
