Norton 7500 Series Door Closer PR7570 PR7770 Parallel Rigid Security Closer Non-Hold Open with or without 7788 Drop Plate Template
Open the original PDF document
View PDF
| Door Opening | Dim. "A" | Dim. "B" | Dim. "C" |
|---|---|---|---|
| To 100° | 8-5/8 (219) | 9-1/8 (232) | 8-3/8 (213) |
| 101° to 120° | 7-7/8 (200) | 8-3/8 (213) | 7-5/8 (194) |
| 121° to 180° | 6-3/4 (171) | 7-1/4 (184) | 6-1/2 (165) |

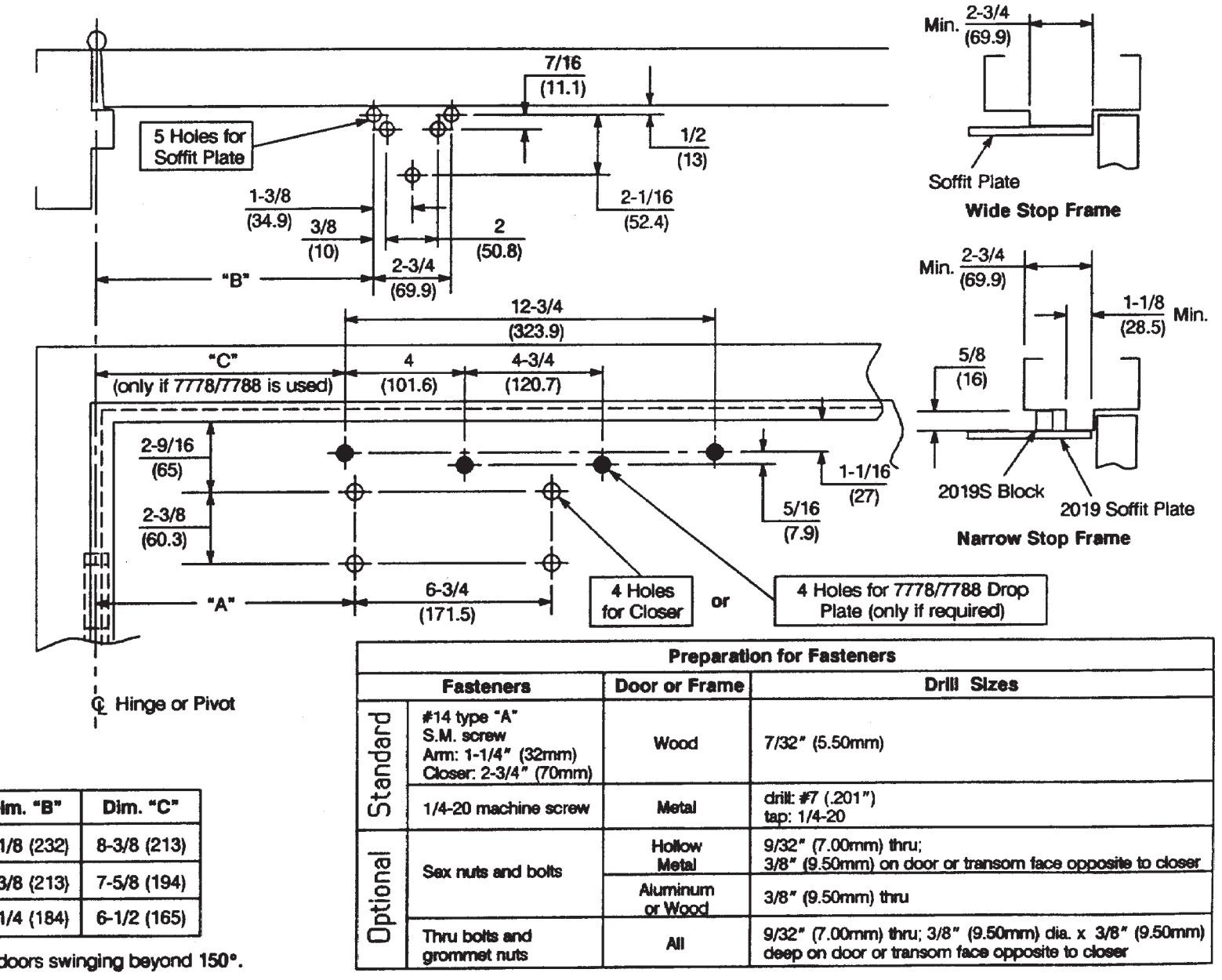

Parallel Rigid Arm Non-Hold Open Installation PR7570 and PR7770 Series Security Door Closer With or Without 7788 Drop Plate or
TEMPLATE NUMBER DATE
7377-0621
07-08
