Norton 7500 Series Door Closer PR7500(H) PR7700(H) Parallel Rigid Non-Hold Open or Hold Open with 6890 Bracket with or without 7788 Drop Plate Template
Open the original PDF document
View PDF

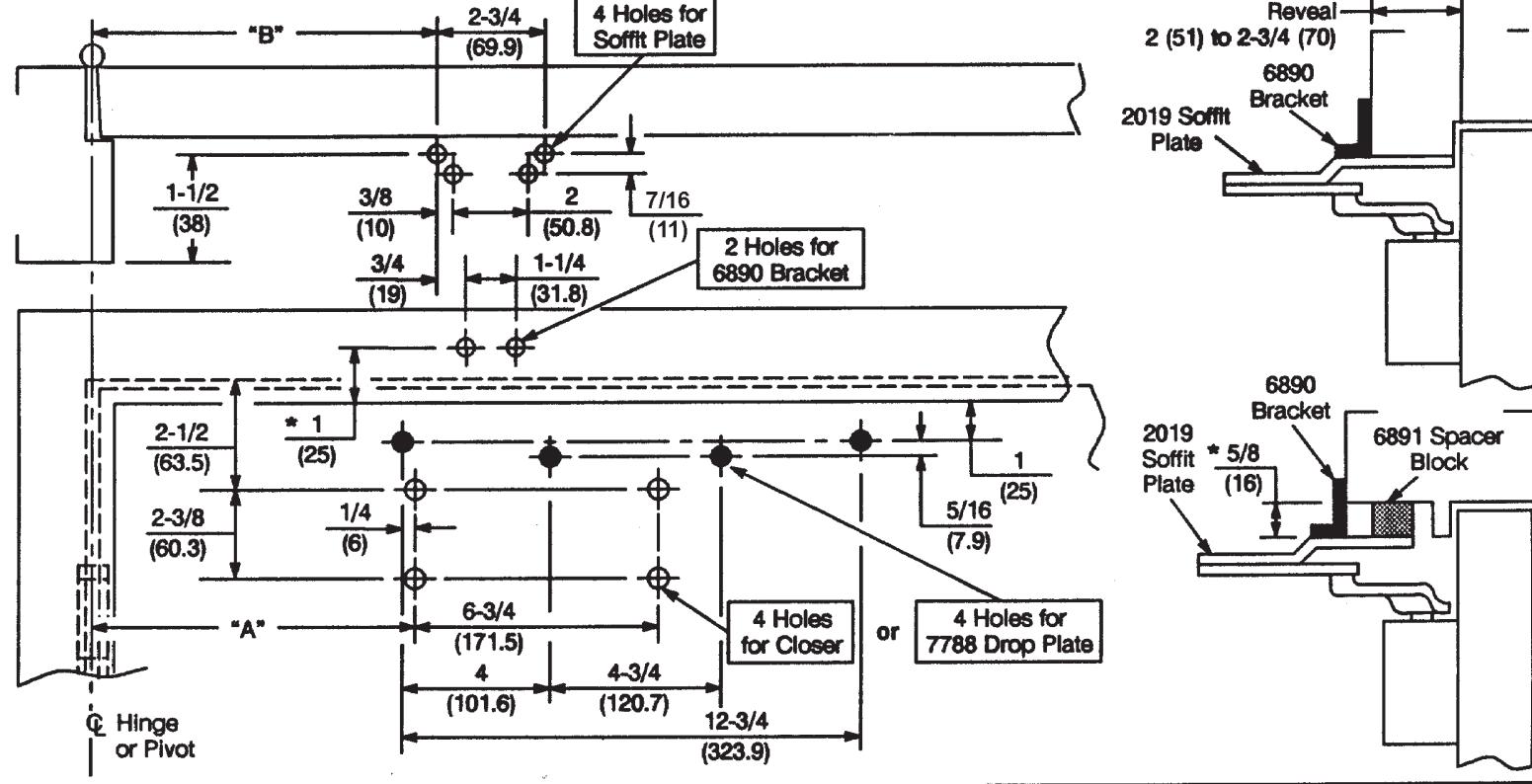

| Door Opening | Dim. "A" | Dim. "B" |
|---|---|---|
| To 100° | 8-3/4 (222) | 9-1/4 (235) |
| 101° to 130° | 7-1/4 (184) | 7-3/4 (197) |
| 131° to 150° | 6-1/4 (159) | 6-3/4 (171) |
| 151° to 180° | 5-1/4 (133) | 5-3/4 (146) |
| Preparation for Fasteners | ||||
|---|---|---|---|---|
| Fasteners | To Apply | Door or Frame | Drill Sizes | |
|
#14 x 1-1/4 (32mm) type
"A" Sheet Metal screw |
Soffit
Plate |
Wood | 7/32" (5.50mm) | |
| Aluminum | 7/32" (5.50mm) | |||
| 1/4-20 machine screw | Metal |
drill: #7 (.201" dia.)
tap: 1/4-20 |
||
| Sex nuts and boits |
Closer or
Drop Plate |
Hollow
Metal |
9/32" (7.00mm) thru;
3/8" (9.50mm) door face opposite to closer |
|
|
Aluminum
or Wood |
3/8" (9.50mm) thru | |||
| Thru bolts and grommet nuts | Optional | All |
9/32" (7.00mm) thru;
3/8" (9.50mm) dia. x 3/8" (10mm) deep, door face opposite to closer |
|
PR7500, PR7500H, PR7700 or PR7700H Series Door Closers With 6890 Bracket With or Without 7788 Drop Plate Parallel Rigid Installation With Non Hold Open or Hold Open
TEMPLATE NUMBER DATE
7377-0253 07-08
