Norton 7500 Series Door Closer P7700PTDO Master Unit Push Side with or without 7788 Drop Plate Template

Preparation for Fasteners
Fasteners Door or Frame Drill-Sizes
Standard	1/4" - 20 machine screw	Metal	Drill: #7 (0.201" dia.) Tap: 1/4" - 20
	Sleeve nuts and bolts	Hollow Metal	9/32" (7 mm) through; 3/8" (9.5 mm) door face opposite to closer
		Aluminum or Wood	3/8" (9.5 mm) through
Optional	Through-bolts and grommet-nuts	All	9/32" (7 mm); 3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer

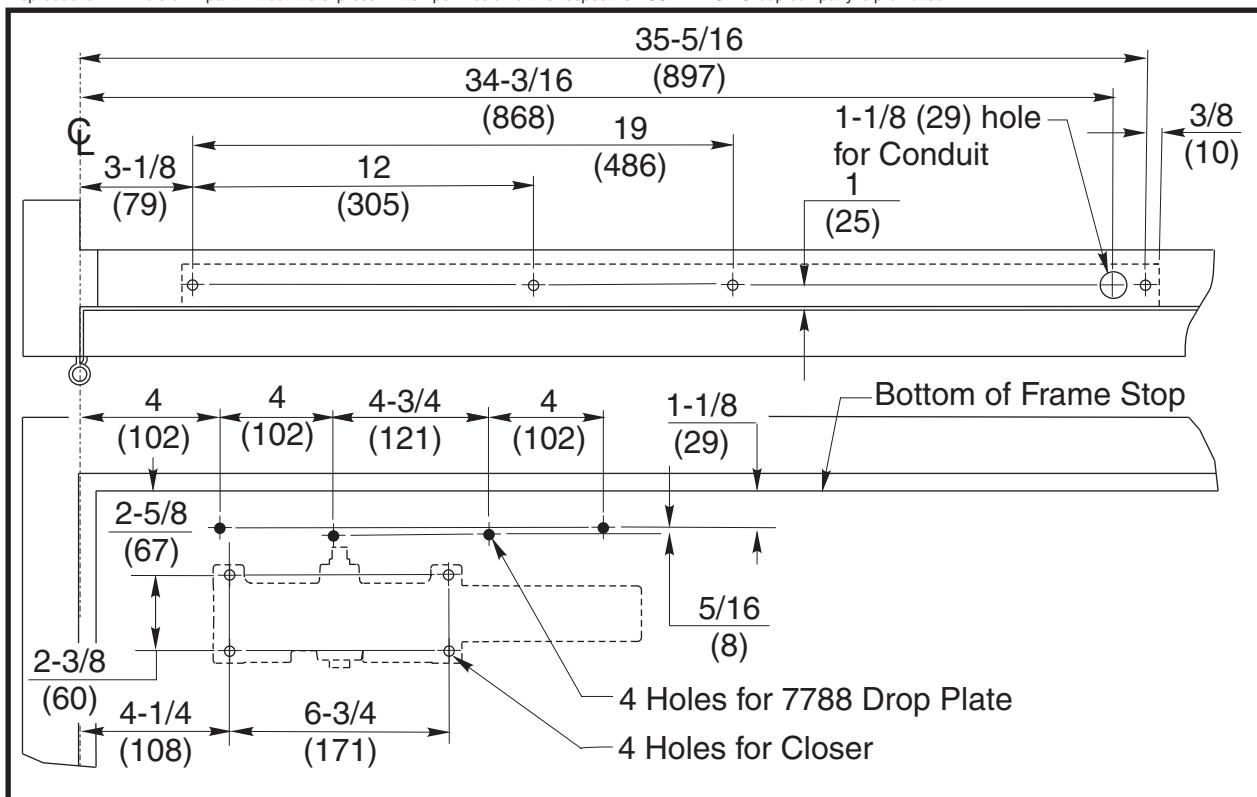

Left Hand Shown

Notes:

• Do not scale drawing.
• Left hand door shown. Same dimensions apply for right hand door, measured from centerline of hinge or pivot.
• Template information based upon use of 4-1/2" hinges or 3/4" offset pivots.
• Dimensions are shown in inches and millimeters (mm).
• Hollow metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
• Sex-nuts are required for wood or plastic faced fire-door installations.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames is .1046 (2.66) unless noted otherwise.
• Maximum door opening is 110°.

Norton Series P7700PTDO Master Unit With or Without 7788 Drop Plate

Combination Door Closer-Holder with Single Point Hold Open Stop (Push) Side of Door Installation
