Norton 7500 Series Door Closer CLP7500(T) CLP7700(T) CPS7500(T) CPS7700(T) Parallel Arm Non-Hold Open or Hold Open x 2019L Flush Transom Bracket with or without 7788 Drop Plate Template
Open the original PDF document
View PDF

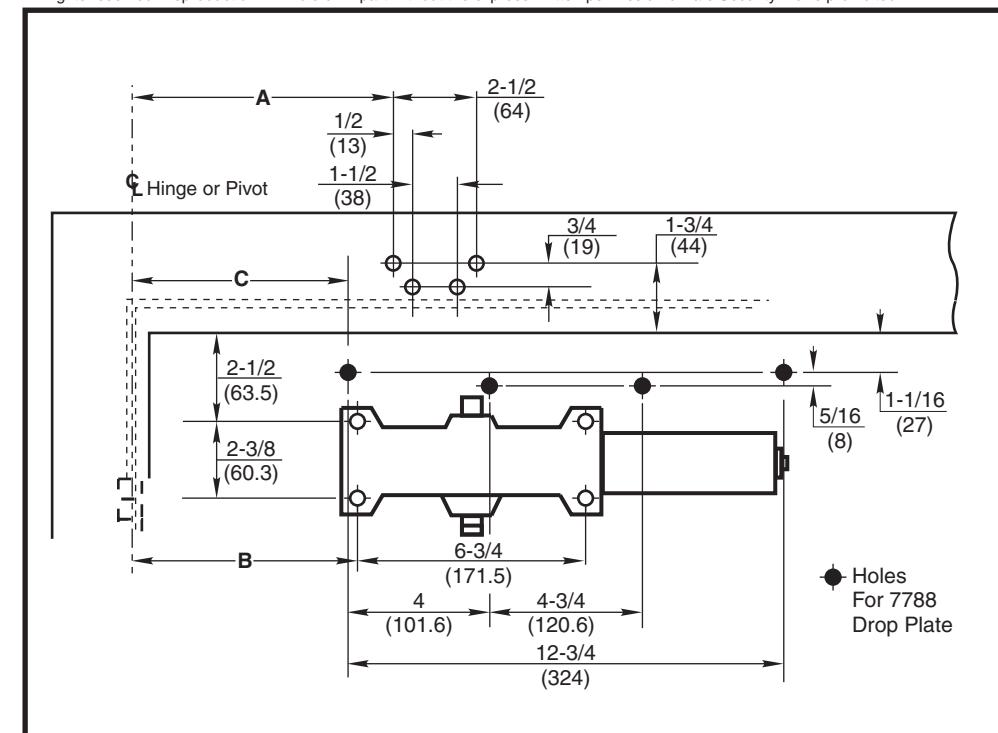

NOTES:
- Do not scale drawing.
- 2. Left hand door shown.
- 3. Dimensions are in inches (mm).
- Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
- Sex-bolts required for wood or plastic faced fire-door mounting.
- 6. Minimum thickness recommended for reinforcements in hollow- metal doors and frames: .0146" (2.66mm).
- 7. Hold Open function "T" Suffix, is not permitted in a fire-door assembly.
- Maximum width hinges for this template are 5" (127mm).
| Opening | Dim. "A" | Dim. "B" | Dim. "C" | |||
|---|---|---|---|---|---|---|
| * | inches | mm | inches | mm | inches | mm |
| 85° | 10-3/4 | 273 | 10-1/4 | 260.5 | 10 | 254 |
| 90° | 9-7/8 | 251 | 9-3/8 | 238 | 9-1/8 | 232 |
| 95° | 9-1/4 | 235 | 8-3/4 | 222.5 | 8-1/2 | 216 |
| 100° | 8-1/2 | 216 | 8 | 203 | 7-3/4 | 197 |
| 105° | 8 | 203 | 7-1/2 | 190.5 | 7-1/4 | 184 |
| 110° | 7-3/8 | 187.5 | 6-7/8 | 174.5 | 6-5/8 | 168 |
★Template dimensions are for hold open/door stop within <sup>†</sup>2° of charted door openings. Doors may overtravel up to 5° beyond the rest position.
| Top View Typical Installation | |||||
|---|---|---|---|---|---|
| Left Hand Door Stop | Right Hand Door Stop | ||||
| Pinion Flat For Adjustment Instruction | Right Hand Pinion Flat as See inside Closer Cover | ||||
| Fasteners | Frame | Door | or Drill-Sizes | |
|---|---|---|---|---|
|
#14 Type A
Sheet Metal Screw |
Wood | none |
3/16" (4.8 mm)
Pilot Hole Required |
|
| 1/4" - 20 machine screw | Metal | none |
Drill: #7 (0.201" dia.) or 5.1mm
Tap: 1/4" - 20 |
|
| Sleeve nuts and bolts | none |
Hollow
Metal |
9/32" (7 mm) through;
3/8" (9.5 mm) door face opposite to closer |
|
| Aluminum or Wood | 3/8" (9.5 mm) through | |||
CLP-7500, CLP-7700 CloserPlus® Arm or CPS-7500, CPS-7700 CloserPlus Spring™ Arm Parallel Arm Application x 2019L Flush Transom Bracket With or Without 7788 Drop Plate Arm Function: Stop Only or Stop & Hold Open ("T" or "R" Suffix) Power Size 1-6 for 7500; 2, 3,4, 5 or 6 for 7700
www.nortondoorcontrols.com
TEMPLATE NUMBER
DATE
7377-1303
11-13
