Installation Instructions

CloserPlus Ramp™ Door Closers (CLP-R)

Model Numbers Included:

Series Function Sizing CLP7500B HO 1-6

CLP770XR HO 2 THRU 6

"X" Designates closer size 2, 3, 4, 5, or 6

ASSA ABLOY

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These instructions should be followed to avoid the possibility of misapplication or misadjustment.

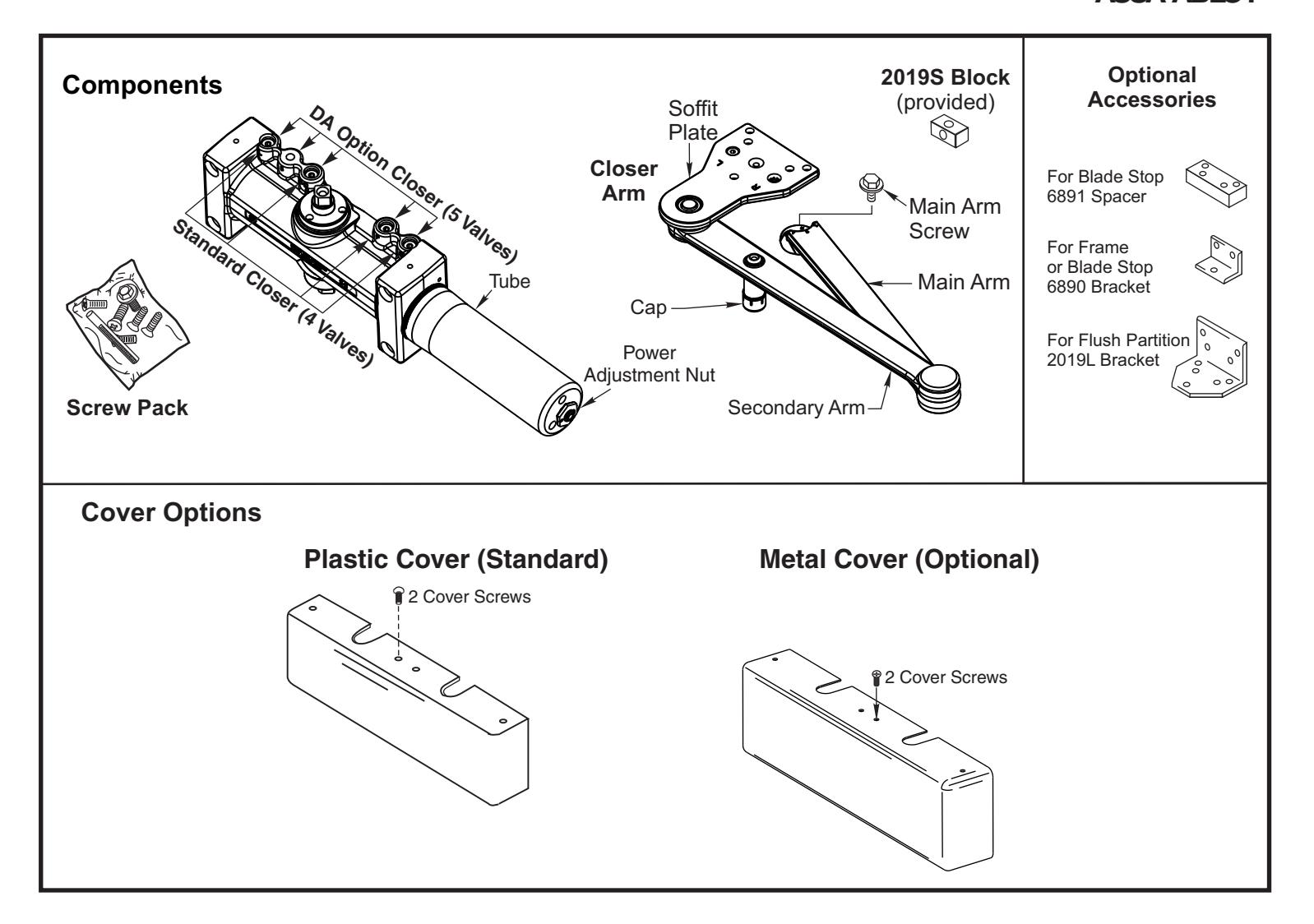

Additional Closer Options:

• "DA" indicates Delayed Action closing
• "R" indicates Ramp Hold-Open function, not handed

Optional Accessories:

• 7788 Drop Plate
• 2019L, 6890, 6891 Soffit Plate Accessories

NOTE: For special applications a separate door and frame preparation template is packed with these instructions. In those cases, use this instruction sheet for installation sequence and closer adjustments only.

ASSA ABLOY

	Preparation for Fasteners
Fasteners Self-Drilling Screw		Door or Frame	Drill-Sizes
		Aluminum or Metal	No drill required
Standard		Wood	3/16" (4.80 mm) Pilot hole required
	1/4" - 20 machine screw	Metal	Drill: #7 (0.201" dia.)(5mm) Tap: 1/4" - 20
	Sleeve nuts and bolts	Hollow Metal	9/32" (7 mm) thru; 3/8" (9.5 mm) door face opposite to closer
Optional		Aluminum or Wood	3/8" (9.5 mm) through
	Through-bolts and grommet-nuts	All	9/32" (7 mm) thru; 3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer

Note: Wood doors MUST be pre-drilled when using Self-Drilling Screws.

Installation Instructions

• Select angle of opening and use dimensions shown on Page 4 and Dimension Chart below to locate 4 holes on door for closer body (or 4 holes for 7788 Drop Plate, Page 6, only if required) and 5 holes on stop/rabbet for Soffit Plate (or 4 holes on frame transom for 2019L bracket, only if required). For applications not covered in these instructions, a separate template will be required.
• Prepare door and frame for fasteners using "Preparation for Fasteners" chart on Page 2.
• Install closer body to door, or 7788 Drop Plate, with power adjustment shaft away from hinge edge of door and adjustment valves:

Down for Left Hand Up for Right Hand

Mount 7788 Drop Plate to door ... only if used (see Page 6).

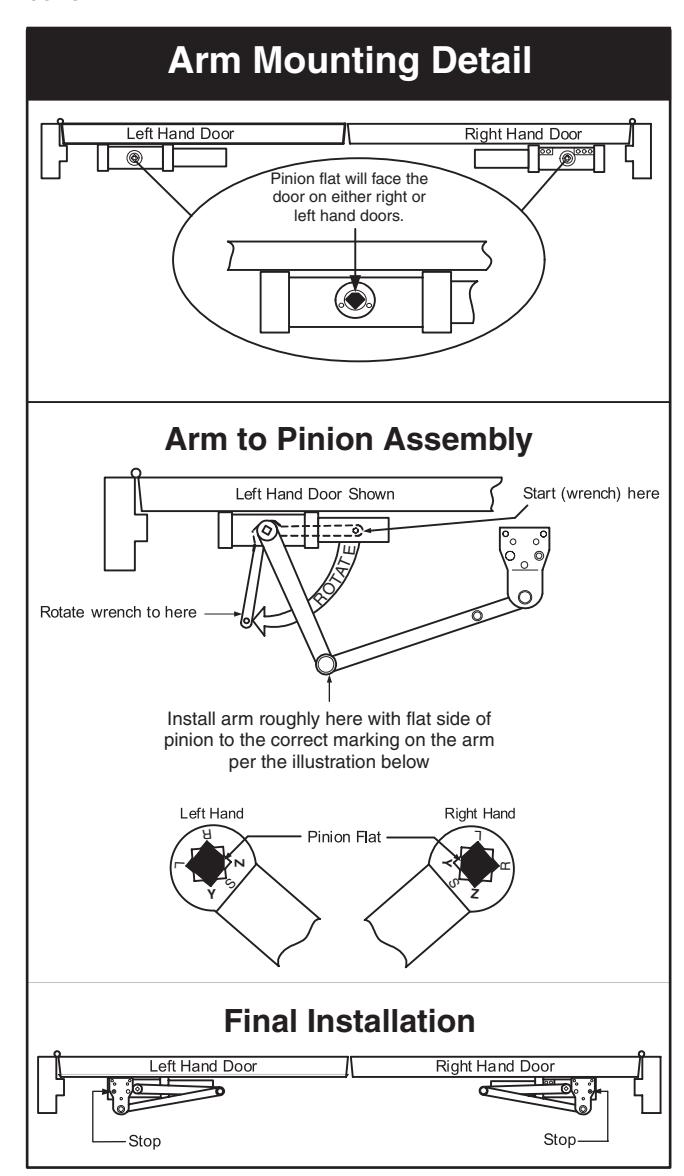

Install Main Arm: Close valves ('S/D' or 'S') and 'L', then using a wrench, rotate the pinion shaft at least 50° to permit alignment of the Pinion Flat with the proper arm mark:

'Z' for Left Hand 'Y' for Right Hand

See below right for illustrations of this procedure.

Power Adjustment Chart
	5.	★ MAXIMUM DOOR SIZE
DOOR	Dim		32" (0.81m)	36" (0.9 m)	42" (1.1 m)	48" (1.2 m)
INT	CLP7500	EE TURNS USTMENT	0	3	5	8
EXT	CLP/300	GREET ADJUST AFT	4	6	8	12
INT	CLP7700	FULL 360 DE OF POWER A SH,	0	2	5	8
EXT	CLF//UU	FP.	2	5	8	11

*17 - 360°, MAXIMUM AVAILABLE

Installation Dimensions Chart
	Dim	Up to 90°	90°- 95°	95°- 100°	100°- 105°	105°- 110°	110°- 115°
CLP7500/ CLP770X	A in./(mm)	10-1/8 (257)	9-1/4 (235)	8-5/8 (219)	7-7/8 (200)	7-3/8 (187)	6-3/4 (171)
	B in./(mm)	10-5/8 (270)	9-3/4 (248)	9-1/8 (232)	8-3/8 (213)	7-7/8 (200)	7-1/4 (184)
	C in./(mm)	10-3/4 (273)	9-7/8 (251)	9-1/4 (235)	8-1/2 (216)	8 (203)	7-3/8 (187)

• Reopen valves ('S/D' or 'S') and 'L', that were closed in previous step.

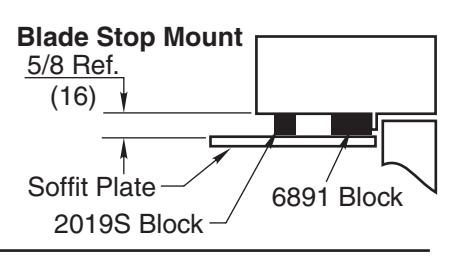

• With door closed, align soffit plate with holes in frame and fasten to frame with screws. Use 2019S and/or 6891 spacer blocks or 6890 reinforcing bracket as required.
• 7500 Series Closers only: Closer is shipped from factory set at mid-range. Using "Power Adjustment" chart below, rotate power adjustment shaft with 1/8" allen wrench supplied: Turn CLOCKWISE to increase power. Turn COUNTER-CLOCKWISE to decrease power. See Page 7 for the illustration of this step.
• Make adjustments to closer before installing cover. See Page 7 for closer adjustment instructions. CAUTION: Do Not back valves out of closer body or a fluid leak will result.
• Install cover.

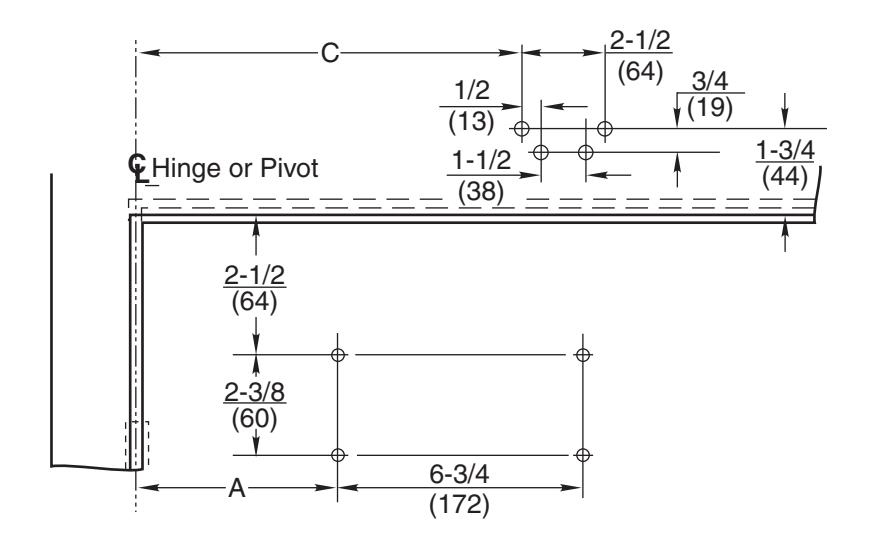

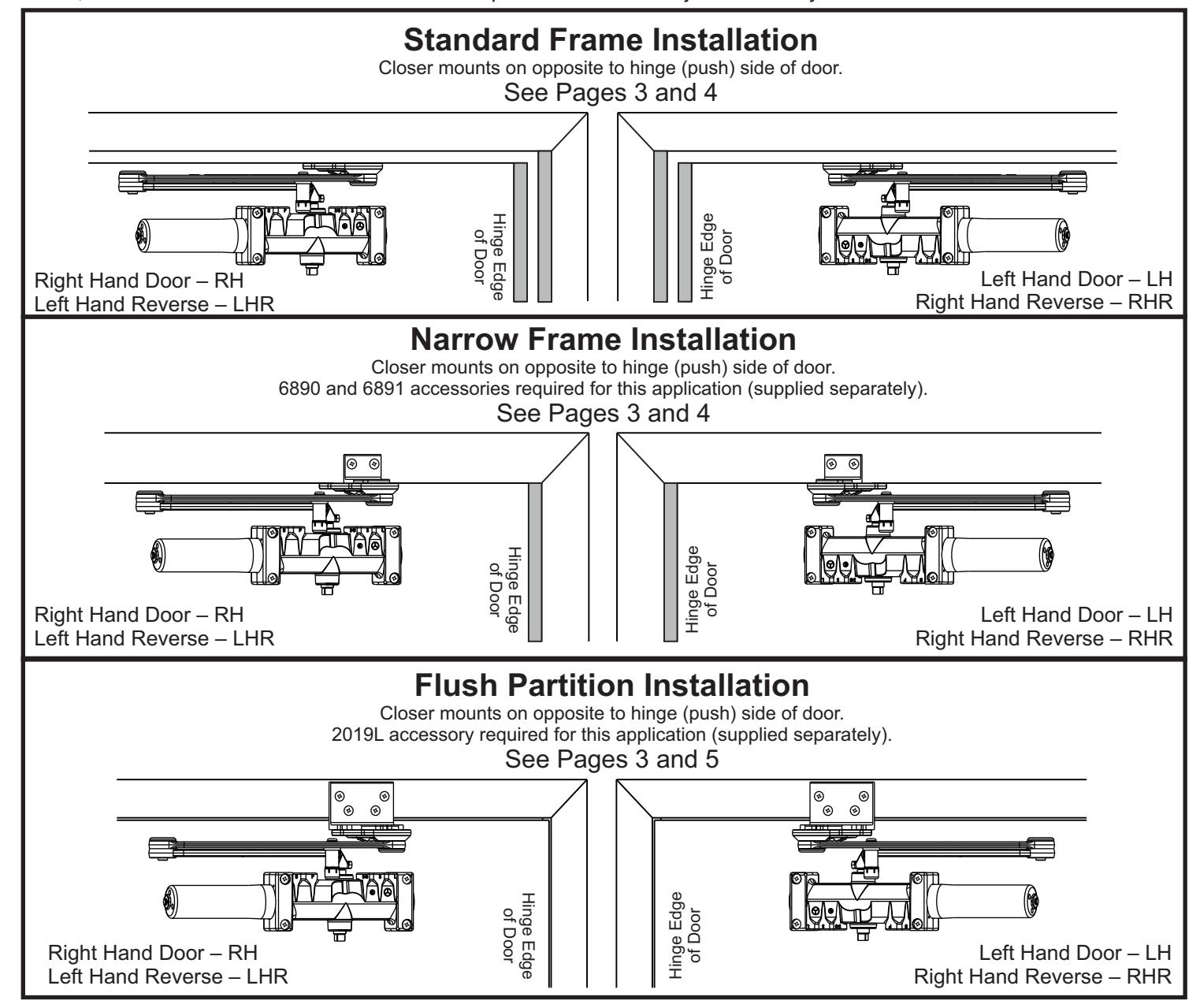

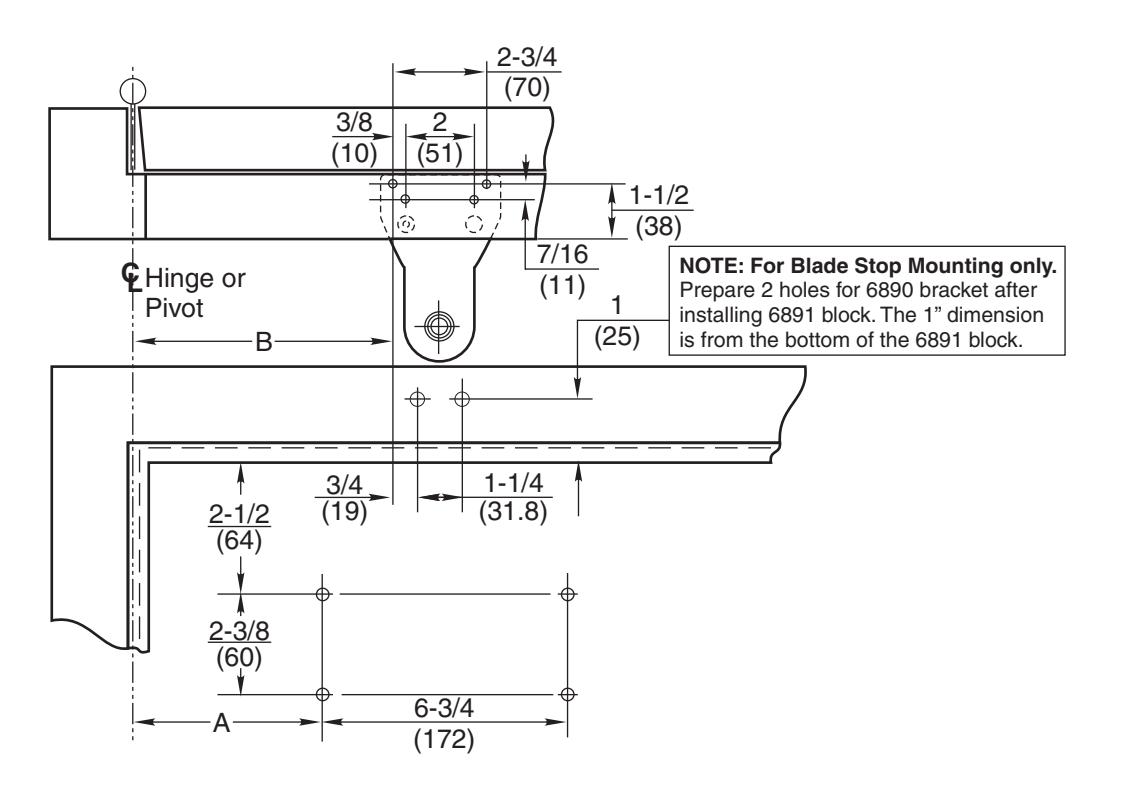

Standard Frame

Notes:

Do Not Scale Drawing.

Left Hand Door Shown.

Same dimensions apply for Right Hand

Door measured from centerline of pivot point. Dimensions are in inches (mm).

See Page 3 for A, B, & C dimension values.

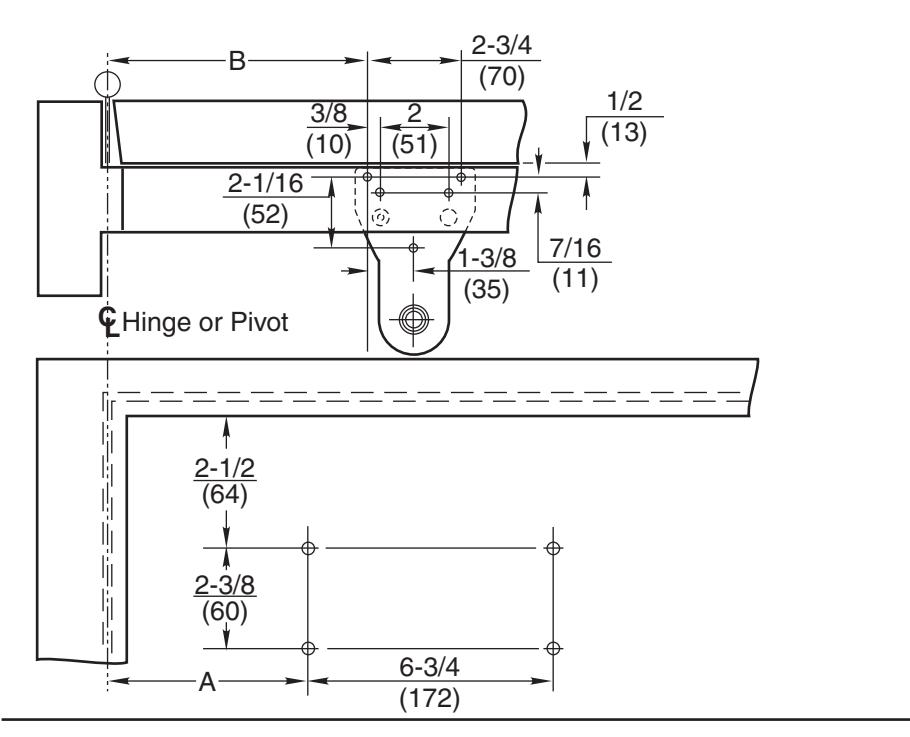

Narrow Frame

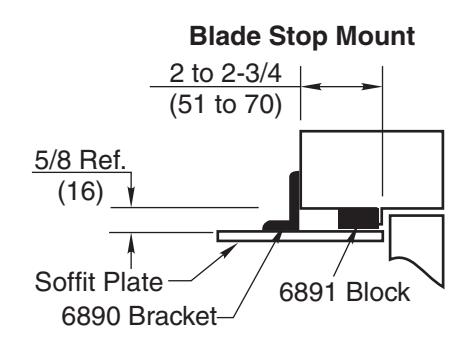

Narrow Frame Mount 2 to 2-3/4 (51 to 70) Soffit Plate 6890 Bracket

Flush Partition

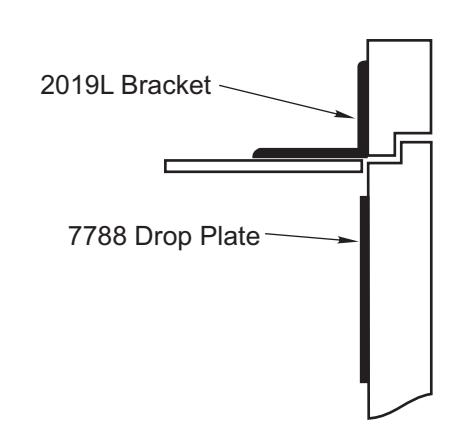

7788 Drop Plate Mounting Holes

Notes:

Left Hand Door Shown.

Same dimensions apply for Right Hand Door measured from centerline of pivot point. Dimensions are in inches (mm).

See Chart below for D dimension values.

ASSA ABLOY

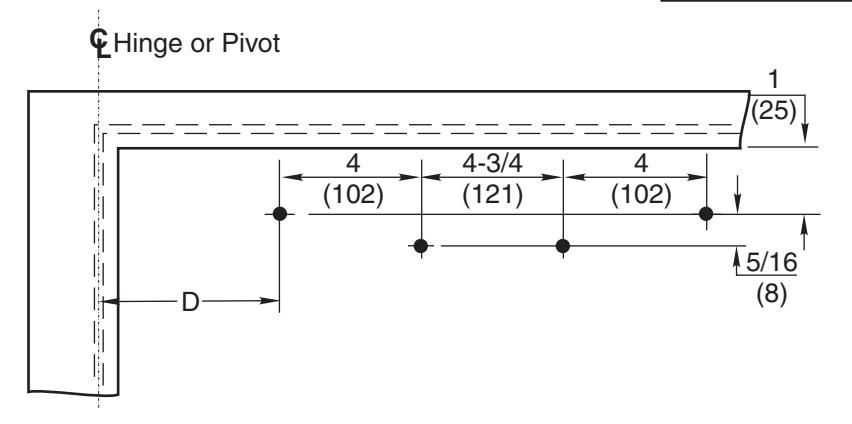

Standard Frame

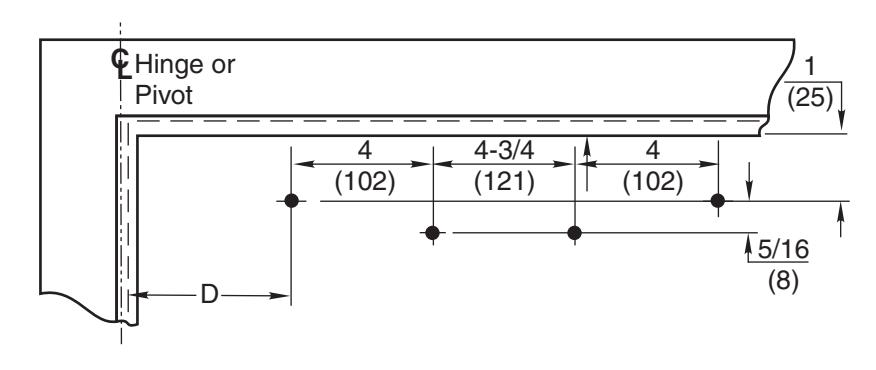

Narrow Frame

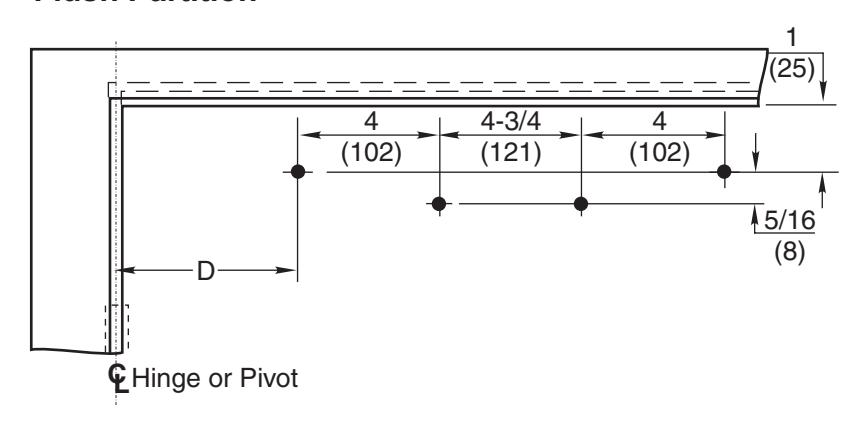

Flush Partition

Installation Dimensions Chart
	Dim	Up to 90°	90-95°	95-100°	100-105°	105-110°	110-115°
CLP7500R CLP7500XR	D	inch/(mm) 9-7/8 (251)	9 (229)			8-3/8 (213) 7-5/8 (194) 7-1/8 (181) 6-1/2 (165)

Unit Adjustment

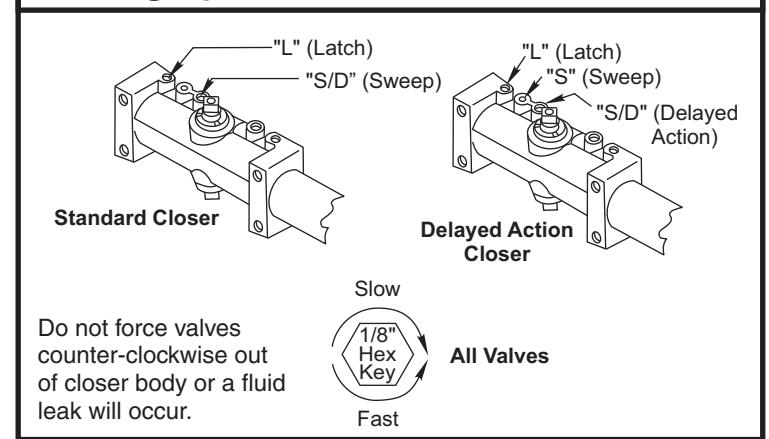

Control Valve Adjustments

(See Figure 3.)

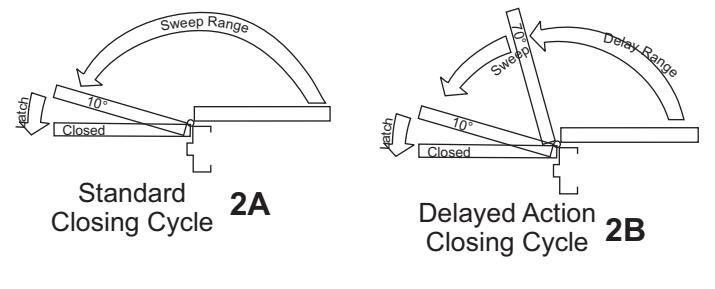

Closing Speed Controls (Figure 2A or 2B and 3.)

• Valve "S" Controls Sweep Range.
• Valve "L" Controls Latch Range.

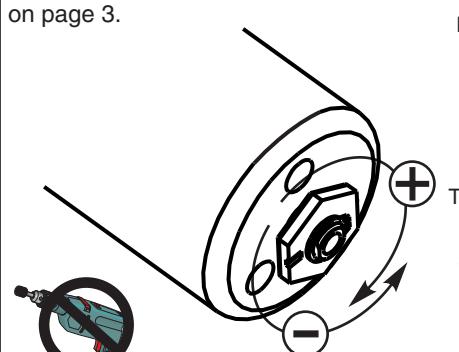

Closing Power Control Figure 1

For 7500 Series Only

Set closer to desired size. For recommended sizes, refer to the Power Adjustment Chart

Install closer per instructions with the proper pre-load applied to the arm then adjust spring power. The power adjustment will not work properly if the closer spring is not pre-loaded. To increase power, use 11/16" wrench to turn power adjustment nut clockwise. To decrease power, turn nut counter clockwise.

DO NOT use a power drill or driver to turn adjustment nut. This will damage closer and void warranty.

Closing Speed Controls

Figure 2

Adjust Closing Speed Time to between 3 to 7 seconds from 90°. Use of the door by handicapped, elderly or small children may require greater closing time.

Closing Speed Controls

Figure 3

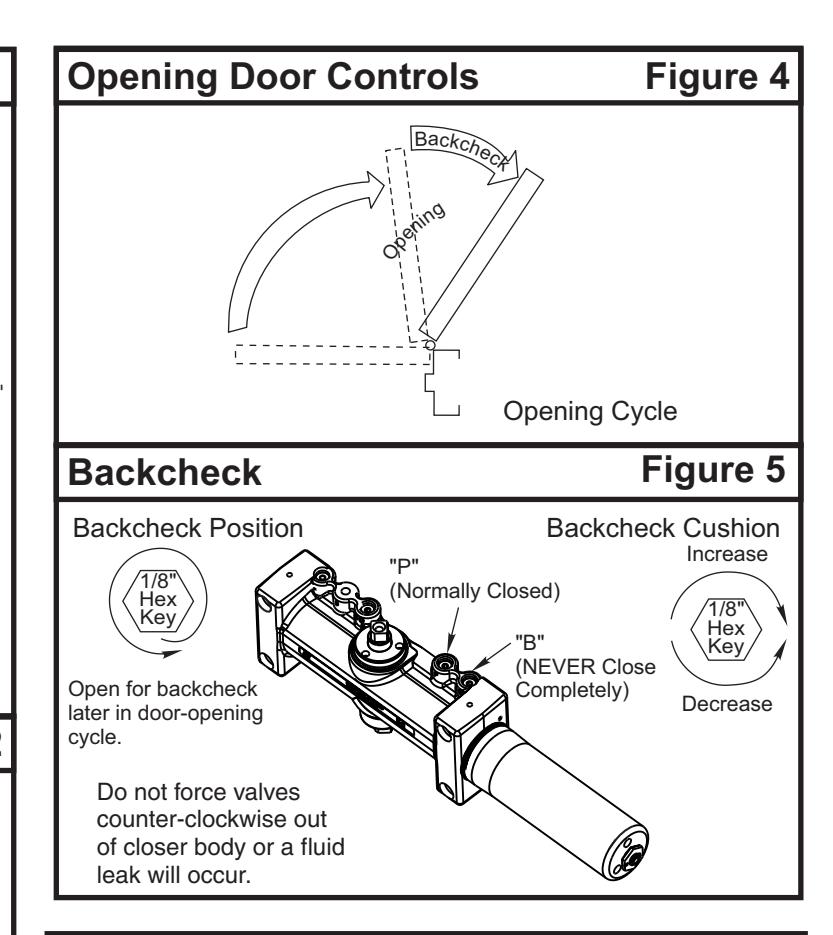

Opening Cycle

"Backcheck" valve controls the strength of cushioning in Backcheck Range. NEVER close this valve completely – it is not to provide a positive stop. (see Figure 4 and Figure 5).

Hold-Open Feature

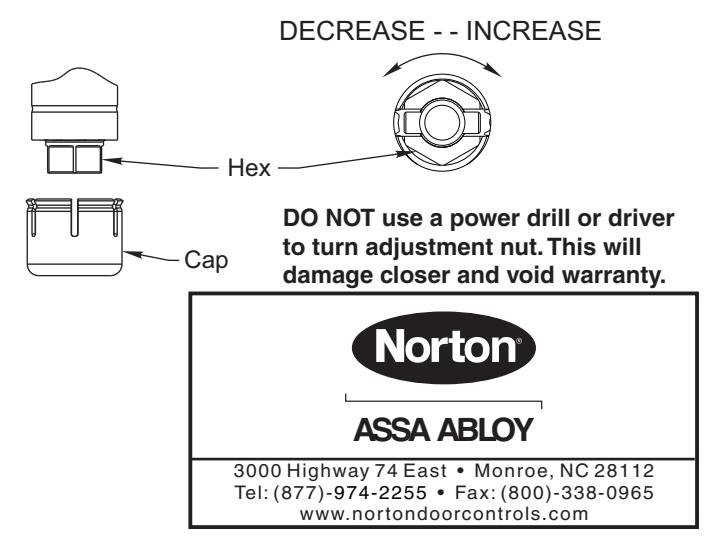

The hold-open mechanism is controlled by the hex nut feature located on the secondary arm underneath cap. Remove the cap by pulling straight down. Use a 7/16" wrench to adjust. Turning hex nut feature clockwise will increase the hold-open force. Turning hex nut feature counterclockwise will reduce the hold-open force. Hold-open mechanism can not be disengaged.
