Installation Instructions

NOITU

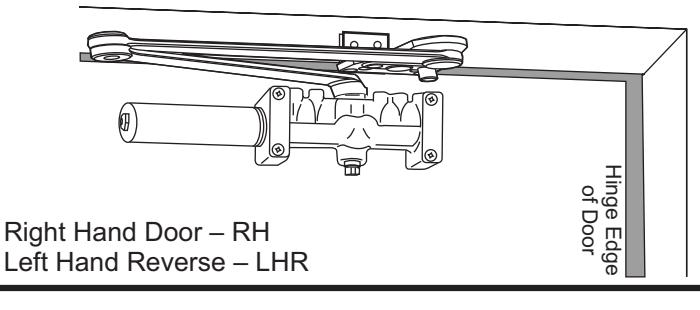

Parallel Rigid Arm (PR) CloserPlus (CLP)

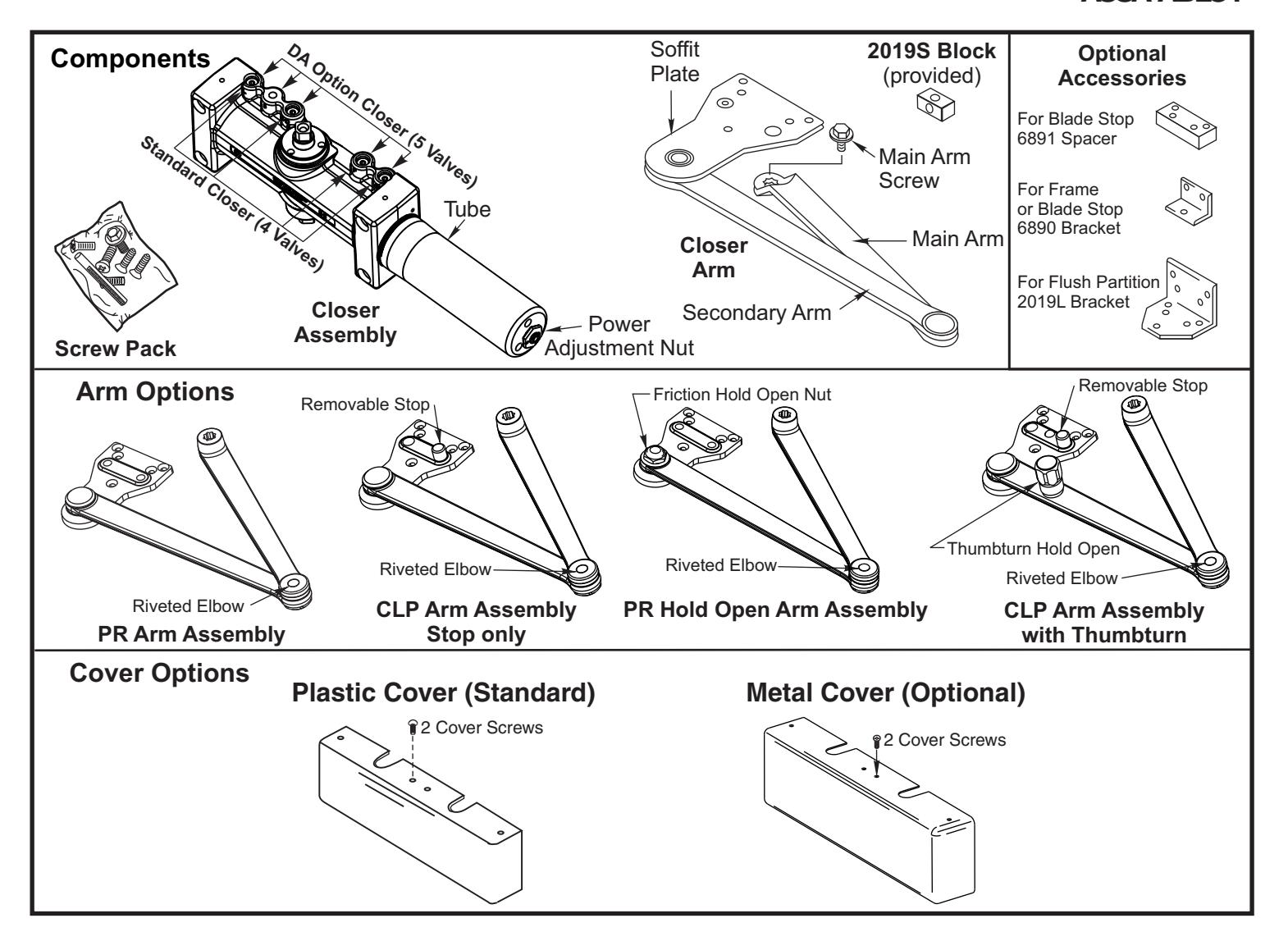

Model Numbers Included:

Series Function Sizing Parallel Rigid Arm Units PR7500 NHO 1-6 PR7500H HO " PR770X NHO 2 THRU 6 PR770XH HO "

CloserPlus Arm Units

CLP-7500 NHO 1-6 CLP-7500T HO " CLP-770 X NHO 2 THRU 6 CLP-770 XT HO "

"X" Designates closer size 2, 3, 4, 5, or 6

ASSA ABLOY An incorrectly installed or improperly adjusted door closer can cause properly damage or personal injury. These instructions should be followed to avoid the possibility of

Additional Closer Options:

• "DA" indicates Delayed Action closing
• "H" indicates Hold-Open function. These components are handed
• "T" indicates Thumbturn actuated Hold-Open control, not handed Optional Accessories:
• 7788 Drop Plate
• 2019L, 6890, 6891 Soffit Plate Accessories

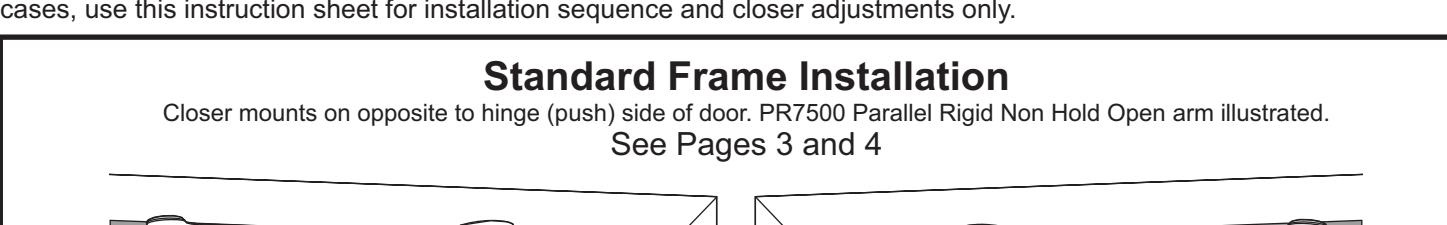

NOTE: For special applications a separate door and frame preparation template is packed with these instructions. In those cases, use this instruction sheet for installation sequence and closer adjustments only.

misapplication or misadjustment

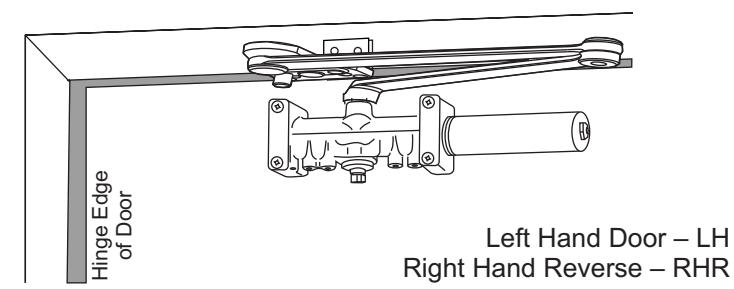

Narrow Frame Installation

Closer mounts on opposite to hinge (push) side of door. CLP7500 CloserPlus arm illustrated. 6890 and 6891 accessories required for this application (supplied separately).

See Pages 3 and 4

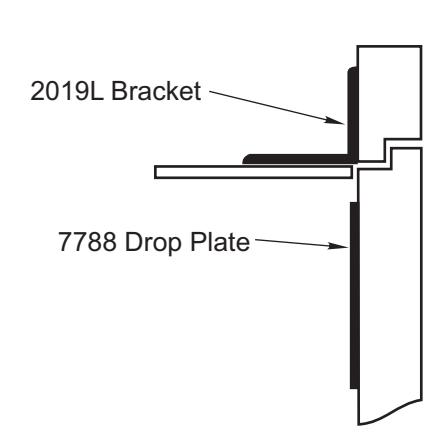

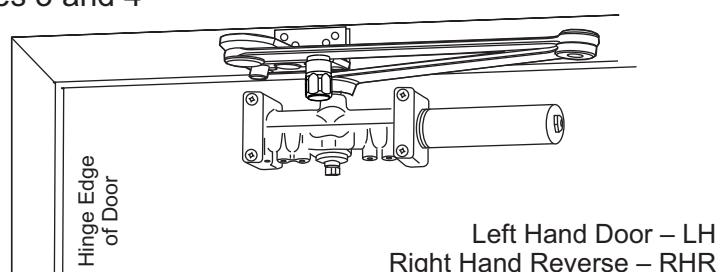

Flush Partition Installation

Closer mounts on opposite to hinge (push) side of door. CLP7500T CloserPlus arm with Thumbturn Hold Open illustrated. 2019L accessory required for this application (supplied separately).

See Pages 3 and 4

ASSA ABLOY

	Preparation f	or Fasteners
	Fasteners	Door or Frame	Drill-Sizes	1
Standard	Solf Drilling Scrow	Aluminum or Metal	No drill required
	Self-Drilling Screw	Wood	3/16" (4.80 mm) Pilot hole required	N
	1/4" - 20 machine screw	Metal	Drill: #7 (0.201" dia.)(5mm) Tap: 1/4" - 20
Optional	Sleeve nuts and bolts	Hollow Metal	9/32" (7 mm) thru; 3/8" (9.5 mm) door face opposite to closer
		Aluminum or Wood	3/8" (9.5 mm) through
	Through-bolts and grommet-nuts	All	9/32" (7 mm) thru; 3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer

Note: Wood doors MUST be pre-drilled when using Self-Drilling Screws.

Installation Instructions

• Select angle of opening and use dimensions shown on Page 4 and Dimension Chart below to locate 4 holes on door for closer body (or 4 holes for 7788 Drop Plate, Page 5, only if required) and 5 holes on stop/rabbet for Soffit Plate (or 4 holes on frame transom for 2019L bracket, only if required). For applications not covered in these instructions, a separate template will be required.
• Prepare door and frame for fasteners using "Preparation for Fasteners" chart on Page 2.

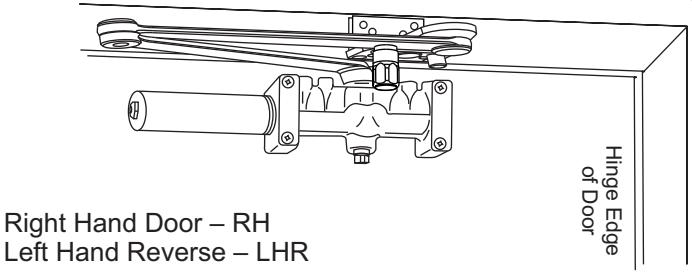

• Install closer body to door, or 7788 Drop Plate, with power adjustment shaft away from hinge edge of door and adjustment valves:

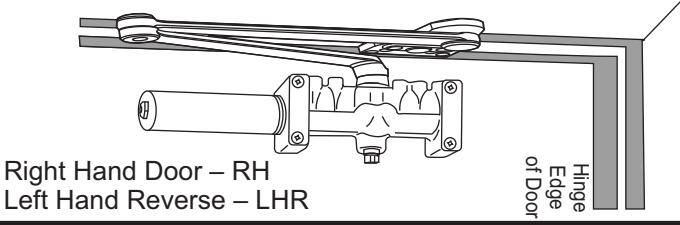

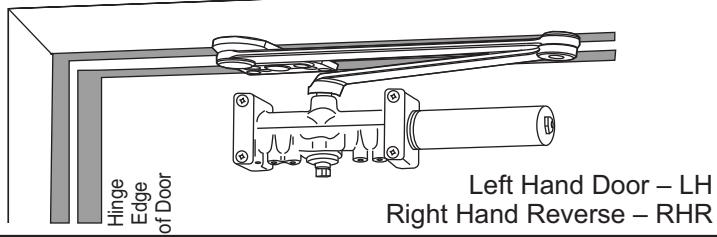

Down for Left Hand Up for Right Hand

Mount 7788 Drop Plate to door ... only if used (see Page 5).

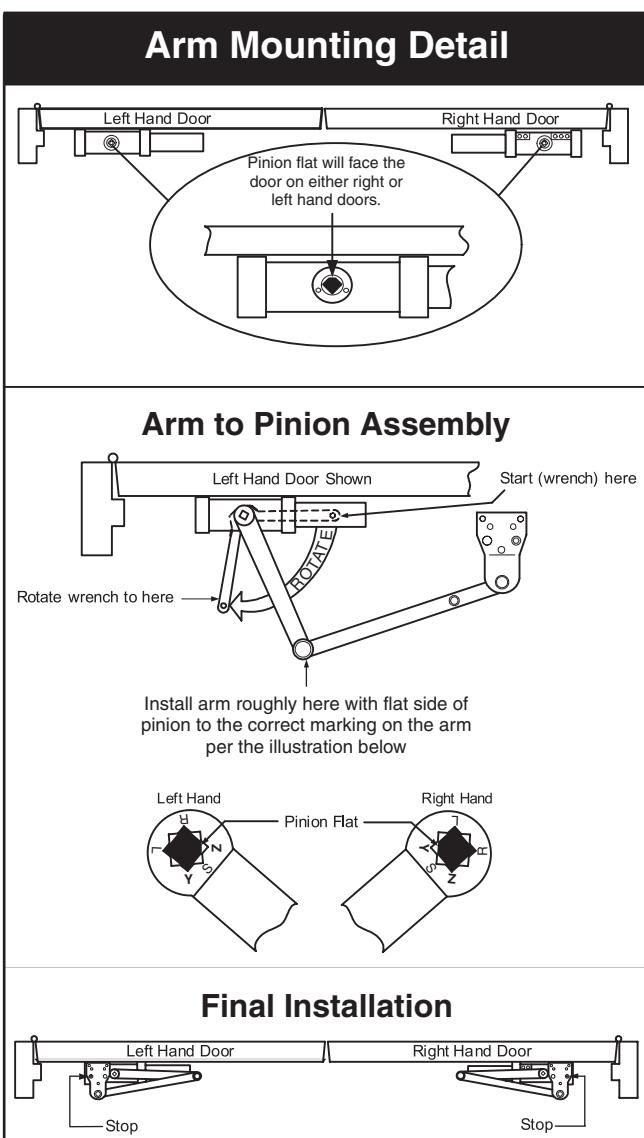

Install Main Arm: Close valves ('S/D' or 'S') and 'L' , then using a wrench, rotate the pinion shaft at least 50° to permit alignment of the Pinion Flat with the proper arm mark:

'Z' for Left Hand 'Y' for Right Hand

See below right for illustrations of this procedure.

Power Adjustment Chart
	PARALLEL ARM		MAXIMUM DOOR SIZE
DOOR	INSTALLATION	*	32" (0.81 m)	36" (0.9 m)	42" (1.1 m)	48" (1.2 m)
INT	PR7500/		0	3	5	8
EXT	CLP7500		4	6	8	12
INT	PR7500/		0	2	5	8
EXT	PR7700/ CLP7700		2	5	8	11

*16.5 -360° TURNS MAXIMUM AVAILABLE

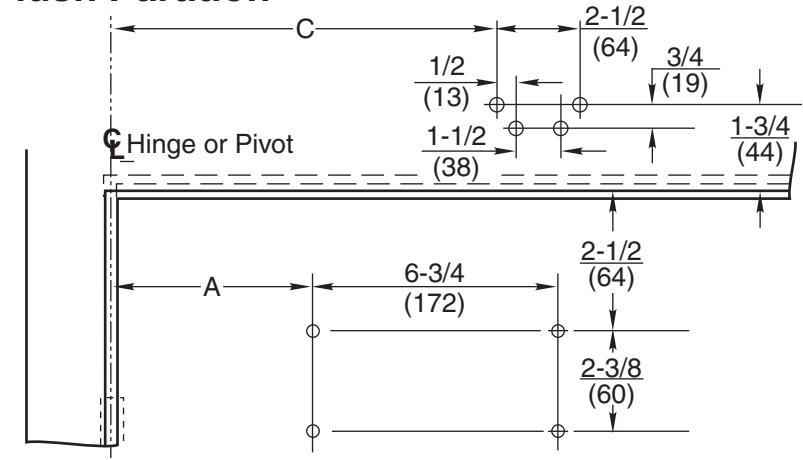

Installation Dimensions Chart
	Dim		Up to 90°	90°- 95°	95°- 100°	100°- 105°	105°- 110°	110°- 115°	115°- 130°	130°- 150°	150°- 180°
	in.		8-3/4			7-1/4				6-1/4	5-1/4
	A	(mm)	(222)			(184)				(159)	(133)
PR7500/		in.		9-1/4	7-3/4				6-3/4	5-3/4
PR770X	B (mm)		(235)			(197)				(171)	(146)
		in.	9-3/8			7-7/8				6-7/8	5-7/8
	C	(mm)	(238)			(200)				(175)	(149)
		in.	10-1/8	9-1/4	8-5/8	7-7/8	7-3/8	6-3/4
	A	(mm)	(257)	(235)	(219)	(200)	(187)	(171)
CLP7500/ CLP770X		in.	10-5/8	9-3/4	9-1/8	8-3/8	7-7/8	7-1/4
	B	(mm)	(270)	(248)	(232)	(213)	(200)	(184)
		in.	10-3/4	9-7/8	9-1/4	8-1/2	8	7-3/8
	C	(mm)	(273)	(251)	(235)	(216)	(203)	(187)

• Reopen valves ('S/D' or 'S') and 'L', that were closed in previous step.
• With door closed, align soffit plate with holes in frame and fasten to frame with screws. Use 2019S and/or 6891 spacer blocks or 6890 reinforcing bracket as required.
• 7500 Series Closers only: Closer is shipped from factory set at mid-range. Using "Power Adjustment" chart below, rotate power adjustment shaft with 1/8" allen wrench supplied: Turn CLOCKWISE to increase power. Turn COUNTER-CLOCKWISE to decrease power See Page 6 for the illustration of this step.
• Make adjustments to closer before installing cover. See Page 6 for closer adjustment instructions.

CAUTION: Do Not back valves out of closer body or a fluid leak will result.

Install cover.

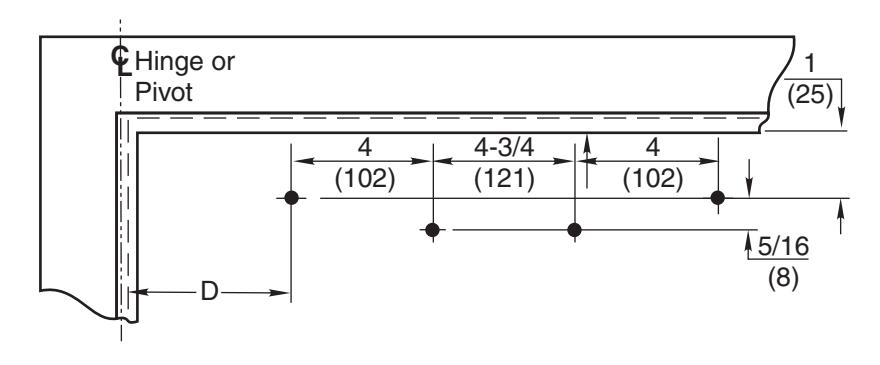

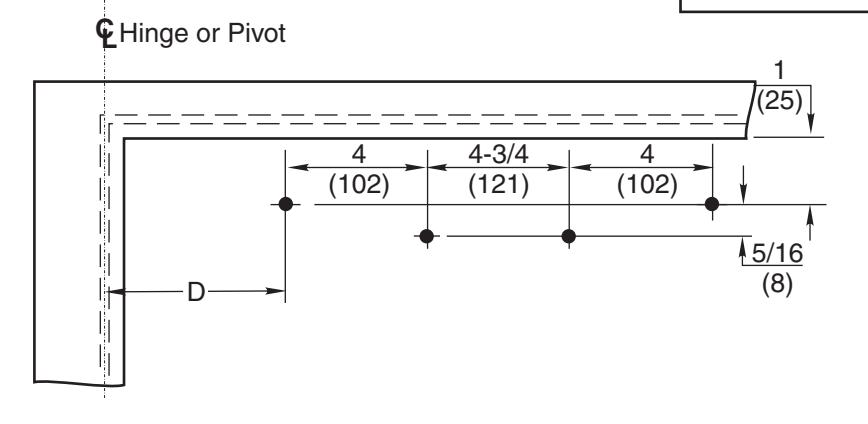

7788 Drop Plate Mounting Holes

Notes:

Left Hand Door Shown.

Same dimensions apply for Right Hand Door measured from centerline of pivot point. Dimensions are in inches (mm).

See Chart below for A dimension values.

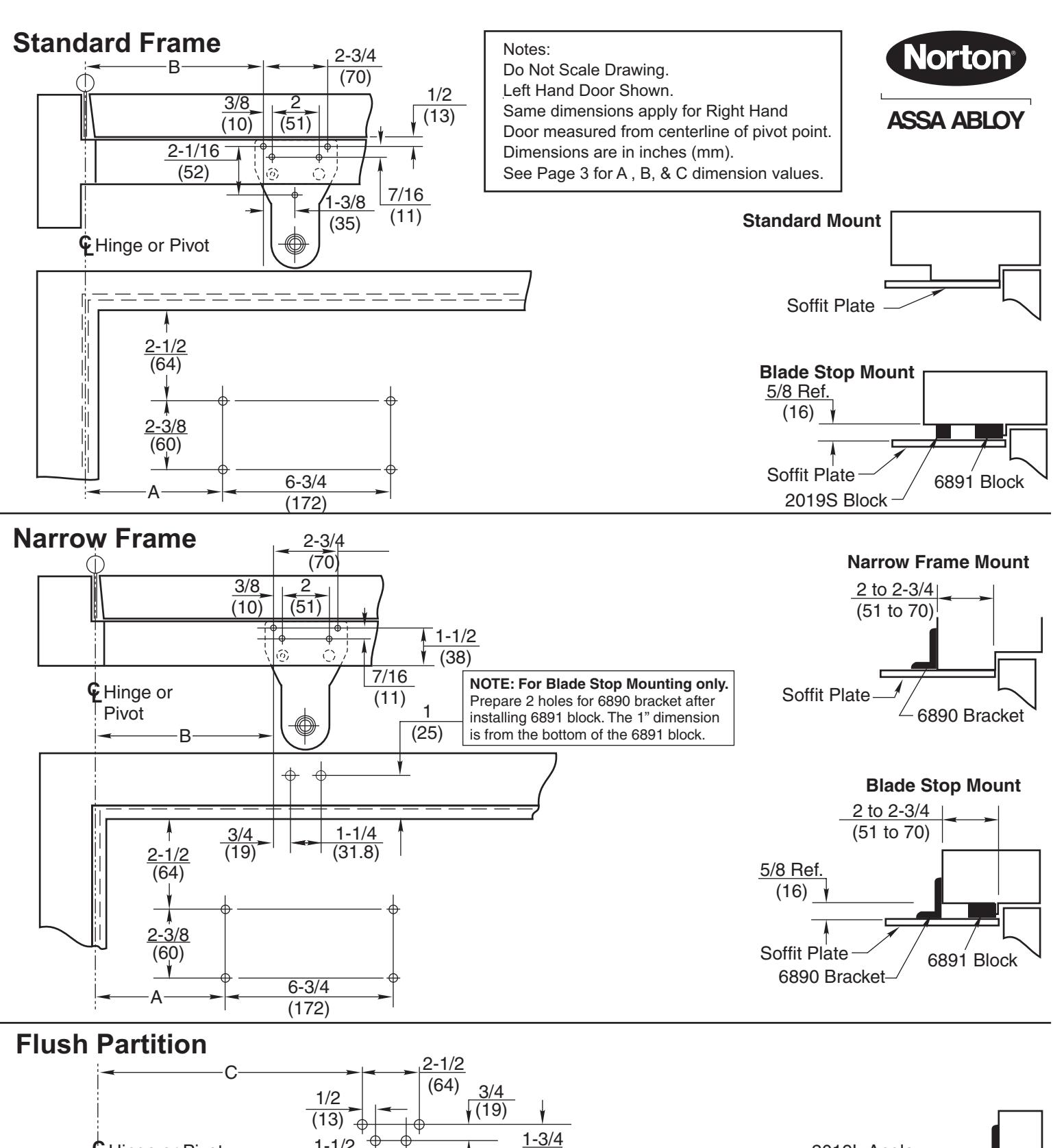

Standard Frame

Narrow Frame

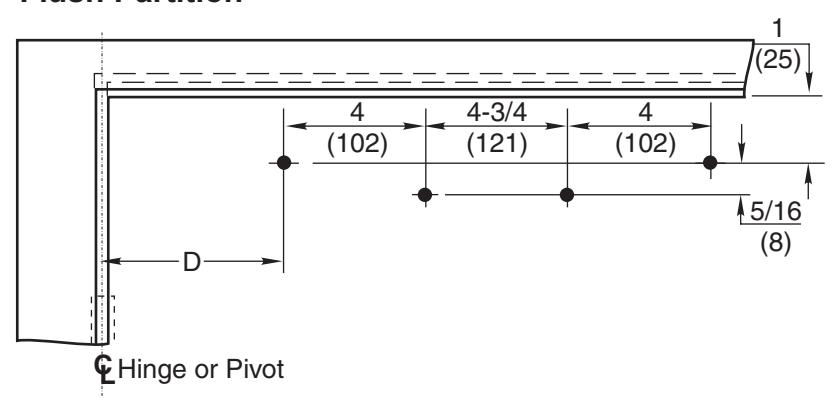

Flush Partition

	Installation Dimensions Chart
	Dim	Up to 90°	90°-95°	95°-100°	100° to 105° 105°-110°		110°-115°		115°-130° 130°-150°	150°-180°
PR7500/ PR7500H/ PR770X/ PR770XH	D inch (mm)	8-1/2 (216)			7 (178)				6 (152)	5 (127)
CLP-7500/ CLP-7500T/ CLP-770X/ CLP-770XT		9-7/8 (251)	9 (229)	8-3/8 (213)	7-5/8 (194)		7-1/8 (181) 6-1/2 (165)

5

Unit Adjustment

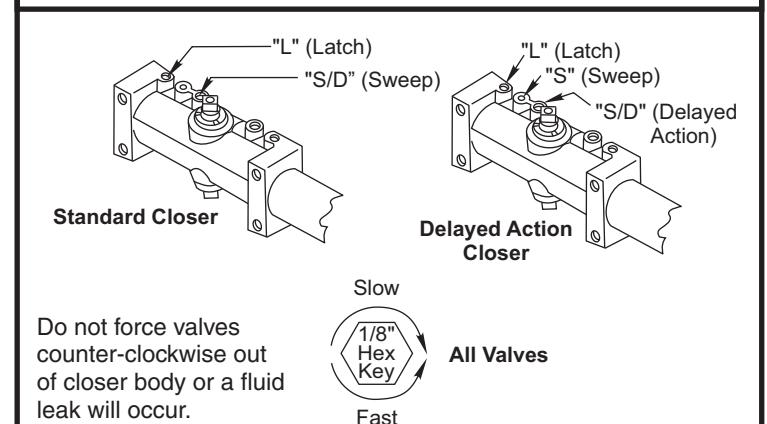

Control Valve Adjustments

(See Figure 3.)

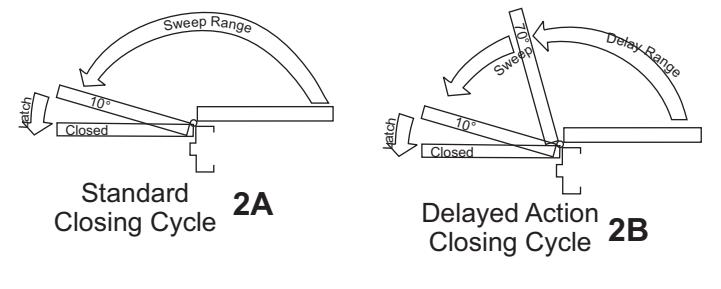

Closing Speed Controls (Figure 2A or 2B and 3.)

• Valve "S" Controls Sweep Range.
• Valve "L" Controls Latch Range.

Closing Power Control

Figure 1

Power Adjustment Chart Maximum Maximum Turns Exterior Interior from Door Size Door Size Zero nches / (mm) inches / (mm) 32 / (813) 28 / (711) 5 36 / (914) 34 / (864) 8-1/2 42 / (1067) 38 / (965) 11 42 / (1067) 13-1/2 52 / (1321)

48 / (1219) NOTE: Maximum of 16-1/2 turns (360°) of Power Adjustment Nut.

DO NOT use a power drill or driver to turn adjustment nut. This will damage closer and void warranty.

60 / (1524)

16-1/2

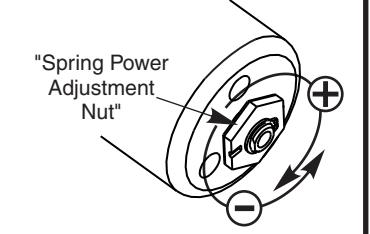

Install closer per instructions with the proper pre-load applied to the arm then adjust spring power. The power adjustment will not work properly if the closer spring is not pre-loaded. To increase power, use 11/16" wrench to turn power adjustment nut clockwise. To decrease power turn nut counter clockwise.

Closing Speed Controls

Figure 2

Adjust Closing Speed Time to between 3 to 7 seconds from 90°. Use of the door by handicapped, elderly or small children may require greater closing time.

Closing Speed Controls

Figure 3

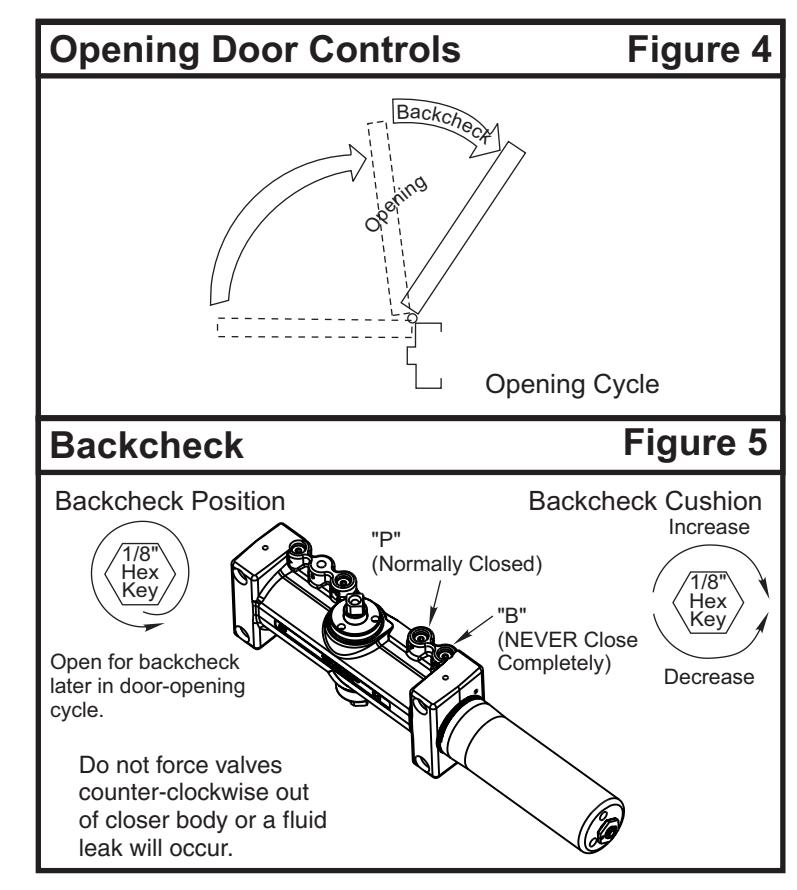

Opening Cycle

"Backcheck" valve controls the strength of cushioning in Backcheck Range. NEVER close this valve completely – it is not to provide a positive stop. (see Figure 4 and Figure 5).

Friction Hold-Open Feature

Hold door open to opening angle desired and tighten holderadjustment-nut (wrench supplied) or use 1" Box or Open End wrench.

$\backslash bigcirc$

Thumbturn Hold-Open Feature

The Thumbturn Hold-Open feature is controlled by the knob located on the arm of the unit. Turning this knob clockwise will engage the Hold-Open mechanism and increase the Hold-Open force. Turning this knob counterclockwise will reduce the Hold-Open force and disengage the Hold-Open mechanism. DECREASE - - INCREASE
