Norton 7500 Series Door Closer 7700PTDO-DE Master Unit Pull Side with Hinge Side Frame Reveal Template
Open the original PDF document
View PDF

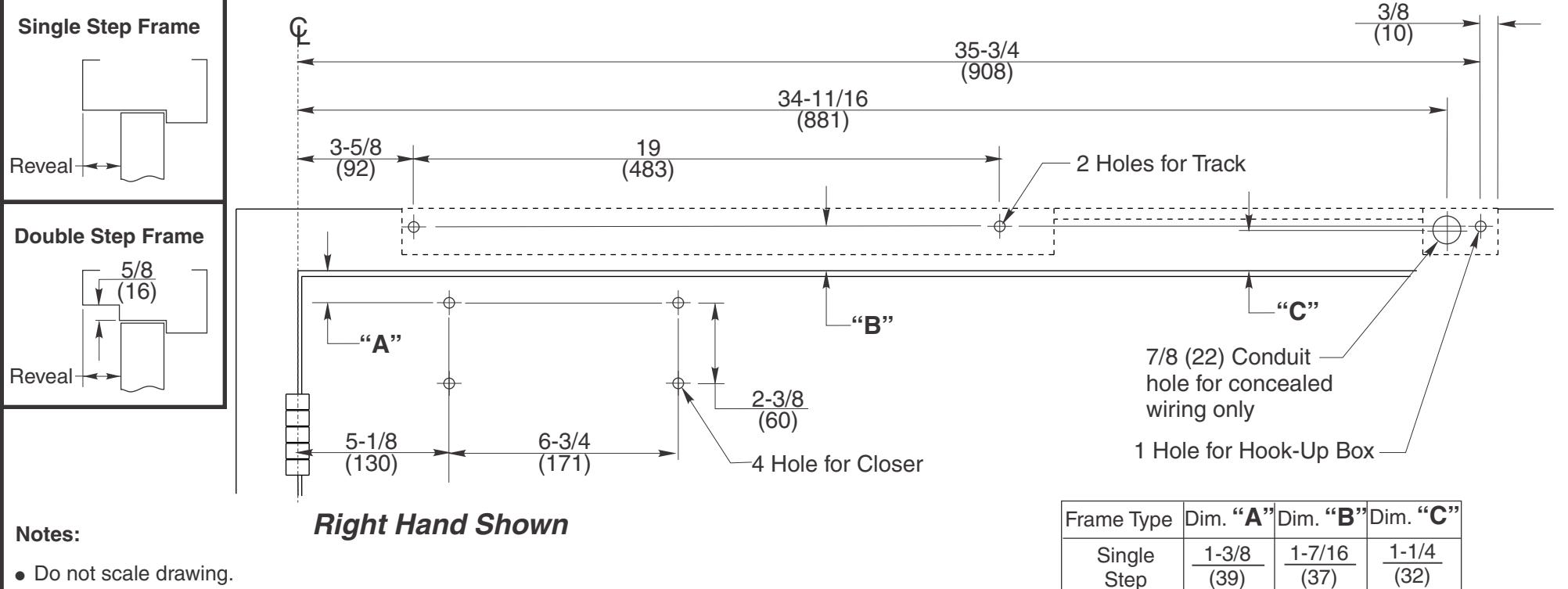

- Right hand door shown. Same dimensions apply for left hand door, measured from centerline of hinge or pivot.
- Template information based upon use of 4-1/2" hinges or 3/4" offset pivots.
- Dimensions are shown in inches and millimeters (mm).
- Hollow metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
- Sex-nuts are required for wood or plastic faced fire-door installations.
- Minimum thickness recommended for reinforcements in hollow metal doors and frames is .1046 (2.66) unless noted otherwise.
- Minimum ceiling clearance for closer unit is 2" (50).
- Maximum door opening is 105°.
- Charted dimensions measured from door rabbet.
| Frame Type | Dim. " A " | Dim. "B" | Dim. " C " |
| Single | 1-3/8 | 1-7/16 | 1-1/4 (32) |
| Step | (39) | (37) | |
| Double | 1-1/4 | 1-5/8 | 1-7/16 |
| Step | (32) | (41) | (37) |
| Preparation for Fasteners | |||||
|---|---|---|---|---|---|
| Fasteners Door or Frame Drill-Sizes | |||||
|
1/4" - 20 machine
screw |
Metal |
Drill: #7 (0.201" dia.)
Tap: 1/4" - 20 |
|||
| Standard | Sleeve nuts and bolts |
Hollow
Metal |
9/32" (7 mm) through;
3/8" (9.5 mm) door face opposite to closer |
||
| Aluminum or Wood | 3/8" (9.5 mm) through | ||||
| Optional | Through-bolts and grommet-nuts | All |
9/32" (7 mm);
3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer |
||
Norton Series 7700PTDO-DE Master Unit
For Installations with a Double Egress Frame Combination Door Closer-Holder with Single Point Hold Open Hinge (Pull) Side of Door Installation with Hinge Side Frame Reveals 1/8" to 3" (3 to 76mm)
