Norton 7500 Series Door Closer 7500H 7700H with or without 7786 Backplate Non-Hold Open or Hold Open Template
Open the original PDF document
View PDF
| Preparation for Fasteners | |||
|---|---|---|---|
| Fasteners |
Door or
Frame |
Drill-Sizes | |
| Standard |
#14 type "A"
S.M. screw Arm: 1-1/4" (32mm.) Closer: 2-3/4" (70mm.) |
Wood | 3/16" (4.30mm.) |
| S | 1/4-20 machine-screw | Metai |
drill: #7 (.201" dia.)
tap: 1/4-20 |
| Optional | Sex-nuts and bolts |
Hollow-
Metal |
9/32" (7.00mm.) through;
3/8" (9.50mm.) on door or transom-face opposite to closer |
| Aluminum or Wood | 3/8" (9.50mm.) through | ||
| Through-bolts and grommet-nuts | AII |
9/32" (7.00mm.) through;
3/8" (9.50mm.) dia ยท x 3/8" (10mm.) deep on door or transom-face opposite to closer |
|

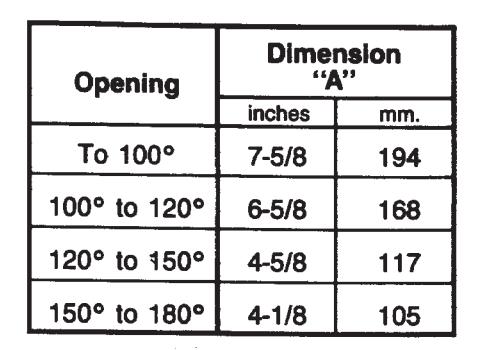

7500, 7700, 7700COU, 7700TEL 7500H, 7700H, and 7700HOSP Series Door Closers With or Without 7786 Backplate Regular Arm Installation With Non Hold Open or Hold Open Arm
www.nortondoorcontrols.com
TEMPLATE NUMBER DATE 7377-0101
07-08
