Norton 7500 Series Door Closer 7500H 7700H W 7797 or 7798 Corner Bracket Non-Hold Open or Hold Open Template
Open the original PDF document
View PDF

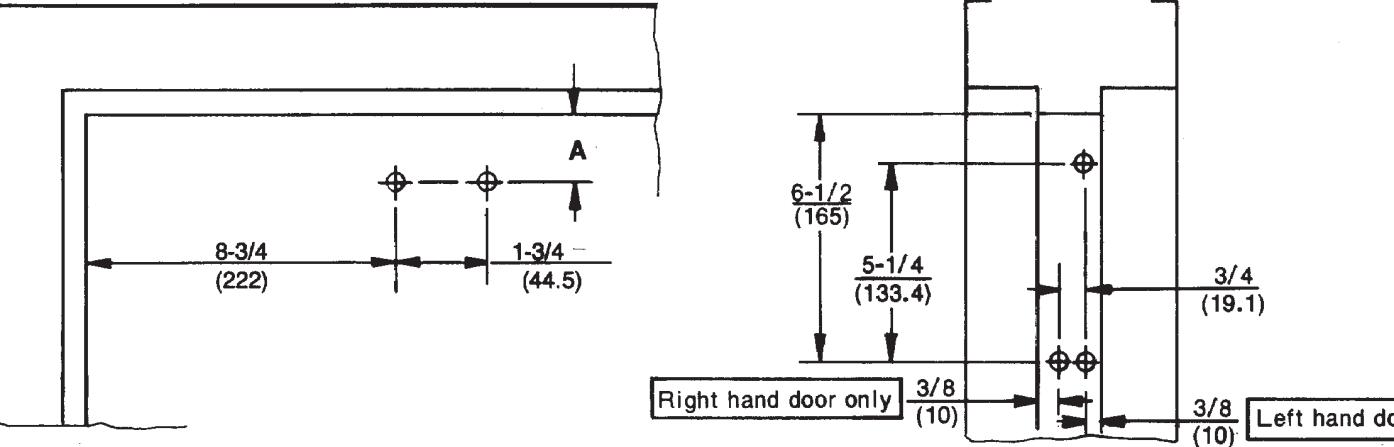

| Corner Bracket | Closer Series | Dimension A | |
|---|---|---|---|
| inches | mm. | ||
| 7798 | 7500-7700 | 3/4 | 19 |
| 7797 | 7500-7700 | 1-7/8 | 48 |
| 7580-7780 | 2-3/8 | 60 | |
| 7500H-7700H | 1-3/4 | 44 | |
| Preparation for Fasteners | |||
|---|---|---|---|
| Fasteners | Door or Frame | Drill-Size | |
|
#14 x ¼" (32mm.) type
"A" S.M. screw (Std.) |
Wood | 3/16" (4:30mm.) | |
| Aluminum | 7/32" (5.50mm.) | ||
|
14"-20 machine screw
(Standard) |
Metal | drill: #7 (.201") tap: ¼"-20 | |
|
Sex-nuts and bolts
(Optional) |
Hollow-metal |
9/32" (7.00mm.) through;
3/8" (9.50mm.) door-face opposite to closer |
|
| A luminum or Wood | 3/8" (9.50mm.) through | ||
| Through-bolts and grommet-nuts (Optional) | All |
9/32" (7.00mm.) through;
3/8" (9.50mm.) dia. x 3/8" (10mm.) deep door-face opposite to closer |
|

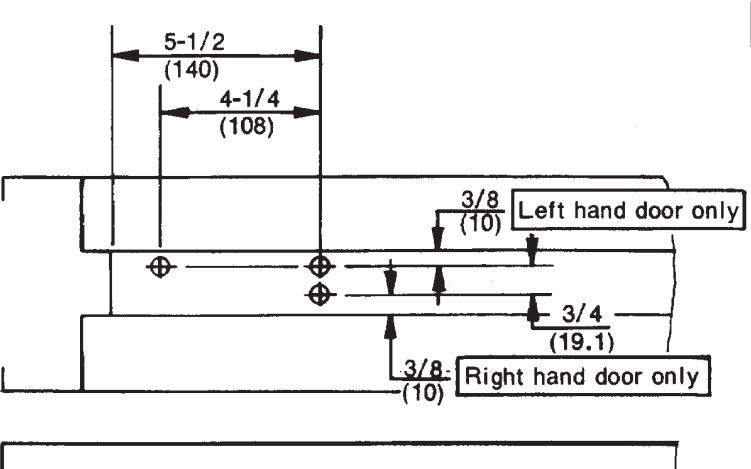

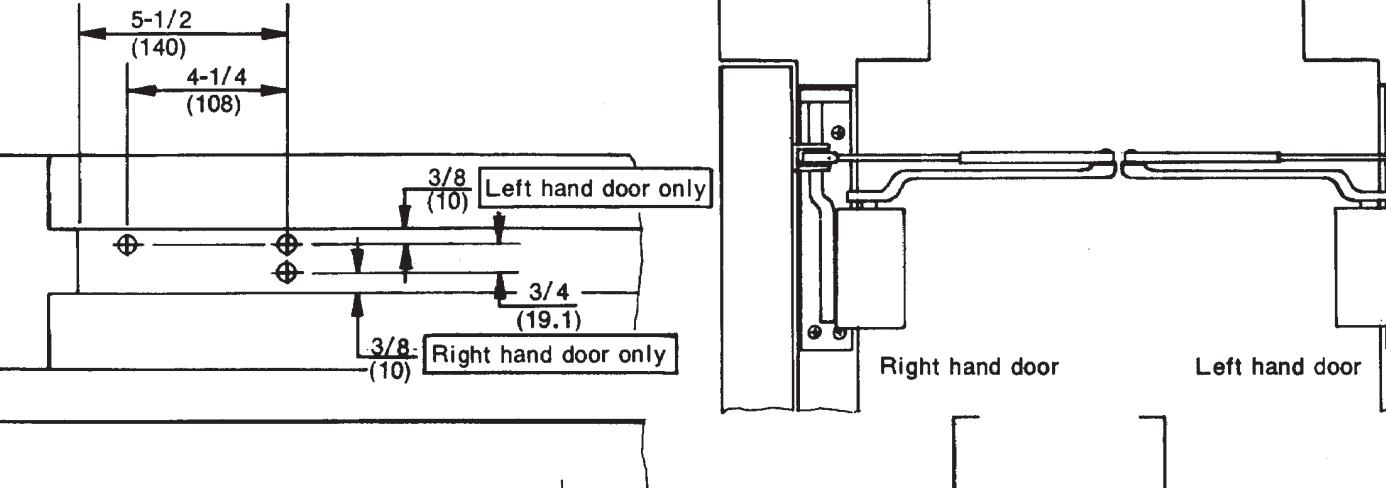

7500, 7500H, 7580, 7700, 7700H, and 7780 Series Door Closers With 7797 or 7798 Corner Bracket Corner Bracket Installation With Non Hold Open or Hold Open Arm
www.nortondoorcontrols.com
TEMPLATE NUMBER DATE
7377-0149
07-08
