Norton 5800 Series Operator ADAEZ Pull Side Mount Right or Left Hand Template

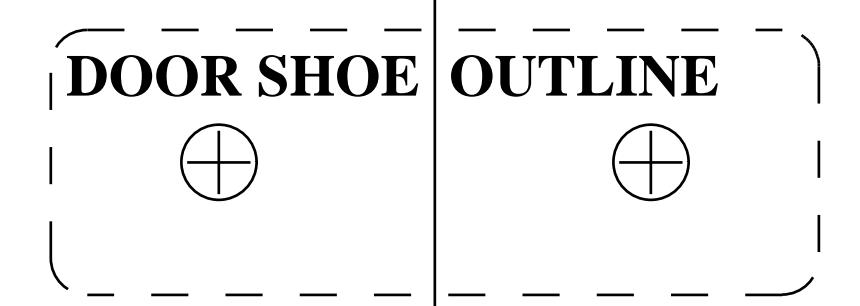

| DOOR SHOE | OUTLINE

ADAEZ - PULL SIDE MOUNT LEFT HAND ZERO INCH REVEAL REQUIRED

ALIGN WITH BOTTOM OF FRAME ALIGN WITH BOTTOM OF FRAME ALIGN WITH BOTTOM OF FRAME ALIGN WITH BOTTOM OF FRAME ALIGN WITH BOTTOM OF FRAME Outline of Operator Mounting Bracket This device does not work with Swing Clear hinges PROGRAMMING TRANSMITTER PROGRAMMING ADAEZ or Balanced Doors 1. PRESS SELECT and ENTER 1. PRESS and HOLD LEARN until 0" Reveal Required until 4 LEDs flash green 4 LEDs flash green. 2. PUSH the RF activation switch LEDs

12" REFERENCE

2. CLOSE door PRESS ENTER

3. OPEN door PRESS ENTER 4. CLOSE door PRESS ENTER

5. PRESS and HOLD ENTER

ADAEZ IS NOW PROGRAMMED

until LEDs go out.

shall flash green.

RESETTING THE CONTROLLER

1. PRESS and HOLD ENTER

2. PRESS and RELEASE RESET

ADAEZ - PULL SIDE MOUNT RIGHT HAND ZERO INCH REVEAL REQUIRED

1. PRESS and HOLD ENTER 2. PRESS and RELEASE RESET

DOOR SHOE OUTLINE Centerline of Door Hinge or Pivot NOT Edge of Door Outline of Operator Mounting Bracket ALIGN WITH BOTTOM OF FRAME ALIGN WITH BOTTOM OF FRAME ALIGN WITH BOTTOM OF FRAME ALIGN WITH BOTTOM OF FRAME ALIGN WITH BOTTOM OF FRAME PROGRAMMING ADAEZ 1. PRESS SELECT and ENTER until 4 LEDs flash green 2. CLOSE door PRESS ENTER 3. OPEN door PRESS ENTER 4. CLOSE door PRESS ENTER PROGRAMMING TRANSMITTER 1. PRESS and HOLD LEARN until 4 LEDs flash green. 2. PUSH the RF activation switch LEDs shall flash green. RESETTING THE CONTROLLER This device does not work with Swing Clear hinges or Balanced Doors 0" Reveal Required

12" REFERENCE

Technical Support 877-232-3987 www.adaez.com Installation and Programming Videos Are Online

5. PRESS and HOLD ENTER

ADAEZ IS NOW PROGRAMMED

until LEDs go out.
