Norton 5700DAB Push Side Drop Application Template

Notes:

• Do not scale drawing.
• Left hand door shown for push side.
• All dimensions are given in inches and millimeters.
• Recommended thickness for reinforcements in hollow-metal doors and frames should provide a combined material thickness of .164 (4.2) MIN.
• This template information based upon use of 5 (127) maximum width butt hinges or 3/4 (19) offset pivots.

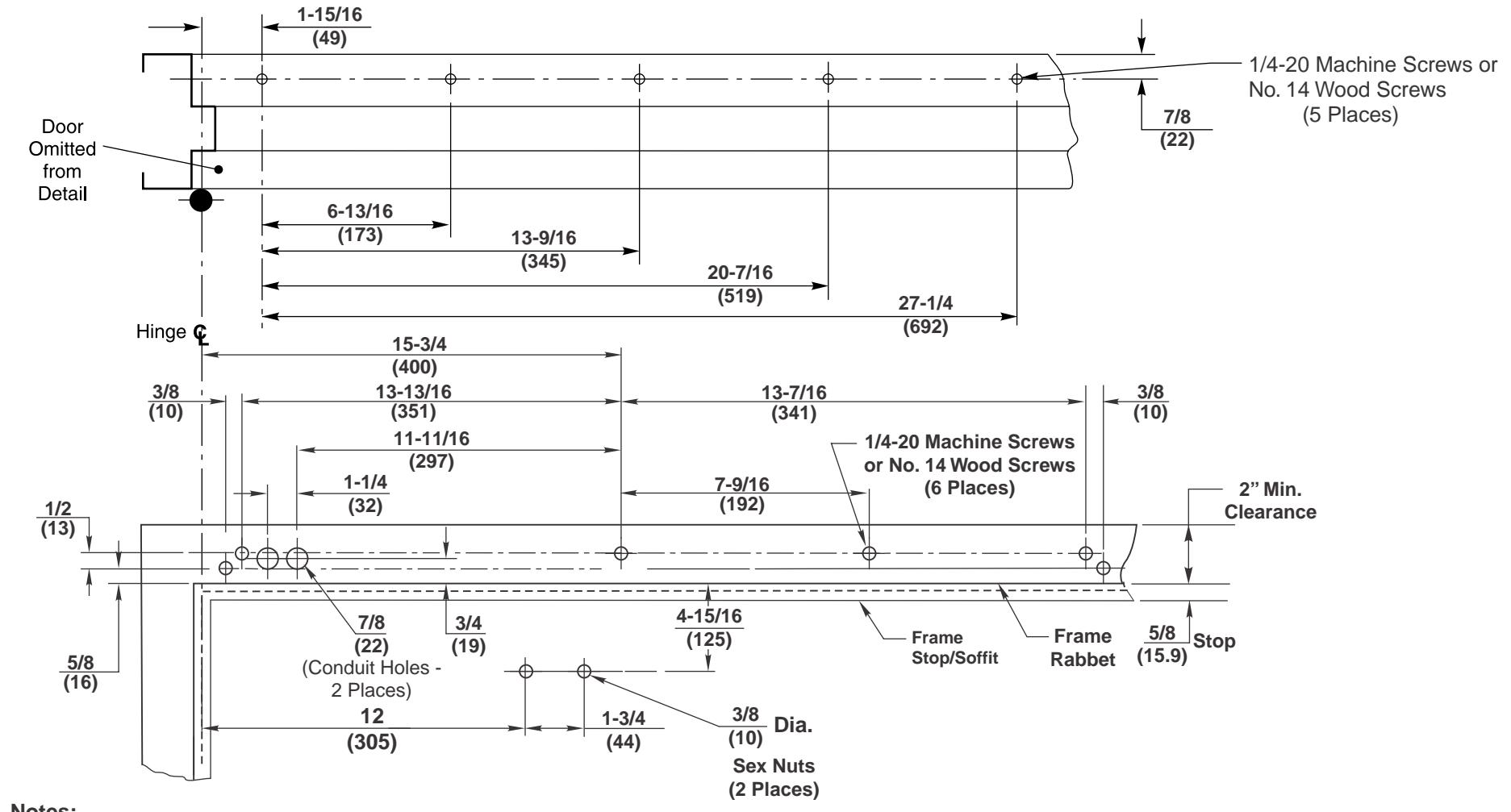

For door opening up to 110°

-974-2255

5700 Series Lower Energy Operator

Drop Application for Stop (Push) Side of Door Installation 5700DAB

Approved 2019-11-05

80-7357-0001-020

02-16

Notes:

• Do not scale drawing.
• Left hand door shown for push side.
• All dimensions are given in inches and millimeters.
• Recommended thickness for reinforcements in hollow-metal doors and frames should provide a combined material thickness of .164 (4.2) MIN.
• This template information based upon use of 5 (127) maximum width butt hinges or 3/4 (19) offset pivots.

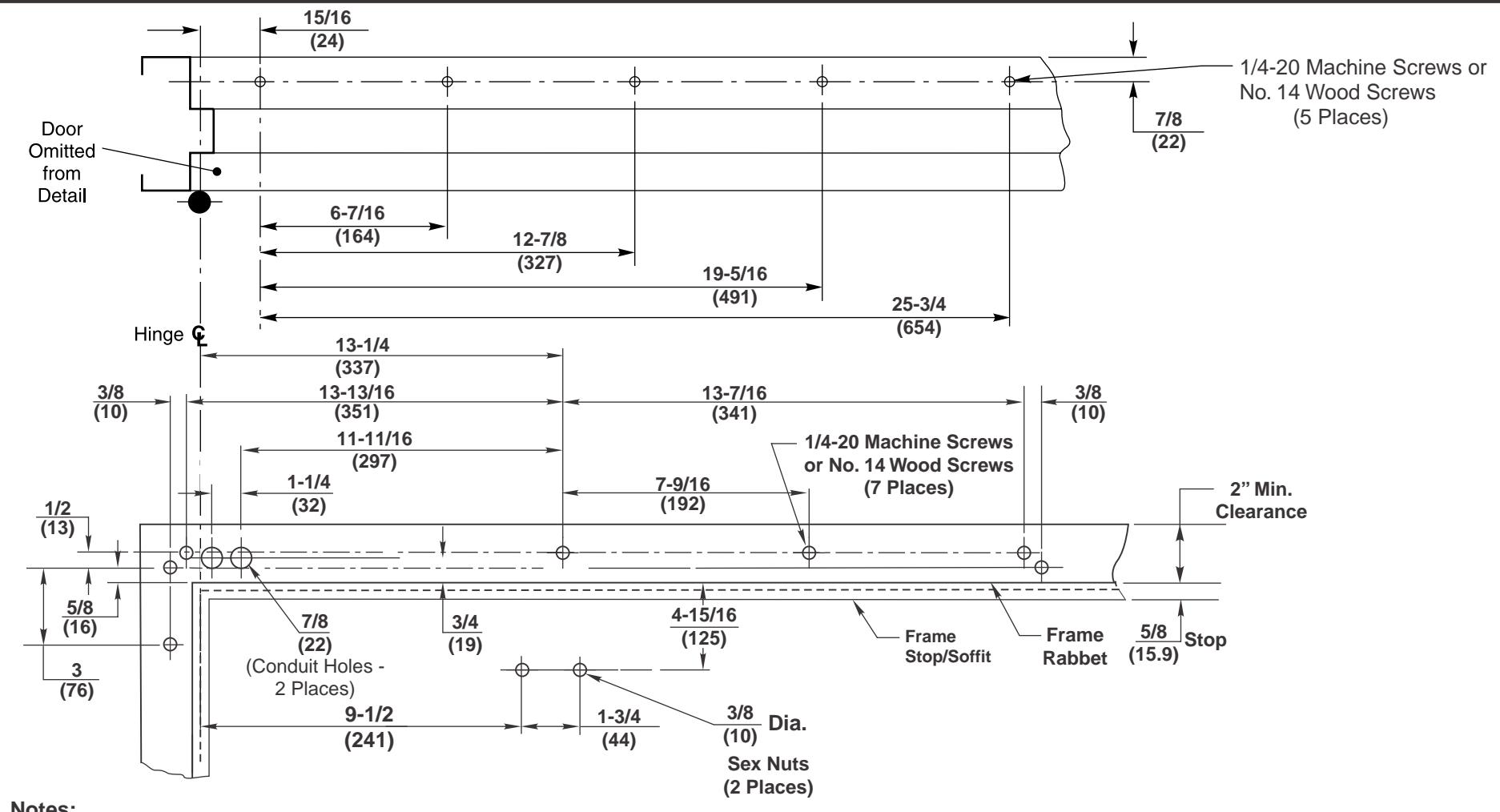

For door opening up to 180°

Page 2 of 2

5700 Series Lower Energy Operator

Drop Application for Stop (Push) Side of Door Installation 5700DAB-180

Approved 2019-11-05
