ASSA ABLOY

Installation Instructions

Tri-Style 1600 Series

Non Handed Door Closer

An Incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.

Non Hold Open Models

Sized (Sizes 3,4) Weaker

1603BC 1604BC

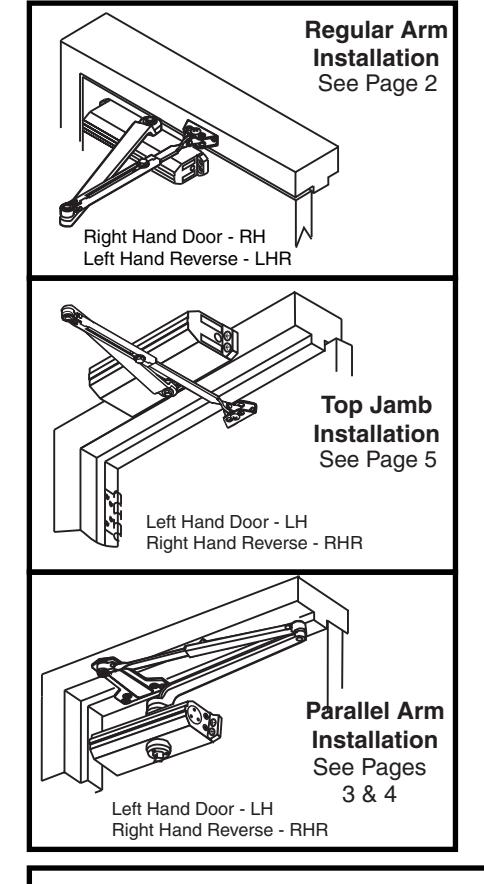

Adjustable (Sizes 1 thru 6)

1601

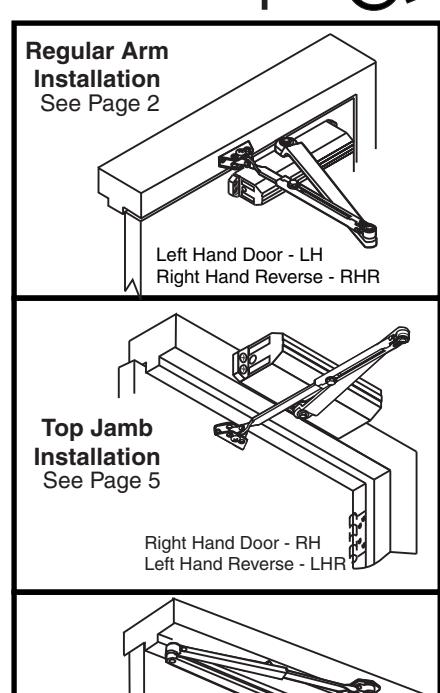

Right Hand Door - RH

Left Hand Reverse - LHR

Parallel Arm

Installation

See Pages

3 & 4

NOTE: For special applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.

  • Doors should be hung on ball bearing or anti-friction hinges.
  • A separate door stop is recommended.
  • Door and frame must be properly reinforced.
  • Adjust closing time speed between 3 and 7 seconds from 90° to 0°.
  • These door closers should NOT be installed on the exposed side (weather side) of exterior doors.

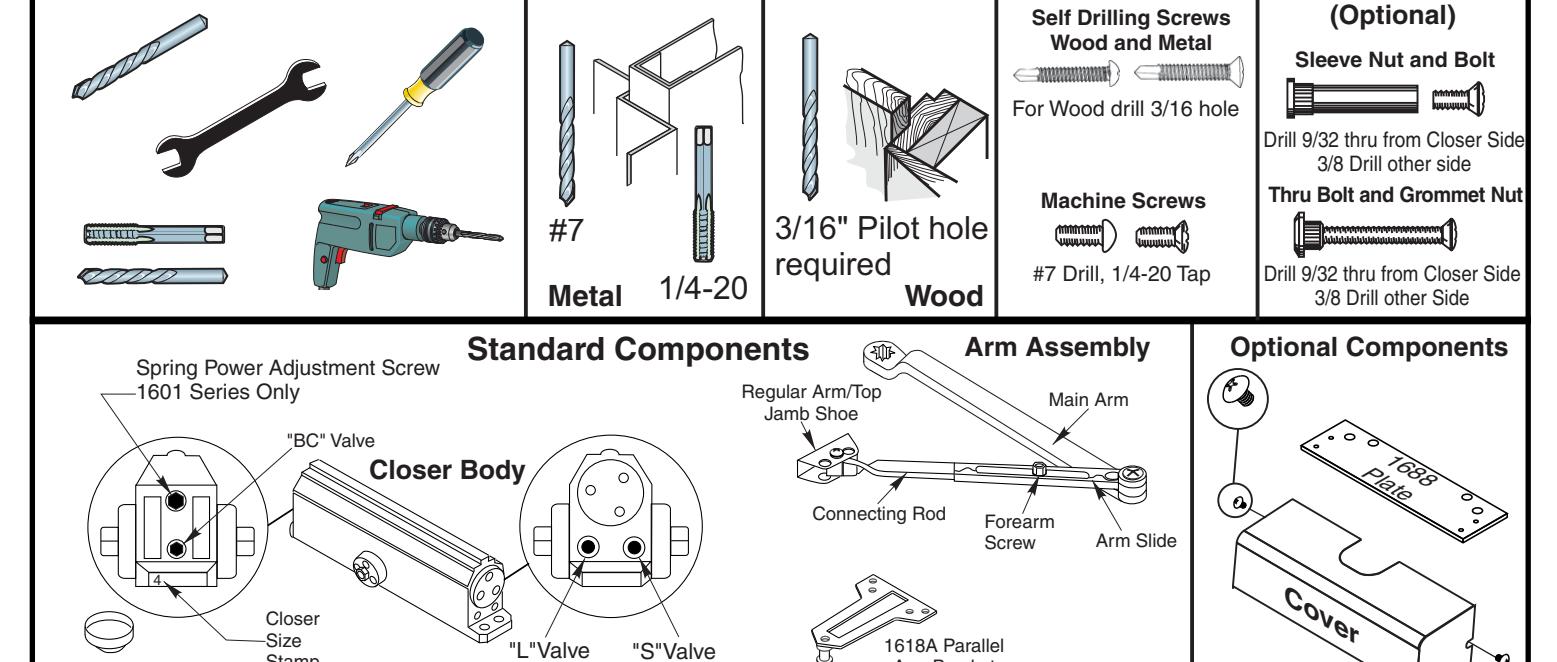

Arm Bracket

Stamp

Pinion Cap

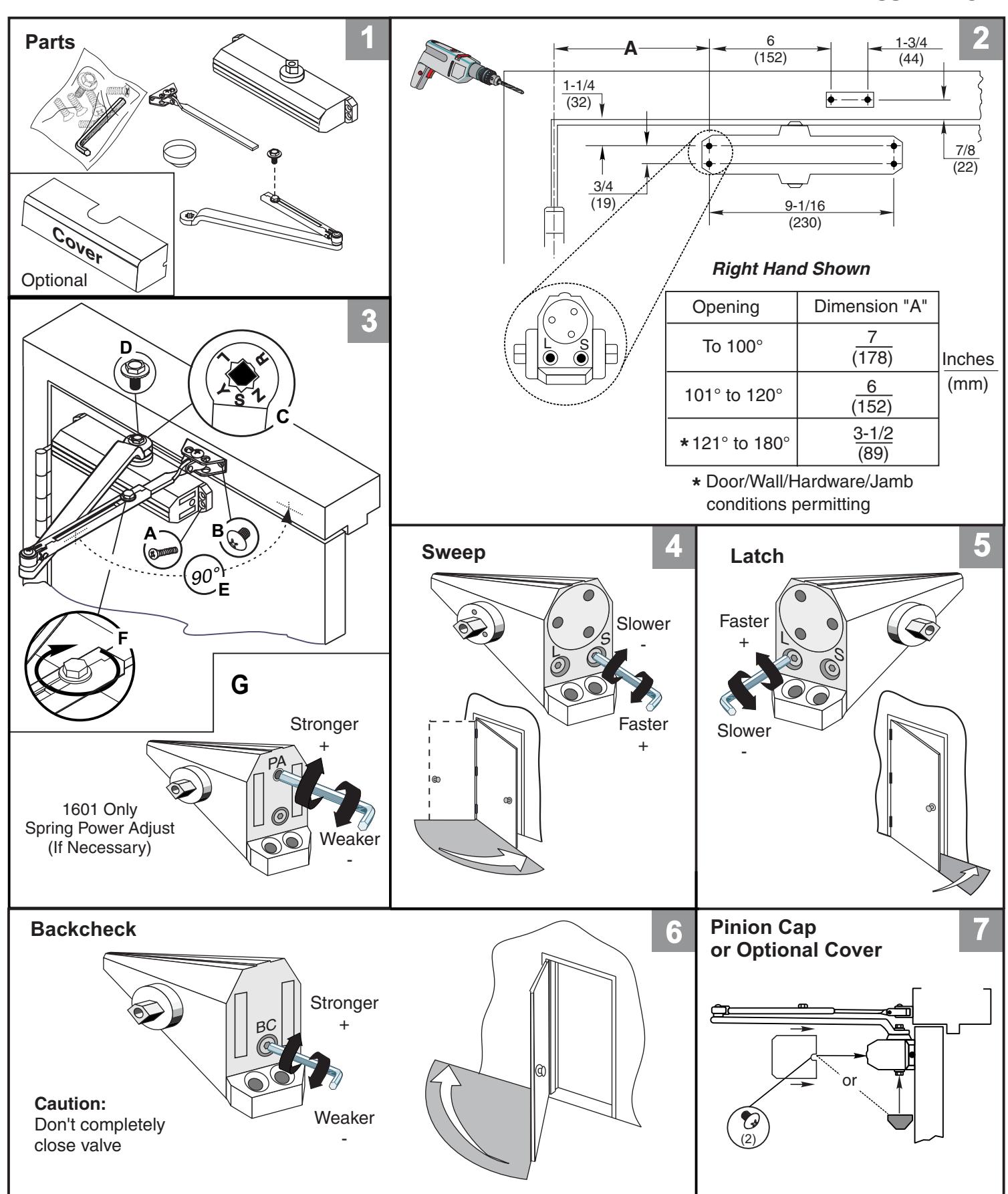

Non Hold Open Door Closers — Regular Arm

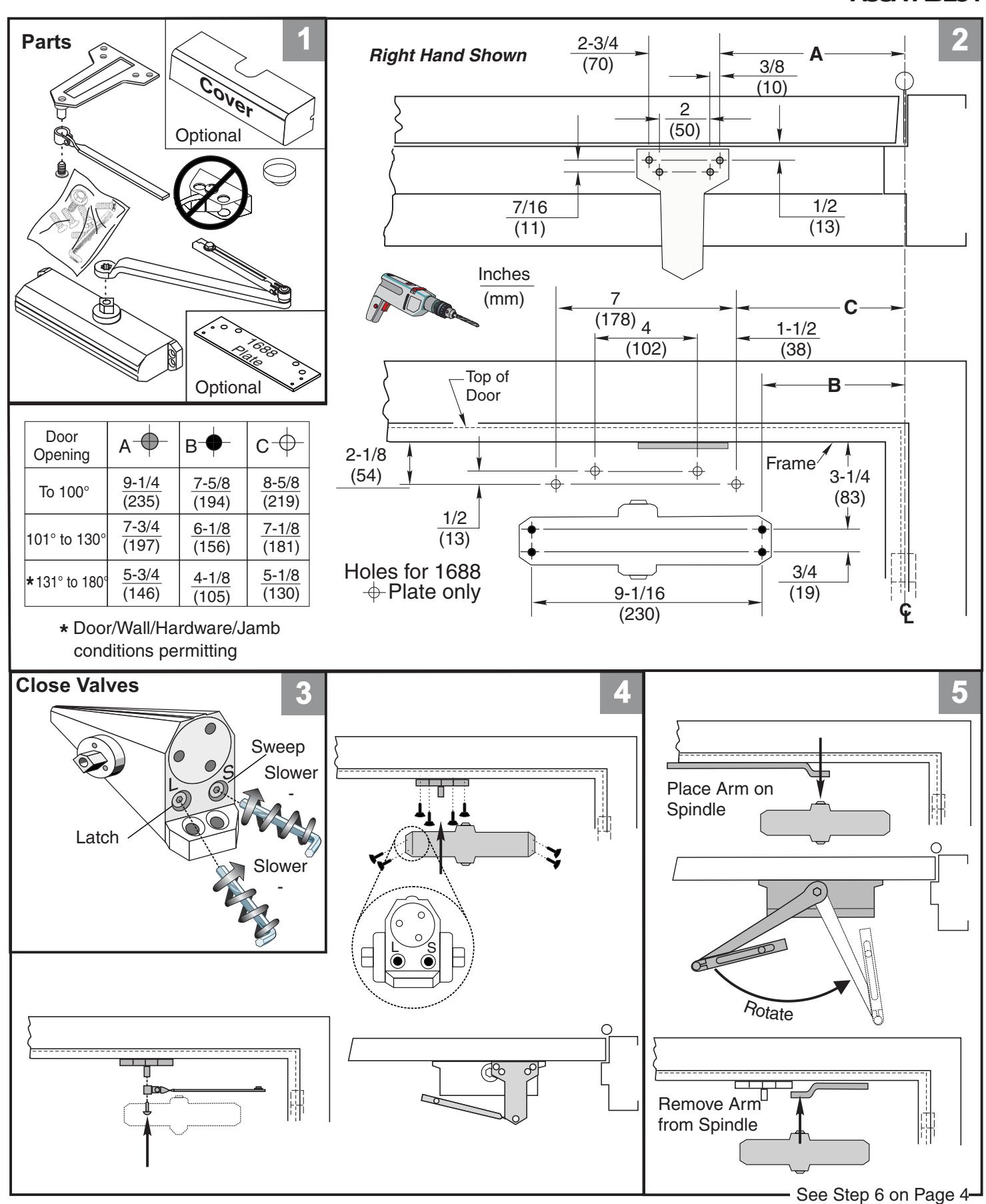

Non Hold Open Door Closers — Parallel Arm

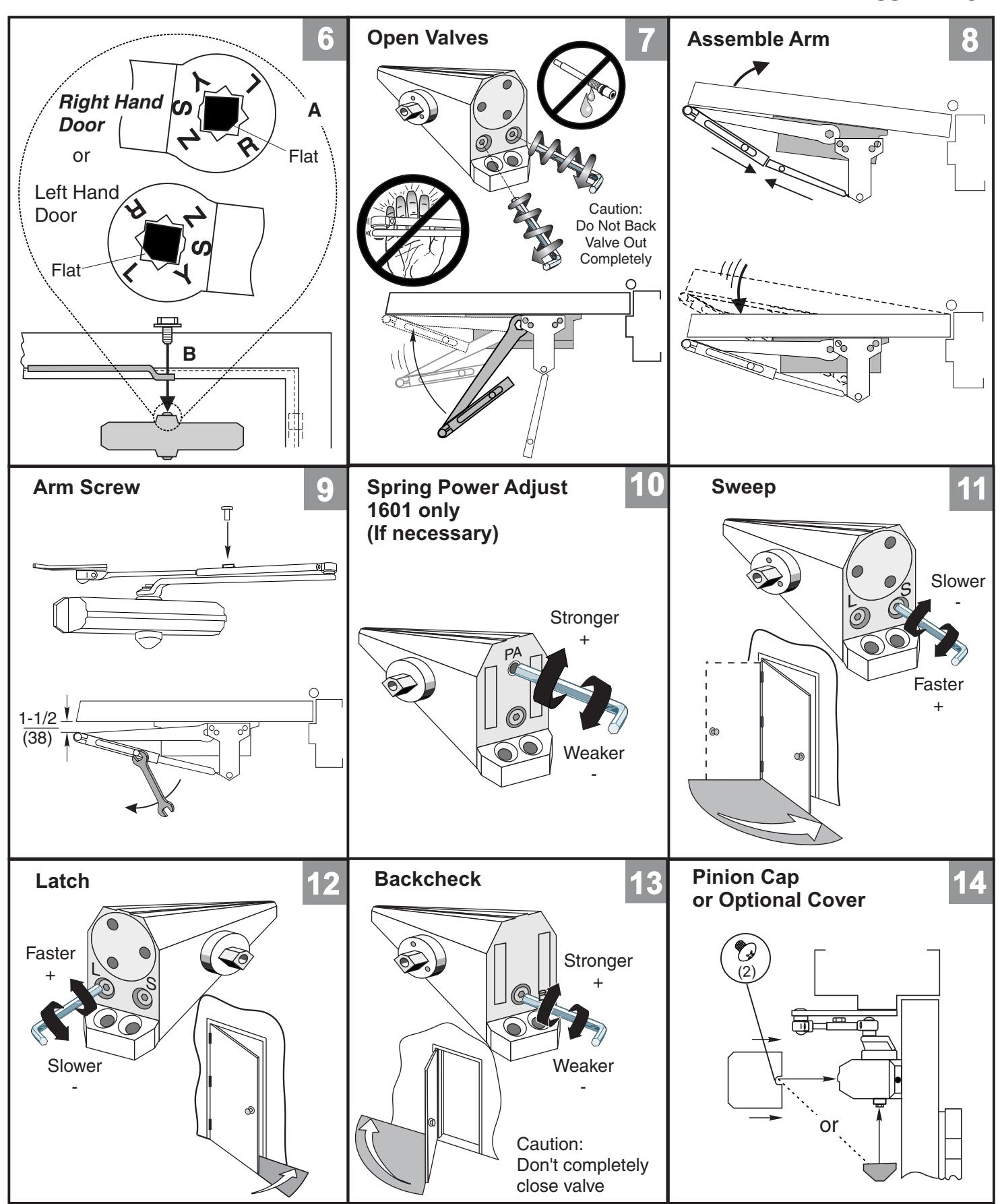

Non Hold Open Door Closers — Parallel Arm

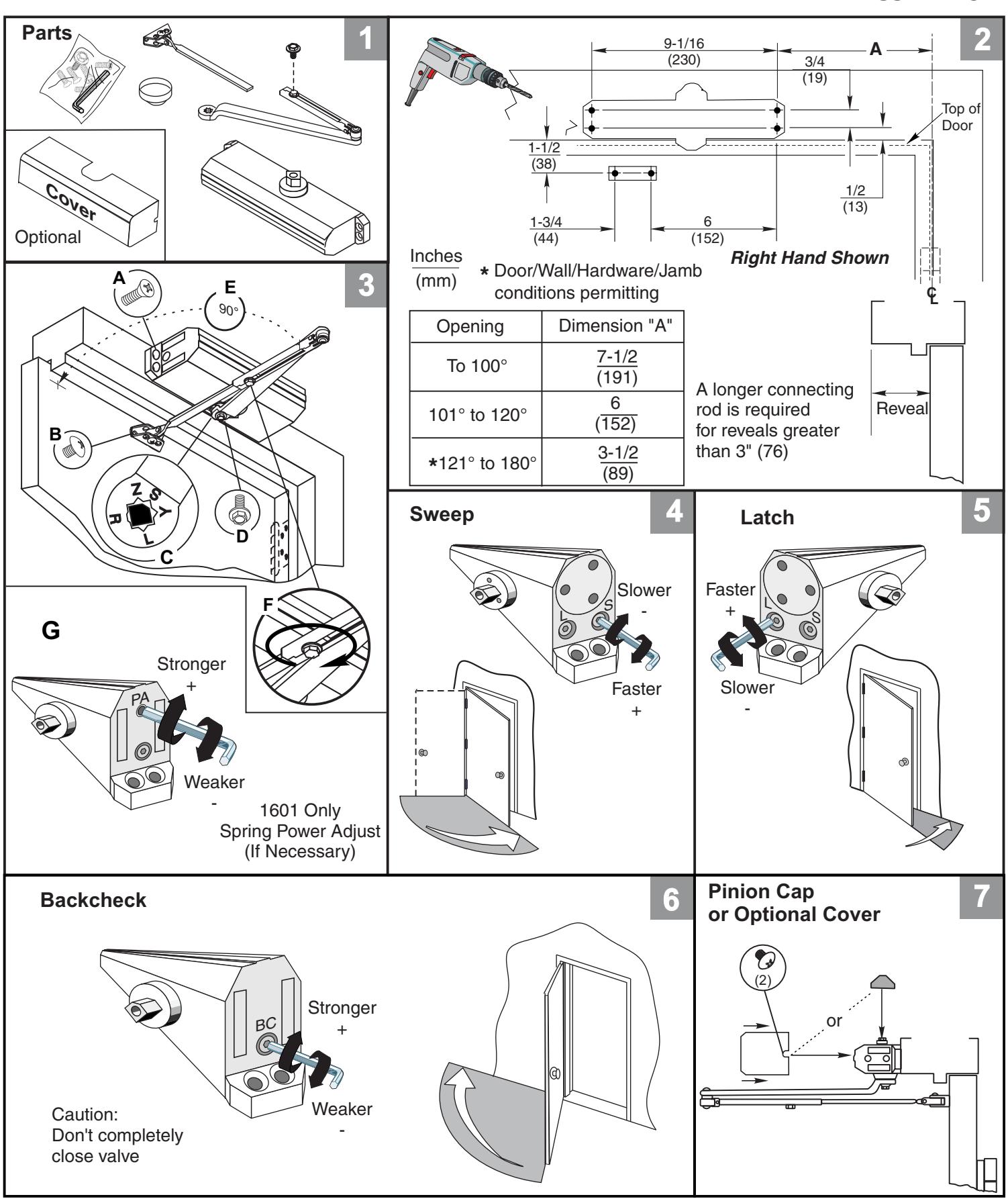

Non Hold Open Door Closers — Top Jamb Arm

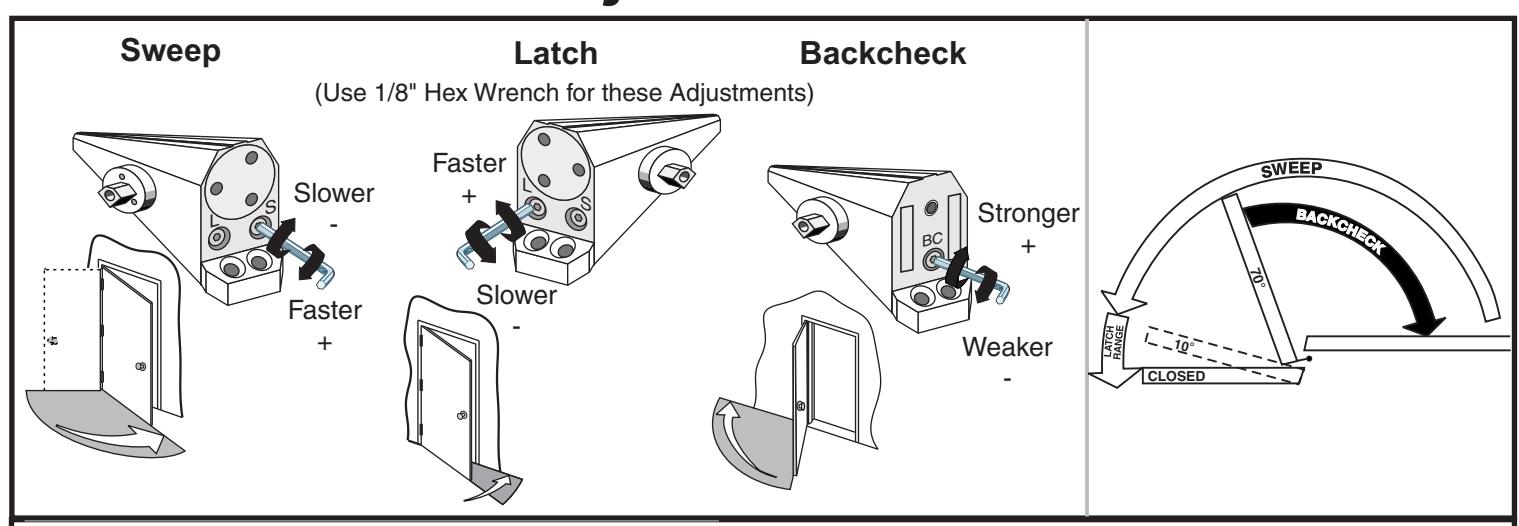

1600 Series Adjustments

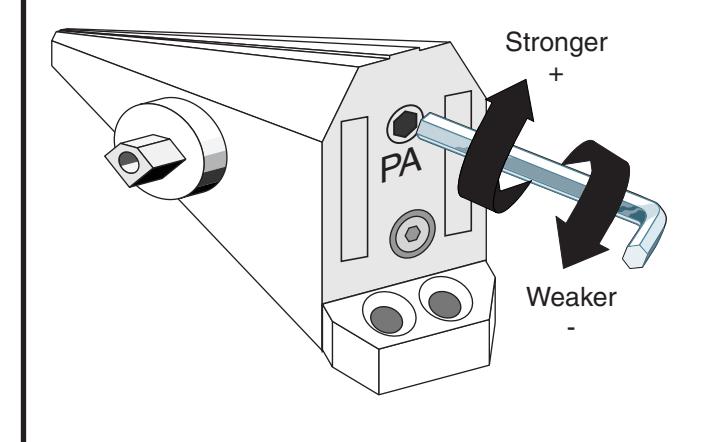

Spring Power Adjust 1601 only

Adjustment Chart Number of Turns Required
Ī Œ TYPE
OF
INST.
* MAXIMUM DOOR SIZE
DOOR 34"
(0.85M)
36"
(0.90M)
40"
(1.00M)
44"
(1.10M)
48"
(1.20M)
INTERIOR Regular Arm
Top Jamb
TURNS O 2 4 6 10 12
1601 Parallel Arm 3 5 8 11 14
EXTERIOR Regular Arm
Top Jamb
3 5 8 11 14
Parallel Arm 5 8 11 16 19
ł #20 FULL (200%) TUDNIC MAXIMUM AVAILABLE

*30 FULL (360°) TURNS MAXIMUM AVAILABLE = 8 Turns As Shipped

(Use 3/16" Hex Wrench for this Adjustment)

To identify your model:

1-6=1601 3=1603BC 4=1604BC

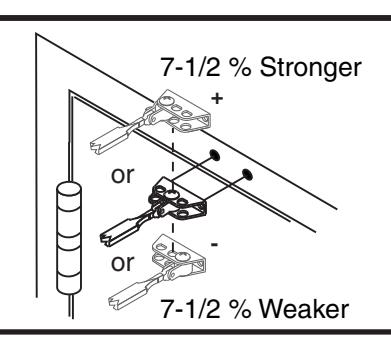

Arm Placement in Shoe
