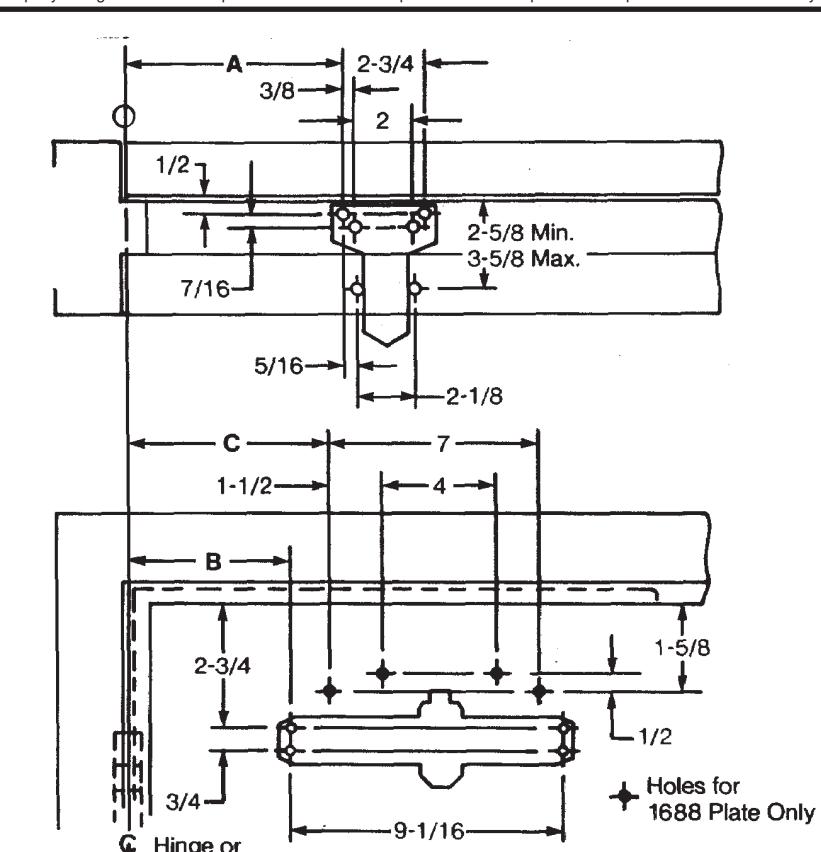

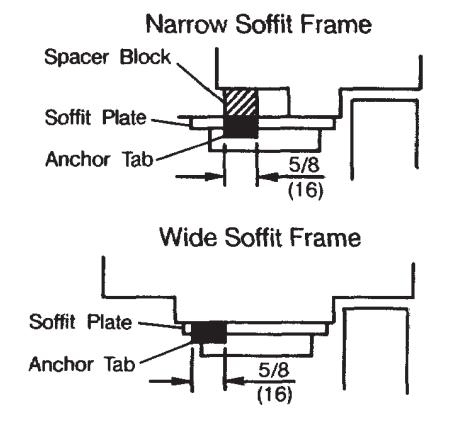

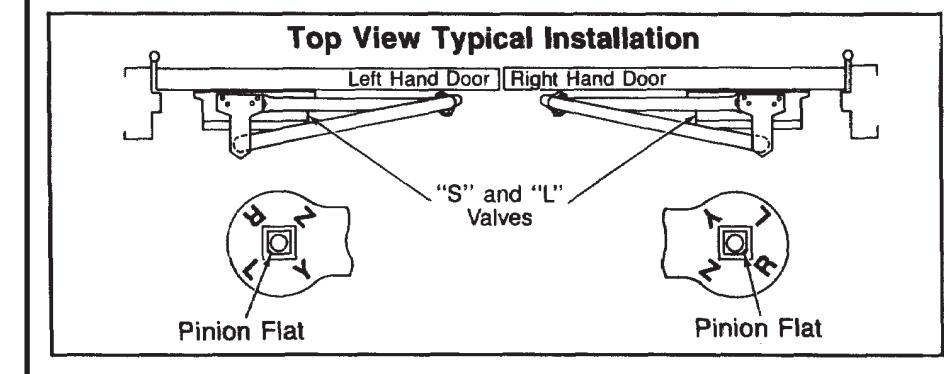

Norton 1600 Series Door Closer UNI-1600 UNI-1600H Parallel Arm Application 42- 48 with 6191 Reinforcing Kit with or without 1688 Drop Plate Non-Hold Open or Hold Open Template

Opening		Di- A	Di D	Di C
Hold Open ★	Stop	Dim. A	DIM. B	Dim. C
85°	90°	15	13-1/4	14-1/4
90°	95°	14-1/4	12-1/2	13-1/2
95°	100°	13-5/8	11-7/8	12-7/8
100°	105°	13	11-1/4	12-1/4
105°	110°	12-1/2	10-3/4	11-3/4
110°	115°	12	10-1/4	11-1/4

inches	mm.	inches	mm.	inches	mm.
		2-3/4	70	12-1/4	311
3/8	9.5	4	101.5	12-1/2	317.5
7/16	11	4-1/2	114	12-7/8	327
1/2	13	7	178	13	330
3/4	19	9-1/16	230	13-1/4	336.5
1-1/8	28.5	10-1/4	260	13-1/2	342.5
1-1/4	31.5	10-3/4	273	13-5/8	346
1-1/2	38	11-1/4	285.5	14-1/4	361.5
1-5/8	41	11-3/4	298	15	380.5
1-7/8	47.5	11-7/8	301.5
2	51	12	304.5

Fastener	Frame	Door	Drill
1/4-20 machine screw	metal	none	#7 (.201" dia.) or 5.10mm. drill 1/4-20 tap
#14 type "A" sheet metal screw	wood	none	7/32" (5.5mm)
SNB	none	hollow-metal	9/32" (7.00mm.) thru 3/8"(9.50mm.) door face opposite to closer
		aluminum or wood	3/8" (9.50mm.) thru

UNI-1600 or UNI-1600H Series Unitrol Door Closers Parallel Arm Application for Doors 42" to 48" (1.05-1.20m) Wide With 6191 Reinforcing Kit & With or Without 1688 Drop Plate Non Hold Open or Hold Open Arm - All Arms With Spring Cushioned Stop Individually Sized Units 3 and 4 & Multi-size Unit 1-6 7316-2368

www.nortondoorcontrols.com

TEMPLATE NUMBER REV

2
