Norton 1600 Series Door Closer UNI-1600 UNI-1600H Parallel Arm Application 33- 41 with 6190 Bracket with or without 1688 Drop Plate Non-Hold Open or Hold Open Template
Open the original PDF document
View PDF

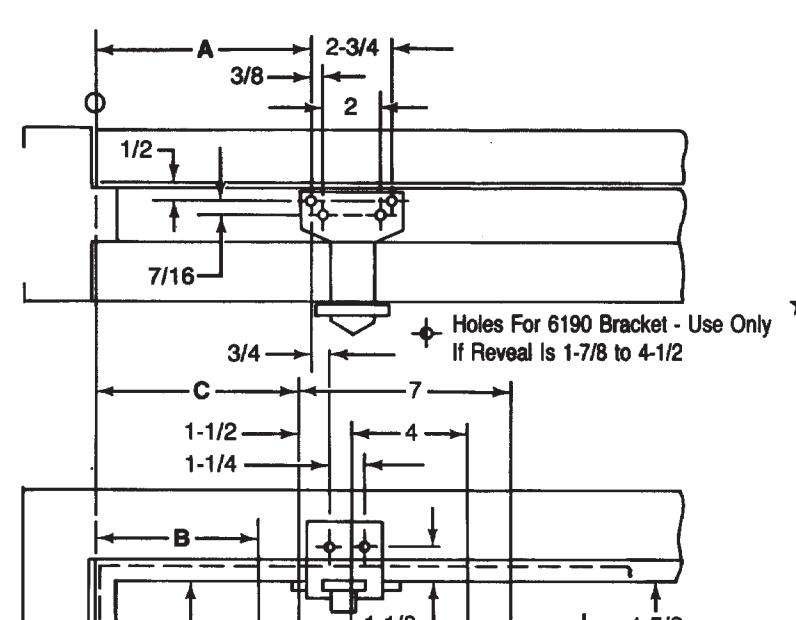

| Opening | D 1 A | D: D | ||
|---|---|---|---|---|
| Hold Open ★ | Stop | Dim. A | DIM. B | Dim. C |
| 85° | 90° | 12-5/8 | 11 | 12 |
| 90° | 95° | 12 | 10-3/8 | 11-3/8 |
| 95° | 100° | 11-3/8 | 9-3/4 | 10-3/4 |
| 100° | 105° | 10-7/8 | 9-1/4 | 10-1/4 |
| 105° | 110° | 10-3/8 | 8-3/4 | 9-3/4 |
| 110° | 115° | 10 | 8-3/8 | 9-3/8 |
| inches | mm. | inches | mm. | inches | mm. |
|---|---|---|---|---|---|
| 2-3/4 | 70 | 10-1/4 | 260 | ||
| 3/8 | 9.5 | 4 | 101.5 | 10-3/8 | 263.5 |
| 7/16 | 11 | 4-1/2 | 114 | 10-3/4 | 273 |
| 1/2 | 13 | 7 | 178 | 10-7/8 | 276 |
| 3/4 | 19 | 8-3/8 | 212.5 | 11 | 279.5 |
| 1-1/8 | 28.5 | 8-3/4 | 222 | 11-3/8 | 288.5 |
| 1-1/4 | 31.5 | 9-1/16 | 230 | 12 | 304.5 |
| 1-1/2 | 38 | 9-1/4 | 235 | 12-5/8 | 320.5 |
| 1-5/8 | 41 | 9-3/8 | 238 | ||
| 1-7/8 | 47.5 | 9-3/4 | 247.5 | ||
| 2 | 51 | 10 | 254 |
| Fastener | Frame | Door | Drill | |
|---|---|---|---|---|
| 1/4-20 machine screw | metal | none |
#7 (.201" dia.) or 5.10mm. drill
1/4-20 tap |
|
| #14 type "A" sheet metal screw | wood | none | 7/32" (5.5mm) | |
| SNB | none | hollow-metal |
9/32" (7.00mm.) thru
3/8"(9.50mm.) door face opposite to closer |
|
|
aluminum
or wood |
3/8" (9.50mm.) thru | |||

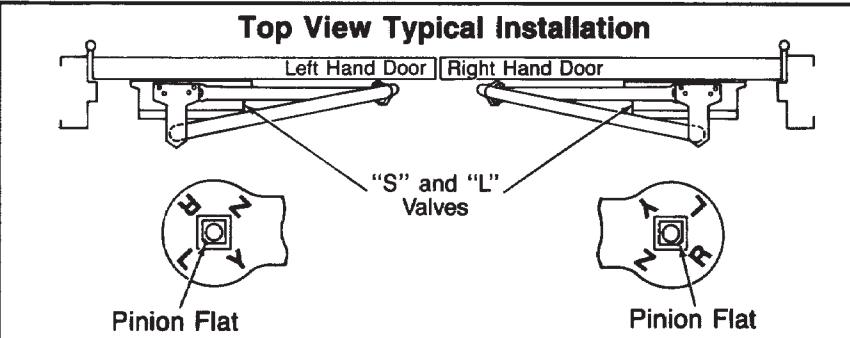

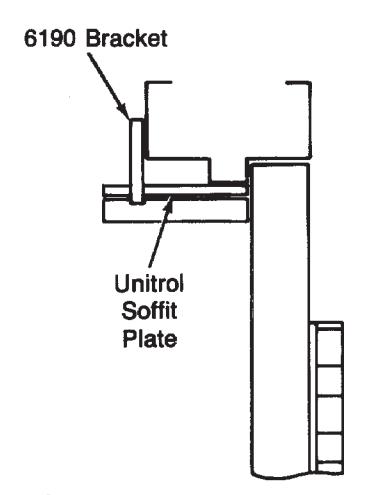

UNI-1600 or UNI-1600H Series Unitrol Door Closers Parallel Arm Application for Doors 33" to 41" (0.85-1.0m) Wide With Standard 6190 Bracket & With or Without 1688 Drop Plate Non Hold Open or Hold Open Arm - All Arms With Spring Cushioned Stop Individually Sized Units 3 and 4 & Multi-size Unit 1-6 7316-2355
www.nortondoorcontrols.com
TEMPLATE NUMBER REV
2
