Norton 1600 Series Door Closer UNI-1600 UNI-1600H Parallel Arm Application 28- 32 with 6190 Bracket with or without 1688 Drop Plate Non-Hold Open or Hold Open Template
Open the original PDF document
View PDF

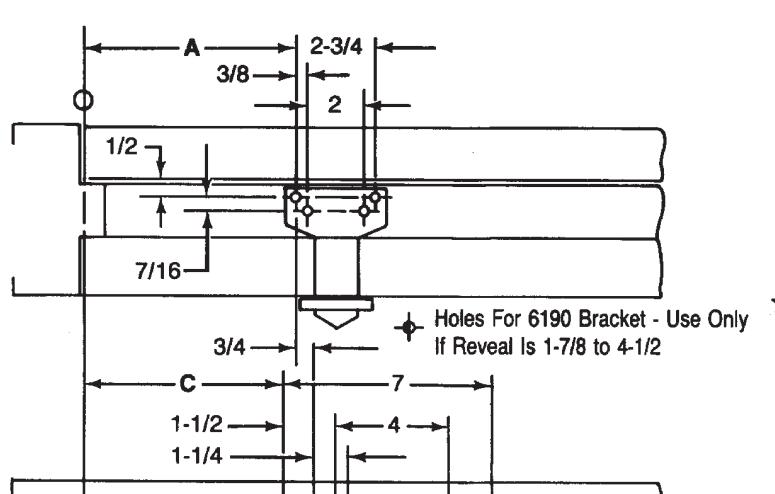

| Opening | Di 4 | S: 5 | Di 0 | ||
|---|---|---|---|---|---|
| Hold Open ★ | Stop | DIM. A | DIM. B | Dim. C | |
| 85° | 90° | 10-1/2 | 8-5/8 | 9-5/8 | |
| 90° | 95° | 9-3/4 | 8 | 9 | |
| 95° | 100° | 9-1/4 | 7-1/2 | 8-1/2 | |
| 100° | 105° | 8-7/8 | 7-1/8 | 8-1/8 | |
| 105° | 110° | 8-1/2 | 6-3/4 | 7-3/4 | |
| 110° | 115° | 8-1/8 | 6-3/8 | 7-3/8 | |
| inches | mm. | inches | mm. | inches | mm. |
|---|---|---|---|---|---|
| 2-3/4 | 70 | 8-1/8 | 206 | ||
| 3/8 | 9.5 | 4 | 101.5 | 8-1/2 | 215.5 |
| 7/16 | 11 | 4-1/2 | 114 | 8-5/8 | 219 |
| 1/2 | 13 | 6-3/8 | 162 | 8-7/8 | 225 |
| 3/4 | 19 | 6-3/4 | 171.5 | 9 | 228.5 |
| 1-1/8 | 28.5 | 7 | 178 | 9-1/16 | 230 |
| 1-1/4 | 31.5 | 7-1/8 | 181 | 9-1/4 | 235 |
| 1-1/2 | 38 | 7-3/8 | 187 | 9-5/8 | 244.5 |
| 1-5/8 | 41 | 7-1/2 | 190.5 | 9-3/4 | 247.5 |
| 1-7/8 | 47.5 | 7-3/4 | 196.5 | 10-1/2 | 266.5 |
| 2 | 51 | 8 | 203 |
| Fastener | Frame | Door | Drill | |
|---|---|---|---|---|
| 1/4-20 machine screw | metal | none |
#7 (.201" dia.) or 5.10mm. drill.
1/4-20 tap |
|
| #14 type "A" sheet metal screw | wood | none | 7/32" (5.5mm) | |
| SNB | none | hollow-metal |
9/32" (7.00mm.) thru
3/8"(9.50mm.) door face opposite to closer |
|
|
aluminum
or wood |
3/8" (9.50mm.) thru | |||

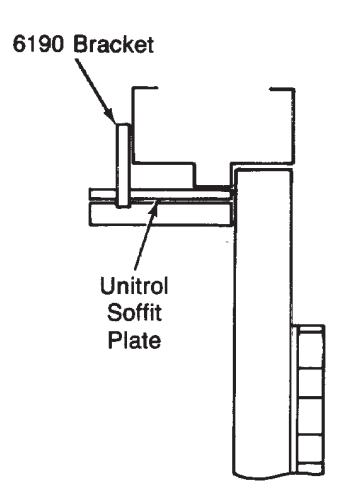

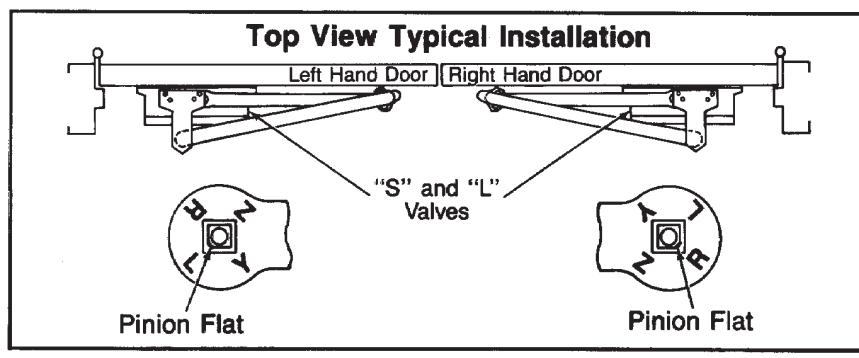

UNI-1600 or UNI-1600H Series Unitrol Door Closers Parallel Arm Application for Doors 28" to 32" (0.70-0.80m) Wide With Standard 6190 Bracket & With or Without 1688 Drop Plate Non Hold Open or Hold Open Arm - All Arms With Spring Cushioned Stop Individually Sized Units 3 and 4 & Multi-size Unit 1-6 7316-2354
www.nortondoorcontrols.com
TEMPLATE NUMBER REV
2
