Norton 1600 Series Door Closer UNI-1600 UNI-1600H Parallel Arm Application 28- 32 with 2022 Flush Transom Bracket with or without 1688 Drop Plate Non-Hold Open or Hold Open Template
Open the original PDF document
View PDF
| Opening | Dim A | D: D | ||||
|---|---|---|---|---|---|---|
| Hold Open ★ | Stop | Dim. A | Dim. B | Dim. C | ||
| 85° | 90° | 10-5/8 | 8-5/8 | 9-5/8 | ||
| 90° | 95° | 9-7/8 | 8 | 9 | ||
| 95° | 100° | 9-3/8 | 7-1/2 | 8-1/2 | ||
| 100° | 105° | 9 | 7-1/8 | 8-1/8 | ||
| 105° | 110° | 8-5/8 | 6-3/4 | 7-3/4 | ||
| 110° | 115° | 8-1/4 | 6-3/8 | 7-3/8 | ||
| inches | mm. | inches | mm. | inches | mm. |
|---|---|---|---|---|---|
| 1/2 | 13 | 6-3/4 | 171 | 8-1/2 | 216 |
| 3/4 | 19 | 7 | 178 | 8-5/8 | 219 |
| 1-1/2 | 38 | 7-1/8 | 181 | 9 | 228.5 |
| 1-5/8 | 41 | 7-3/8 | 187 | 9-1/16 | 230 |
| 1-3/4 | 44.5 | 7-1/2 | 191 | 9-3/8 | 238 |
| 2-1/2 | 63.5 | 7-3/4 | 197 | 9-5/8 | 244 |
| 2-3/4 | 70 | 8 | 203 | 9-7/8 | 251 |
| 4 | 101.5 | 8-1/8 | 206 | 10-5/8 | 270 |
| 6-3/8 | 162 | 8-1/4 | 209.5 |

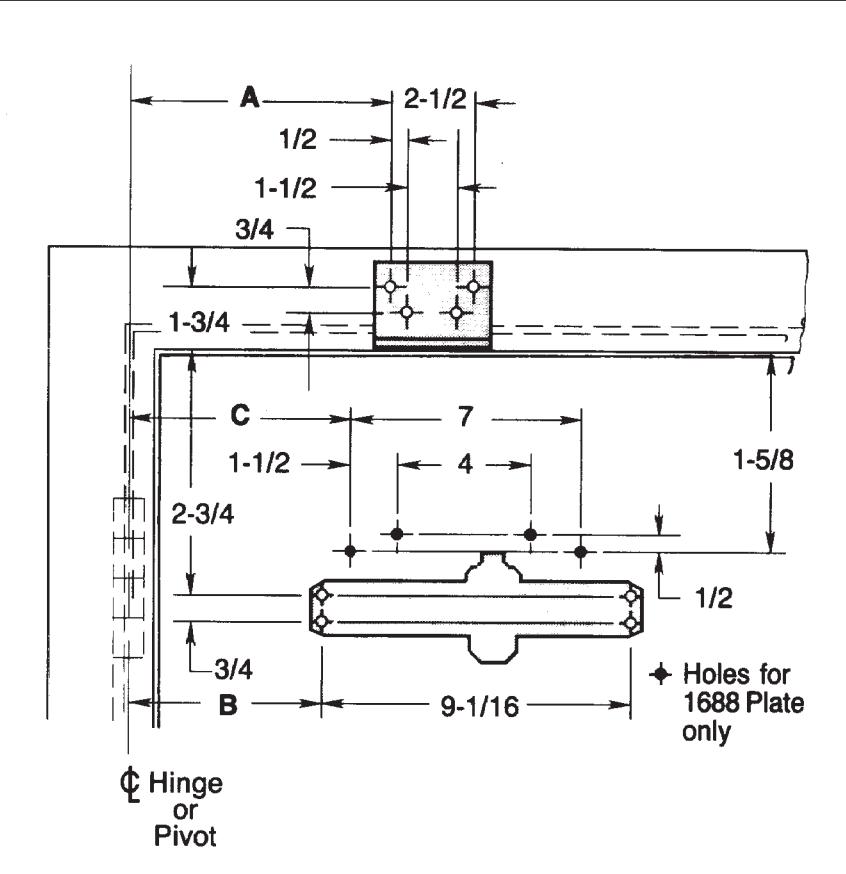

| Top View Typical Installation | ||||
|---|---|---|---|---|
| Left Hand Door Right Hand Door | ||||
|
"S" and "L
Valves |
||||
| Pinion Flat | Pinion Flat | |||
| Fastener | Door or Frame | Drill |
|---|---|---|
| SNB | hollow-metal |
9/32" (7.00mm.) thru
3/8"(9.50mm.) door face opposite to closer |
| aluminum or wood | 3/8" (9.50mm.) thru |
UNI-1600 or UNI-1600H Series Unitrol Door Closers Parallel Arm Application for Doors 28" to 32" (0.70-0.80m) Wide With 2022 Flush Transom Bracket & With or Without 1688 Drop Plate Non Hold Open or Hold Open Arm - All Arms With Spring Cushioned Stop Individually Sized Units 3 and 4 & Multi-size Unit 1-6 7316-2360
www.nortondoorcontrols.com
TEMPLATE NUMBER REV
2
