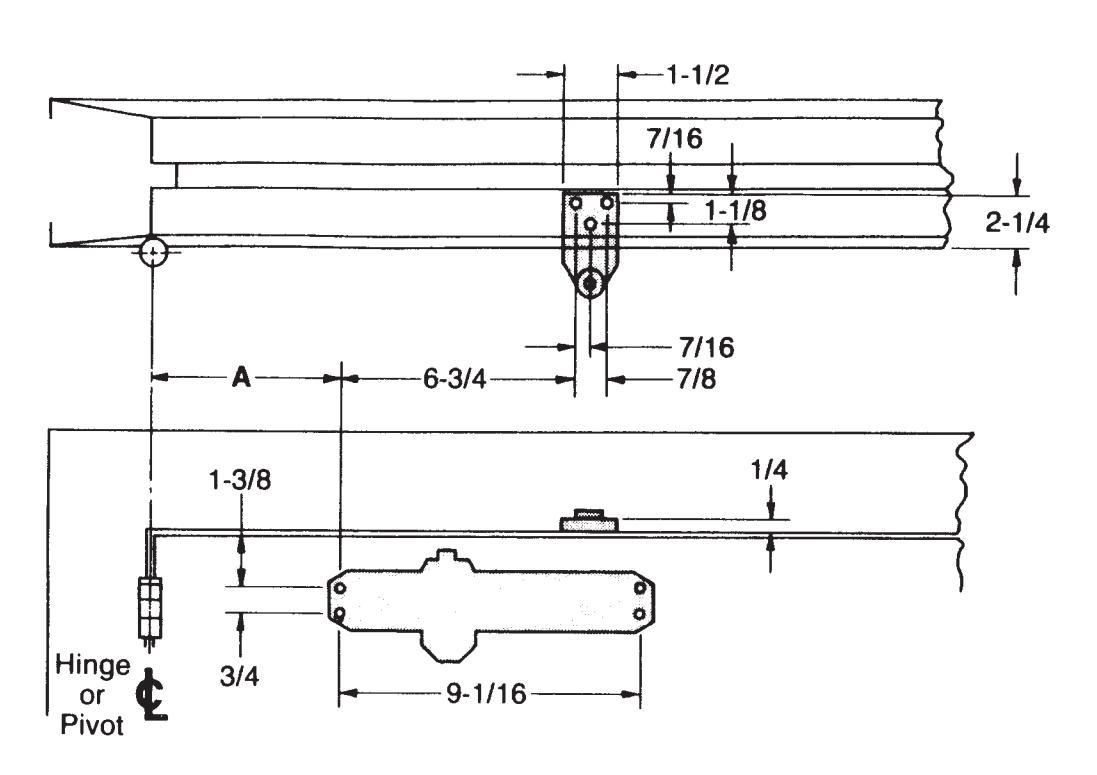

Norton 1600 Series Door Closer Regular Arm Application with 2403 Bracket Non-Hold Open for Molded or Bullnose Frame Template

OPENING	DIM. A
To 100°	7
100° to 120°	6
Over 120°	3-1/2

METRIC CONVERSION
inches	mm.	inches	mm.	inches	mm.
1/4	6.4	1-1/8	28.6	3-1/2	89
7/16	11.1	1-3/8	35	6	152
3/4	19.1	1-1/2	38.1	6-3/4	171
7/8	22.2	2-1/4	57.2	7	178
				9-1/16	230.2

PREPARATION FOR FASTENERS
FASTENER	DOOR or FRAME	DRILL
#14 type "A" sheet metal screw	wood	7/32" (5.5mm)
1/4-20 machine screw	metal	#7 (.201" dia.) or 5.10mm. drill 1/4-20 tap
SNB (optional)	hollow-metal	9/32" (7.00mm.) thru 3/8" (9.50mm.) door face opposite to closer
	aluminum or wood	3/8" (9.50mm.) thru
TBGN (optional)	ali	9/32" (7.00mm.) thru 3/8" (9.50mm.) diameter x 3/8" (10mm.) deep, door face opposite to closer

1600 Series Door Closers Regular Arm Application With 2403 Bracket Non Hold Open Arm for Molded or Bullnose Frame Individually Sized Units 3 and 4 & Multi-size Unit 1-6

www.nortondoorcontrols.com

TEMPLATE NUMBER REV

7316-1108
