Norton 1600 Series Door Closer PR1600 PR1600H Parallel Rigid Arm Application with or without 1688 Drop Plate Non-Hold Open Template
Open the original PDF document
View PDF

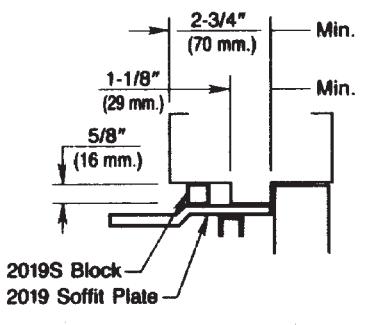

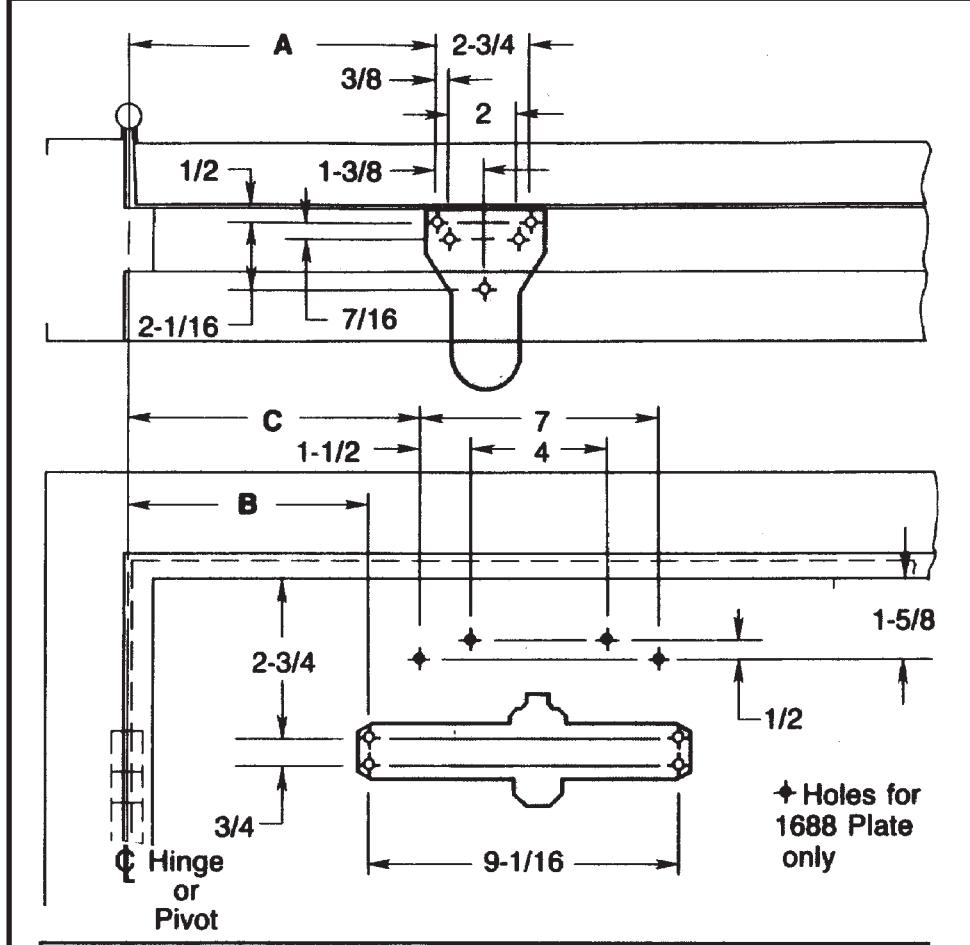

| Opening | Dim. A | Dim. B | Dim.C |
|---|---|---|---|
| To 100° | 9-5/8 | 7-5/8 | 8-5/8 |
| 100° to 130° | 8-1/8 | 6-1/8 | 7-1/8 |
| Over 130° | 6-1/8 | 4-1/8 | 5-1/8 |
| inches | mm. | inches | mm. | inches | mm. |
|---|---|---|---|---|---|
| 1-5/8 | 41 | 7 | 177.8 | ||
| 3/8 | 9.5 | 2 | 50.8 | 7-1/8 | 181 |
| 7/16 | 11.1 | 2-1/16 | 52.4 | 7-5/8 | 194 |
| 1/2 | 12.7 | 2-3/4 | 69.9 | 8-1/8 | 206 |
| 3/4 | 19.1 | 4 | 101.6 | 8-5/8 | 219 |
| 1-3/8 | 34.9 | 4-1/8 | 105 | 9-1/16 | 230.2 |
| 1-1/2 | 38.1 | 5-1/8 | 130 | 9-5/8 | 244 |
| 6-1/8 | 156 |
| Fastener | Frame | Door | Drill |
|---|---|---|---|
| #14 type "A" sheet metal screw | wood | none | 7/32" (5.5mm) |
| 1/4-20 machine screw | metal | none |
#7 (.201 dia.) or 5.10mm. drill
1/4"-20 tap |
| SNB | none |
hollow
metal |
9/32" (7.00mm.) thru
3/8" (9.50mm.) door face opposite to closer |
| (optional) | aluminum or wood | 3/8" (9.50mm.) thru |

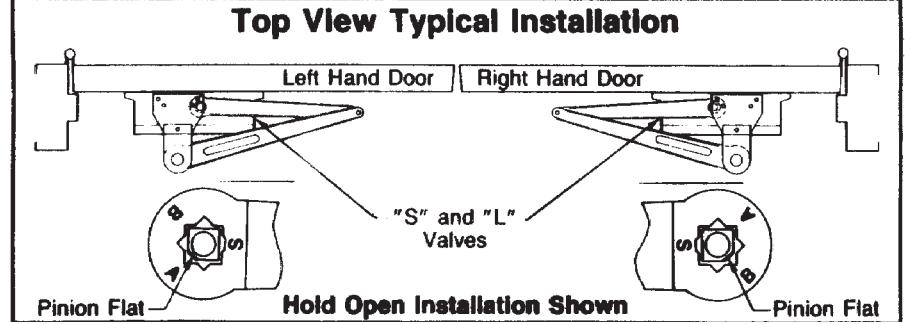

PR1600 or PR1600H Series Door Closers Parallel Rigid Arm Applications with or without 1688 Drop Plate Non Hold Open or Hold Open Arm Individually Sized Units 3 and 4 & Multi-sized Unit 1-6
www.nortondoorcontrols.com
7316-1252 TEMPLATE NUMBER REV
2
