Norton 1600 Series Door Closer PR1600 PR1600H Parallel Rigid Arm Application with 2019L Flush Transom Bracket & with or without 1688 Drop Plate Non-Hold Open or Hold Open Template
Open the original PDF document
View PDF
| 11 | inches | mm | inches | inahaal | ||
|---|---|---|---|---|---|---|
| 11111111 | HICHOS | mm, | inches | mm. | ||
| 1/2 | 12.7 | 2-3/4 | 69.9 | 7-1/8 | 181 | |
| 3/4 | 19.1 | 4 | 101.6 | 7-5/8 | 194 | |
| 1-1/2 | 38.1 | 4-1/8 | 105 | 8-1/4 | 210 | |
| 1-5/8 | 41 | 5-1/8 | 130 | 8-5/8 | 219 | |
| 1-3/4 | 44 | 6-1/8 | 156 | 9-1/16 | 230.2 | |
| 2-1/2 | 63.5 | 6-1/4 | 159 | 9-3/4 | 248 | |
| 7 | 177.8 |

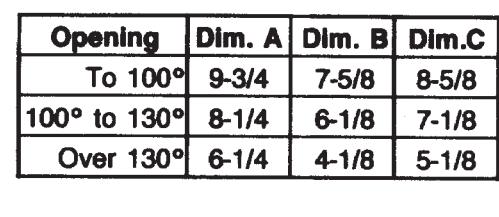

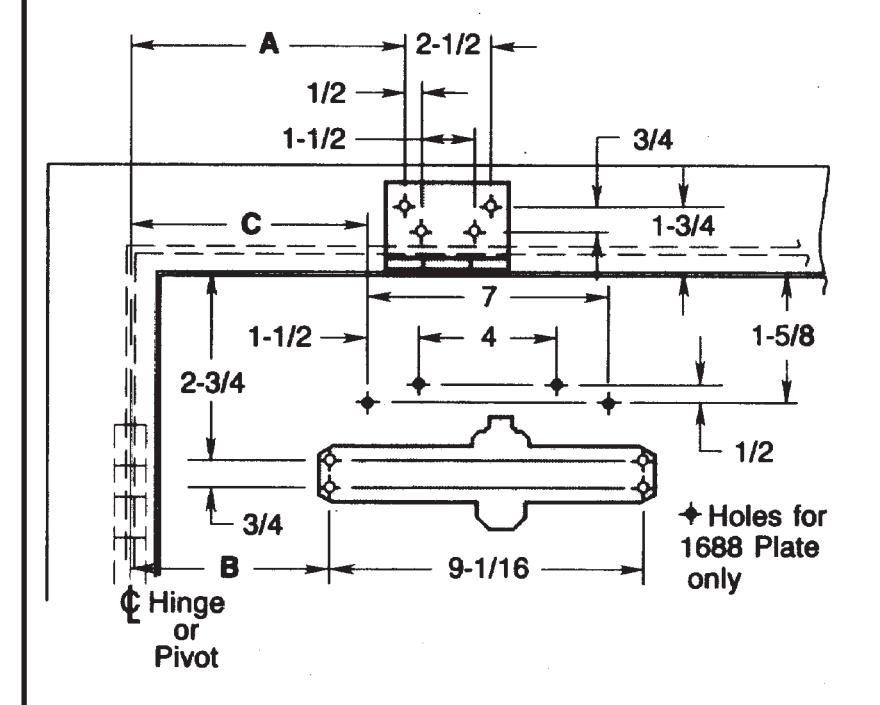

| Top View Typical Installation | ||||||
|---|---|---|---|---|---|---|
| Left Hand Door Right Hand Door | 1 | |||||
| "S" and "L" Valves | ||||||
| Pinion Flat Hold Open Installation Shown Pinion F | lat | |||||
| Fastener | Frame | Door | Drill |
|---|---|---|---|
| #14 type "A" sheet metal screw | wood | none | 7/32" (5.5mm) |
| 1/4-20 machine screw | metal | none | #7 (.201 dia.) or 5.10mm. drill 1/4"20 tap |
|
SNB
(optional) |
none |
hollow
metal |
9/32" (7.00mm.) thru
3/8"(9.50mm.) door face opposite to closer |
|
aluminum
or wood |
3/8" (9.50mm.) thru |

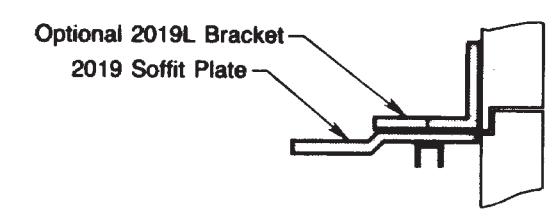

Pr1600 or PR1600H Series Door Closers Parallel Rigid Arm Application With 2019L Flush Transom Bracket & With or Without 1688 Drop Plate Non Hold Open or Hold Open Arm Individually Sized Units 3 and 4 & Multi-size Unit 1-6
www.nortondoorcontrols.com
TEMPLATE NUMBER REV
7316-1256
