Norton 1600 Series Door Closer P1680 with Low Profile Arm Parallel Arm Application with or without 1688 Drop Plate Non-Hold Open Template
Open the original PDF document
View PDF

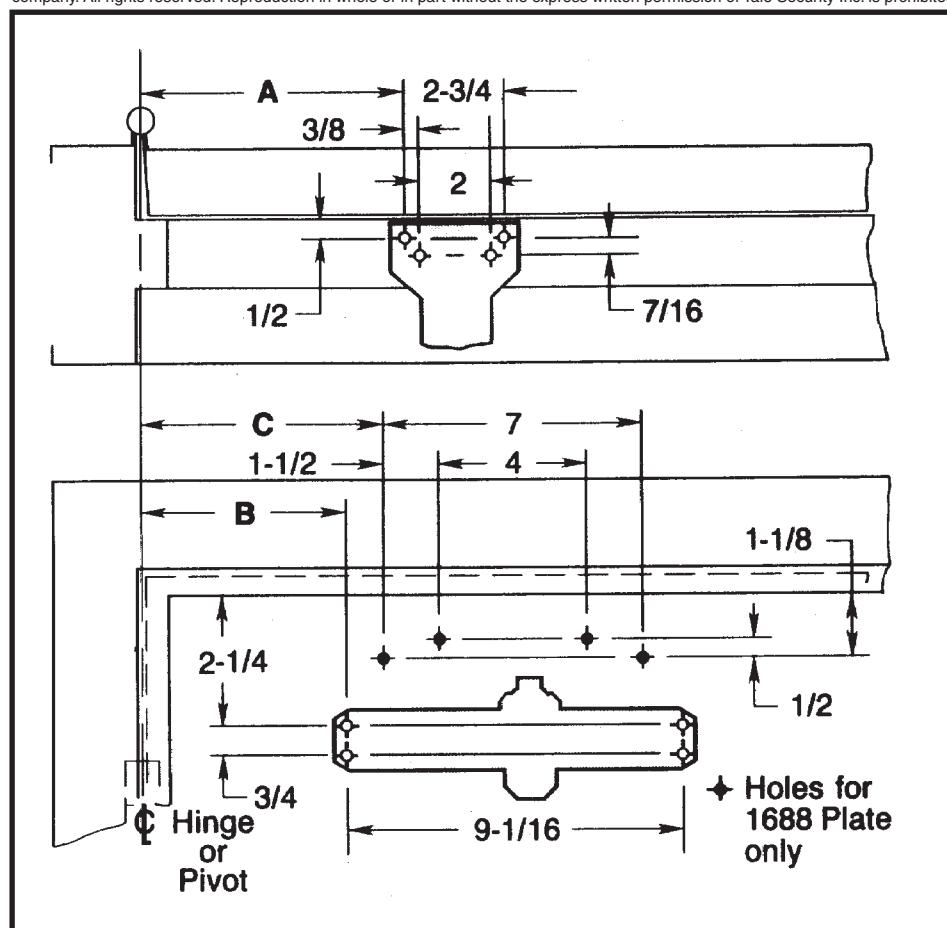

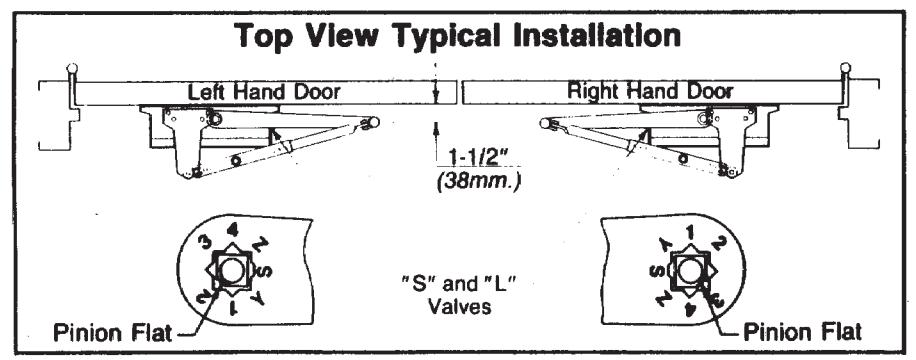

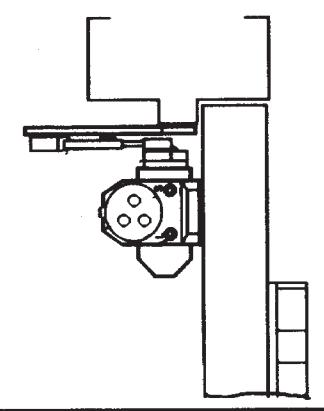

| Opening | Dim. A Dim. I | Dim.C | ||
|---|---|---|---|---|
| To 100° | 9-1/4 | 7-5/8 | 8-5/8 | |
| 100° to 130° | 7-3/4 | 6-1/8 | 7-1/8 | |
| Over 130° | 5-3/4 | 4-1/8 | 5-1/8 | |
| inches | mm. | inches | mm. | inches | mm. |
|---|---|---|---|---|---|
| 2-1/4 | 57 | 7 | 177.8 | ||
| 3/8 | 9.5 | 2-3/4 | 69.9 | 7-1/8 | 181 |
| 7/16 | 11.1 | 4 | 101.6 | 7-5/8 | 194 |
| 1/2 | 12.7 | 4-1/8 | 105 | 7-3/4 | 197 |
| 1-1/8 | 28.6 | 5-1/8 | 130 | 8-5/8 | 219 |
| 1-1/2 | 38.1 | 5-3/4 | 146 | 9-1/16 | 230.2 |
| 2 | 50.8 | 6-1/8 | 156 | 9-1/4 | 235 |
| Fastener | Door or Frame | Drill |
|---|---|---|
| #14 type "A" sheet metal screw | wood | 7/32" (5.5mm) |
| 1/4-20 machine screw | metal | #7 (.201 dia.) or 5.10mm. drill 1/4~20 tap |
|
SNB
(optional) |
hollow-metal |
9/32" (7.00mm.) thru
3/8"(9.50mm.) door face opposite to closer |
| aluminum or wood | 3/8" (9.50mm.) thru | |
|
TBGN
(optional) |
all |
9/32"(7.00mm.) thru
3/8"(9.50mm.) diameter x 3/8" (10mm.) deep, door face opposite to closer |
(P)1680 Series Door Closers With Low Profile Arm Parallel Arm Application With or Without 1688 Drop Plate Non Hold Open Arm Individually Sized Units 3 and 4 & Multi-size Unit 1-6
www.nortondoorcontrols.com
TEMPLATE NUMBER REV
7316-1206
2
