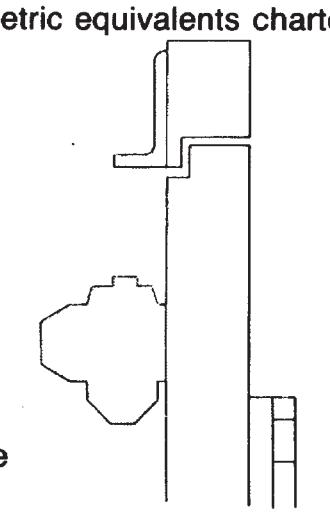

Norton 1600 Series Door Closer P1600 P1600H Parallel Arm Application with 2022 Flush Transom Bracket with or without 1688 Drop Plate Non-Hold Open Hold Open Template
Open the original PDF document
View PDF
| OPENING | DIM. A | DIM. B | DIM. C |
|---|---|---|---|
| To 100° | 9-3/8 | 7-5/8 | 8-5/8 |
| 100° to 130° | 7-7/8 | 6-1/8 | 7-1/8 |
| Over 130° | 5-7/8 | 4-1/8 | 5-1/8 |
| METRIC CONVERSION | ||||||
|---|---|---|---|---|---|---|
| inches | mm. | inches | mm. | inches | mm. | |
| 1/2 | 12.7 | 4 | 101.6 | 7-1/8 | 181 | |
| 3/4 | 19.1 | 4-1/8 | 105 | 7-5/8 | 194 | |
| 1-1/2 | 38.1 | 5-1/8 | 130 | 7-7/8 | 200 | |
| 1-3/4 | 44 | 5-7/8 | 149 | 8-5/8 | 219 | |
| 2-1/8 | 54 | 6-1/8 | 156 | 9-1/16 | 230.2 | |
| 2-1/2 | 63.5 | 7 | 177.8 | 9-3/8 | 238 | |
| 3-1/4 | 83 | |||||
| PREPARATION FOR FASTENERS | |||||
|---|---|---|---|---|---|
| FASTENER | DOOR or FRAME | DRILL | |||
| #14 type "A" sheet metal screw | wood | 7/32" (5.5mm) | |||
| 1/4-20 machine screw |
metal #7 (.201" dia.) or 5.10mm. dr
1/4-20 tap |
||||
|
SNB
(optional) |
hollow-metal |
9/32" (7.00mm.) thru
3/8" (9.50mm.) door face opposite to closer |
|||
| aluminum or wood | 3/8" (9.50mm.) thru | ||||
|
TBGN
(optional) |
all |
9/32" (7.00mm.) thru
3/8" (9.50mm.) diameter x 3/8" (10mm.) deep, door face opposite to closer |
|||
(P)1600 and (P)1600H Series Door Closers Parallel Arm Applications with 2022 Flush Transom Bracket and with or without 1688 Drop Plate Non Hold Open or Hold Open Arm Individually Sized Units 3 and 4 & Multi-sized Unit 1-6 7316-1208
www.nortondoorcontrols.com
TEMPLATE NUMBER REV
