Norton 1600 Series Door Closer Low Profile Regular Arm Application Non-Hold Open Template
Open the original PDF document
View PDF

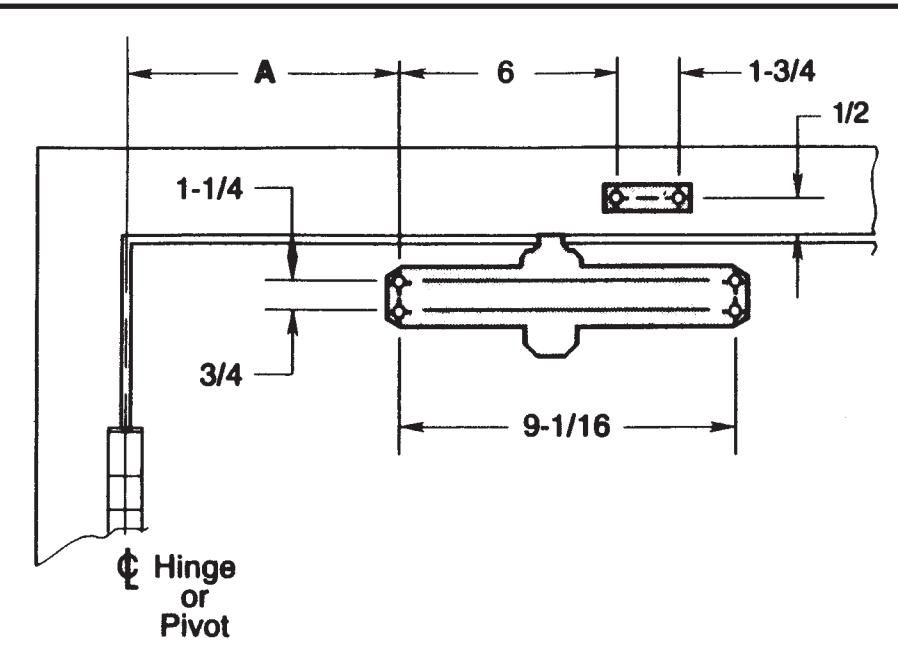

| Opening | Dim. A |
|---|---|
| To 100° | 7 |
| 100° to 120° | 6 |
| Over 120° | 3-1/2 |
| inches | mm. | inches | mm. |
|---|---|---|---|
| 1/2 | 13 | 3-1/2 | 89 |
| 3/4 | 19.1 | 6 | 152 |
| 1-1/4 | 32 | 7 | 178 |
| 1-3/4 | 44.5 | 9-1/16 | 230.2 |
| Fastener | Door or Frame | Drill | |
|---|---|---|---|
| #14 type "A" sheet metal screw | wood | 7/32" (5.5mm) | |
| 1/4-20 machine screw | metal |
#7 (.201 dia.) or 5.10mm. drill
1/4*20 tap |
|
|
SNB
(optional) |
hollow-metal |
9/32" (7.00mm.) thru
3/8" (9.50mm.) door face opposite to closer |
|
| aluminum or wood | 3/8" (9.50mm.) thru | ||
|
TBGN
(optional) |
all |
9/32"(7.00mm.) thru
3/8"(9.50mm.) diameter x 3/8" (10mm.) deep, door face opposite to closer |
|

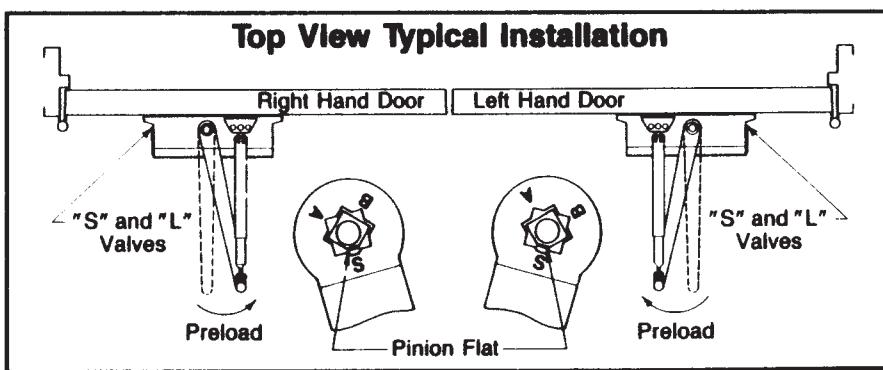

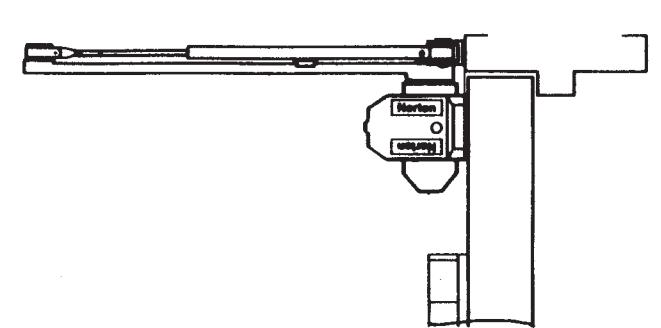

1600 Series Door Closers With Low Profile Arm Regular Arm Application Non Hold Open Arm Individually Sized Units 3 and 4 & Multi-size Unit 1-6
www.nortondoorcontrols.com
TEMPLATE NUMBER REV
7316-1106
2
