Norton 1600 Series Door Closer J1600 J1600H Top Jamb Application with 1688 Drop Plate Non-Hold Open Hold Open Template
Open the original PDF document
View PDF
| Opening | Dim. A | |
|---|---|---|
| To 100° | 8 | |
| 100° to 120° | 6-1/2 | |
| Over 120° | 4 | |
| ı | inches | mm. | inches | mm. |
|---|---|---|---|---|
| 1/2 | 12.7 | 6 | 152 | |
| 1-1/2 | 38.1 | 6-1/2 | 165 | |
| 1-3/4 | 44.5 | 7 | 177.8 | |
| 3-5/8 | 92 | 8 | 203 | |
| 4 | 101.6 |

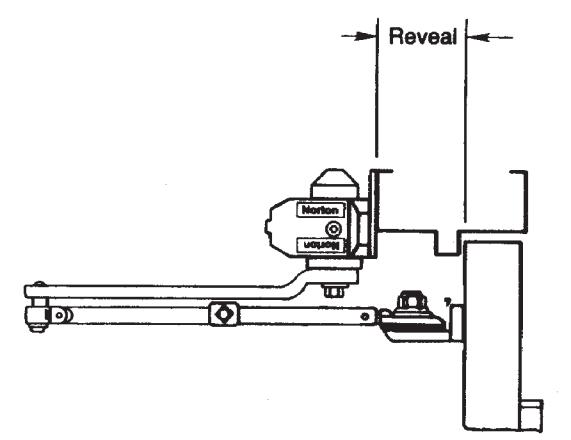

| REVEAL inches/(mm.) |
CLOSER
SERIES |
|---|---|
|
0 to 3
(0 to 76) |
1600 |
|
2-7/8 to 7
(73 to 178) |
J1600 |
|
0 to 2-3/4
(0 to 70) |
1600H
1600HFL |
|
2-3/4 to 6-3/4
(70 to 171) |
J1600H
J1600HFL |
| Fastener | Door or Frame | Drill |
|---|---|---|
| #14 type "A" sheet metal screw | wood | 7/32" (5.5mm) |
| 1/4-20 machine screw | metal |
#7 (.201 dia.) or 5.10mm. drill
1/4"-20 tap |
|
SNB
(optional) |
hollow-metal |
9/32" (7.00mm.) thru
3/8"(9.50mm.) door face opposite to closer |
| aluminum or wood | 3/8" (9.50mm.) thru | |
|
TBGN
(optional) |
all |
9/32" (7.00mm.) thru
3/8" (9.50mm.) diameter x 3/8" (10mm.) deep, door face opposite to closer |

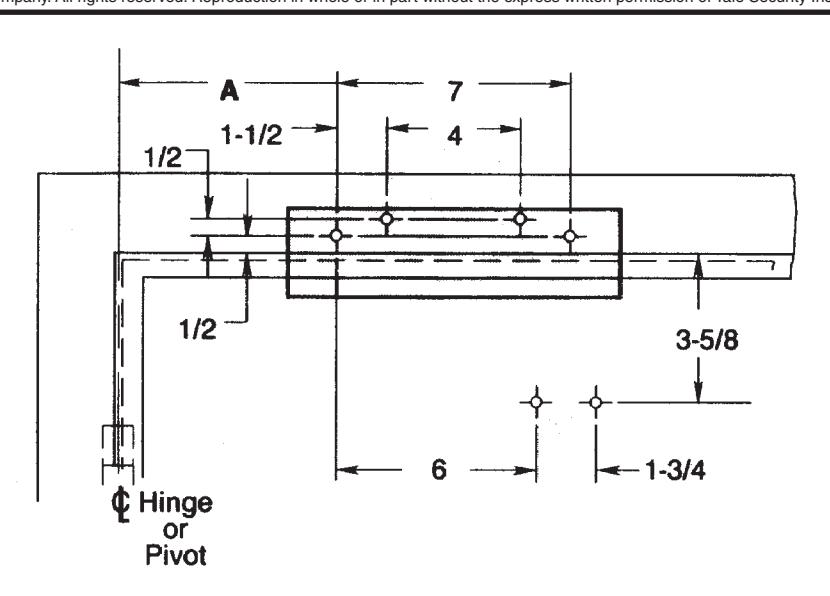

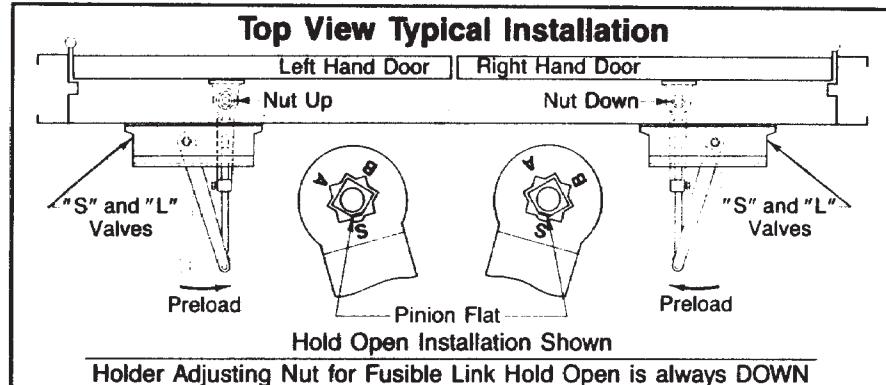

(J)1600 and (J)1600H Series Door Closers Top Jamb Application With 1688 Drop Plate Non Hold Open or Hold Open Arm Individually Sized Units 3 and 4 & Multi-size Unit 1-6
