Norton 1600 Series Door Closer CLP1600(BC) CPS1600(BC) CloserPlus CloserPlus Spring Parallel Arm Application with or without 1688 Drop Plate Stop Only Stop &Hold Open Template
Open the original PDF document
View PDF
Maximum width hinges for this template are 5" (127mm)
| in. | mm. | in. | mm. | in. | mm. | in. | mm. |
|---|---|---|---|---|---|---|---|
| L | 2 | 50.8 | 7-3/8 | 187 | 9-1/16 | 230.2 | |
| 3/8 | 9.5 | 2-1/16 | 52.4 | 7-5/8 | 194 | 9-1/8 | 232 |
| 7/16 | 11.1 | 2-3/4 | 69.9 | 7-3/4 | 197 | 9-3/8 | 238 |
| 1/2 | 12.7 | 4 | 101.6 | 8 | 203 | 9-5/8 | 244 |
| 3/4 | 19.1 | 5-3/4 | 146 | 8-3/8 | 213 | 10-1/8 | 257 |
| 1-3/8 | 34.9 | 6-3/8 | 162 | 8-5/8 | 219 | 10-3/8 | 264 |
| 1-1/2 | 38.1 | 6-3/4 | 171 | 9 | 229 | 11-1/8 | 283 |
| 1-5/8 | 41 | 7 | 177.8 |
| Top View Typical Installation | |||||||
|---|---|---|---|---|---|---|---|
| Left Hand Door Right Hand Door | |||||||
| Stop "S" and Valve | |||||||
| Pinion Flat | Pinion Flat | ||||||
| Fastener | Frame | Door | Drill | |
|---|---|---|---|---|
| #14 type "A" sheet metal screw | wood | none | 7/32" (5.5mm) | |
| 1/4-20 machine screw | metal | none |
#7 (.201 dia.) or 5.10mm. drill
1/4"-20 tap |
|
| SNB | none |
hollow
metal |
9/32" (7.00mm.) thru
3/8"(9.50mm.) door face opposite to closer |
|
| (optional) | : |
aluminum
or wood |
3/8" (9.50mm.) thru | |

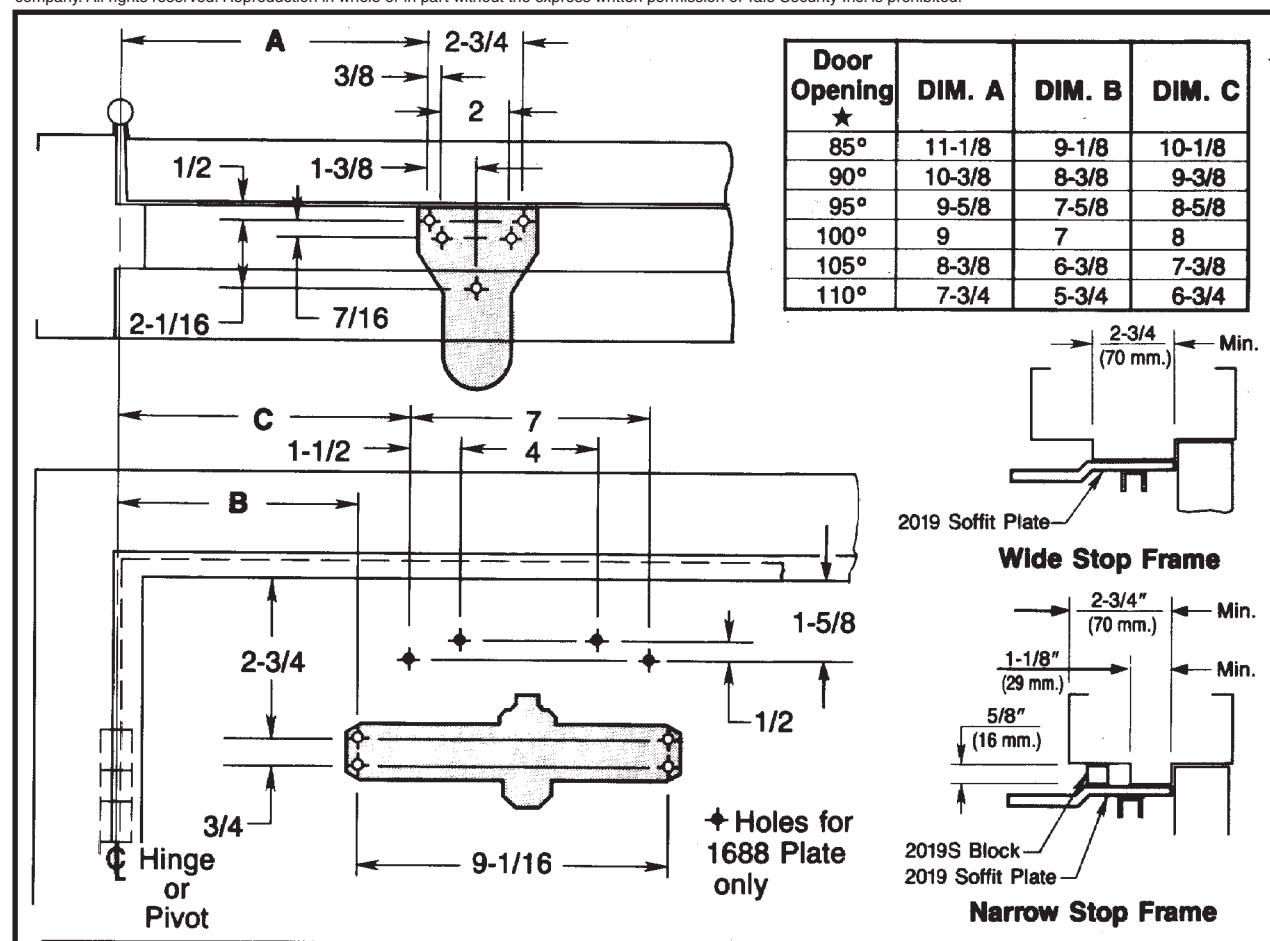

® CLP-1600(BC) Series CloserPlus CPS-1600 (BC) Series CloserPlus Spring™ Arm Parallel Arm Application With or Without 1688 Drop Plate Arm Function: Stop Only or Stop & Hold Open Arm ("T" Suffix) Power Sizes 1-6, 3BC, 4BC
