Norton 1600 Series Door Closer CA1601 Cushion Stop Arm Non-Hold Open Installation Instructions
Open the original PDF document
View PDFNorton
Installation Instructions

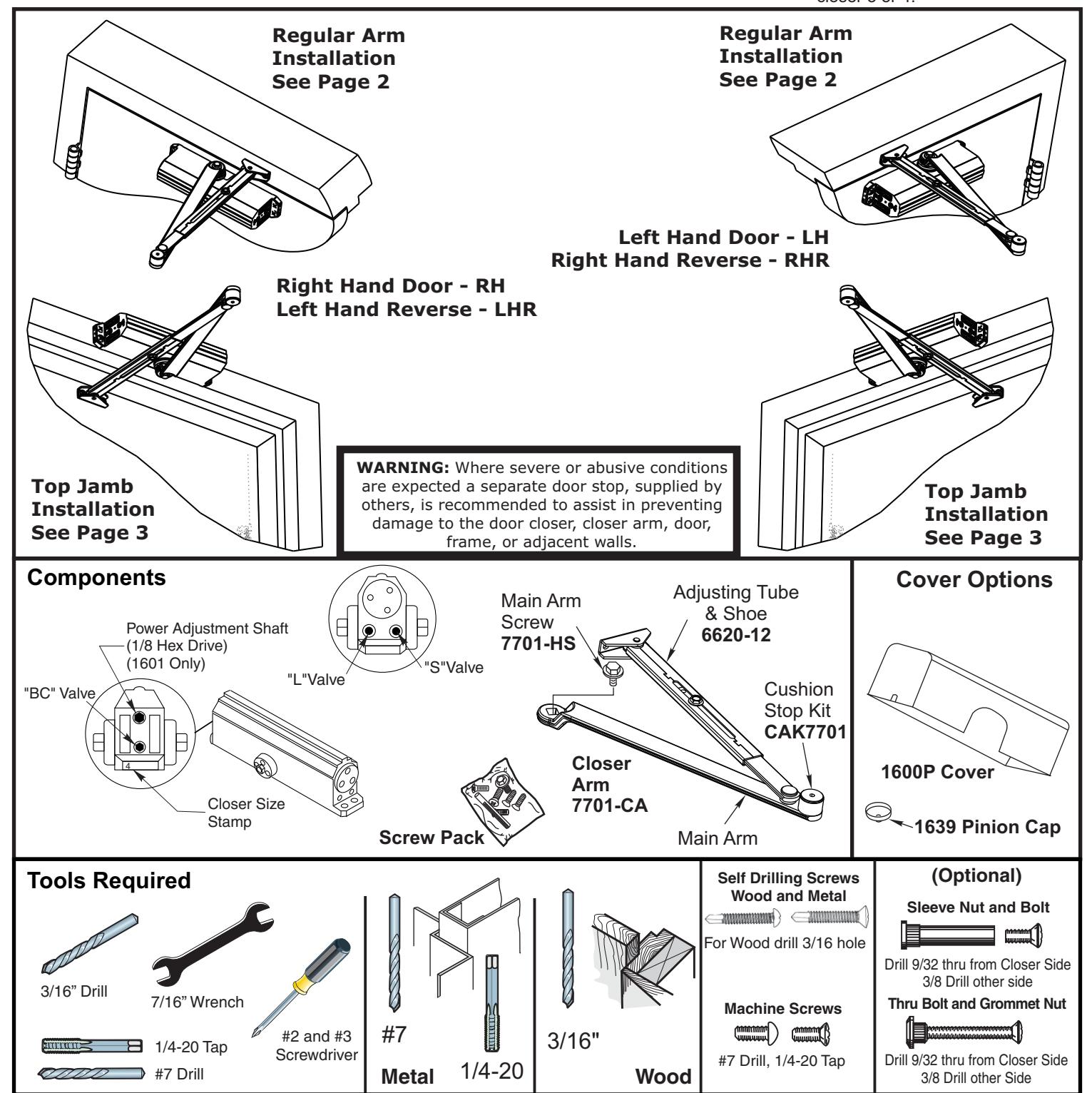

Cushion Stop Arm Door Closers (CA)
ASSA ABLOY
An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These instructions should be followed to avoid the possibility of misapplication or misadjustment.
Model Numbers Included:
Multi Size Closer CA1601
Sized Closer CA160 X BC
Note: "X" is Sized Closer number designates power size of closer 3 or 4.
CA1600 Series

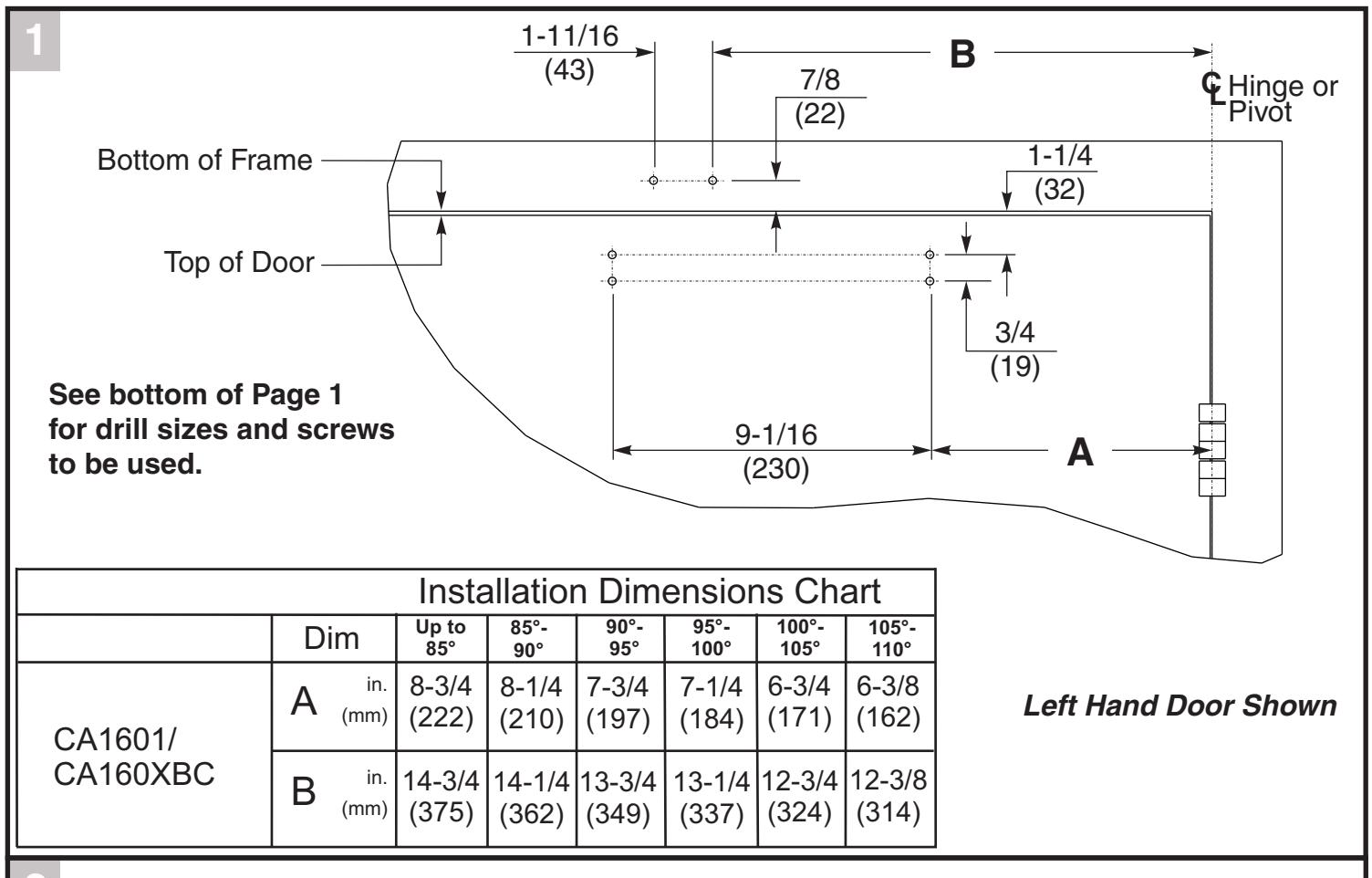

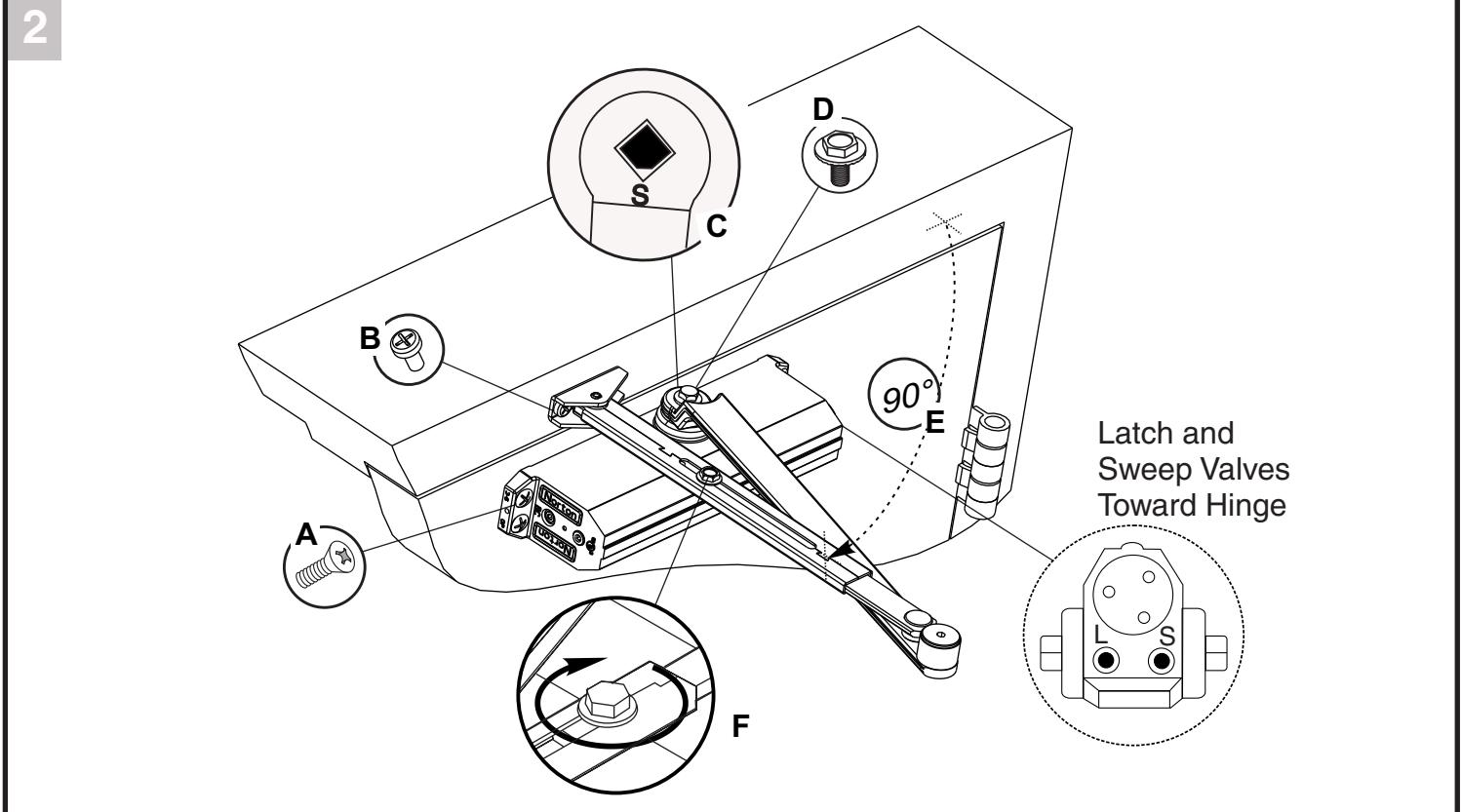

Cushion Stop Arm Door Closers — Regular Mount
CA1600 Series
Norton <sup>®</sup>

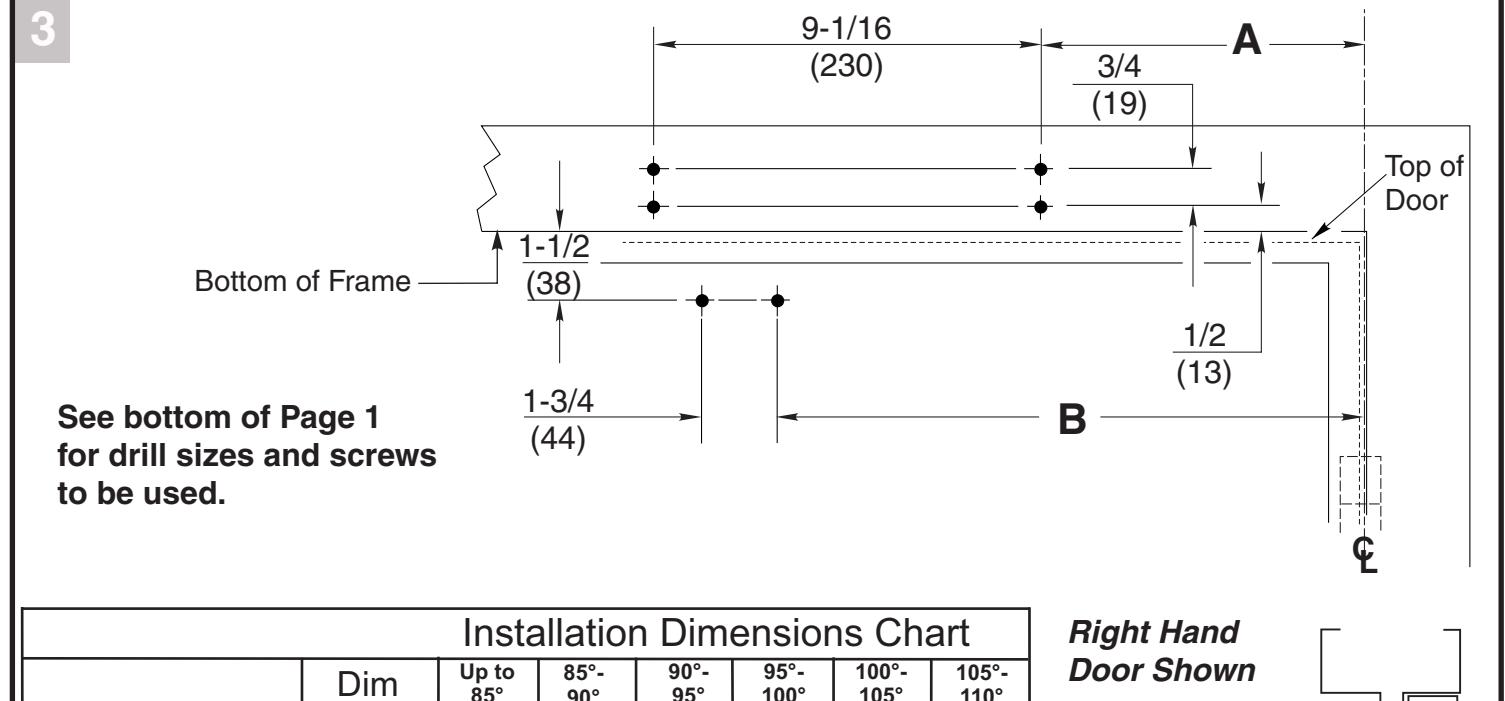

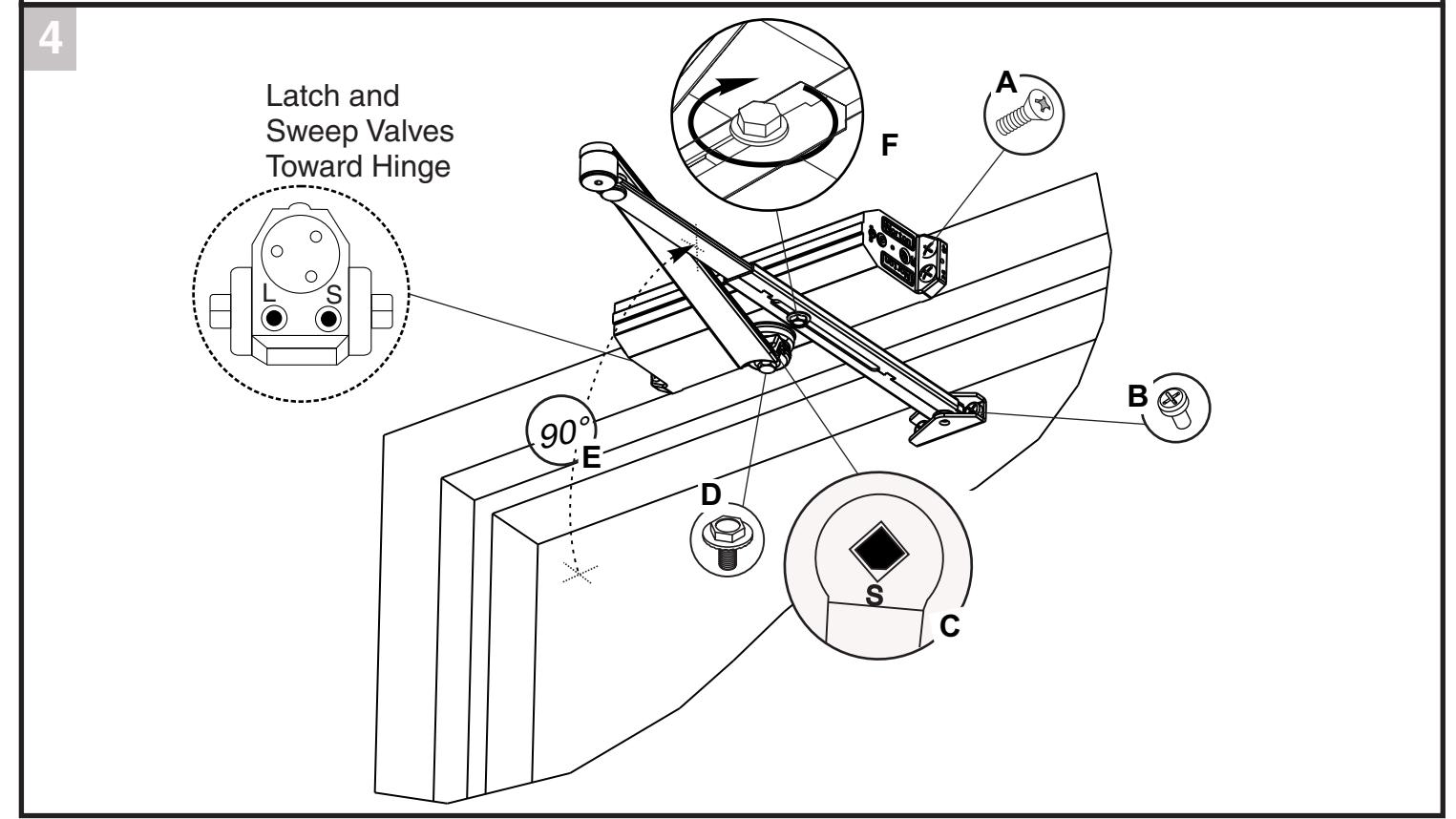

Cushion Stop Arm Door Closers — Top Jamb Mount
ASSA ABLOY
| Installation Dimensions Chart | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Dim |
Up to
85° |
85°-
90° |
90°-
95° |
95°-
100° |
100°-
105° |
105°-
110° |
|||
| CA1601/ | A |
in.
(mm) |
8-1/8
(206) |
7-5/8
(194) |
7 (178) |
6-1/2
(165) |
6
(152) |
5-1/2
(140) |
|
| CA160XBC | В |
in.
(mm) |
14-1/4
(362) |
12-7/8
(327) |
12-3/8
(314) |
11-7/8
(302) |
11-5/8
(295) |
||

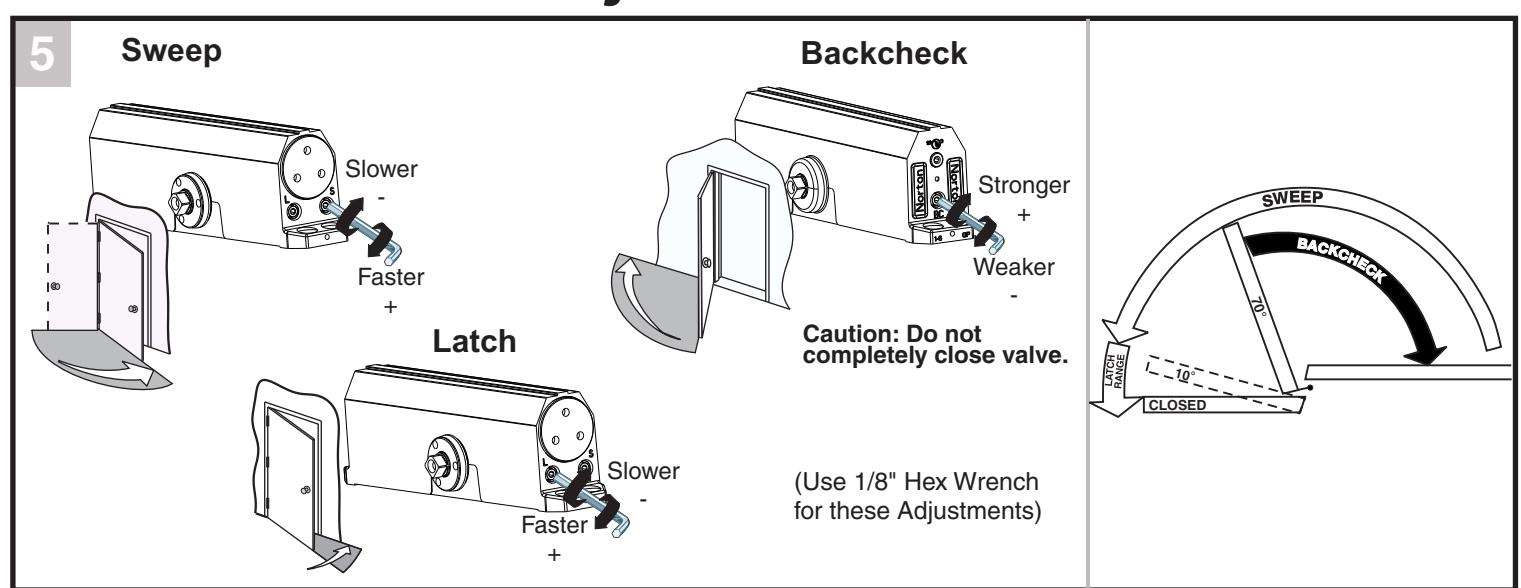

1600 Series Adjustments

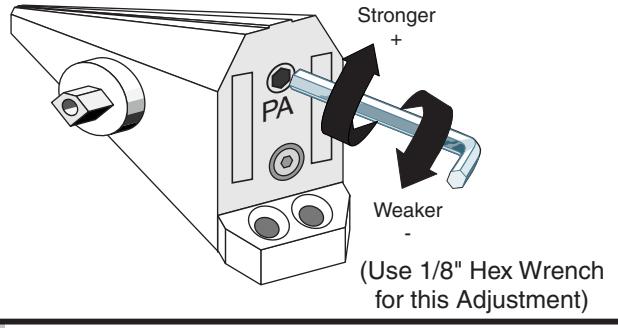

Spring Power Adjust 1601 only
| Adjustment Chart | Number of Turns Required | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Π| TYPE | MAXIMUM DOOR SIZE | ||||||||
|
TYPE
OF INST. |
* |
34"
(0.85M) |
36"
(0.90M) |
40"
(1.00M) |
44"
(1.10M) |
48"
(1.20M) |
||||
| CA1601 | 601 | Z |
Regular Arm
Top Jamb |
360°
S OF |
OWER
UST NCH |
2 | 4 | 6 | 10 | 12 |
| EXT |
Regular Arm
Top Jamb |
FULL |
3/16 PC
ADJI WRE |
3 | 5 | 8 | 11 | 14 | ||
*30 FULL (360°) TURNS MAXIMUM AVAILABLE
= 8 Turns As Shipped
To identify your model:
Size Model 1-6=1601
3=1603BC
4=1604BC
Norton ®
ASSA ABLOY
