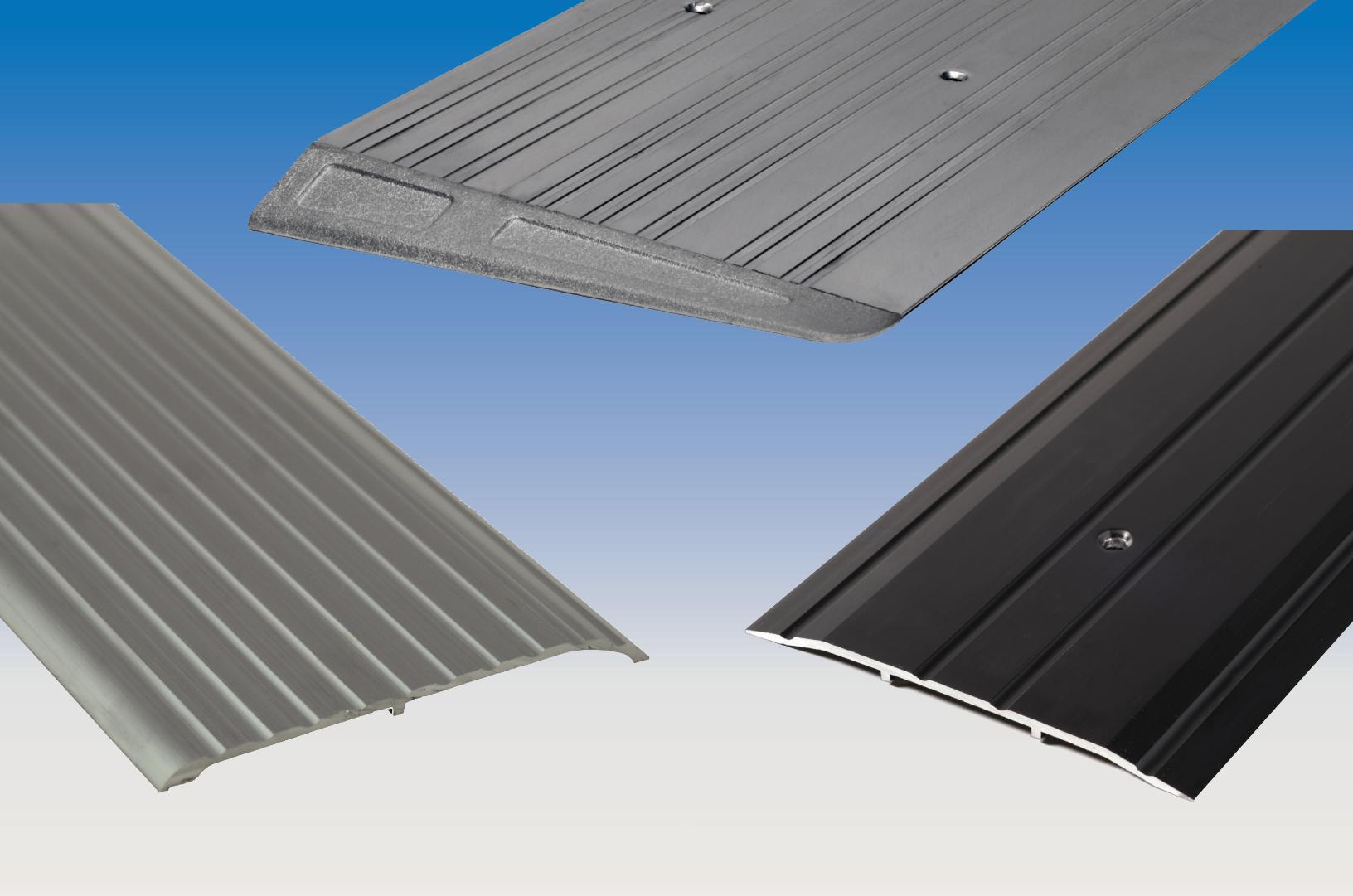

Flooring Transitions

Transition Product Index:

Index	Page
ADA Compliant Interlocking Reducers	SG14	Half Saddle and Extended
Aluminum Cover Plates	SG8	Width Components SG7
Architectural Bronze 1/4" Saddle SG12		Heavy Duty SG5
Architectural Bronze 1/2" Saddle SG12		Interlocking Rubber Reducers SG14
Architectural Bronze Custom SG13		Offset SG8
Custom Fabricated SG9		Return Closed Ends SG9
Edge Components and Plates	SG10-SG11	Return Closed Ends for Reducers SG14
Extended Width.	SG6	Saddle SG4
Fasteners SG15		Sports Floor Assemblies SG9
Half Saddle SG8		Stainless Steel 1/4" Saddle SG12

Rating Symbols Legend

ADA COMPLIANT Barrier Free Transitions meet the requirements of ADA Standards for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.

POSITIVE PRESSURE CERTIFIED by UL to ANSI/UL10C; complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood Fire doors rated up to 90 minutes.

CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B; complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Air Infiltration Tested to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

SLIP-RESISTANT 'SIA' textured surface is available on all transitions. Our process embeds and fuses bits of hot nickel and titanium into the surface of the transition. This technology originally developed for use on aircraft carrier decks is very skid resistant and will not wear off.

ANSI/BHMA CERTIFIED. Certified transitions comply with American National Standard for Transitions ANSI/BHMA A156.21 and are listed in the BHMA Certified Products Directory.

Online product listings at www.ul.com/database

Materials

Transitions are Aluminum Alloy 6063, T5 temper, unless noted. Cover Plates 818, 814 and 828 are Aluminum Alloy 3003, H14 hardness. Cover Plate 838 is Aluminum Alloy 5052, H32 hardness.

Architectural Bronze Transitions are Alloy CDA 385 (Copper Alloy No. C38500), Architectural Bronze. Brass Cover Plate 818BR is Alloy CDA 260 (Copper Alloy No. C26000) cold formed Cartridge Brass.

Stainless Steel Transitions and Cover Plates are Type 304; known for its excellent corrosion resistance, high tensile strength and resistance to oxidation.

Transition Finishes

Aluminum:	Mill Finish Dark Bronze	ANSI/BHMA 719	US27	NGP Suffix: None DKB
	Polished Powder Coated Colors – See Page L2 for details	ANSI/BHMA 717		POL
	Slip Resistant			SIA
Architectural Bronze:	Satin Finish Dark Bronze Oil Rubbed Polished Slip Resistant	ANSI/BHMA 728 ANSI/BHMA 722 ANSI/BHMA 721	US4 US10B US3	BR BR-DKB BR-POL BR-SIA
Stainless Steel:	Mill Finish Brushed (#4) Polished Slip Resistant	ANSI/BHMA 630 ANSI/BHMA 629	US32D US32	SS SS-Brushed SS-POL SS-SIA

Slip Resistant Finish

SIA (Slick It Ain't) finish is our slip resistant textured surface, available on all transitions up to 24" wide and on 818 aluminum and brass cover plates up to 10" wide.

Our SIA technology embeds bits of hot nickel and titanium into the surface of the transition using a high pressure thermo-electrostatic process. It was originally developed for use on aircraft carrier decks. SIA finish is very durable and will not wear off.

This results in a slip resistant surface that is similar to high grit sandpaper.

Aluminum and Stainless Steel SIA finish transitions are a pewter color. Architectural Bronze SIA finish transitions are a brass color.

Powder Coat Finish

Powder Coat finish is available on most transitions upon request. Consult factory for custom color matching.

Saddle Transitions All transitions this page Typical Wall .125 413

Transition	Width
413, 413DKB, 413BR	4"
513, 513DKB, 513BR	5"
613, 613DKB, 613BR	6"
713, 713DKB, 713BR	7"
813, 813DKB, 813BR	8"
913, 913DKB	9"
1013, 1013DKB	10"

Note: Flute pattern varies with width of transition

• Aluminum mill finish standard
• DKB Aluminum dark bronze finish
• BR Architectural Bronze

• Optional: Slip Resistant SIA Finish

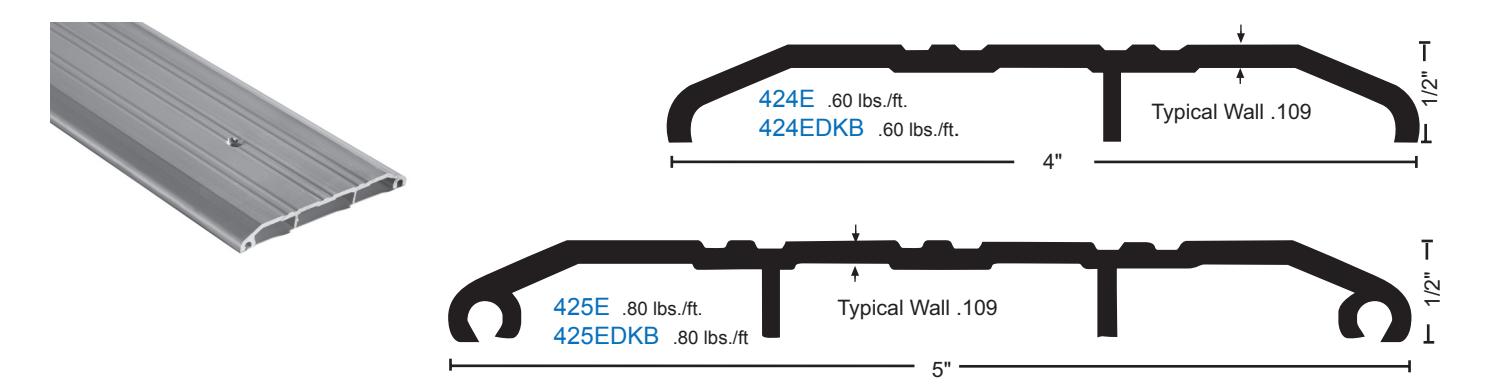

Transition	Width
425E, 425EDKB	5"
426E, 426EDKB	6"
427E, 427EDKB	7"
428E, 428EDKB	8"
429E, 429EDKB	9"
430E, 430EDKB	10"

Note: Flute pattern varies with width of transition

VINYL FOOT SEAL OPTION: used instead of caulking to increase

used instead of caulking to increase the weather resistance of the transition. Specify on order.

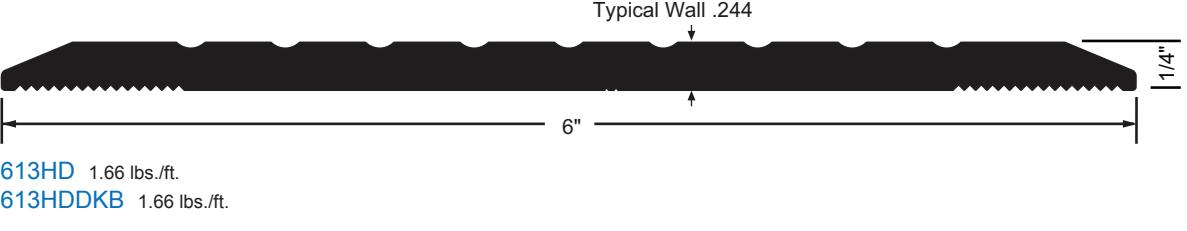

Heavy Duty Transitions

All transitions this page 10C

• For use where forklift or vehicular traffic occurs • Recommended for delivery/storage doorways where heavier loads travel
• BHMA certified to ANSI A156.21 Heavy Duty 10,000 lb. load test
• Optional "SIA" slip-resistant finish recommended in moisture prone areas

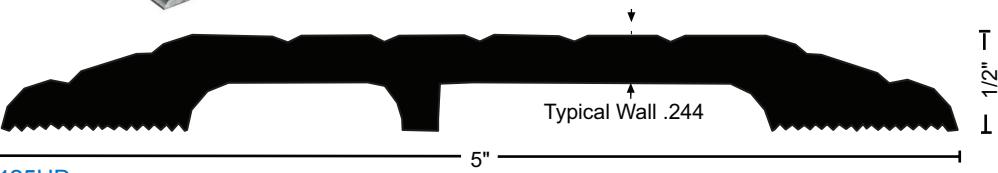

425HD 1.6 lbs./ft. 425HDDKB 1.6 lbs./ft.

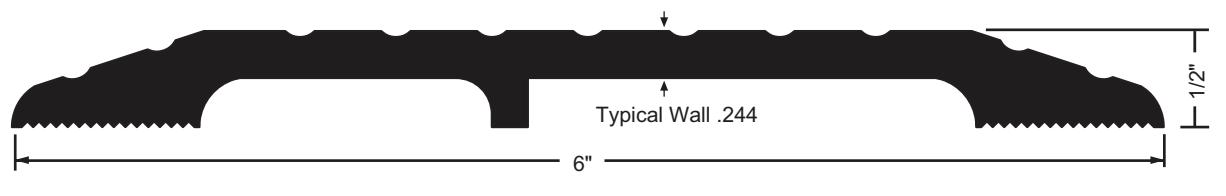

426HD 1.98 lbs./ft. 426HDDKB 1.98 lbs./ft.

325HD 1.65 lbs./ft 325HDDKB 1.65 lbs./ft

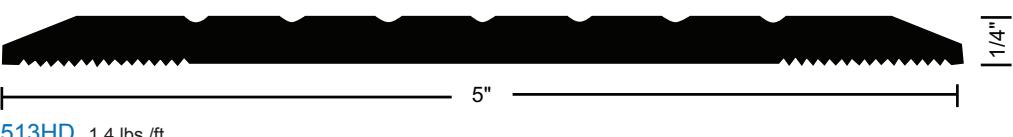

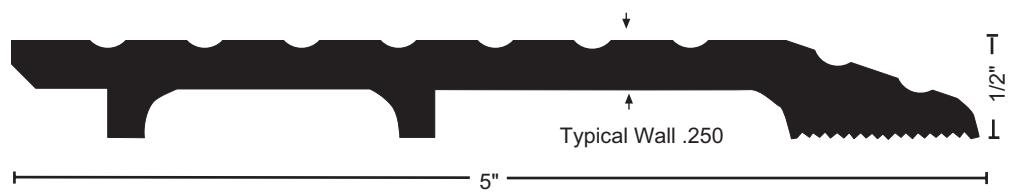

513HD 1.4 lbs./ft. 513HDDKB 1.4 lbs./ft.

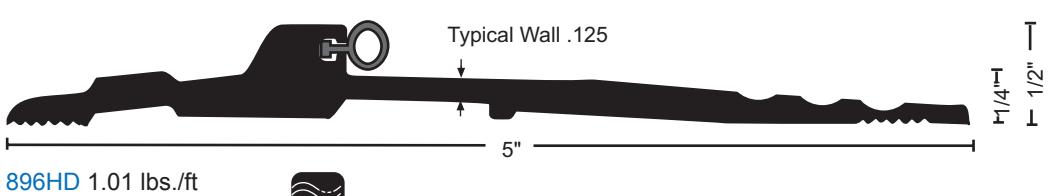

896HDDKB 1.01 lbs./ft

BUMPER SEAL Seals against the door providing weather resistance

Vinyl ("V") supplied unless other material specified

SG 5

Options: NGP-TPV ("N") Silicone ("S")

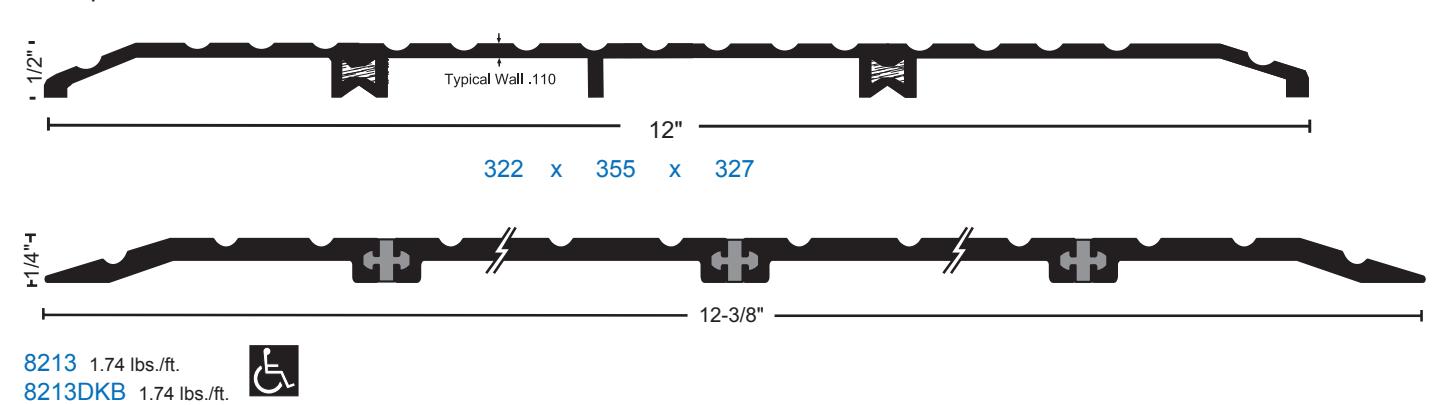

Extended Width Transitions

All Products this page 10C

• Create wider saddle or half saddle transitions
• Furnished with aluminum spline or thermal spline for field assembly
• Optional welded assemblies

Examples - How to order:

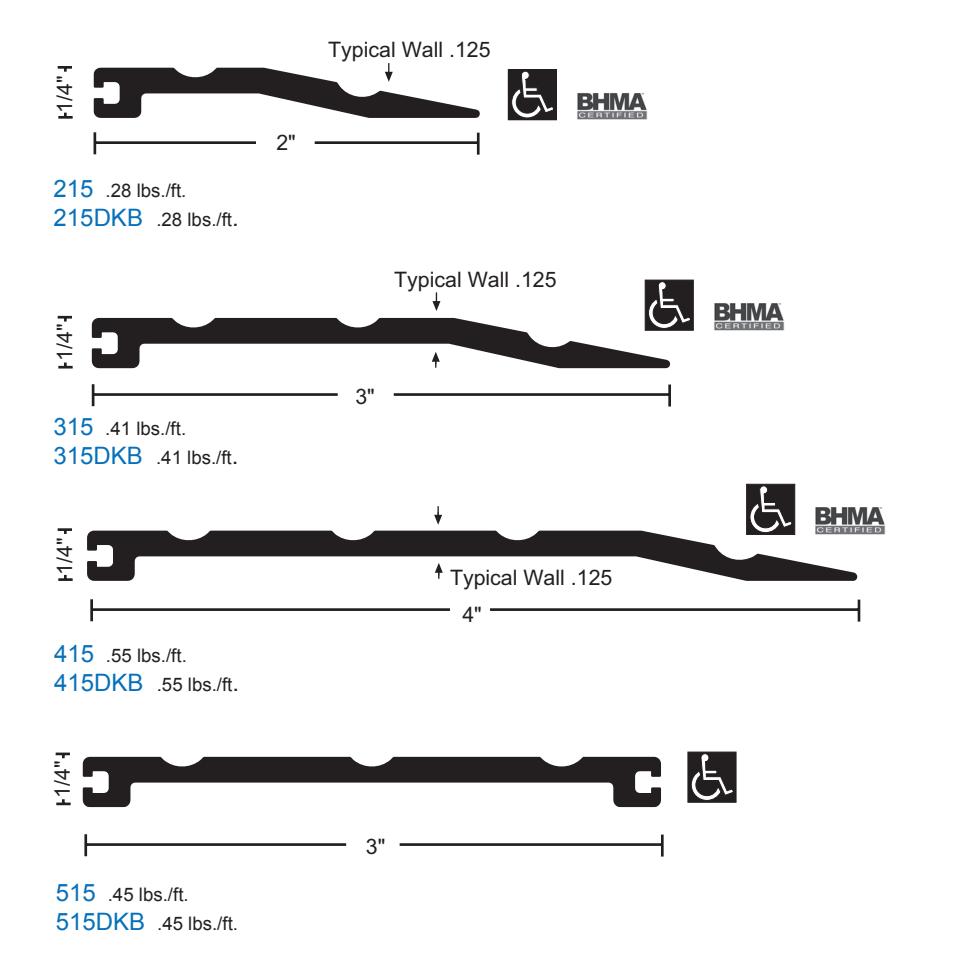

Half Saddle and Extended Width Components

MATERIALS & FINISHES

• Aluminum mill finish
• DKB Aluminum dark bronze finish

• Optional: Slip Resistant SIA Finish

FASTENERS

#10 x 1-1/2" FH zinc plated wood screws furnished. Dark bronze supplied with DKB transitions.

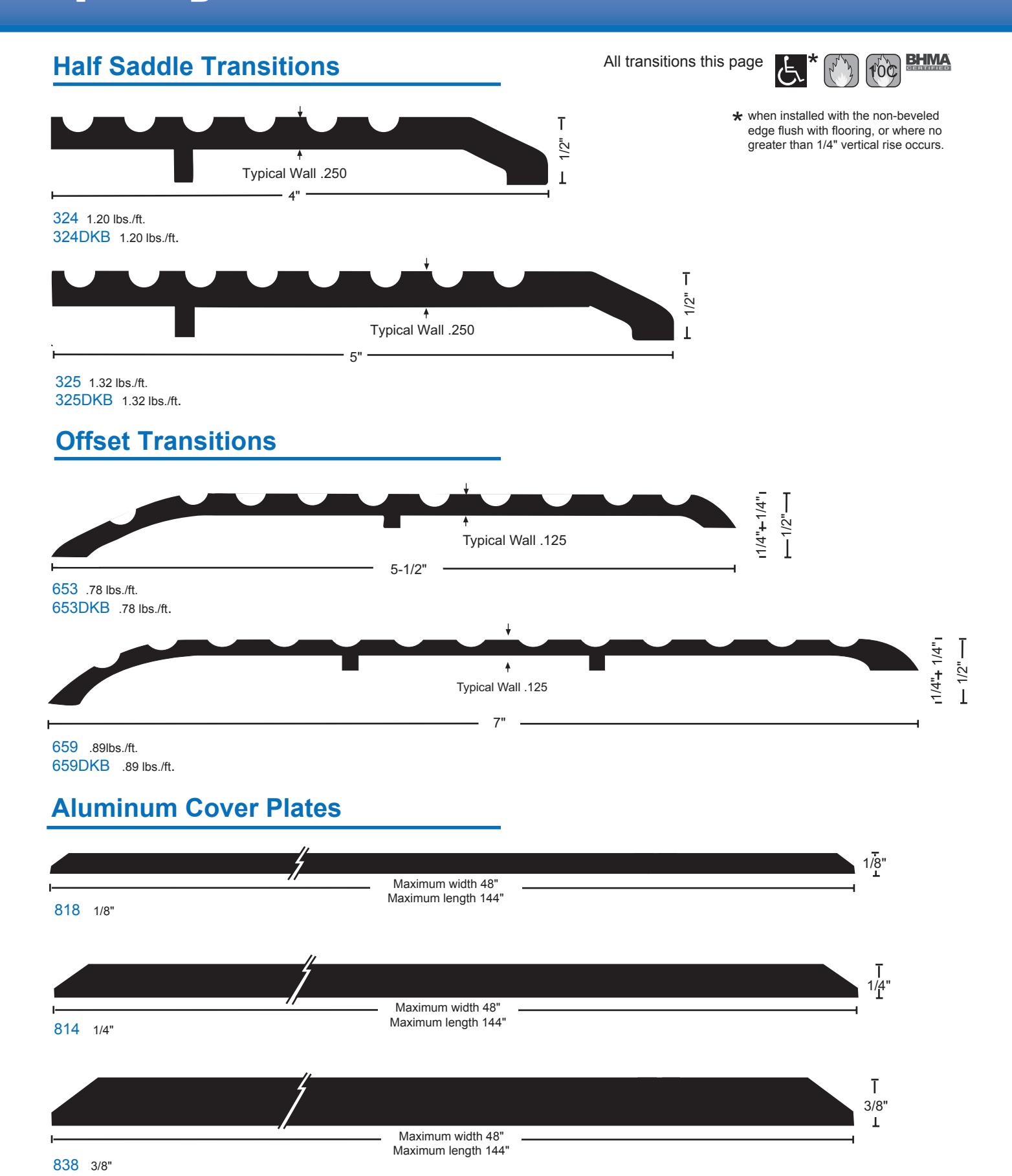

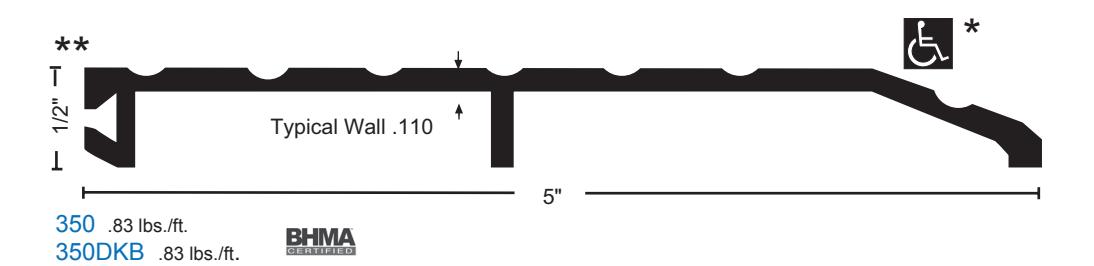

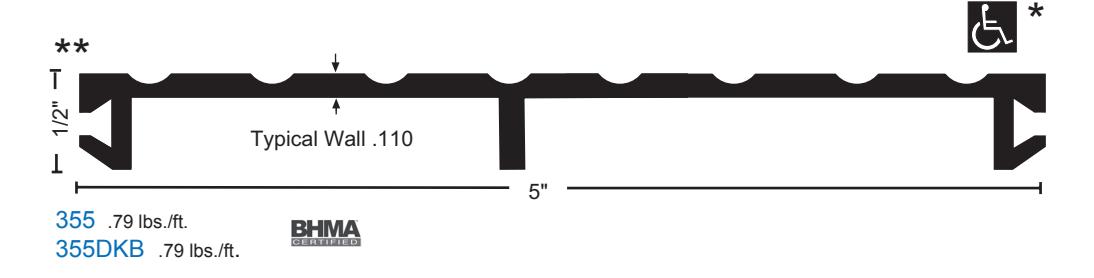

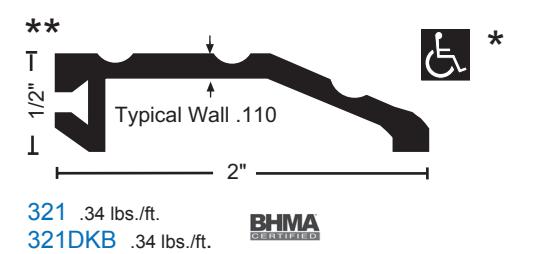

Half Saddle Transitions and Extended Width Components 10C

All transitions this page

MATERIALS & FINISHES

• Aluminum mill finish
• DKB Aluminum dark bronze finish

• Optional: Slip Resistant SIA Finish

FASTENERS

#10 x 1-1/2" FH zinc plated wood screws furnished. Dark bronze supplied with DKB transitions.

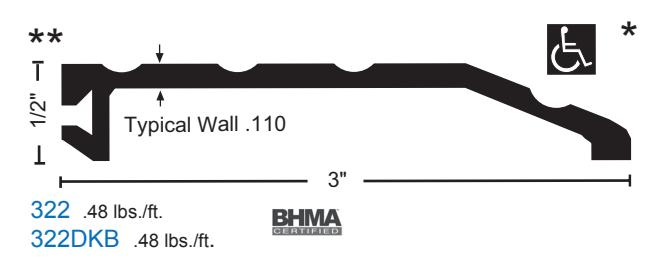

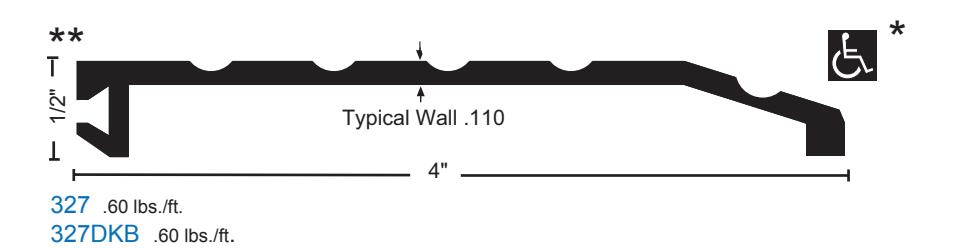

• When installed with the non-beveled edge FLUSH with flooring, or where no greater than 1/4" vertical rise occurs. *
• Designed for thermal break. ** Bumper seal not available.

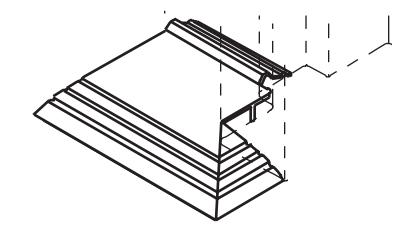

Return Closed Ends

Return Closed Ends (RCE's) are available on most beveled transitions. The corner is miter cut on a 45 degree angle and returned to the face of the door frame for a neat, clean, finished appearance. Specify: "RCE"

Custom Fabricated Transitions

Our Custom Fab dept. specializes in producing custom made-to order transitions to your specifications. Submit your details to our technical dept. for a quotation and drawing for your approval. Components are used to build special assemblies like the one illustrated below. Aluminum, Brass and Stainless Steel Cover Plates are also custom formed and welded to meet special requirements.

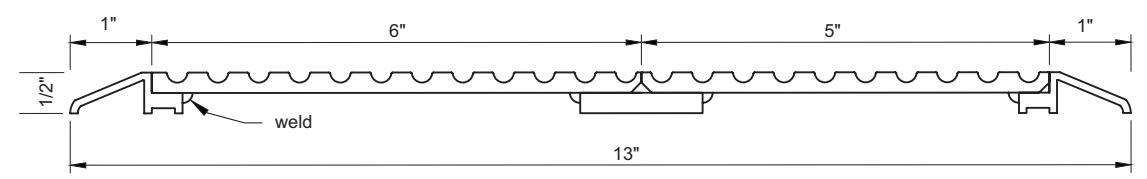

8137 x 8146 (Rip to 6") x 8145 x 8137 x Bar4 x Welded profile Assembly View

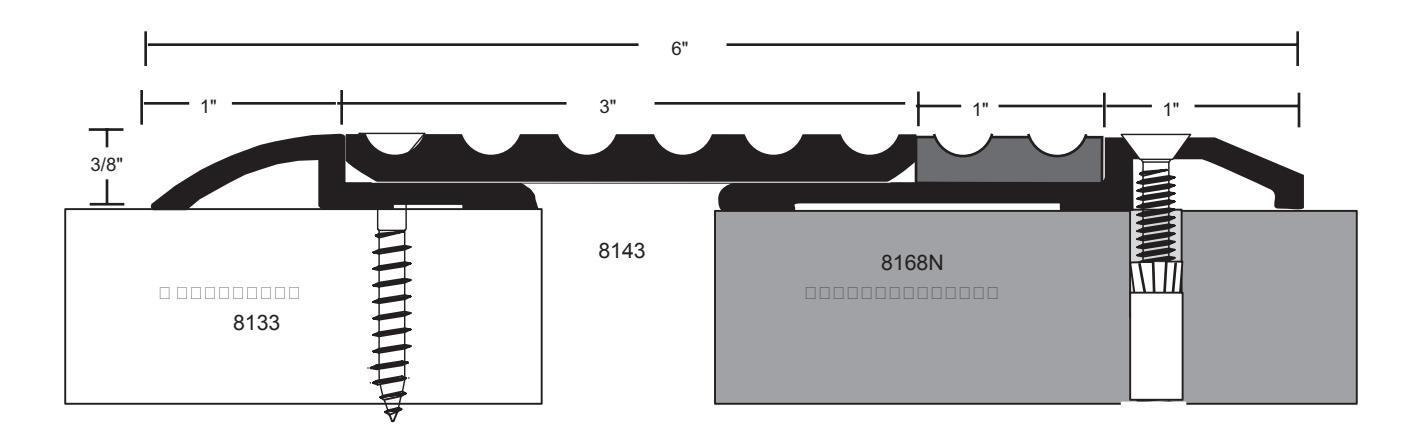

Sports Floor Transition Assemblies

Wood gymnasium sports floors are designed to be free floating. We offer transition assemblies to cover the transition from the primary floor to the sports floor. As the sports floor shifts, the transition assembly will allow expansion and contraction by the top plate moving with the sports floor.

8133 x 8143 x 8168N (Neoprene) x 8139 x 10-24 MS/LA

Also available in 1/2" high and in other widths - contact NGP Technical Department

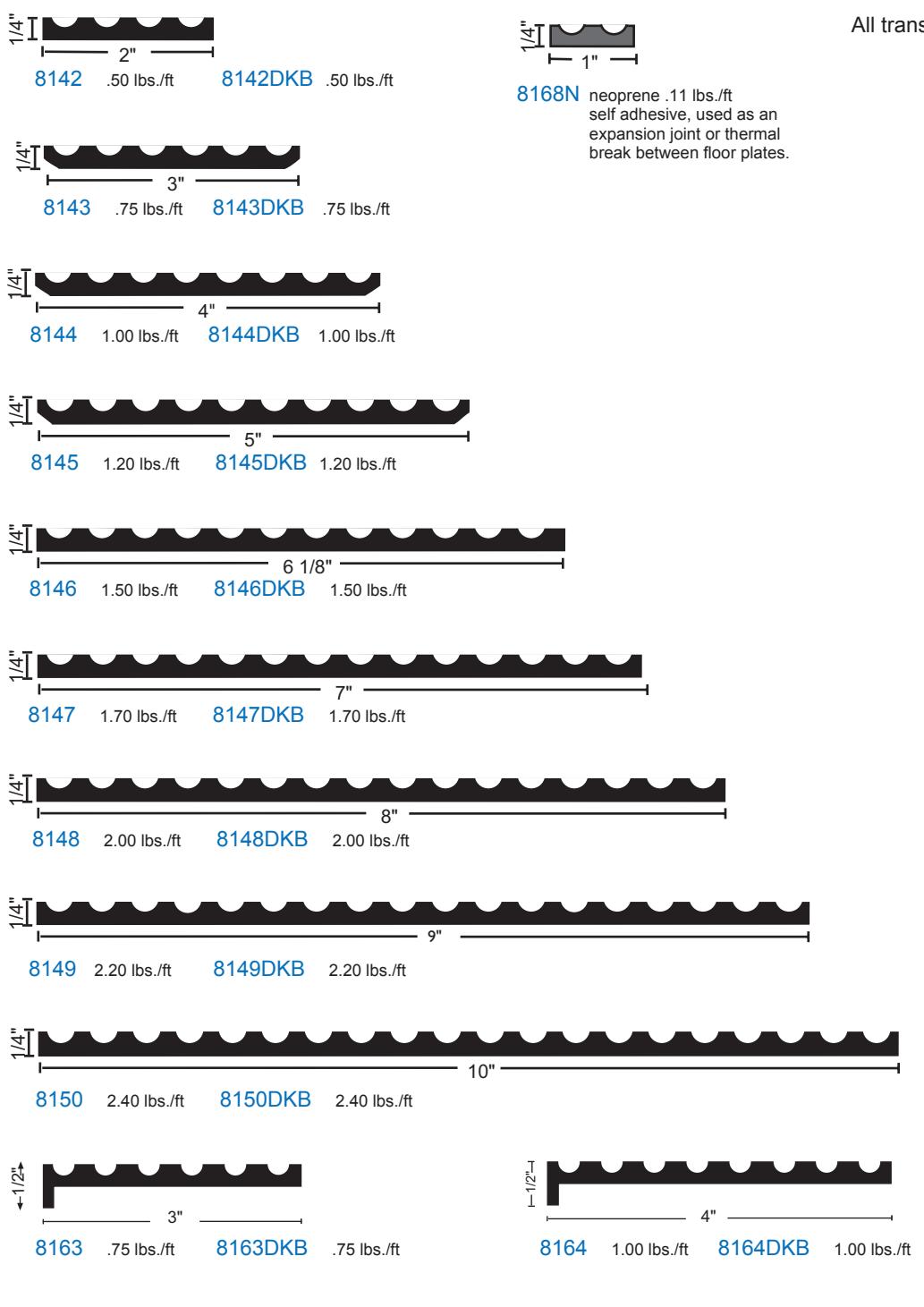

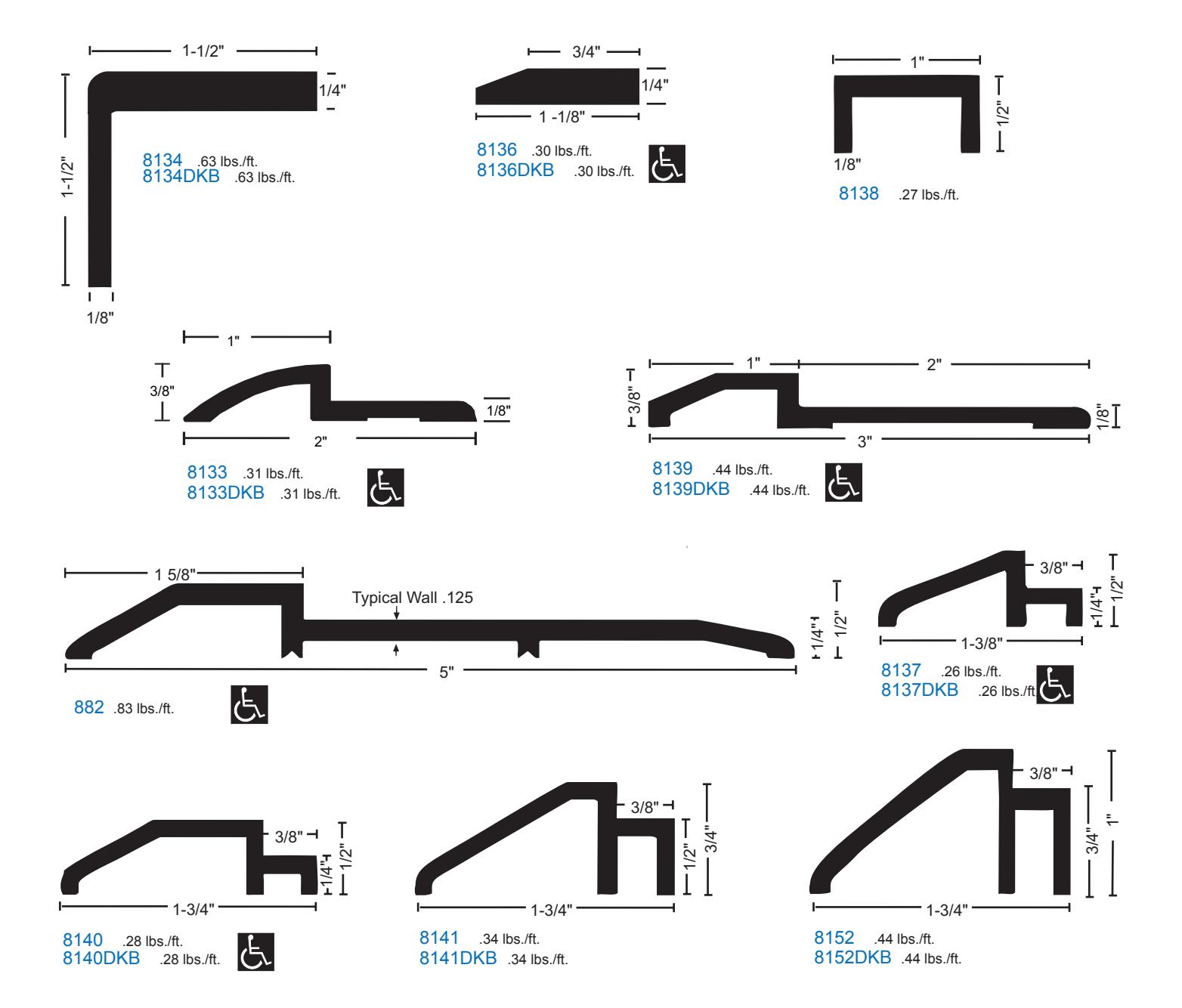

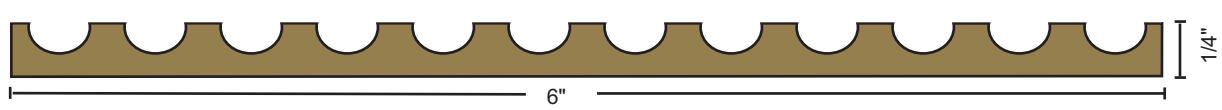

Edge Components

All transitions this page 10C

Choose from various height and width components to build custom transitions to meet special job requirements. For assistance contact our tech support team.

Select the proper height edge components. Select the appropriate center plates to construct the width needed. Plates may be butted together or ripped to make specific widths. Support joints and wider spans with bar supports.

Transition assembly plates may be used fluted or smooth side up. Slip-resistant SIA finish can be applied to all parts.

Transition assembly components may be ordered separately for field assembly or welded into one piece units in our custom fabrication shop. They are supplied undrilled unless a template is provided. Ripping and beveling options are available. All custom fabricated assemblies have a tolerance of +/- 1/16".

If a welded assembly is desired, specify "welded".

All transitions this page

except 8163, 8164, 8167

MATERIALS & FINISHES

• · Aluminum mill finish
• DKB Aluminum dark bronze finish

Optional: Slip Resistant SIA Finish

FASTENERS

#10 x 1-1/2" FH zinc plated wood screws furnished. Dark bronze supplied with DKB transitions.

Bar Supports

Used as support under transition assemblies

illustrations shown at 50%

8167DKB

8170DKB 2.33 lbs./ft

1.76 lbs./ft

9.5"

3"

8167 1.76 lbs./ft

8170 2.33 lbs./ft

512SS 2.07 lbs./ft.

Typical Wall .120 1/4" 5" 513SS 2.07 lbs./ft. Stainless Steel 1/4" Saddle Transitions Typical Wall .120 1/2" 5" All transitions this page 10C

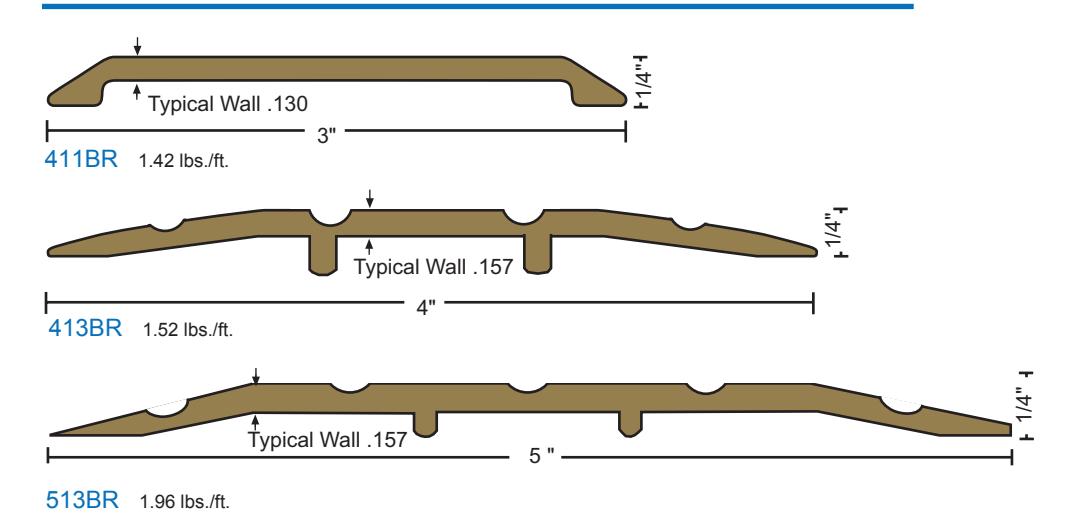

Architectural Bronze 1/4" Saddle Transitions

FASTENERS #10 X 1-1/2" solid brass wood screws furnished. Antique bronze finish screws provided with dark bronze transitions.

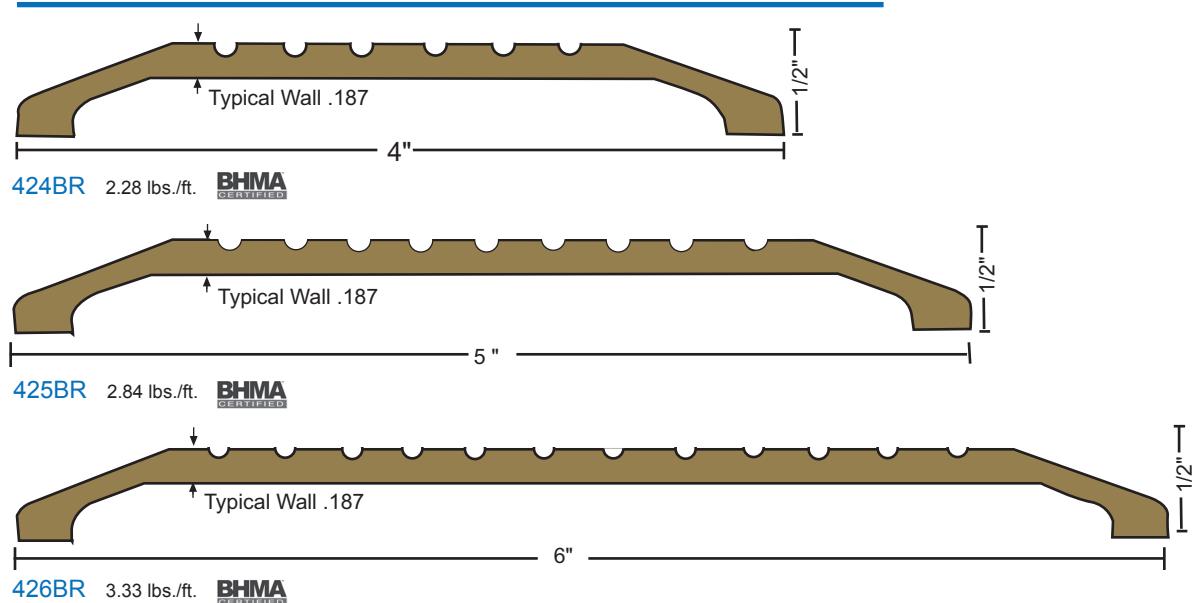

Architectural Bronze 1/2" Saddle Transitions

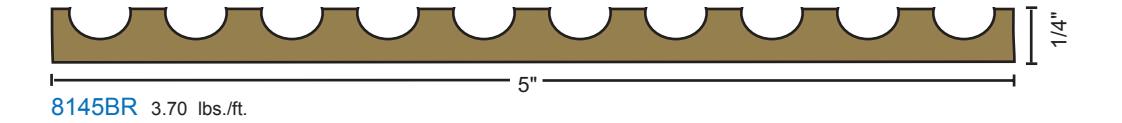

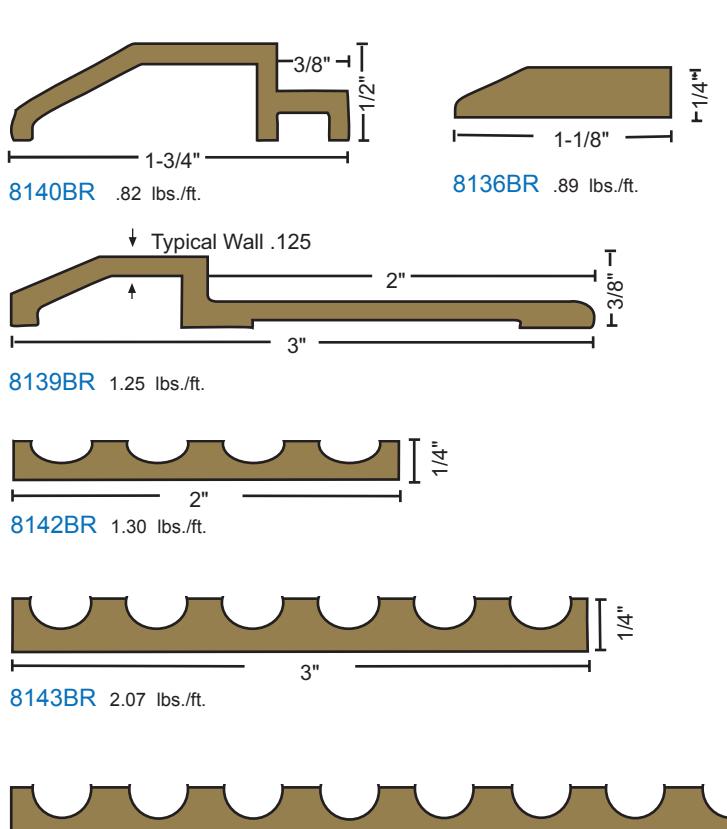

Architectural Bronze Custom Transitions

All transitions this page 10C

Choose from various height and width components to build custom transitions to meet special job requirements. See the custom fabricated transition example illustrated on page T9. For assistance contact our tech support team.

Select the proper height edge components. Select the appropriate center plates to construct the width needed. Plates may be butted together or ripped to make specific widths. Support joints and wider spans with bar supports.

Transition assembly plates may be used fluted or smooth side up. Slip-resistant SIA finish can be applied to all parts.

Transition assembly components may be ordered separately for field assembly or welded into one piece units in our custom fabrication shop. They are supplied undrilled unless a template is provided. Ripping and beveling options are available. All custom fabricated assemblies have a tolerance of +/- 1/16".

If a welded assembly is desired, specify "welded".

Bar Supports

used as support under transition assemblies

8144BR 2.88 lbs./ft.

8146BR 4.25 lbs./ft.

3/4" 9" R75 1.63 lbs./ft. R75DKB 1.63 lbs./ft. 1" 12" R100 2.06 lbs./ft. R100DKB 2.06 lbs./ft. Illustrations shown at 50% 6" 1/2" R50 .94 lbs./ft. Typical Wall .110 R50DKB .94 lbs./ft. 1/4" 6" 6" 1/2" Offset RO50 1.87 lbs./ft. RO50DKB 1.87 lbs./ft. ADA Compliant Interlocking Reducers 10C

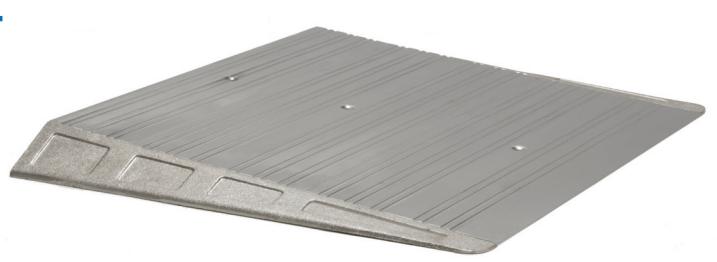

Return Closed Ends for Reducers

Return closed ends provide an attractive finished appearance to reducers. They are available in several lengths and can be trimmed to accommodate any size reducer assembly.

3/4" Offset RO75 2.56 lbs./ft.

RCE's are also available with slip-resistant "SIA" finish (suffix "SIA").

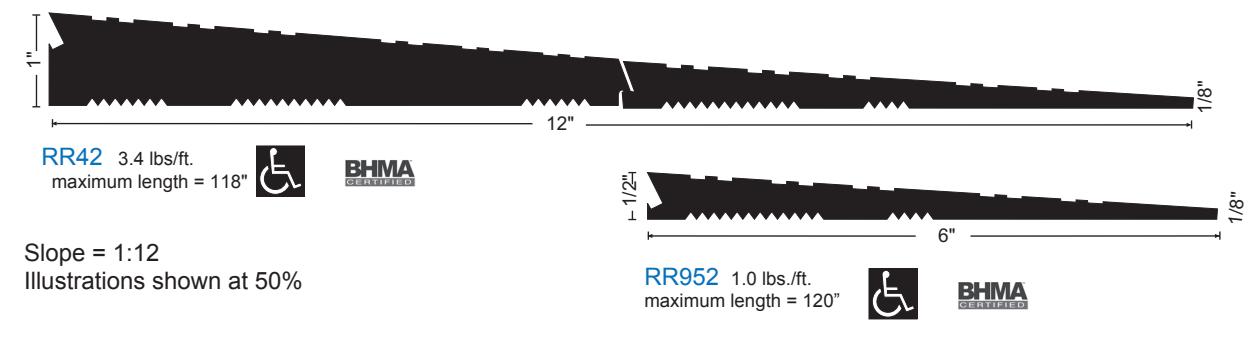

Interlocking Rubber Reducers

• Supplied with beveled ends (end slope = 1:2). Specify if straight cut is required.
• Rubber reducer sections may be combined with aluminum reducer components for higher rises, or with 6" flat aluminum interlocking transition #957 for offset conditions.
• Black silicone adhesive available to secure reducers without fasteners. Specify RR5007BL, each tube will secure 2 reducers 12" wide x 36" long (6 square feet.)

6" 9"

1/4"

RO75DKB 2.56 lbs./ft.

Transition Fasteners

#10 x 1 1/2" Phillips Flat Head Wood Screw Use 1/8" Drill bit

Phillips Head Top View

Spanner Head Top View

Torx Security Top View

#12 x 1 1/2" Phillips Flat Head Wood Screw Use 9/64" Drill bit Also #12 x 1"

#1/4-20 x 1 1/2" Phillips Flat Head Machine Screw

#1/4-20 Expansion Anchor Carbon Steel Use 3/8" Drill bit

#10 x 1 1/2" Phillips Flat Head Stainless Steel Sheet Metal Screw Use 1/8" Drill bit Also #10 x 1", #10 x 2", #10 x 2 1/2", #10 x 3"

#10-24 x 1 1/2" Phillips Flat Head Machine Screw Also #10-24 x 3/4", #10-24 x 1"

#10-24 Lead Anchor Use 3/8" Drill bit and Powers seating tool

#12 x 1 1/2" Phillips Flat Head Sheet Metal Screw Use 9/64" Drill bit Also: #12 x 1"

Plastic Anchor Various Sizes Use Drill Size = Anchor Size

Lead Expansion Shield 4% Antimonial Lead Use 5/16" Drill bit

#6 x 3/4" Phillips Flat Head Self-tapping Machine Screw Use 3/32" Drill bit

#1/4-20 Phillps Combo Flat Head Machine Screw/Anchor Use 1/4" Drill bit

#18 x 7/8" Nail for use with 80B Hook Strip

Hilti Kwik-Con II Torx Head Screw, Use Hilti TKC large concrete bit SDS 1/4" Tough Carbide

Tap-Con type Phillips Head Screw Use 5/32" Drill bit
