SLIDING DOOR
— HARDWARE -
SLIDING DOOR HARDWARE INDEX:
| Page | ||
|---|---|---|
| Aluminum: | ||
| Bi-Fold Sliding Door Hardware | SL2 | |
| Bi-Parting Sliding Door Hardware | SL7 | |
| By-Passing Sliding Door Hardware | SL1, SL3 | |
| Side Wall Mount Sliding Door Hard | dware | SL4 |
| Pocket Door Hardware | SL5 | |
| Pocket Door Hardware with Fram | e Kit | SL6 |
| Stainless Steel: Barn Door Hardware — Side Mour | nt | SL9 |
| Barn Door Hardware — Top Moun | t | SL8 |
| Tracks | ||

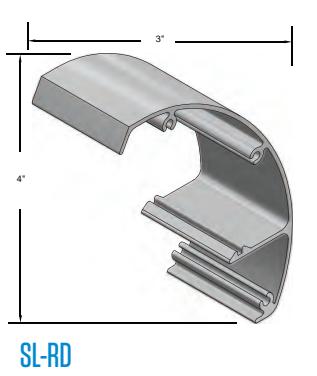

| SL-BCGSL10 | SLAL-250-BPSL3 | SLSS1-6-SCSL8 |
| SL-RDSL4 | SLAL-250-PDSL5, SL7 | SLSS1-8SL8 |
| SL-SQ18SL4 | SLAL-250-PDKITSL6 | SLSS1-8-SCSL8 |
| SL-SQ20SL3, SL5, SL7 | SLAL-250-SWSL4 | SLSS2-6SL9 |
| SL-WGSL10 | SLSS-FGSL10 | SLSS2-6-SCSL9 |
| SLAL-75-BF2DRSL2 | SLSS-DWS-6SL11 | SLSS2-8SL9 |
| SLAL-75-BF4DRSL2 | SLSS-DWS-8SL11 | SLSS2-8-SCSL9 |
| SLAL-75-BPSL1 | SLSS1-6SL8 |
RATING SYMBOLS LEGEND
ANSI/BHMA CERTIFIED. Certified sliding door hardware complies with American National Standard for Sliding and Folding Door Hardware ANSI/BHMA A156.14, and is listed in the BHMA Certified Products Directory.

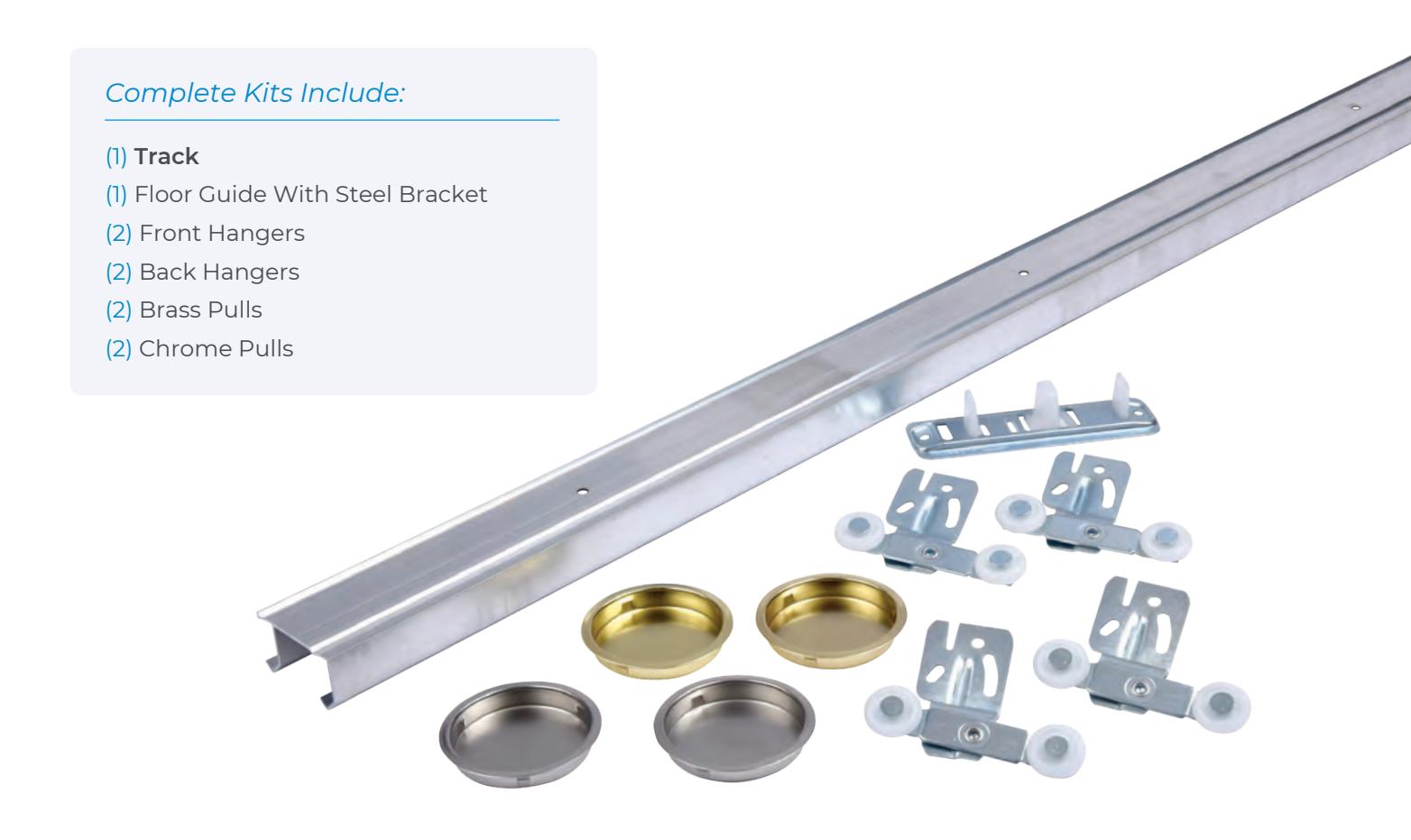

SLIDING DOOR HARDWARE
ALUMINUM SIDE MOUNT TRACK SYSTEM
- Designed for Multi-family Applications
- Up to 1 3/8" Doors
- Max Weight Load 75 lbs.
- 5-year Warranty
| SKU | TRACK LENGTH |
|---|---|
| SLAL-75-BP-48 | 48" |
| SLAL-75-BP-60 | 60" |
| SLAL-75-BP-72 | 72" |
| SLAL-75-BP-96 | 96" |

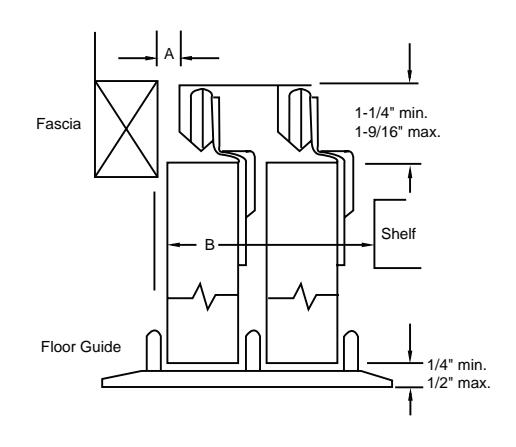

| DOOR THICKNESS | 3/4" | 1-3/8" |
|---|---|---|
| DIMENSION A | 0" | 7/8" |
| DIMENSION B | 2-3/4" | 4" |

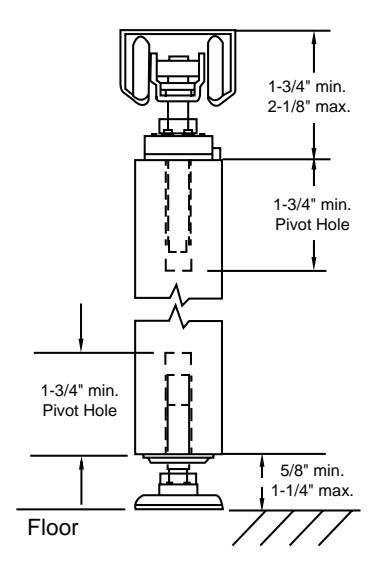

BI-FOLD
SLIDING DOOR HARDWARE
ALUMINUM TOP MOUNT TRACK SYSTEM
- Designed for Multi-family Applications
- Up to 1 3/8" Doors
- Max Weight Load 75 lbs.
- 5-year Warranty
| SKU | TRACK LENGTH |
|---|---|
| SLAL-75-BF2DR-36 | 36" |
| SLAL-75-BF2DR-48 | 48" |
Two Door Complete Kits Include:
- (1) Track
- (1) Aligner
- (1) Top Pivot
- (1) Wood Knob
- (1) Bottom Pivot
- (4) Brass Hinges
- (1) Roller
- (4) Chrome Hinges
- (1) Snugger
FOUR DOOR SYSTEMS
| SKU | TRACK LENGTH |
|---|---|
| SLAL-75-BF4DR-60 | 60" |
| SLAL-75-BF4DR-72 | 72" |
| SLAL-75-BF4DR-96 | 96" |
Four Door Complete Kits Include:
- (1) Track
- (2) Aligners
- (2) Top Pivots
- (2) Wood Knobs
- (2) Bottom Pivots
- (8) Brass Hinges
- (2) Rollers
- (8) Chrome Hinges
- (2) Snuggers
SLIDING DOOR HARDWARE
ALUMINUM TOP MOUNT TRACK SYSTEM
- Commercial Grade for 1 3/8" To 1 3/4" Doors
- Max Weight Load 250 lbs.
- ANSI/BHMA A156.14 Grade 1 Certified to 100,000 Cycles Including Soft Close Feature
- Hangers with Heavy Duty Ball Bearing Wheels
- 5-Year Warranty
| SKU | TRACK LENGTH |
|---|---|
| SLAL-250-BP-48 | 48" |
| SLAL-250-BP-60 | 60" |
| SLAL-250-BP-72 | 72" |
| SLAL-250-BP-96 | 96" |
Complete Kits Include:
- (1) Track Clear Anodized
- (2) Universal Hardware Packs,
Each Consist Of:

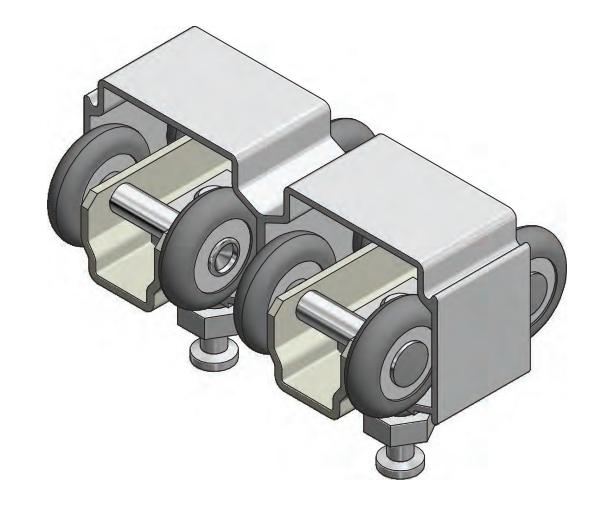

- (2) Ball Bearing Heavy Duty Hangers
- (2) Snap-In Door Brackets
- (2) In-Track Stops
- (1) Angle Stop
- (1) Bumper Stop
- (1) Door Guide
Heavy Duty Floor Guides

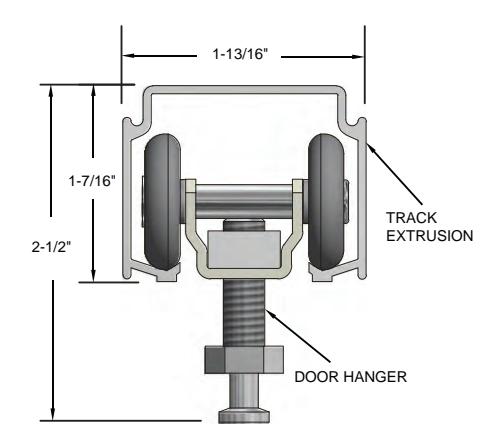

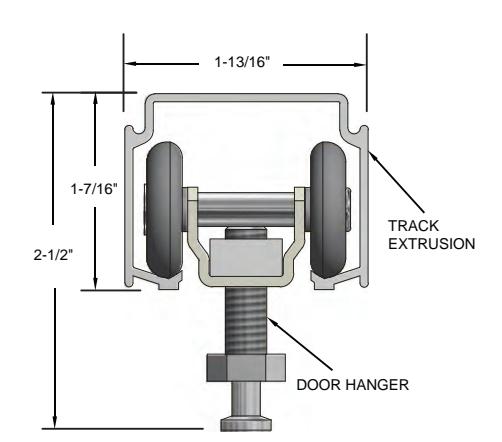

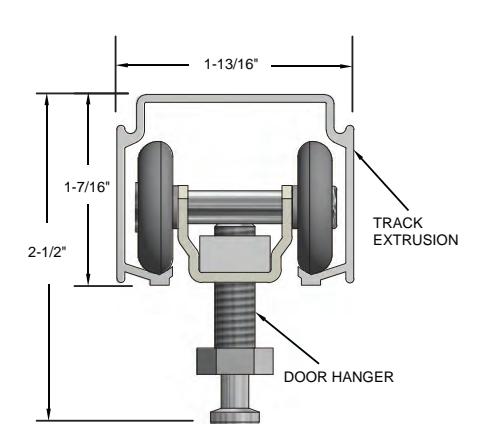

2-1/2" 1-7/16" 3-13/16" DOOR HANGER TRACK EXTRUSION
Includes End Caps
- Soft Close Specify "SCBY"
- Bottom Channel Guide SL-BCG (Page SL10)

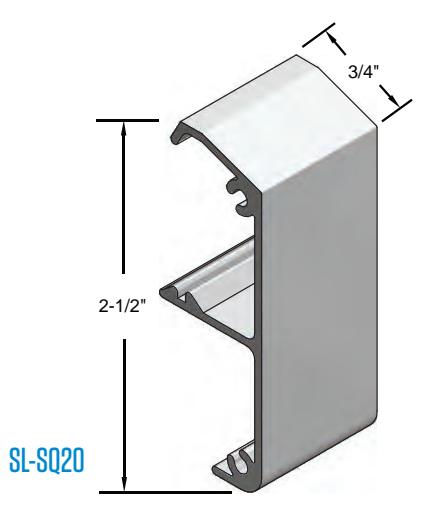

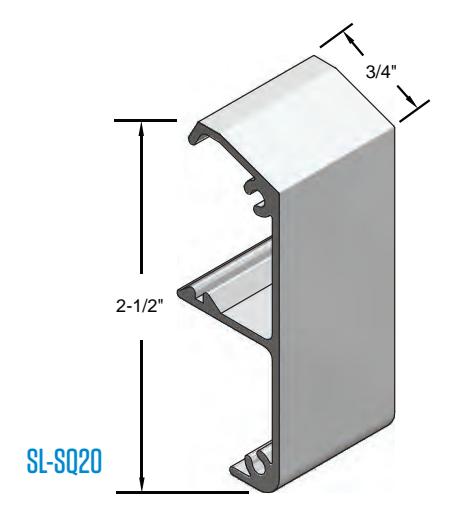

- Snap-On Fascia (SL-SQ20) Clear Anodized Shown Right

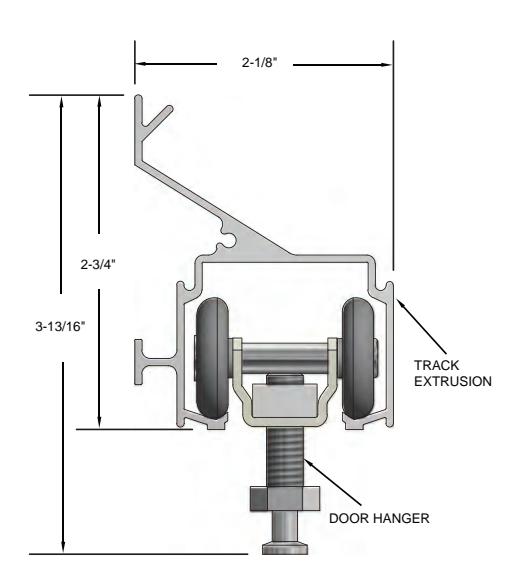

SIDE WALL MOUNT
SLIDING DOOR HARDWARE
ALUMINUM TOP MOUNT TRACK SYSTEM
- Commercial Grade for 1 3/8" To 1 3/4" Doors
- Max Weight Load 250 lbs.
- ANSI/BHMA A156.14 Grade 1 Certified to 100,000 Cycles Including Soft Close Feature
- Hangers with Heavy Duty Ball Bearing Wheels
- 5-year Warranty
| SKU | TRACK LENGTH |
|---|---|
| SLAL-250-SW-48 | 48" |
| SLAL-250-SW-60 | 60" |
| SLAL-250-SW-72 | 72" |
| SLAL-250-SW-96 | 96" |
| SLAL-250-SW-144 | 144" |
- (1) Track Clear Anodized
-
(1)
Universal Hardware Pack, Consists Of:

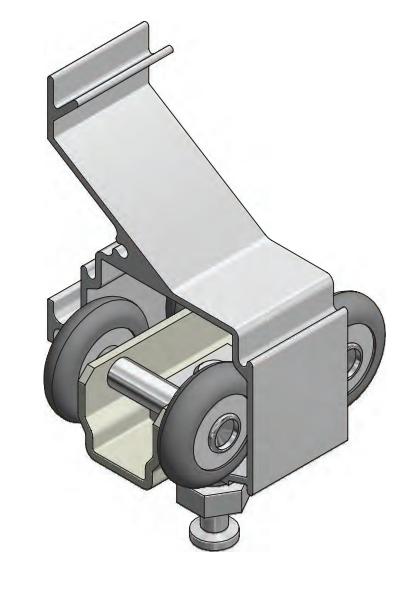

- (2) Ball Bearing Heavy Duty Hangers
- (2) Snap-In Door Brackets
- (2) In-Track Stops
- (1) Angle Stop
- (1) Bumper Stop
- (1) Door Guide
- Heavy Duty Floor Guides
- Soft Close specify "SC"
- Wall Mounted Guide SL-WG included in Universal Hardware Pack (page SL10)
- Bottom Channel Guide SL-BCG (page SL10)

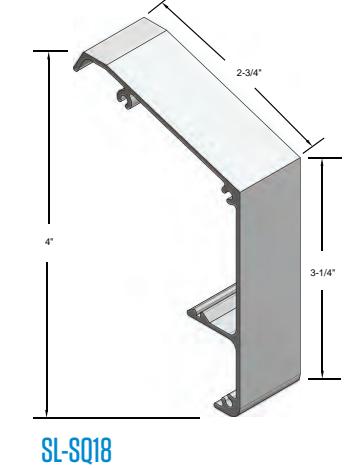

- Snap-on Fascias Clear Anodized Shown Right
POCKET DOOR
SLIDING DOOR HARDWARE
ALUMINUM TOP MOUNT TRACK SYSTEM
- Commercial Grade for 1 3/8" To 1 3/4" Doors
- Max Weight Load 250 lbs.
- ANSI/BHMA A156.14 Grade 1 Certified to 100,000 Cycles Including Soft Close Feature
- Hangers with Heavy Duty Ball Bearing Wheels
- 5-Year Warranty
| SKU | TRACK LENGTH |
|---|---|
| SLAL-250-PD-48 | 48" |
| SLAL-250-PD-60 | 60" |
| SLAL-250-PD-72 | 72" |
| SLAL-250-PD-96 | 96" |
Complete Kits Include:
- (1) Track Clear Anodized
-
(1)
Universal Hardware Pack, Consists Of:

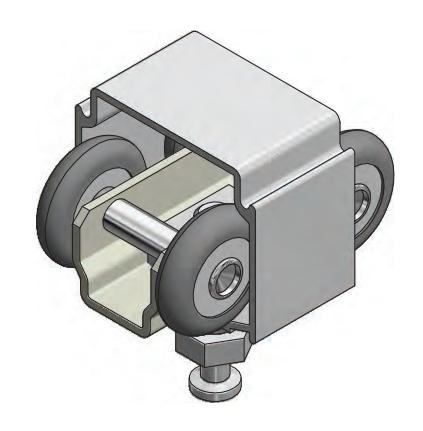

- (2) Ball Bearing Heavy Duty Hangers
- (2) Snap-In Door Brackets
- (2) In-Track Stops
- (1) Angle Stop
- (1) Bumper Stop
- (1) Door Guide
Heavy Duty Floor Guides
- Soft Close Specify "SC"
- Wall Mounted Guide SL-WG (page SL10)
- Bottom Channel Guide SL-BCG (page SL10)
- Snap-On Fascia (SL-SQ20) Clear Anodized Shown Right
Includes End Caps
POCKET DOOR
SLIDING DOOR HARDWARE FRAME KIT
ALUMINUM TOP MOUNT TRACK SYSTEM
- Commercial Grade for 1 3/8" To 1 3/4" Doors
- Frames Accommodate 2'0 3'0" x 6'8" 9'0" Doors
- Max Weight Load 250 lbs.
- ANSI/BHMA A156.14 Grade 1 Certified to 100,000 Cycles Including Soft Close Feature
- Hangers with Heavy Duty Ball Bearing Wheels
- 5-year Warranty
- Patent Pending
| SKU | TRACK LENGTH |
|---|---|
| SLAL-250-PDKIT | N/A |
Order two sets for Bi-Parting applications
Complete Kits Include:
- (1) 73" Header Track Assembly
-
(1)
Universal Hardware Pack, Consists Of:
- (2) Ball Bearing Heavy Duty Hangers
- (2) Snap-In Door Brackets
- (2) In-Track Stops
- (1) Angle Stop
- (1) Bumper Stop
- (1) Door Guide
Heavy Duty Floor Guides
-
(1)

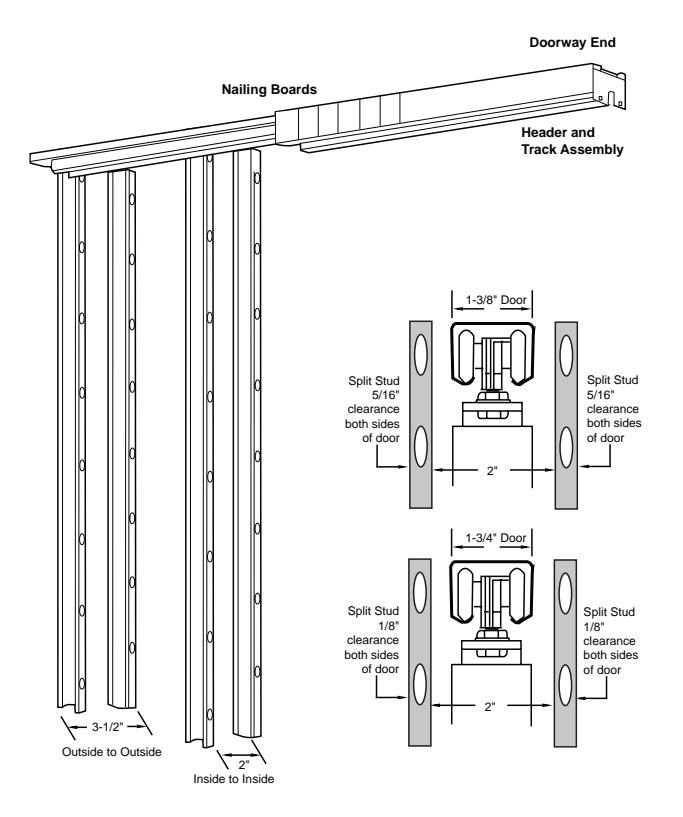

Pocket Frame Kit
- (4) Jamb Stiffeners
- (4) Jamb Stiffener Extensions
- (4) Jamb Splice Brackets
- (2) Floor Brackets
- (1) End Bracket
- Soft Close Specify "SC"
- Wall Mounted Guide SL-WG (page SL10)
- Bottom Channel Guide SL-BCG (page SL10)
BI-PARTING
SLIDING DOOR HARDWARE
ALUMINUM TOP MOUNT TRACK SYSTEM
- Commercial Grade for 1 3/8" To 1 3/4" Doors
- Max Weight Load 250 lbs.
- ANSI/BHMA A156.14 Grade 1 Certified to 100,000 Cycles Including Soft Close Feature
- Hangers with Heavy Duty Ball Bearing Wheels
- 5-Year Warranty
| SKU | TRACK LENGTH |
|---|---|
| SLAL-250-PD-48 | 48" |
| SLAL-250-PD-60 | 60" |
| SLAL-250-PD-72 | 72" |
| SLAL-250-PD-96 | 96" |
Order two sets for Bi-Parting applications 2-1/2"
Complete Kits Include:
- (1) Track Clear Anodized
-
(1)
Universal Hardware Pack, Consists Of:

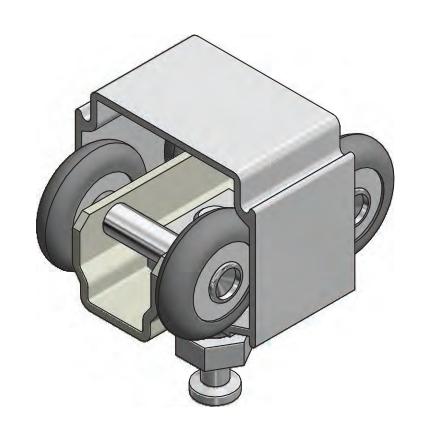

- (2) Ball Bearing Heavy Duty Hangers
- (2) Snap-In Door Brackets
- (2) In-Track Stops
- (1) Angle Stop
- (1) Bumper Stop
- (1) Door Guide
Heavy Duty Floor Guides
For Bi-Parting Frame Kits – refer to page SL6
- Soft Close Specify "SC"
- Wall Mounted Guide SL-WG (page SL10)
- Bottom Channel Guide SL-BCG (page SL10)
- Snap-On Fascia (SL-SQ20) Clear Anodized Shown Right
Includes End Caps

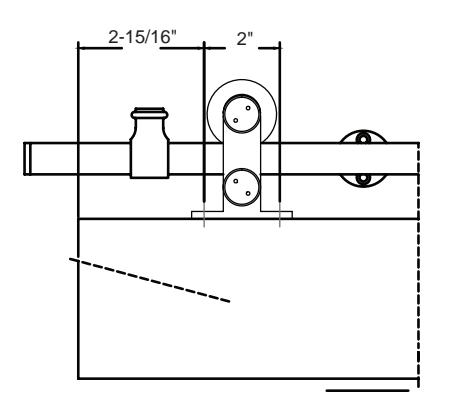

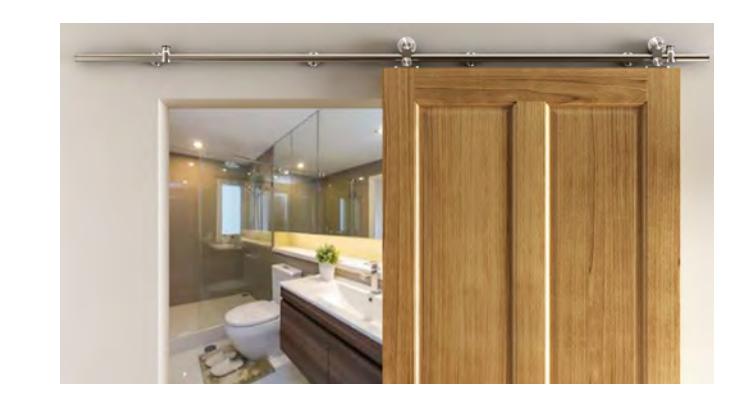

BARN DOOR TOP MOUNT
SLIDING DOOR HARDWARE
- Fits 1" To 2" Thick Door Panel
- Brushed Stainless Steel 304
- Side Wall Mount
- Nylon Coated Stainless Steel Wheels for Smooth Operation
- Max Weight Load 220 lbs.
- ANSI/BHMA A156.14 Grade 1 Certified to 100,000 Cycles Including Soft Close Feature
- 5 year Warranty
- Order Two Sets for Bi-parting Applications

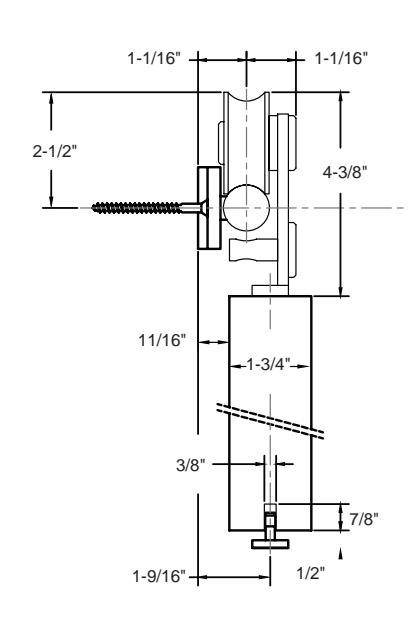

STAINLESS STEEL TOP MOUNT ROUND TRACK SYSTEM
| SKU | TRACK LENGTH |
|---|---|
| SLSS1-6 | 78 3/4" |
| SLSS1-8 | 98 7/16" |
Complete Kits Include:
(1) Track (2) Hangers (2) Door Stops (1) Floor Guide
SLSS1-6 includes: (5) Wall Attachments SLSS1-8 includes: (6) Wall Attachments
STAINLESS STEEL TOP MOUNT ROUND TRACK SYSTEM (WITH SOFT CLOSE)
| SKU | TRACK LENGTH |
|---|---|
| SLSS1-6-SC* | 78 3/4" |
| SLSS1-8-SC* | 98 7/16" |
* Soft Close Hardware is Included in Addition to the SLSS1-6 and SLSS1-8 Complete Kit Contents.

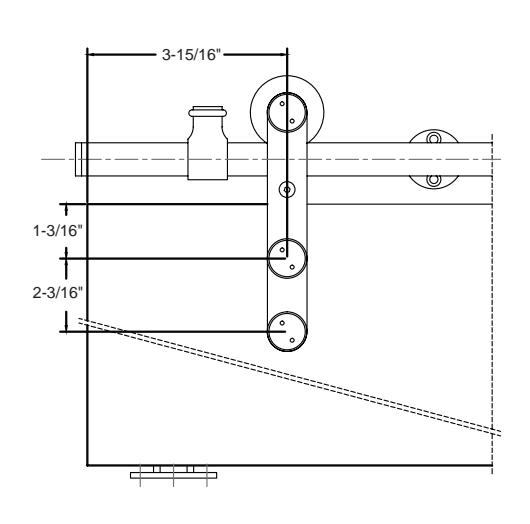

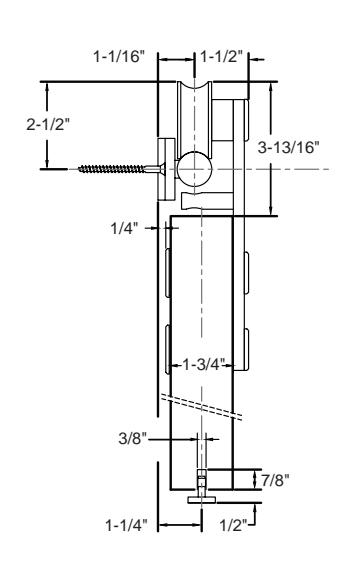

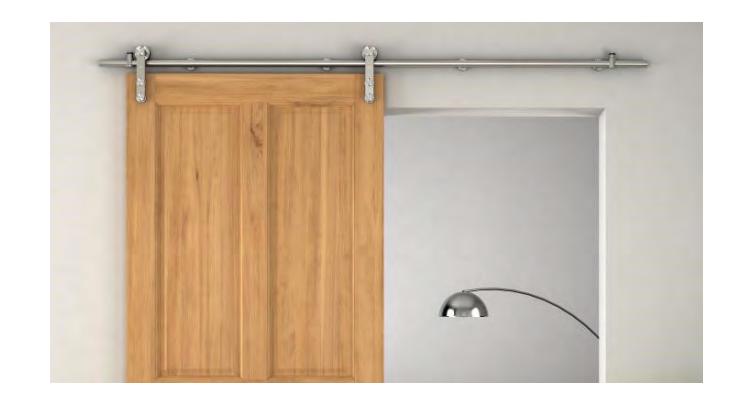

BARN DOOR SIDE MOUNT
SLIDING DOOR HARDWARE
- Fits 1" 3/8" To 1 3/4" Thick Door Panel
- Brushed Stainless Steel 304
- Side Wall Mount
- Nylon Coated Stainless Steel Wheels for Smooth Operation
- Max Weight Load 220 lbs.
- ANSI/BHMA A156.14 Grade 1 Certified to 100,000 Cycles Including Soft Close Feature
- 5 year Warranty
- Order Two Sets for Bi-parting Applications
STAINLESS STEEL SIDE MOUNT ROUND TRACK SYSTEM
| SKU | TRACK LENGTH |
|---|---|
| SLSS2-6 | 78 3/4" |
| SLSS2-8 | 98 7/16" |
Complete Kits Include:
| (1) Track | (2) Door Stops |
|---|---|
| (2) Hangers | (1) Floor Guide |
SLSS2-6 includes: (5) Wall Attachments SLSS2-8 includes: (6) Wall Attachments
STAINLESS STEEL SIDE MOUNT ROUND TRACK SYSTEM (WITH SOFT CLOSE)
| SKU | TRACK LENGTH |
|---|---|
| SLSS2-6-SC* | 78 3/4" |
| SLSS2-8-SC* | 98 7/16" |
* Soft Close Hardware is Included in Addition to the SLSS2-6 and SLSS2-8 Complete Kit Contents.
ACCESSORIES
SLIDING DOOR HARDWARE

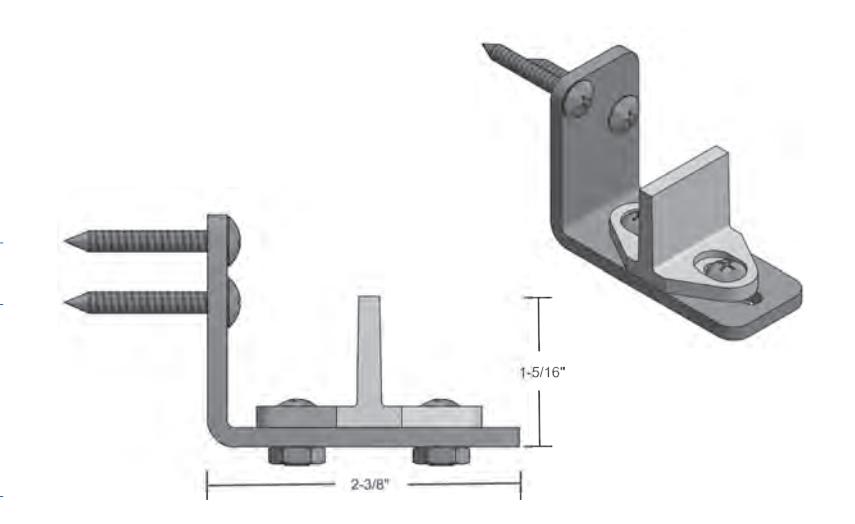

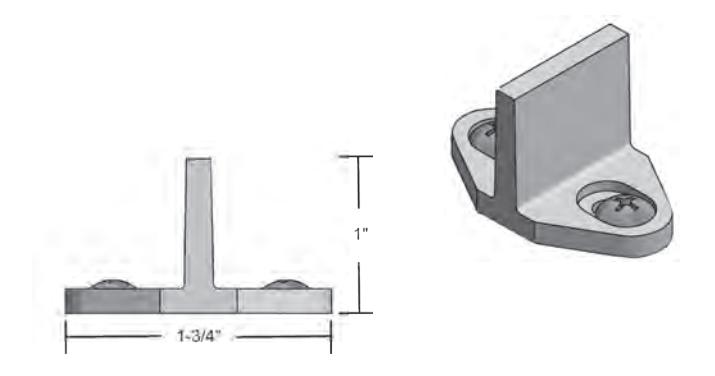

FLOOR GUIDE
Furnished Standard with Stainless Steel and Commercial Grade Aluminum Sliding Door Hardware Sets
| SKU | MATERIAL/FINISH |
|---|---|
| SLSS-FG |
Aluminum
Dark Bronze Powder Coat |
WALL MOUNTED GUIDE
| SKU | MATERIAL/FINISH |
|---|---|
| SL-WG |
Aluminum Floor Guide on
Steel Bracket Dark Bronze Powder Coat #8-18 x 1-1/4" Truss Head Self Tapping Screws |
BOTTOM CHANNEL GUIDE
| SKU | MATERIAL/LENGTH/COLOR |
|---|---|
| SL-BCG |
Polypropylene
60" Dark Brown |

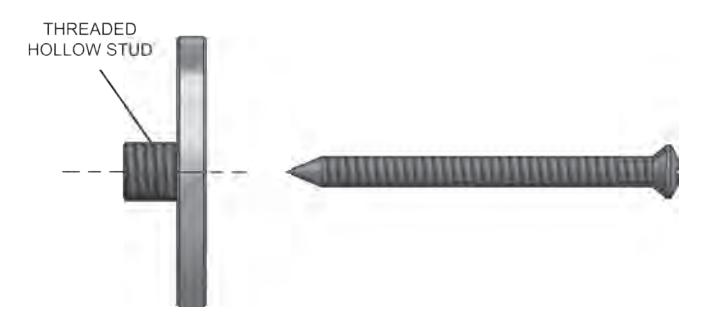

DRYWALL SPACER
FOR STAINLESS STEEL TRACK
FEATURES:
- Spacer Kits Include Two Sizes of Spacers Allowing Installation Directly to the Blocking Behind the Drywall
- The Finished Stainless Steel Plate Accepts Mounting of the SLSS Track
| SKU | # OF SPACERS / TRACK LENGTH |
|---|---|
| SLSS-DWS-6 | 5 Total Spacers / 6' Track" |
| SLSS-DWS-8 | 6 Total Spacers / 8' Track |

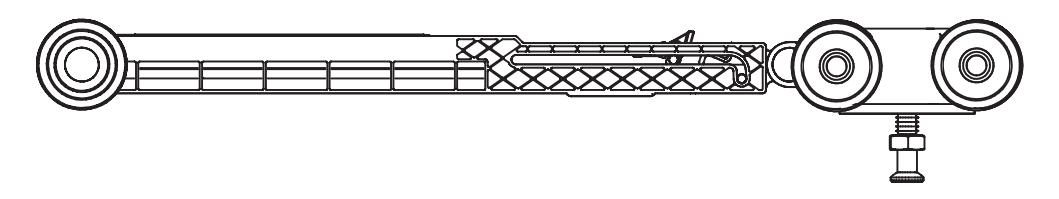

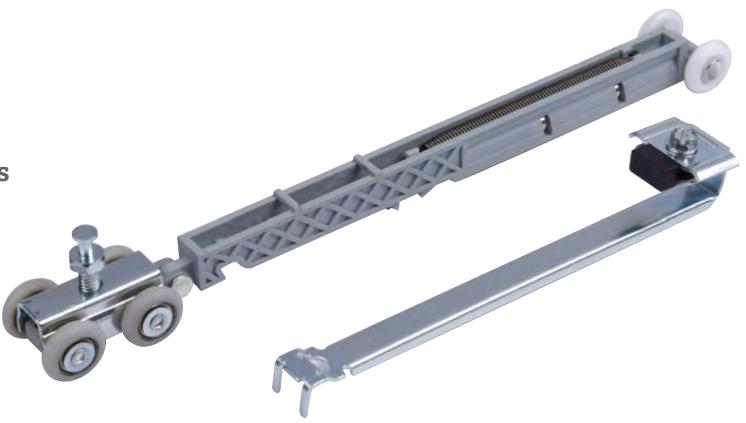

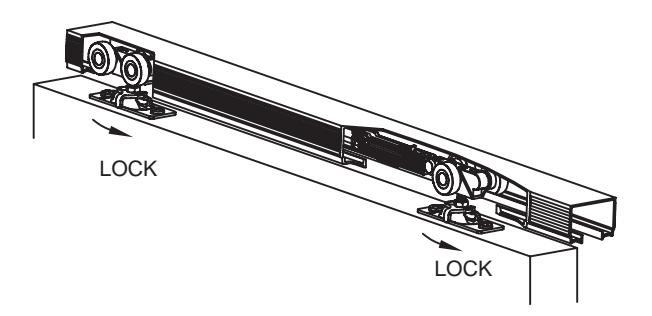

SOFT CLOSE
FOR ALUMINUM SLIDING DOOR HARDWARE
FEATURES:
SC
For Single Sliding Aluminum Hardware Sets
- Slows travel of the door to softly close
- Soft Close for Single Sliding Aluminum Hardware Sets
SCBY
For By-Pass Sliding Aluminum Hardware Sets
- Slows travel of the door to softly close
- Set of (2) Soft Close for By-Pass Sliding Aluminum Hardware Sets
