SPECIALTY GLASS

Specialty glass is available for lite kit and borrowed lite applications. Contact us with the specification requirements for a quote and lead-time.

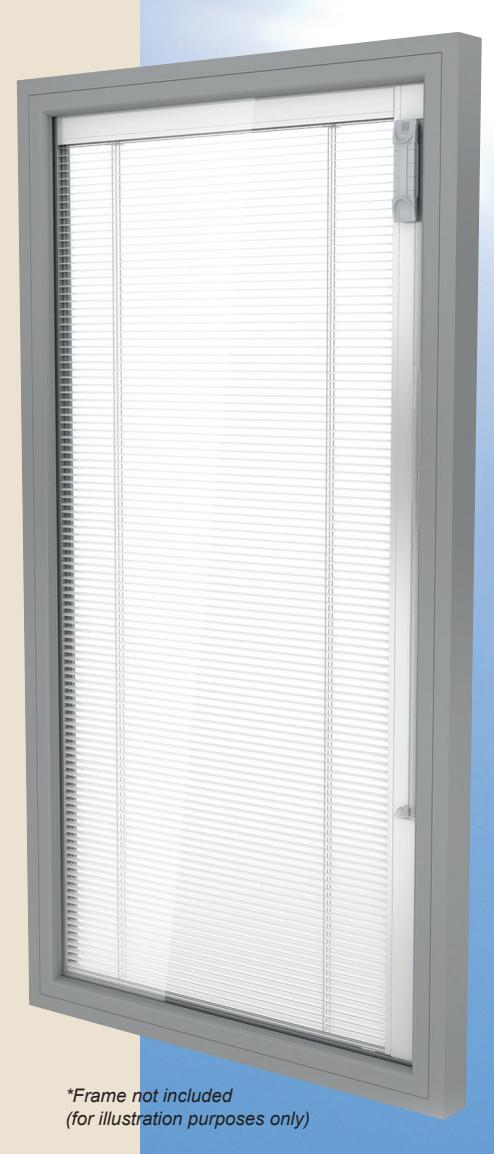

Glass with Integrated Blinds

Standard configuration includes:

  • Commercial grade hermetically sealed venetian blind system inside insulating glass unit – 1-1/8" thick
  • Interior or exterior applications
  • Clear tempered safety glass
  • Magnetic slider, placed on the right or left-hand side of the glass for tilting, lowering and raising functions
  • Minimum width = 11-7/8" wide
  • To be used with L-GLF100-SP, 1-1/8" glass
  • Blind colors: White

Special features and glass types available to meet specification requirements.

X-Ray Safety Lead Glass

  • Thickness = 5/16" to 5/8"
  • Lead equivalency = 1/16" to 3/16"
  • Glass sizes available up to 48" x 96"

Bullet Resistant Glass

  • Bullet resistance levels 3 and 8
  • Meets UL 752 with no spall
  • Glass sizes available up to 48" x 96"

Other Specialty Glass

Laminated, Mirrored, Frosted, and special thickness Tempered or Insulated
