STRONG AND CLEAN

ANNOUNCING STAINLESS STEEL

CONTINUOUS HINGES

NGP's New Line of Stainless Steel Continuous Hinges Feature Proven Technology:

Pin and Barrel Design Medical Type Flanged Bearings For Doors Weighing Up To 600 lbs. 25 Year Warranty

Resulting in a product that cycles with: Dust Free Quiet Operation • ANSI Grade 1 Performance

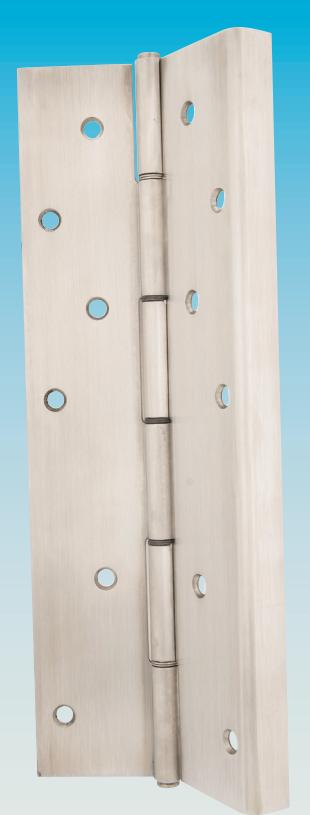

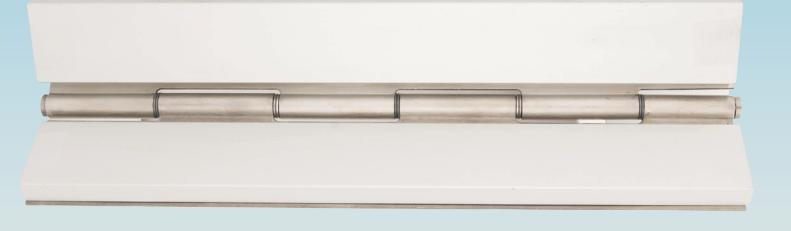

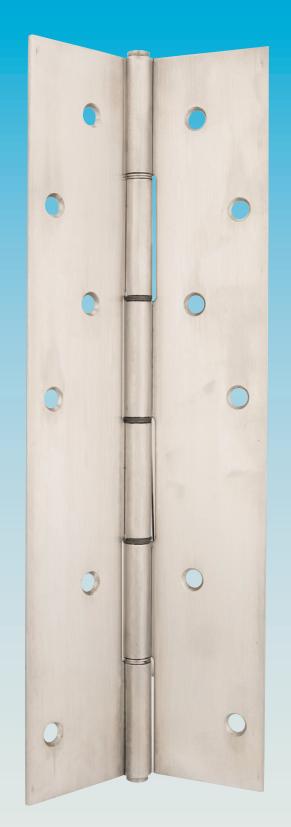

Stainless Steel Continuous Hinges

Concealed

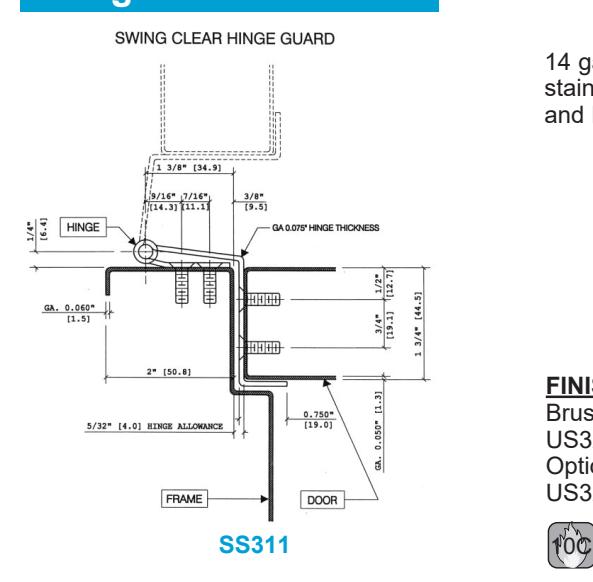

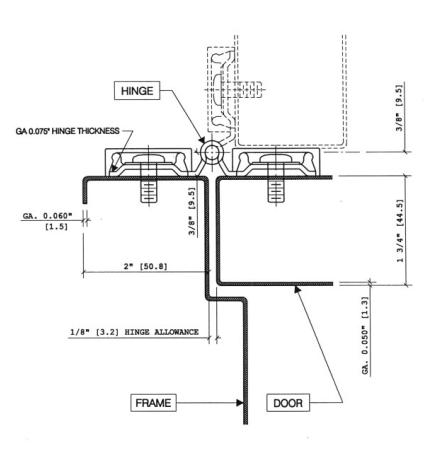

Full Surface Swing Clear

SS302

14 gauge type 304 stainless steel pin and barrel design

FINISHES

Brushed Stainless Steel US32D (630) Optional: Polished US32 (629)

Furnished with TEK M.S., wood screws Std. Lengths 83", 85", 95", 119"

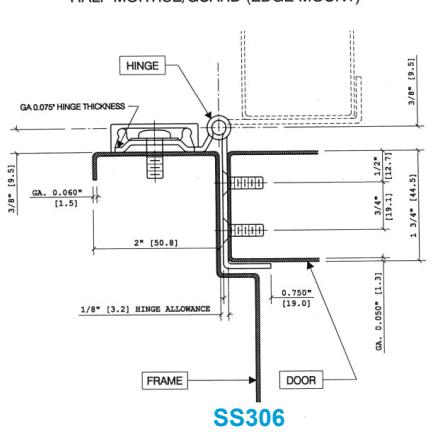

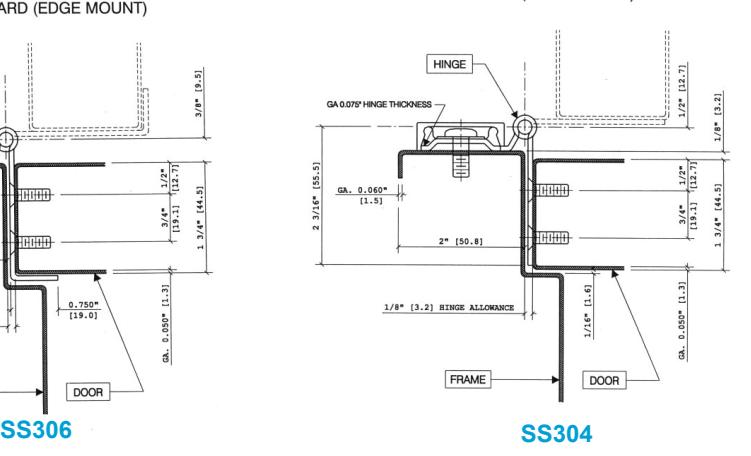

Half Mortise

AVAILABLE OPTIONS

1/2 Wood Screws Torx Security Screws Cut to Net Length Anti-Ligature Hospital Tip Dutch Door Prep Welded Tips Electric Thru-Wire Electric Power Transfer Prep
