Lites & Louvers

CANADIAN GEESE - The Canadian goose is the most recognizable goose in North America. Its black and white head and characteristic "honking" call make the Canadian goose an easily identifiable bird. They are known to take up residence in urban environments and to discontinue migrating if conditions are acceptable.

Lites & Louvers Product Index:

Lite Kits	Page
Aluminum	L16C
False Mullion	L9
Low Profile	L4-L7
Round	L22
Security	L17-L21
Security Grille	L13-L15
Sound-rated	L5
Square profile	L8-L12
Stainless Steel	L16-L16B
Thru-bolted	L12
Louvers	Page
Aluminum	L25
Dark Room	L28
Fire-rated	L26
Security Grille	L27
Steel	L23-L24

Lite Kits & Louvers

Numerical Index:

Model	Lite Kits	Page
L-CVFM-SS L-CVFM-SS-SP L-FRA100 L-FRA100-ALUM L-FRA100-RD L-FRA100-SP L-FRA100 STC L-FRA100-SP STC L-GLF100 L-GLF100-SP L-GLF100-SP-TB L-GLF100-TB L-SG100 L-SG100-TB L-VGLF-MD, MDL L-VGLF-OG L-VGLF-PZ L-VGLF-SF L-VGLF-WD Options: G2-G24	Stainless Steel Stainless Steel Special Gass or Door Thickness Low Profile Aluminum Lite Kit Round Low Profile Low Profile Special Glass or Door Thickness Sound Rated Low Profile Sound Rated Low Profile Special Glass or Door Thickness Square Profile Square Profile Special Glass or Door Thickness Thru-Bolted Special Glass or Door Thickness Thru-Bolted Security Grille Security Grille Thru-Bolted Security Grille with Privacy Panel Security Glass with Privacy Panel Security Glass Security Grille with Privacy Panel Security Glass with Privacy Panel False Mullion	L16 L16A-L16B L4 L16C L22 L6-L7 L5 L5 L8 L10-L11 L12 L12 L13, L15 L14-L15 L19 L20 L18 L21 L17 L9
Model	Louvers	Page
L-75-A, B, BF L-A700-A, B, BF, C L-700-A, B, BF, C L-700-RX L-1800 L-1900 L-VRSG-2 L-VRSG-3	Dark Room Aluminum Steel - Adjustable 1-3/8" to 2-1/4" doors Steel Self-Attaching Adjustable Blade Fire-rated Fusible Link Security Grille Security Grille (Both sides)	L29 L25 L24 L23 L27 L26 L28 L28

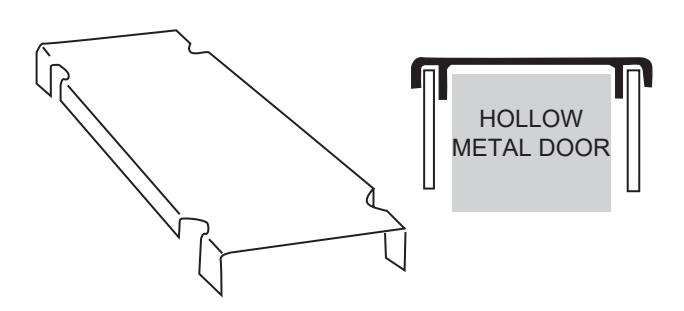

L-Clips	H.M. Door Reinforcement	L30
Lite Kit and Louver Fasteners		L30

Rating Symbols Legend

POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C; complies with IBC, NFPA 80 and NFPA 252 for use on Hollow metal fire doors rated up to 3 hours and Wood fire doors rated up to 90 minutes (some ratings vary as noted).

CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B; complies with NFPA 80 and NFPA 252 for use on Hollow metal fire doors rated up to 3 hours and Wood fire doors rated up to 90 minutes (some ratings vary as noted).

Materials

Lite Kits are available in Cold Rolled Steel, Galvanneal Steel, and Stainless Steel (type 304). Louvers are available in Cold Rolled Steel, Galvanneal Steel, and Aluminum Alloy 6063-T5.

Powder Coat Finish

The standard finish for each product is indicated on the catalog page and in the price list and will be provided unless one of the following optional finishes is indicated. See www.ngp.com for color chart:

	(GPZ) Gray Primer	(BPR)	Beige Primer (matches Steelcraft)
	(DKB) Dark Bronze	(PTY)	Putty (matches Anemostat Beige)
(T)	Tan		(CAB) California Bronze (matches Anemostat)
(GBL)	Gloss Black	(W)	White
	(MBL) Matte Black	(B)	Brass (Gold)
(TBL)	Textured Black	(WB)	Walnut Brown (matches Timely Browntone)
(ASL)	Aluminum Silver	(MW)	Magnolia White (matches Timely Western White)

Custom colors and color matching available – Consult customer service for details

Corrosion Resistant Sealer: A polymeric green seal (non-chrome) corrosion resistance extender is applied under all NGP powder coat finishes. Laboratory salt spray tests prove a dramatic increase in corrosion resistance on steel products with this sealer applied to the metal prior to the powder coat finish.

Salt Spray Test Results: Steel lite kits with NGP's corrosion resistant sealer and powder coat finish withstood 1,248 hours without failing. This is 2-1/2 times longer than the protection provided by powder coating only.

Zinc Electro-Plating

Available on steel lite kits and louvers for extra corrosion resistance; recommended for exterior, wet areas, and coastal salt air locations. Zinc electro-plating will be applied prior to the powder coat finish. Specify on order "Zinc EL-Plate" and powder coat color desired. Not available on insect screen.

How to Order Example

Quantity	Model#	Finish	Cut-out Size	Options
			(width x height)
10	L-FRA100-SP	DKB	24" x 30"	for 1" thick glass

Lite Kit Technical Information

Fire-Rated Lite Kits: Lite Kits installed in fire-rated doors require fire-rated glass and glazing tape.

Impact Safety Rated Glass requirements : IBC requires all individual glazed areas in swinging doors to be impact safety-rated to comply with the CPSC 16CFR 1201 Category I or II.

Accessibility Standard Compliance:

ADA Standards for Accessible Design, requires that the bottom of the glass panel in a vision lite be located 43" maximum above the floor. An exception for vision lites with the lowest part more than 66" above the floor are not required to comply.

Louver Technical Information

Steel louvers over 46" wide and aluminum louvers over 36" wide must be furnished as two louver cores mounted in one louver frame with a mullion in between. All Louvers over 64" or more in height will be furnished as two louver cores mounted in one frame with a mullion in between.

LEED Green Building

The LEED (Leadership in Energy and Environmental Design) Green Building Rating System® is a national standard for developing high-performance, sustainable buildings developed by the U. S. Green Building Council. Our current LEED letter containing LEED qualification information for all our products is available at www.ngp.com

Environmental Product Declarations (EPD) prepared and certified by an Independent Laboratory based on Life Cycle Assessments (LCA) of our products may be viewed on our website www.ngp.com

Health Product Declarations (HPD) may be viewed on our website www.ngp.com

National Guard Products sustainability report may be viewed on our website www.ngp.com

Buy American Requirements

Buy American Act

Over 99% of our products are produced in the United States as a domestic construction material, as defined in the Buy American Act (BAA) of March 1933 and amended by the Buy American Act of 1988 and FAR 52.225-9. A Buy American certificate may be obtained on our website www.ngp.com

Federal American Recovery and Reinvestment Act

More than 99% of our products qualify as manufactured products produced in the United States as manufactured goods, as defined in OMB Guidance (176.140; 176.70(a) (2) (ii); 176.160, complying with the Federal American Recovery Reinvestment Act, ARRA-2009. Contact us for a Buy America ARRA certificate for your project.

Buy America

More than 99% of our products comply with Buy America Requirements of 49 U.S.C. 5323(j)(1), and the applicable regulations in 49 CFR part 661. Contact us for a Certificate of Compliance for your project.

Components of unknown origin are considered to have been produced or manufactured outside the United States.

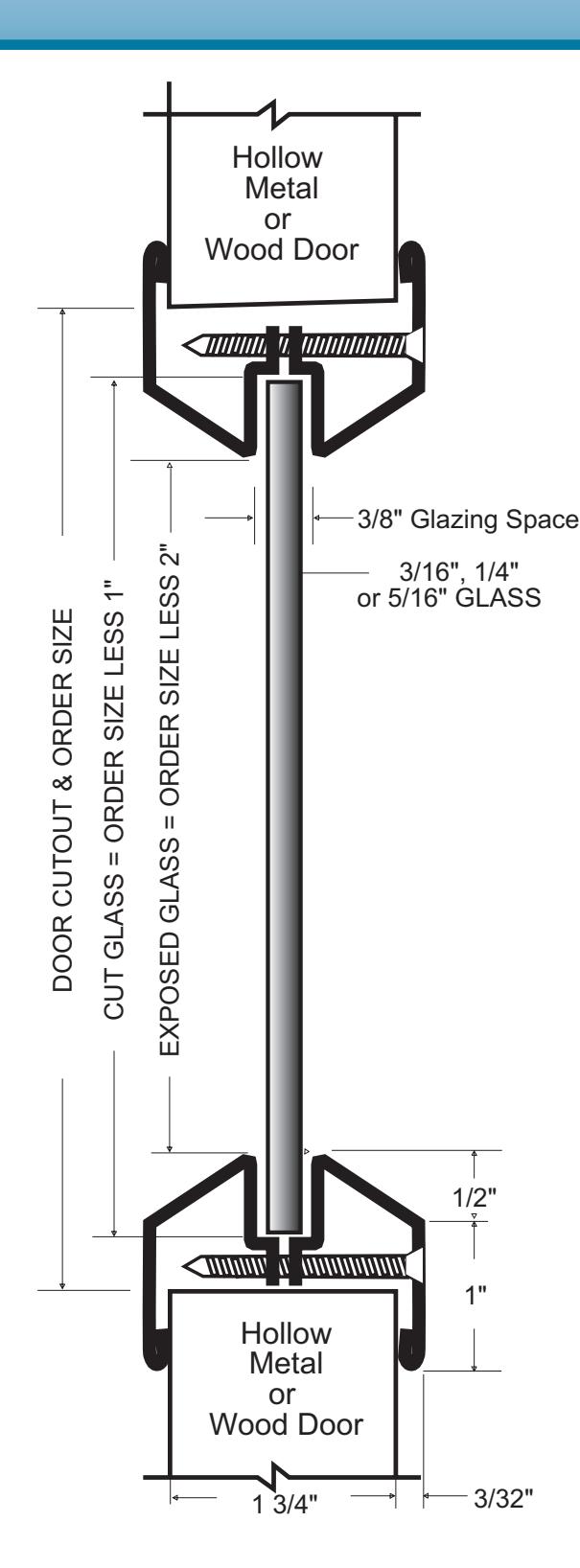

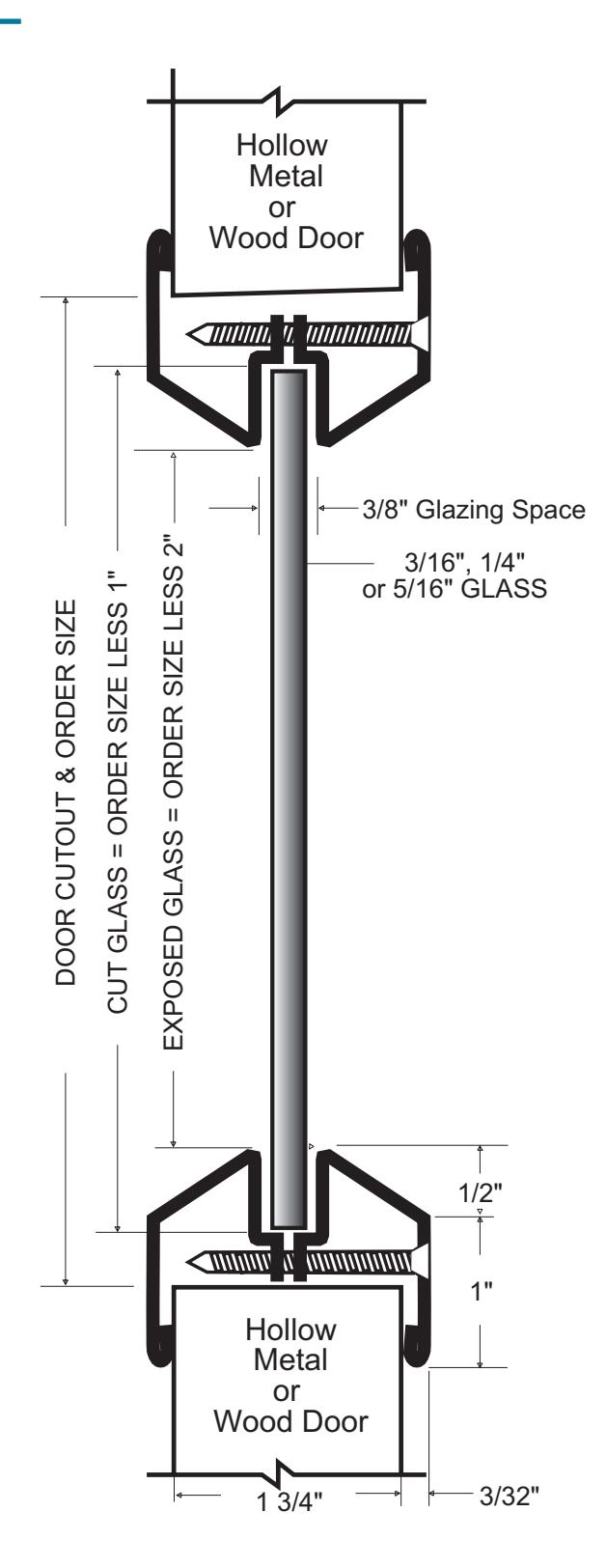

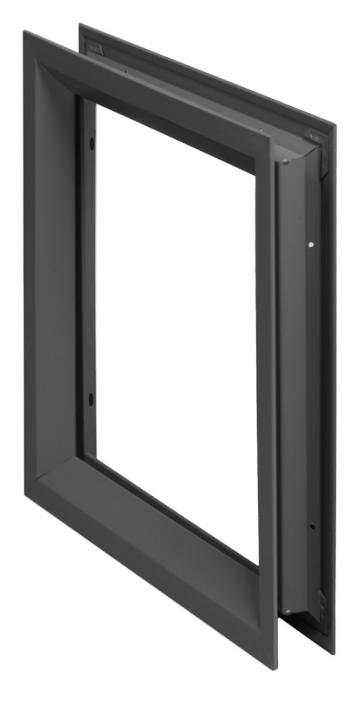

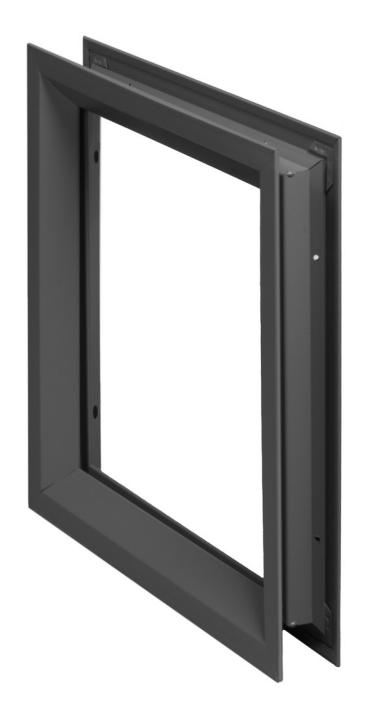

L-FRA100

Low Profile Lite Kit for 1-3/4" Thick Doors and 3/16", 1/4" or 5/16" Glass

18 ga. cold rolled steel
Mitered and welded corners
Welded reinforcing clips at corners
Counter-sunk mounting screw-holes
#8 x 1-3/4" Phillips head SMS
Available in uneven and fractional sizes
Gray Primer (GPZ) powder coat finish

Available Options

Powder coat color options see page L2
Torx Security Screws
Galvanneal A40 Steel
Zinc electro-plating
Glass & Glazing tape See Glass Section
Lead lining .030" thick

Designed for use on 1-3/4" thick doors manufactured within door industry tolerance of +/- 1/16".

L-FRA100 STC & L-FRA100-SP STC

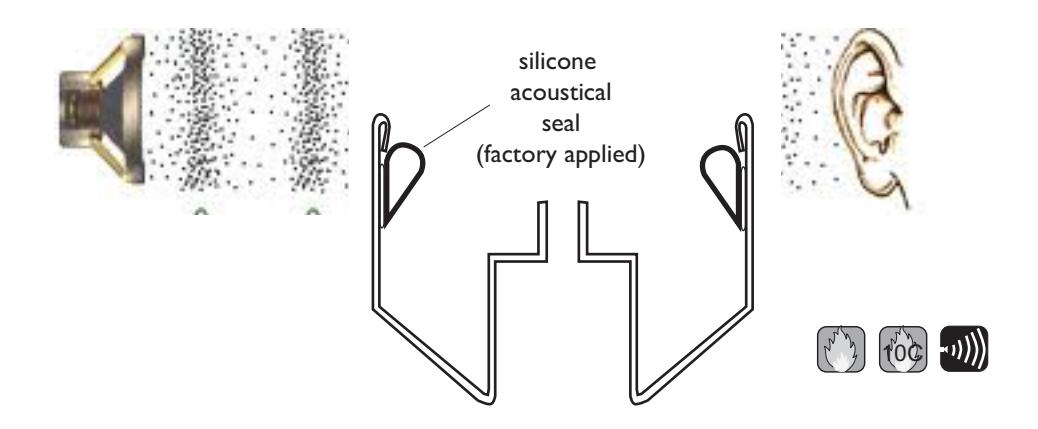

Low Profile Sound Rated Lite Kit Option - Suffix "STC"

Silicone acoustical seal applied to reduce sound transmission

Acoustical Testing performed at Intertek Testing, Inc. to:

ASTM E 90, Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements.

ASTM E 413, Classification for Rating Sound Insulation.

ASTM E 1332, Standard Classification for Rating Outdoor-Indoor Sound Attenuation.

ASTM E 2235, Standard Test Method for Determination of Decay Rates for Use in Sound Insulation Test Methods.

STC Ratings:


	• SuperLite I-W	STC 28
	• SuperLite I-20	STC 28
• Wired		STC 28
	• Polycarbonate 1/4"	STC 29
	• Pyran Platinum F	STC 31
	• Tempered 1/4"	STC 31
	• Polycarbonate 1/2"	STC 34
	• Insulated Tempered 1"	STC 35
	• Laminated 1/4"	STC 35
	• Pyran Platinum L	STC 36
	• SuperLite X-90	STC 38
	• SuperLite II-XL (45 min.)	STC 40
	• Laminated 5/8"	STC 40

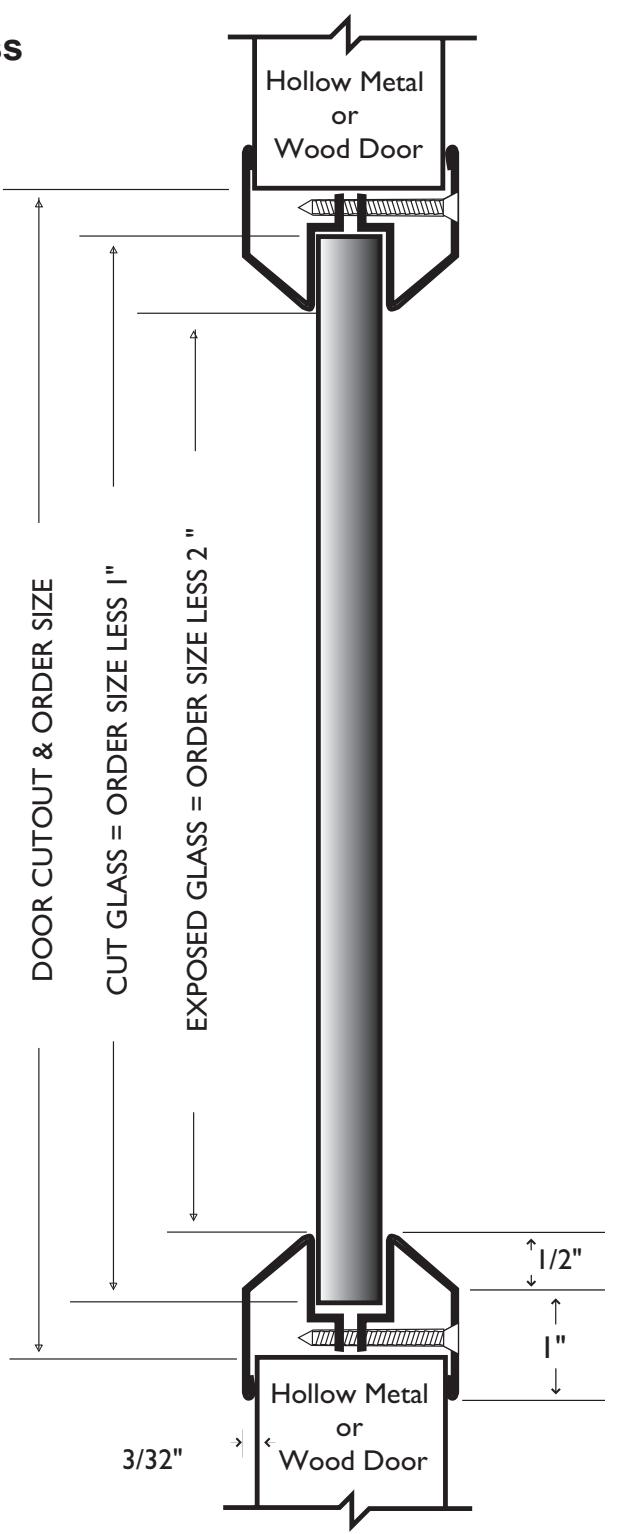

L-FRA100-SP

Low Profile Lite Kit for Variable Door and/or Glass Thickness

18 ga. cold rolled steel
Mitered and welded corners
Welded reinforcing clips at corners
Counter-sunk mounting screw-holes
#8 Phillips head SMS
Available in uneven and fractional sizes
Gray Primer (GPZ) powder coat finish

Required Information

Specify glass thickness on order
Specify door thickness on order if other than 1-3/4"

Powder coat color options see page L2
Torx Security Screws
Galvanneal A40 Steel
Zinc electro-plating
Glass & Glazing tape See Glass Section
Lead lining .030" thick

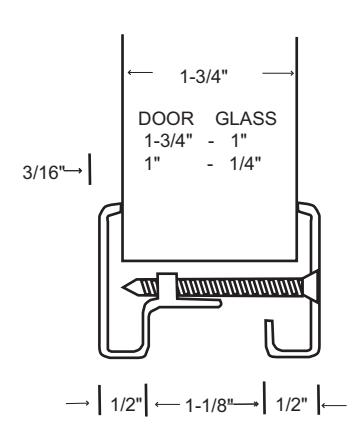

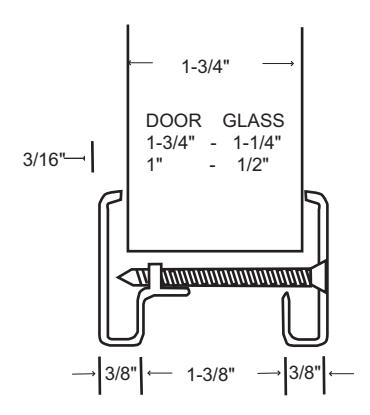

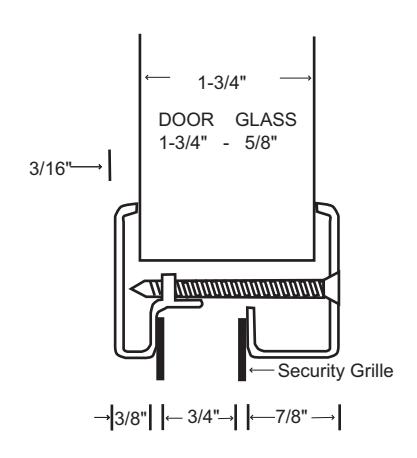

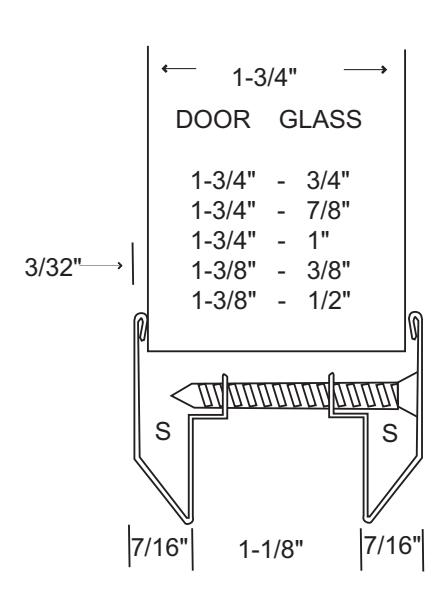

L-FRA100-SP Glass and Door Combinations

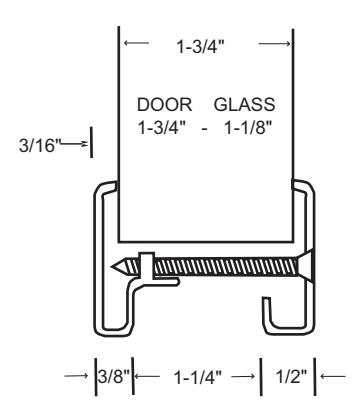

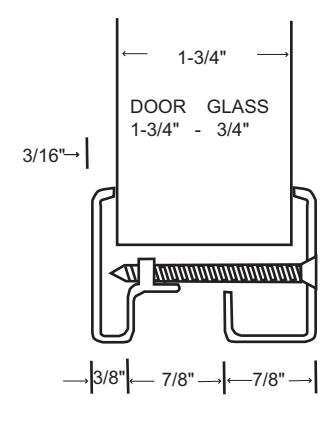

Details shown are for 1-3/4" door thickness. Only configurations shown are available Some applications require thicker glazing tape

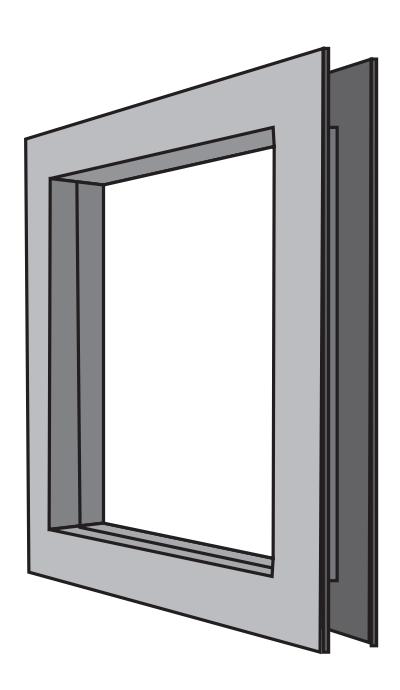

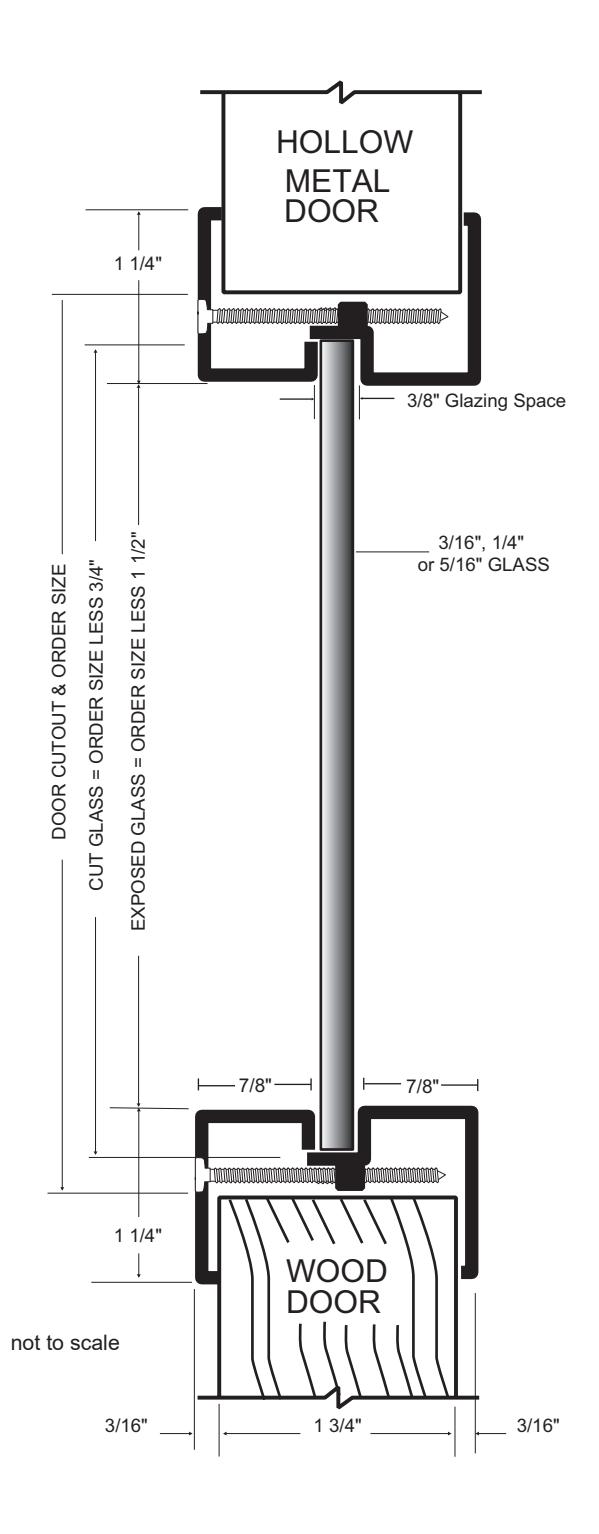

L-GLF100

Square Profile Lite Kit for 1-3/4" Thick Doors and 3/16", 1/4", or 5/16" Glass

18 ga. cold rolled steel
Mitered and welded corners
Welded reinforcing clips at corners
Countersunk mounting screw-holes
#6 x 1-3/4" Phillips Truss Head SMS
Gray Primer (GPZ) powder coat finish

Available Options

Powder coat color options see page L2
False mullion bars (page L9)
Torx Security Screws
Galvanneal A40 Steel
Zinc electro-plating
Glass & Glazing tape See Glass Section
Lead lining .030" thick

Designed for use on 1-3/4" thick doors manufactured within door industry tolerance of +/- 1/16".

False Mullion Lite Kits

1" wide steel channel
Fits L-GLF100, L-GLF100-SP, L-GLF100-TB, L-GLF100-SP-TB, L-SG100, L-SG100-TB
Mullion bars welded into both sides of Lite Kit
Finished to match Lite Kit

Available Options

* Zinc electro-plating

To Order

Specify Lite Kit x G# (i.e.: G2, G3, G4 etc.) If other than as illustrated, provide detail & suffix G-SP

G3 (2 Bars)

G4 (2 Bars)

G6 (3 Bars)

G8 (4 Bars)

G9 (4 Bars)

G10 (5 Bars)

G12 (5 Bars)

G15 (6 Bars)

G18 (7 Bars)

G21 (8 Bars)

G24 (9 Bars)

Phone: 800-647-7874

Fax: 800-255-7874

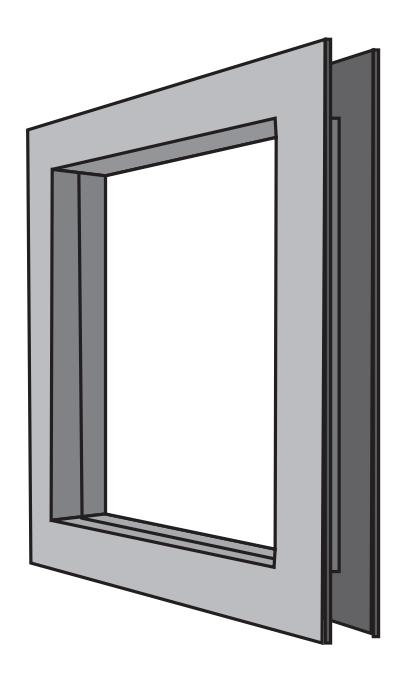

L-GLF100-SP

Square Profile Lite Kit for Variable Door and/or Glass Thickness

18 ga. cold rolled steel
· Mitered and welded corners
· Welded reinforcing clips at corners
· Countersunk mounting screw-holes
#6 Phillips Truss Head SMS
· Gray Primer (GPZ) powder coat finish

Required Information

· Specify glass thickness on order
Specify door thickness on order if other than 1-3/4"

· Powder coat color options see page L2
False mullion bars (Page L9)
· Torx Security Screws
· Galvanneal A40 Steel
· Zinc electro-plating
· Glass & Glazing tape See Glass Section
· Lead lining .030" thick lead

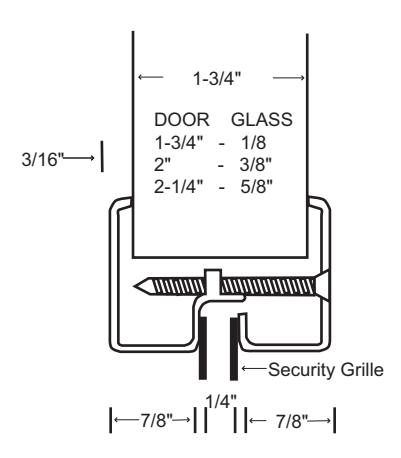

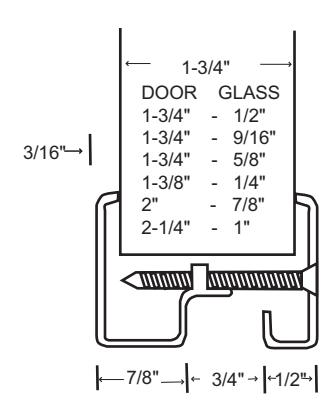

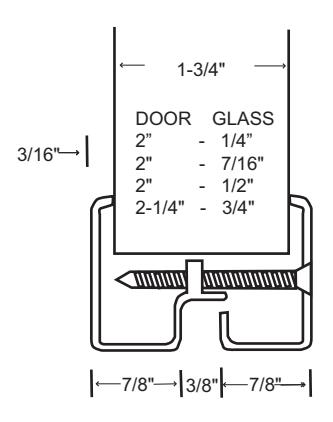

L-GLF100-SP and L-GLF100-SP-TB Glass and Door Combinations

Details shown are for 1-3/4" door thickness Only Configurations shown are available Some applications require thicker glazing tape Thru-bolts available for 1-3/4" thick doors only

L-GLF100-TB

Thru-bolted Lite Kit for 1-3/4" Thick Doors and 3/16", 1/4", or 5/16" Glass

18 ga. cold rolled steel
Mitered and welded corners
Welded reinforcing clips at corners
Countersunk mounting screw-holes
Thru-bolts for 1-3/4" door
Gray Primer (GPZ) powder coat finish

Available Options

Powder coat color options see page L2
False Mullion bars (Page L9)
Torx Security Thru-bolts
Galvanneal A40 Steel
Zinc electro-plating
Glass & Glazing tape See Glass Section
Lead lining .030" thick

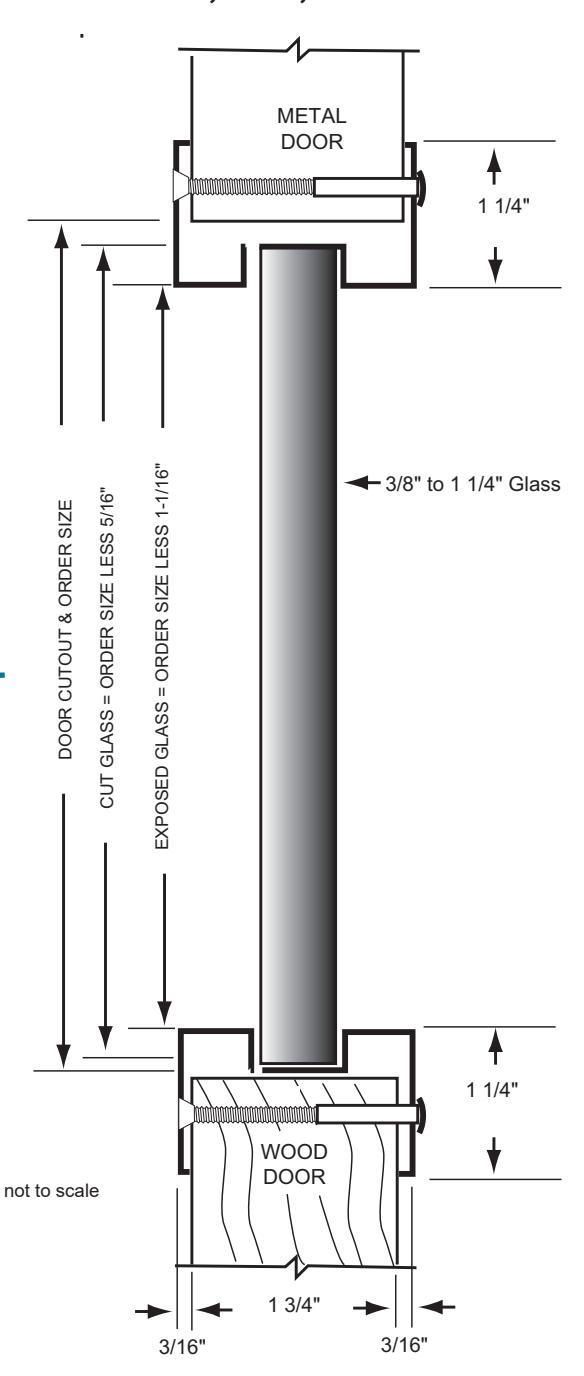

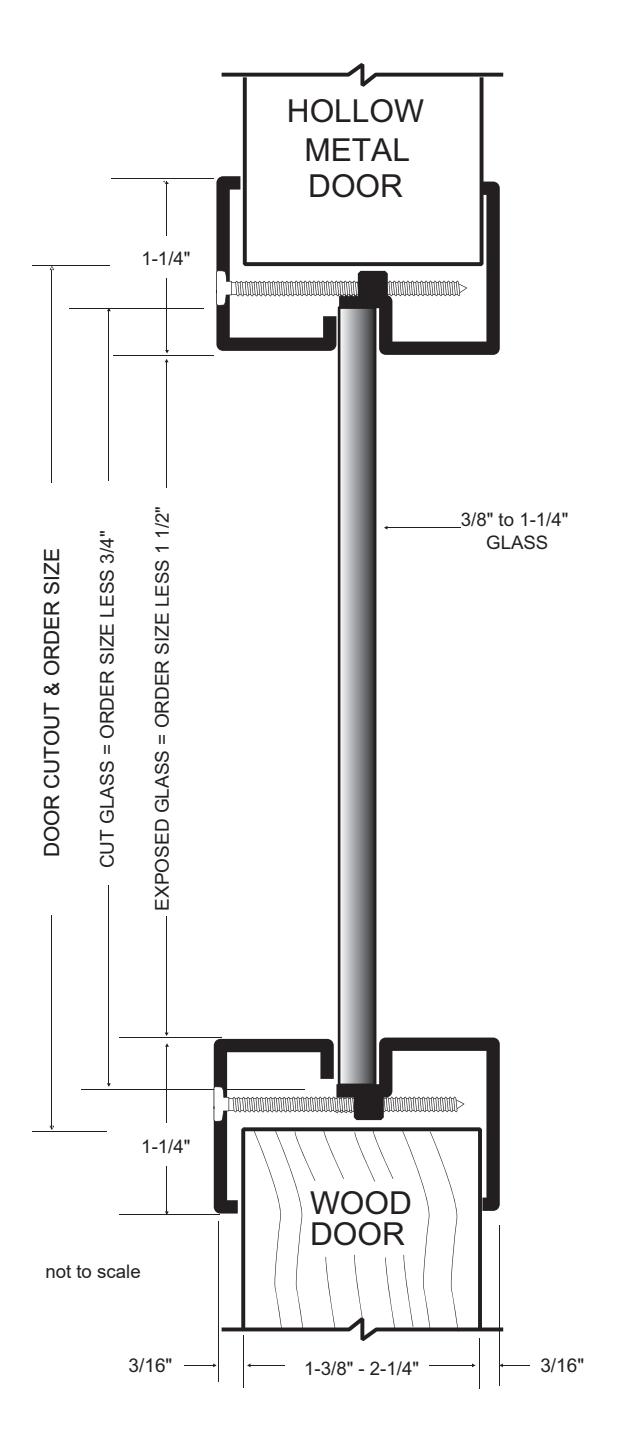

L-GLF100-SP-TB

Thru-bolted Lite Kit for 1-3/4" Thick Doors and Variable Glass Thickness 3/8" to 1-1/4"

18 ga. cold rolled steel
Mitered and welded corners
Welded reinforcing clips at corners
Countersunk mounting screw-holes
Thru-bolts for 1-3/4" door
Gray Primer (GPZ) Powder coat finish

Required Information: Specify Glass thickness

Powder coat color options see page L2
False Mullion bars (Page L9)
Torx Security Thru-bolts
Galvanneal A40 steel
Zinc electro-plating
Glass & Glazing tape See Glass Section
Lead lining .030" thick

Designed for 1-3/4" thick Doors manufactured within door industry tolerance of +/- 1/16"

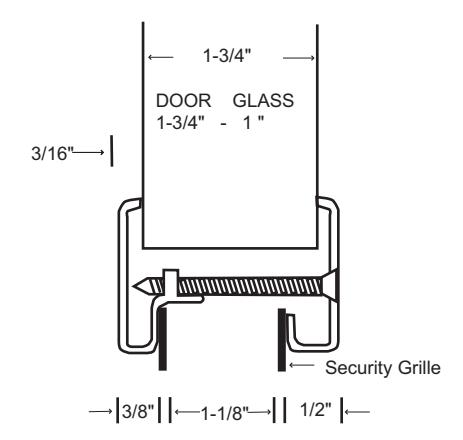

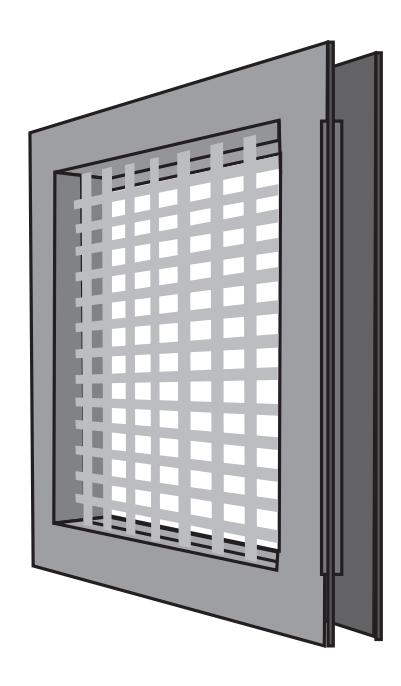

L-SG100

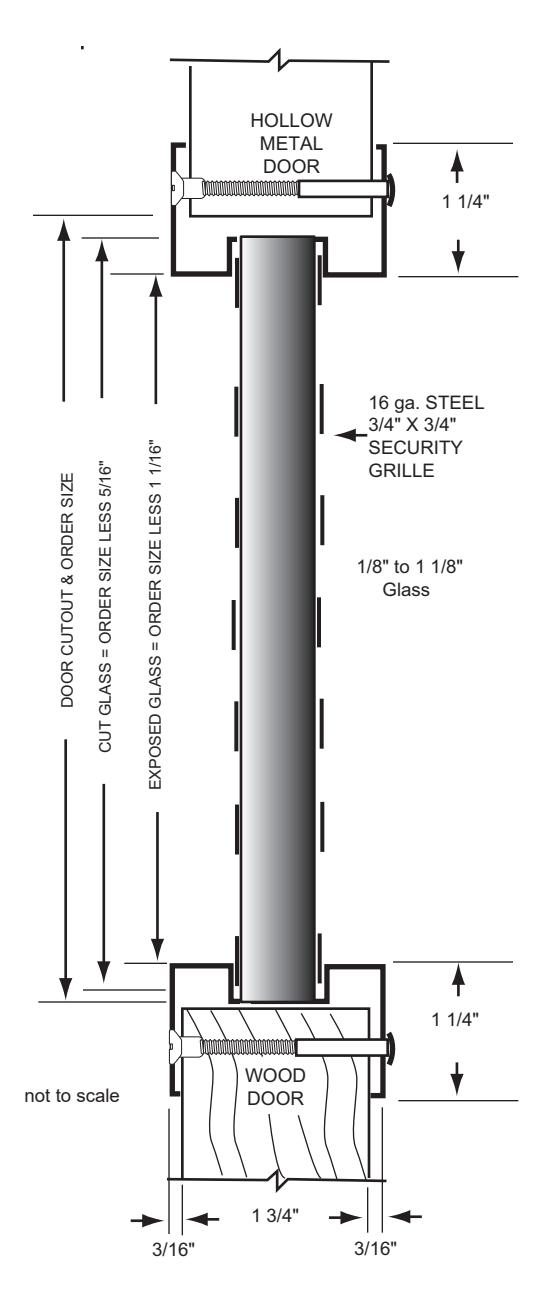

Self Attaching Security Grille Lite Kit for Variable Door and/or Glass Thickness

18 ga. cold rolled steel
16 ga. steel 3/4" x 3/4" security grille welded in both sides
Mitered and welded corners
Welded reinforcing clips at corners
Countersunk mounting screw-holes
#6 Phillips truss head screws
Gray Primer (GPZ) powder coat finish

Required Information

Specify glass thickness on order
Specify door thickness on order if other than 1-3/4" (See page L15 for available sizes)

Available Options

Powder coat color options see page L2
False mullion bars (Page L9)
Torx security screws
Galvanneal A40 Steel
Zinc electro-plating
Glass & glazing tape See Glass Section
Lead lining .030" thick

*up to 90 minutes.

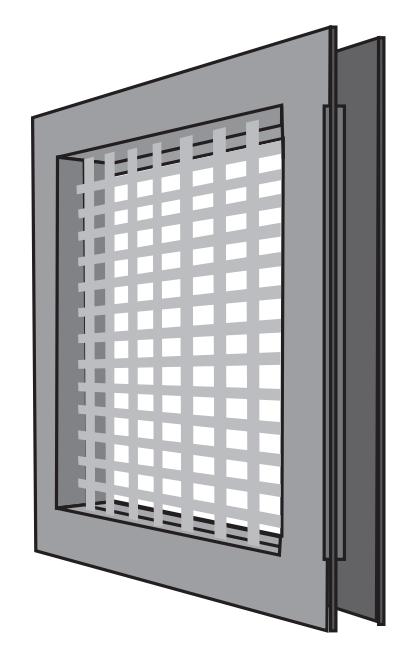

L-SG100-TB

Thru-Bolted Security Grille Lite Kit for 1-3/4" Thick Doors and Variable Glass Thickness

18 ga. cold rolled steel
16 ga. steel 3/4" x 3/4" security grille welded in both sides
Mitered and welded corners
Welded reinforcing clips at corners
Countersunk mounting screw-holes
Thru-bolts for 1-3/4" door
Gray Primer (GPZ) powder coat finish

Required Information;

• Specify glass thickness on order (See page L15 for available sizes)

Available Options

Powder coat color options see page L2
False mullion bars (Page L9)
Torx security Thru-bolts
Galvanneal A40 Steel
Zinc electro-plating
Glass & Glazing tape See Glass Section
Lead lining .030" thick

*up to 90 minutes.

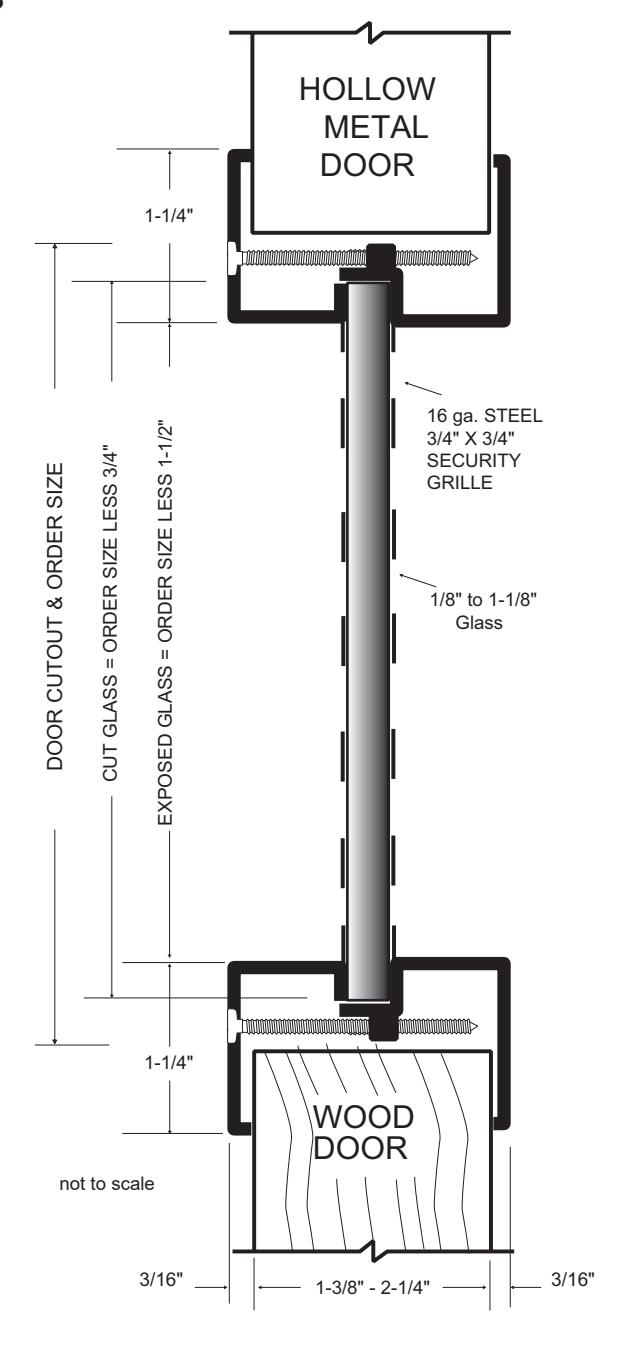

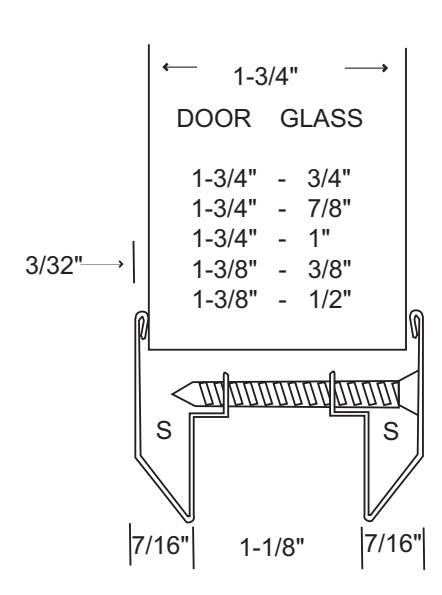

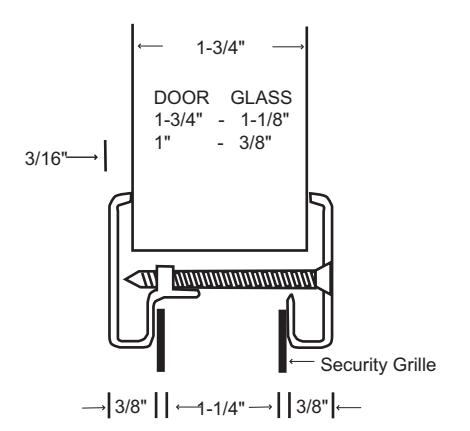

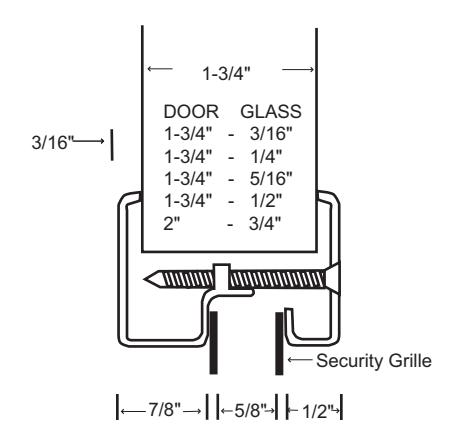

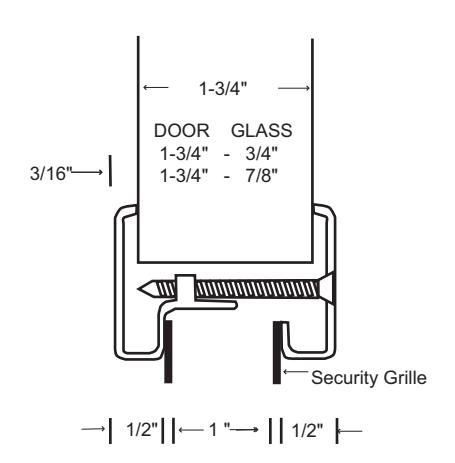

L-SG100 and L-SG100-TB Glass and Door Combinations

Details shown are for 1-3/4" door thickness Only Configurations shown are available Some applications require thicker glazing tape Thru-bolts available for 1-3/4" thick doors only

Designed for use on 1-3/4" thick doors manufactured within door industry tolerance of +/- 1/16".

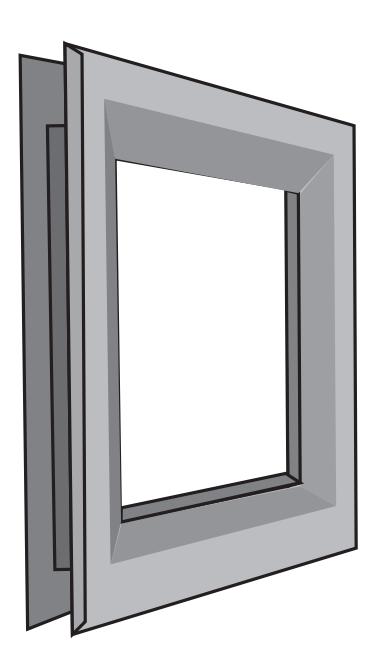

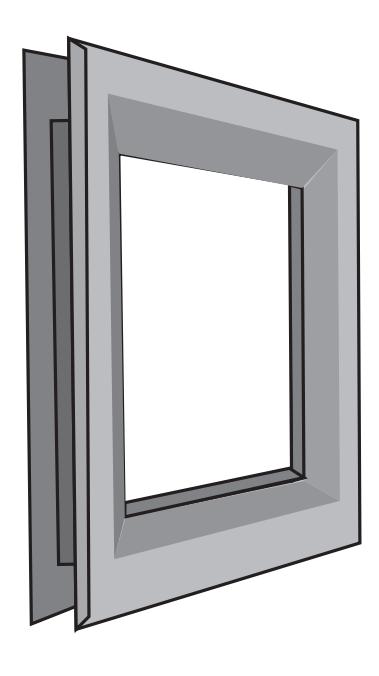

L-CVFM-SS

Stainless Steel Lite Kit for 1-3/4" Thick Doors and 3/16", 1/4", or 5/16" Glass

18 ga. Type 304 stainless steel
Mitered and welded corners
Countersunk mounting screw-holes
Available in uneven and fractional sizes
#8 x 1-3/4" Phillips head SMS
#4 satin finish

Powder coat finish see page L2
Torx Security Screws
Glass & Glazing tape See Glass Section
Lead Lining .030" thick

L-CVFM-SS-SP

Stainless Steel Lite Kit for Variable Door and/or Glass Thickness

18 ga. cold rolled steel
Mitered and welded corners
Welded reinforcing clips at corners
Counter-sunk mounting screw-holes
#8 Phillips head SMS
Available in uneven and fractional sizes
#4 satin finish

Required Information

Specify glass thickness on order
Specify door thickness on order if other than 1-3/4"

Powder coat color options see page L2
Torx Security Screws
Glass & Glazing tape See Glass Section
Lead lining .030" thick

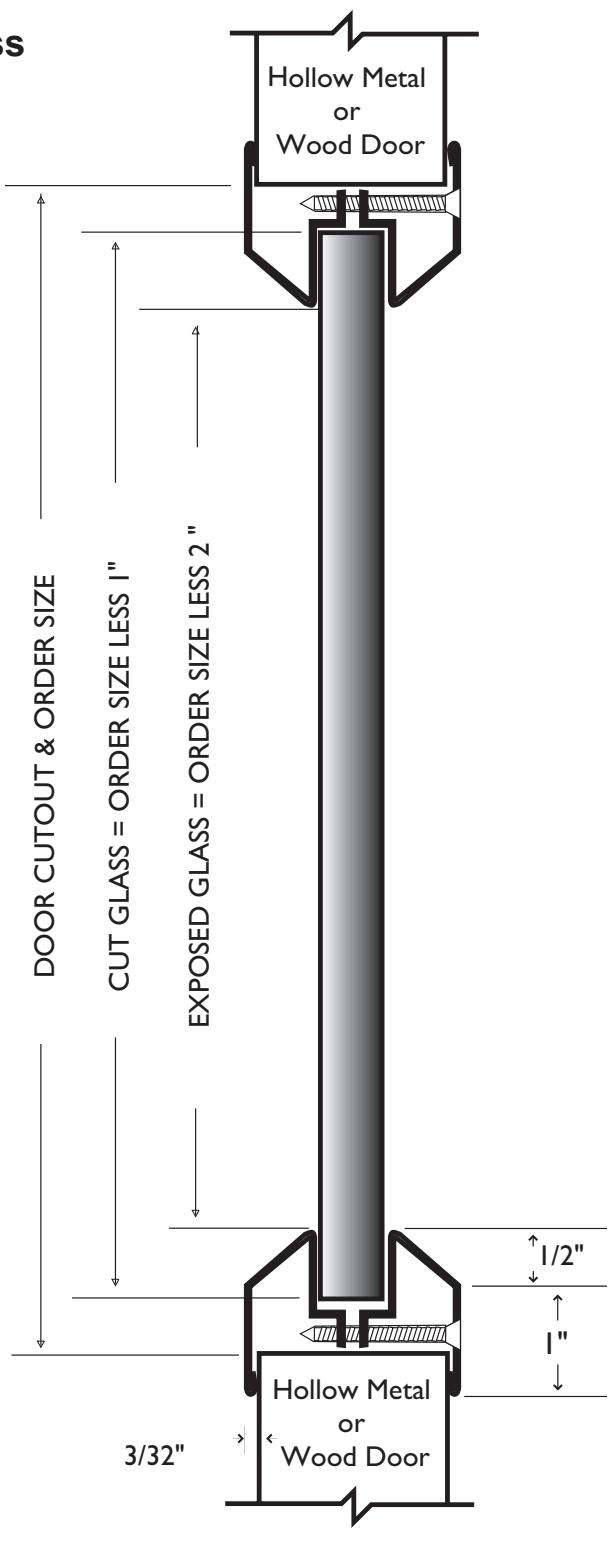

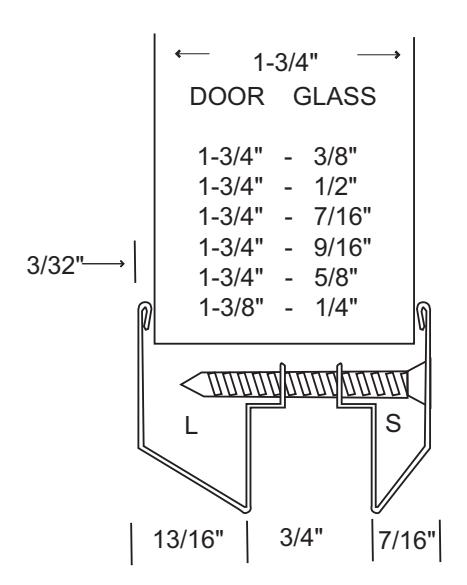

L-CVFM-SS-SP Glass and Door Combinations

Details shown are for 1-3/4" door thickness. Only configurations shown are available Some applications require thicker glazing tape

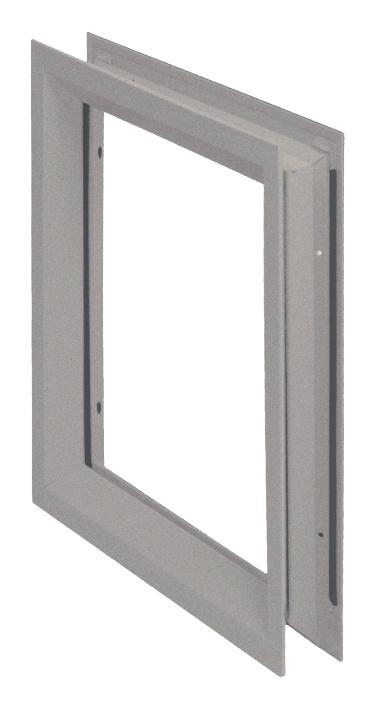

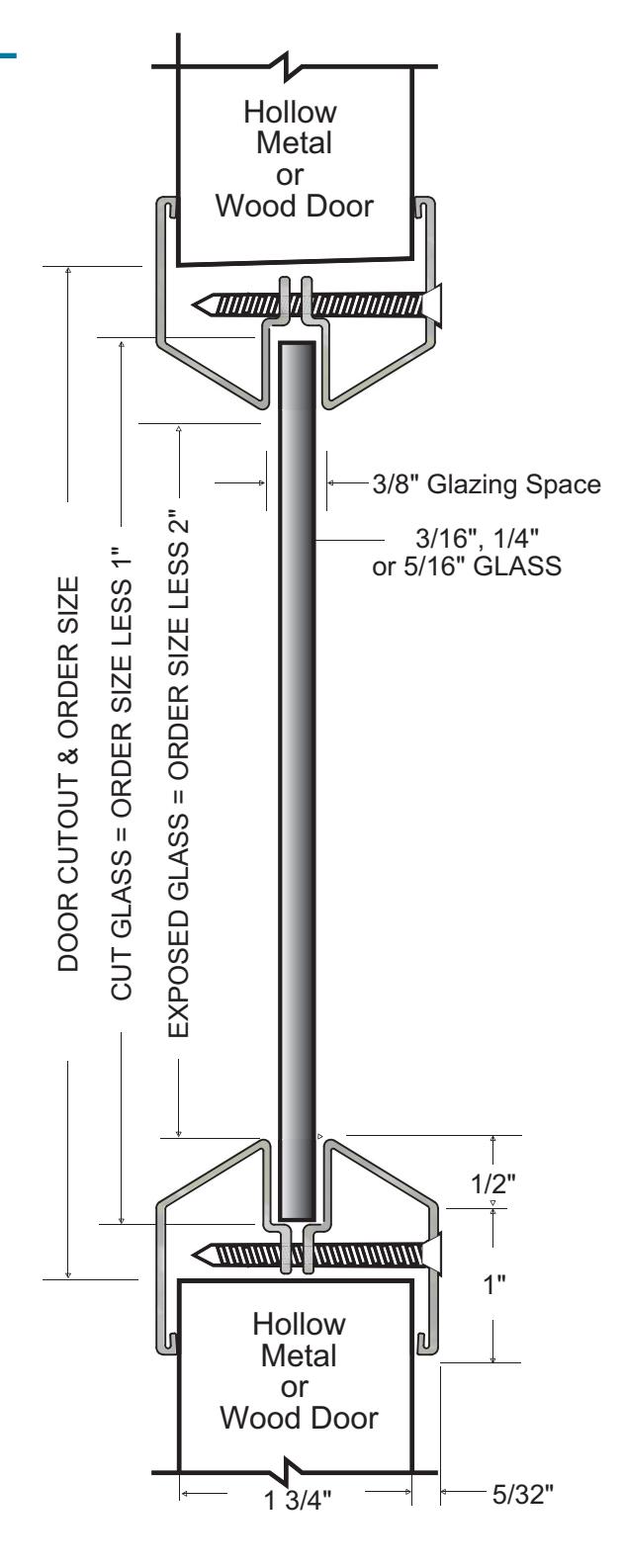

L-FRA100-ALUM

Aluminum Lite Kit for 1-3/4" Thick Doors and 3/16", 1/4" or 5/16" Glass

.050 extruded aluminum
· Mitered and welded corners
· Welded reinforcing clips at corners
· Counter-sunk mounting screw-holes
#8 x 1-3/4" Phillips head SMS
· Available in uneven and fractional sizes
Aluminum Silver (ASL) powder coat finish

Available Options

· Powder coat color options see page L2
Torx Security Screws
· Glass & Glazing tape See Glass Section
Lead lining .030" thick

NOT FIRE-RATED

Designed for use on 1-3/4" thick doors manufactured within door industry tolerance of +/- 1/16".

Phone: 800-647-7874 Fax: 800-255-7874

Page Intentionally Blank

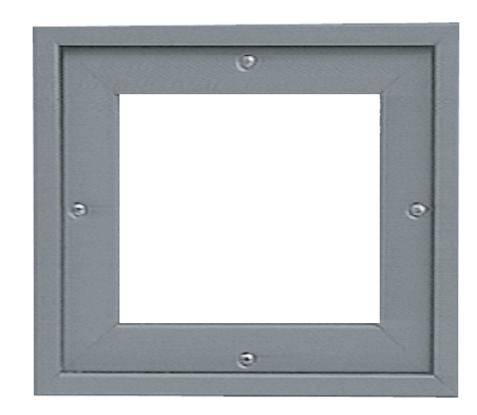

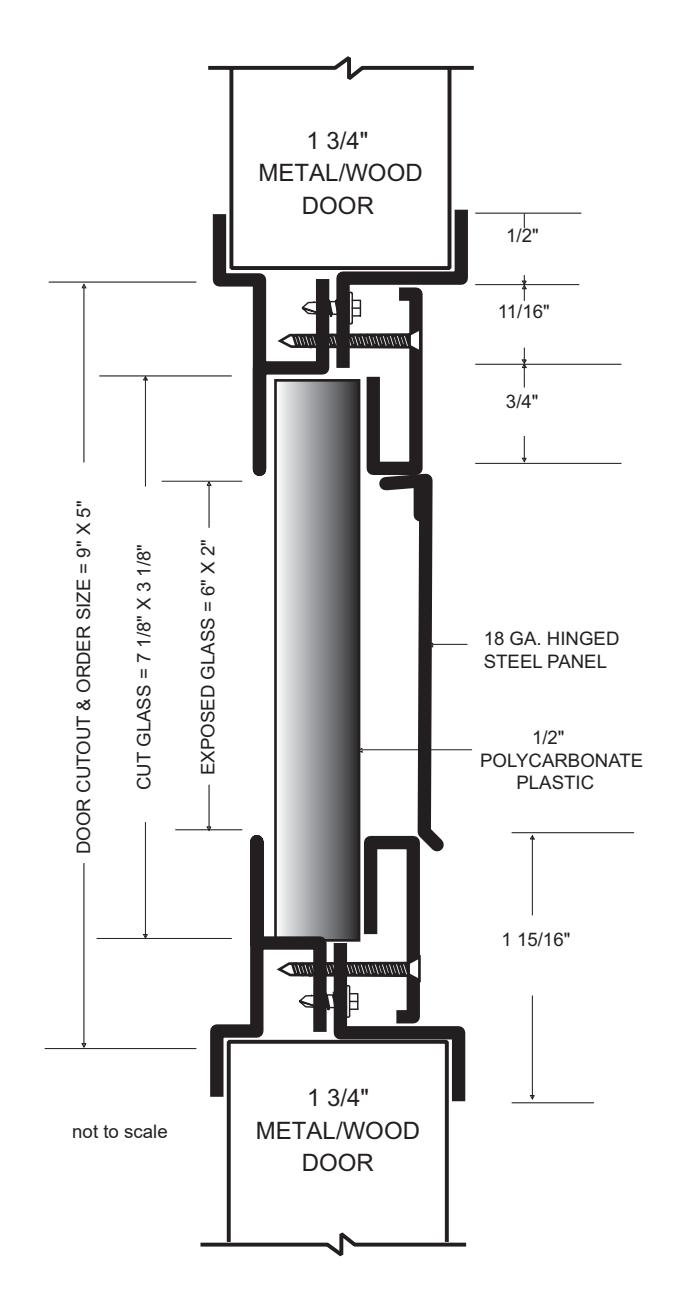

L-VGLF-WD (9" X 5")

Security Lite Kit

18 ga. cold rolled steel
Mitered and welded corners
1-3/4" hollow metal or wood doors
1/2" thick high impact polycarbonate plastic
18 ga. steel hinged panel
No exposed fasteners on outside of door
Low-profile frame
6" x 2" exposed glass size
#8 x 1" Oval head TEK screws
2.8 oz. Silicone sealant included
Gray Primer (GPZ) powder coat finish

Available Options

Powder coat color options see page L2
Torx security screws
Zinc electro-plating

L 17

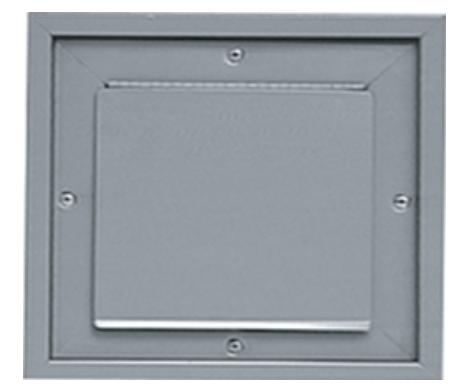

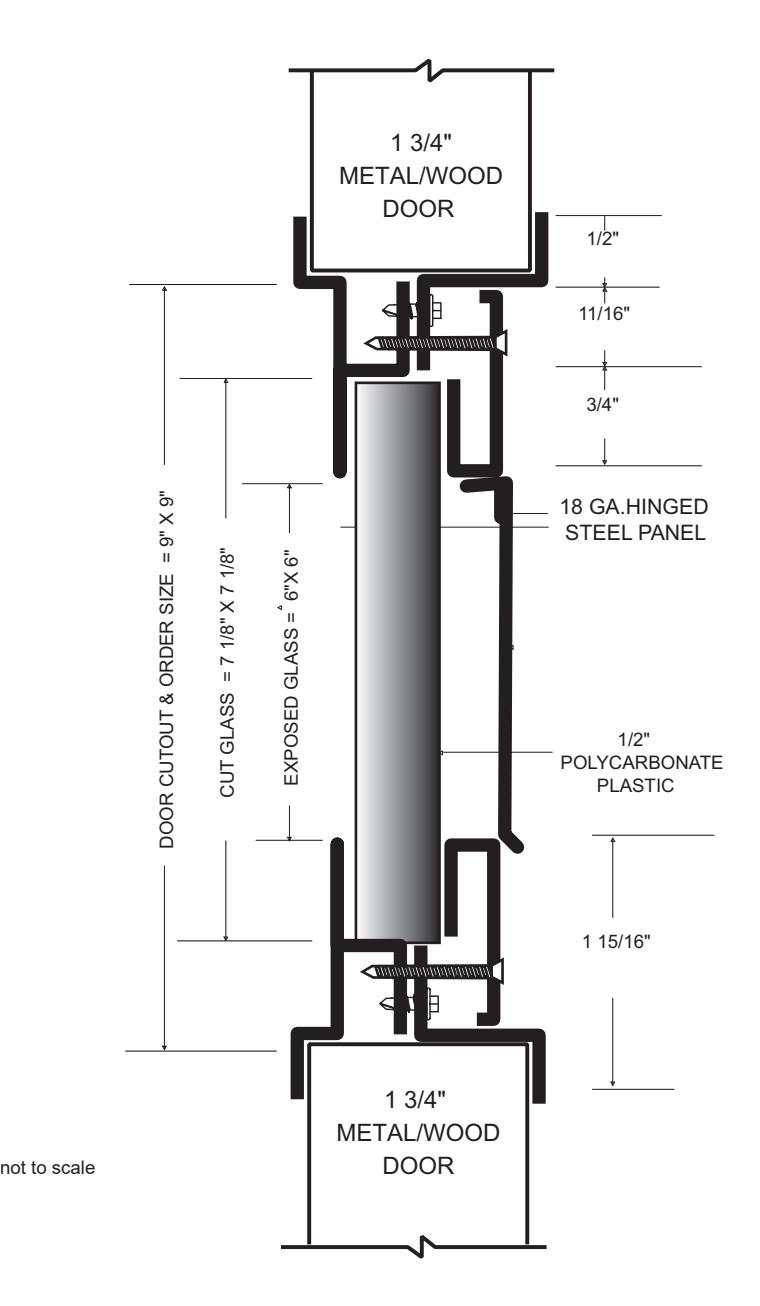

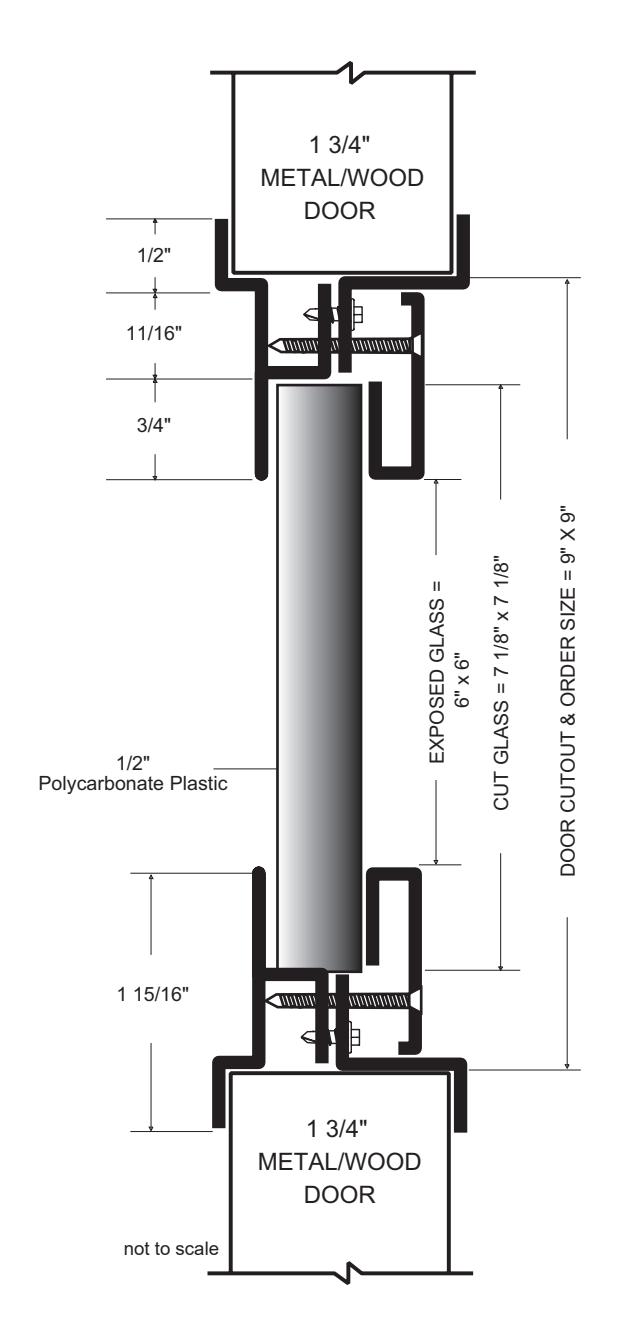

L-VGLF-PZ (9" X 9")

Security Lite Kit

18 ga. cold rolled steel
Mitered and welded corners
For 1-3/4" hollow metal or wood doors
1/2" thick high impact polycarbonate plastic
No exposed fasteners on outside of door
Low-profile frame
6" x 6" exposed glass size
#8 x 1" Oval head TEK screws
2.8 oz. Silicone sealant included
Gray Primer (GPZ) powder coat finish

Powder coat color options see page L2
Torx security screws
Zinc electro-plating

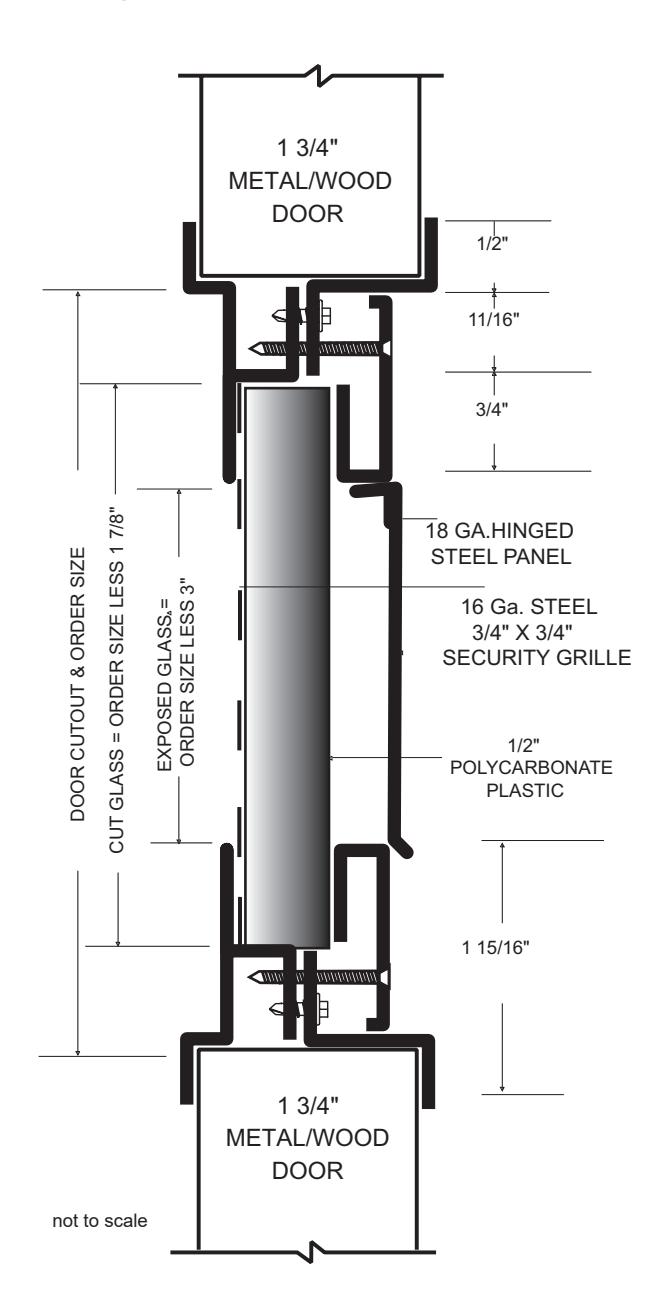

L-VGLF-MD (9" X 9") L-VGLF-MDL (12" X 12")

Security Lite Kit

18 ga. cold rolled steel
Mitered and welded corners
For 1-3/4" hollow metal or wood doors
1/2" thick high impact polycarbonate plastic
16 ga. steel 3/4" x 3/4" security grille
18 ga. steel hinged panel
No exposed fasteners on outside of door
Low-profile frame
6" x 6" exposed glass size on L-VGLF-MD
9" x 9" exposed glass size on L-VGLF-MDL
#8 x 1" Oval head TEK screws
2.8 oz. Silicone sealant included
Gray Primer (GPZ) powder coat finish

Powder coat color options see page L2
Torx security screws
Zinc electro-plating

L-VGLF-OG (9" X 9")

Security Lite Kit

18 ga. cold rolled steel
Mitered and welded corners
For 1-3/4" hollow metal or wood doors
1/2" thick high impact polycarbonate plastic
18 ga. steel hinged panel
No exposed fasteners on outside of door
Low-profile frame
6" x 6" exposed glass size
#8 x 1" Oval head TEK screws
2.8 oz. Silicone sealant included
Gray Primer (GPZ) powder coat finish

Powder coat color options see page L2
Torx security screws
Zinc electro-plating

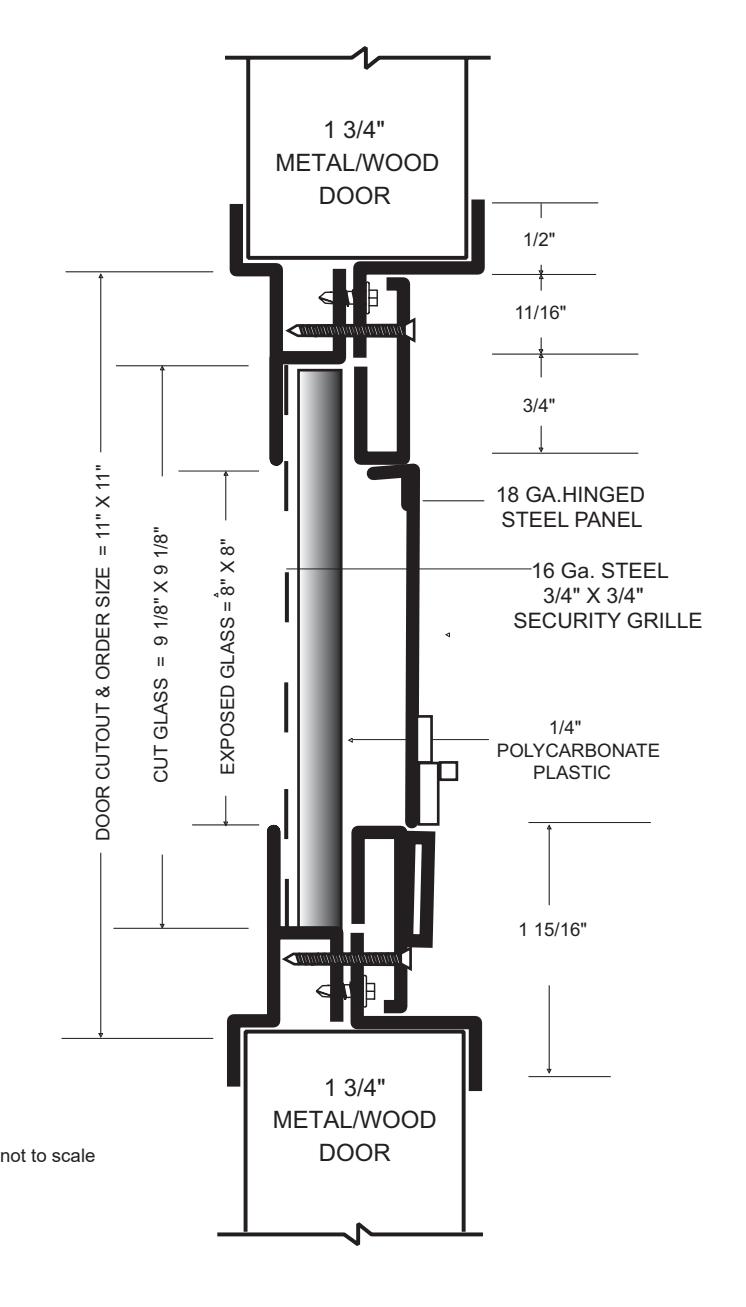

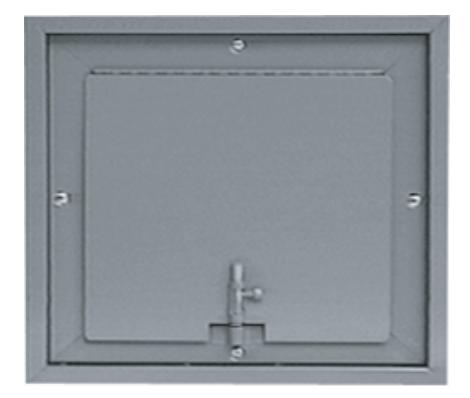

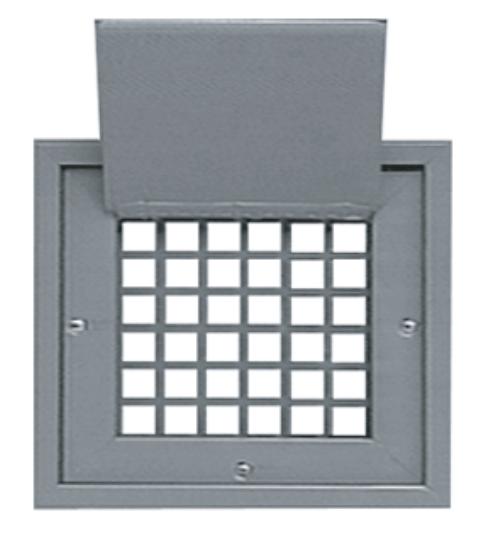

L-VGLF-SF (11" X 11")

Security Lite Kit

18 ga. cold rolled steel
Mitered and welded corners
For 1-3/4" hollow metal or wood doors
1/4" thick high impact polycarbonate plastic
16 ga. steel 3/4" x 3/4" security grille
18 ga. steel hinged panel with bolt latch
No exposed fasteners on outside of door
Low-profile frame
8" x 8" exposed glass size
#8 x 3/4" Oval head TEK screws
2.8 oz. Silicone sealant included
Gray Primer (GPZ) powder coat finish

Powder coat color options see page L2
Torx security screws
Zinc electro-plating

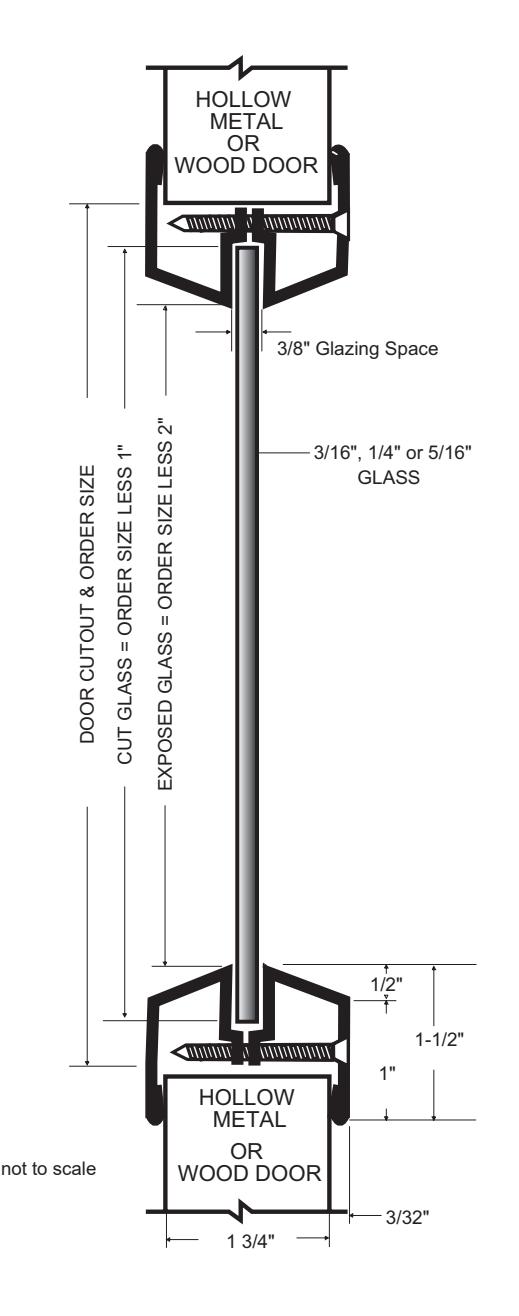

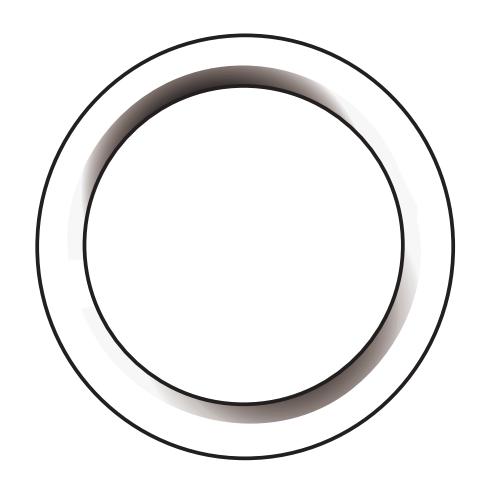

L-FRA-100-RD

Round Lite Kit for 1-3/4" Thick Doors and 3/16", 1/4", or 5/16" Glass

18 ga. cold rolled steel
Countersunk mounting screw-holes
#8 x 1-3/4" Phillips head SMS
Gray Primer

Available Options

Powder coat color options see page L2
Torx security screws
Zinc electro-plating
Glass & Glazing tape See Glass Section

• Available in 12", 18" and 24" sizes only

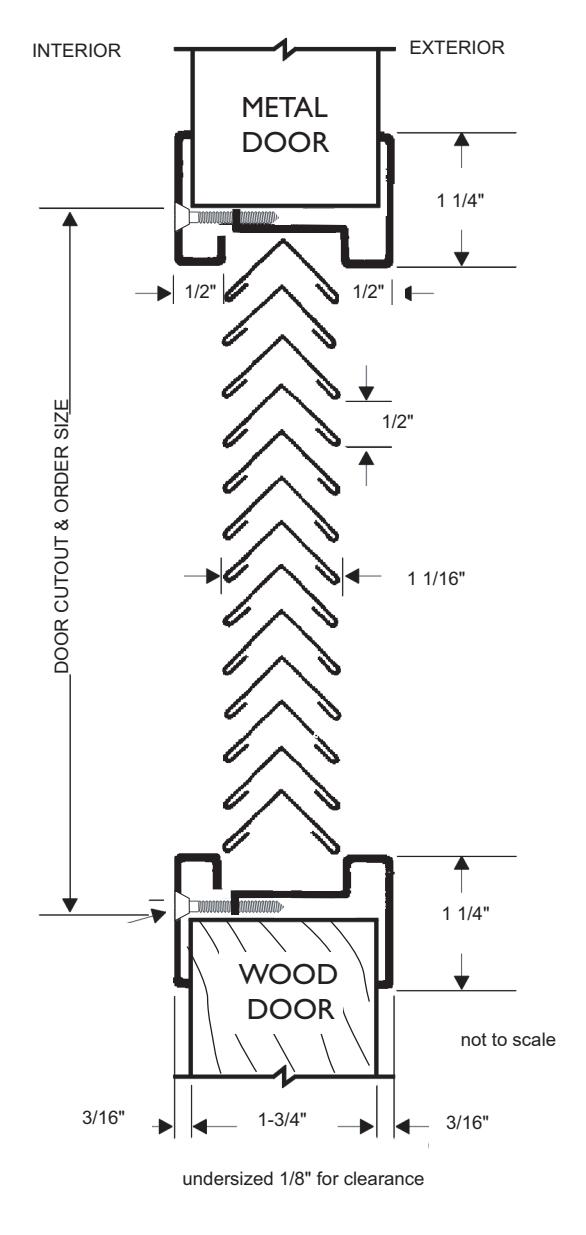

L-700-RX

No Vision Door Louver for 1-3/4" Thick Doors

18 ga. cold rolled steel
· Mitered and welded corners
· Welded reinforcing clips at corners
· Inverted "V" design
Blades 24 ga. steel; hemmed edges
· Counter-sunk mounting screw-holes
#8 x 3/4" Phillips head SMS
· Available in uneven and fractional sizes
Free area 55%
· Gray Primer (GPZ) powder coat finish

Available Options

· Powder coat color options see page L2
Aluminum Insect screen 22 ga. 1/8" square mesh installed exterior side unless requested otherwise
· Torx Security Screws
· Galvanneal A40 Steel
Zinc electro-plating (not available on insect screen)

Designed for use on 1-3/4" thick doors manufactured within door industry tolerance of +/- 1/16".

Phone: 800-647-7874 Fax: 800-255-7874

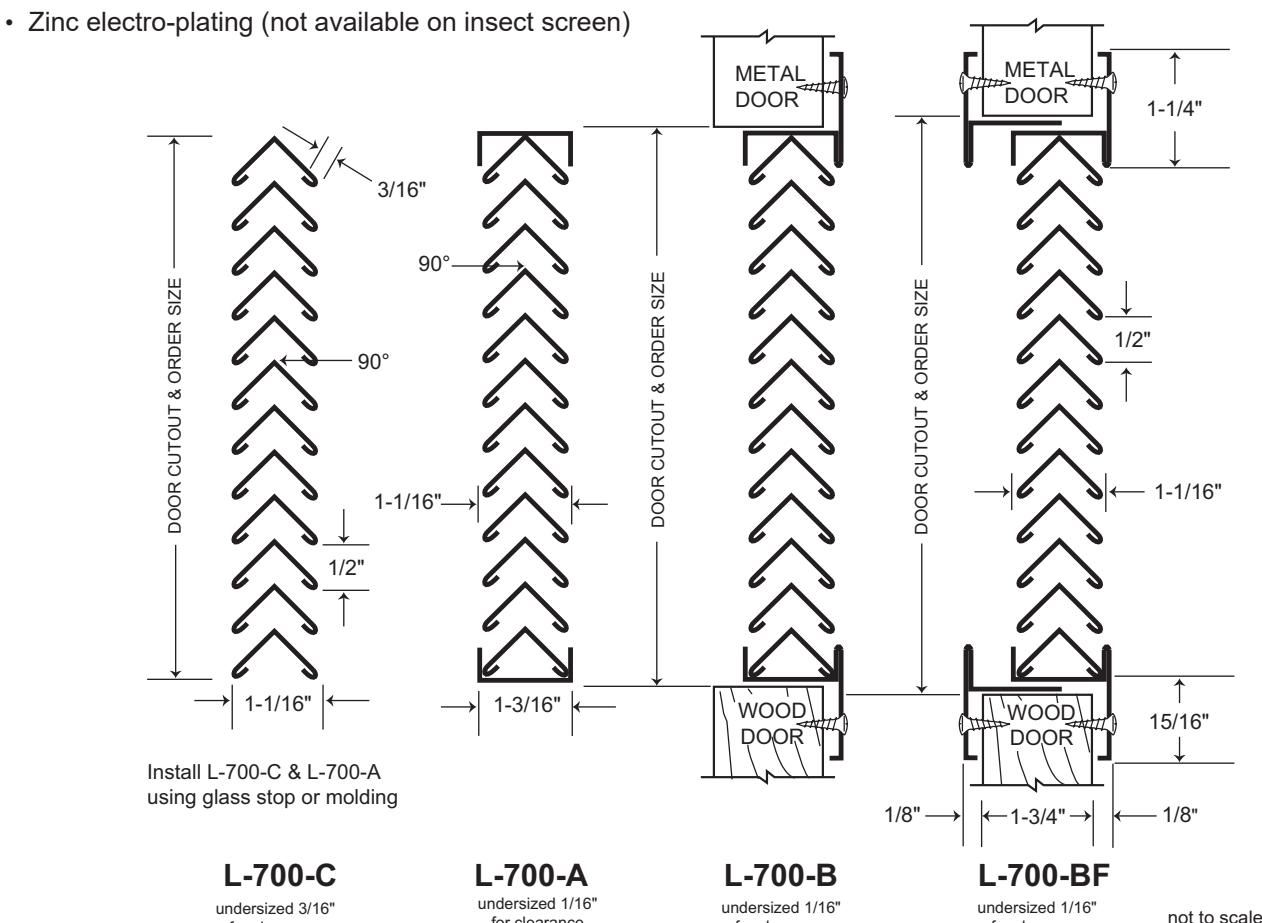

L-700 SERIES

No Vision Door and Partition Louver for 1-3/8", 1-3/4" up to 2-1/4" Thick Doors

· 20 ga. cold rolled steel frame
· Mitered and welded corners
· Welded reinforcing clips at corners
Inverted "V" design
· Blades 24 ga. steel; hemmed edges
· Counter-sunk mounting screw-holes
#8 x 3/4" Phillips head SMS
· Available in uneven and fractional sizes
· Gray Primer (GPZ) powder coat finish
Free area 55%

Available Options

• Powder coat color options - see page L2

for clearance

Thru bolts (TB) for 1-3/4" thick doors
Aluminum Insect screen 22 ga. 1/8" square mesh installed exterior side unless requested otherwise
Torx Security Screws
· Galvanneal A40 Steel

for clearance

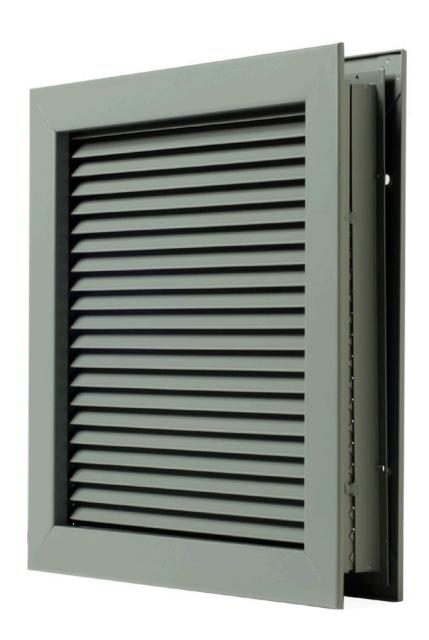

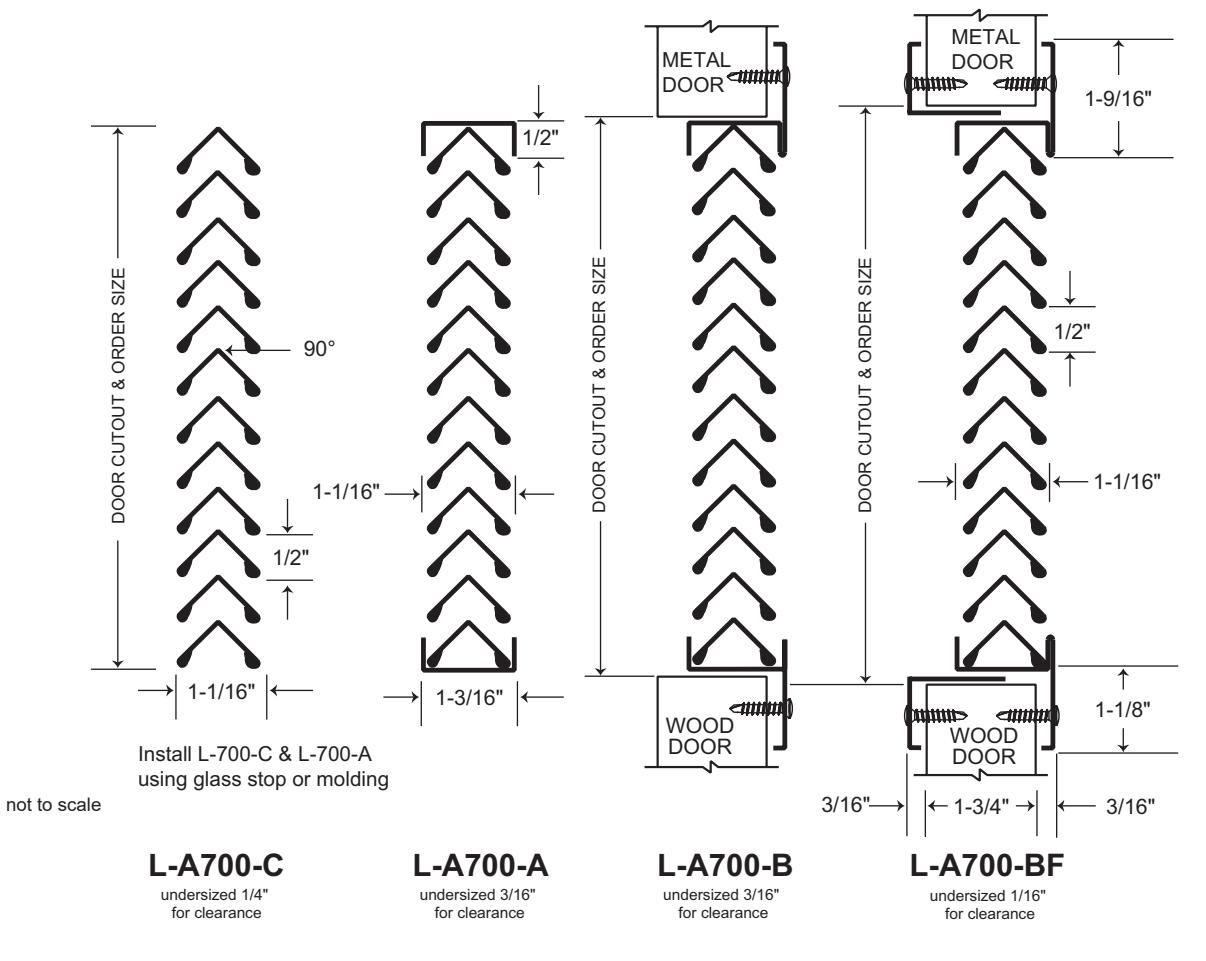

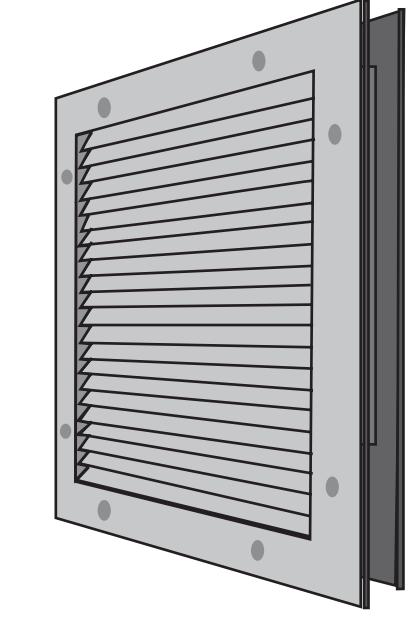

L-A700 SERIES

Aluminum No Vision Door and Partition Louver for 1-3/8", 1-3/4" up to 2-1/4" Thick Doors

Frame .050" extruded aluminum
· Blades .050" extruded aluminum
· Mitered corners secured with reinforcing clips
Inverted "V" design
· Counter-sunk mounting screw-holes
#8 x 3/4" Phillips head SMS
· Available in uneven and fractional sizes
· Aluminum Silver (ASL) powder coat finish
Free area 55%

Available Options

Powder coat color options see page L2
· For exterior use specify drainage weep holes
Thru bolts (TB) for 1-3/4" door when specified
Aluminum Insect screen 22 ga. 1/8" square mesh installed exterior side unless requested otherwise
· Torx Security Screws

orders@ngp.com

quotes@ngp.com

L 25

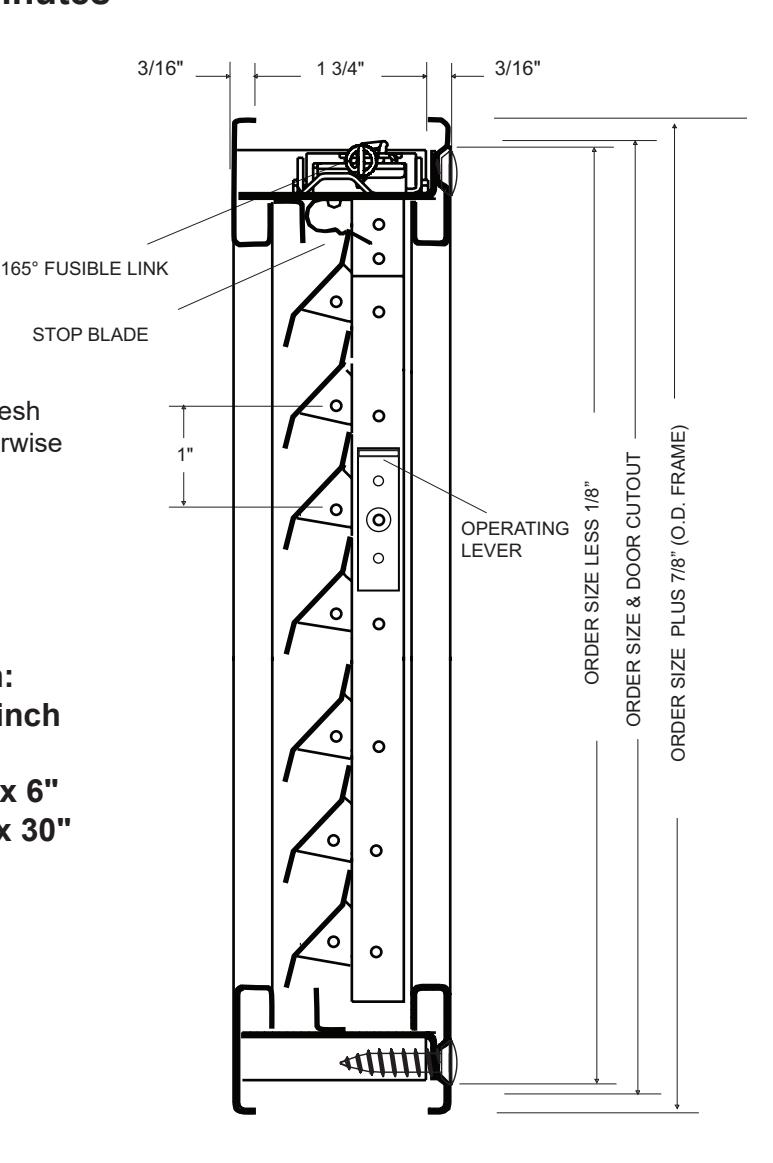

L-1900

Fire-rated Fusible Link Louver for 1-3/4" Thick Doors up to 90 minutes

Blades close when activated by fire/heat
18 ga. cold rolled steel frame
18 ga. cold rolled steel adjustable "Z" blades
Mitered corners secured with reinforcing clips
Stainless Steel Spring
165o Fusible link
Free area 40%
#8 x 3/4" Phillips head SMS
Gray Primer (GPZ) powder coat finish

Available Options

Aluminum insect screen 22 ga. 1/8" square mesh installed on exterior side unless requested otherwise
Torx Security screws
Galvanneal A40 steel

*up to 90 minutes

Size Information: Available in whole inch increments Minimum size: 10" x 6"

Maximum size: 24" x 30"

undersized 1/8" for clearance

not to scale

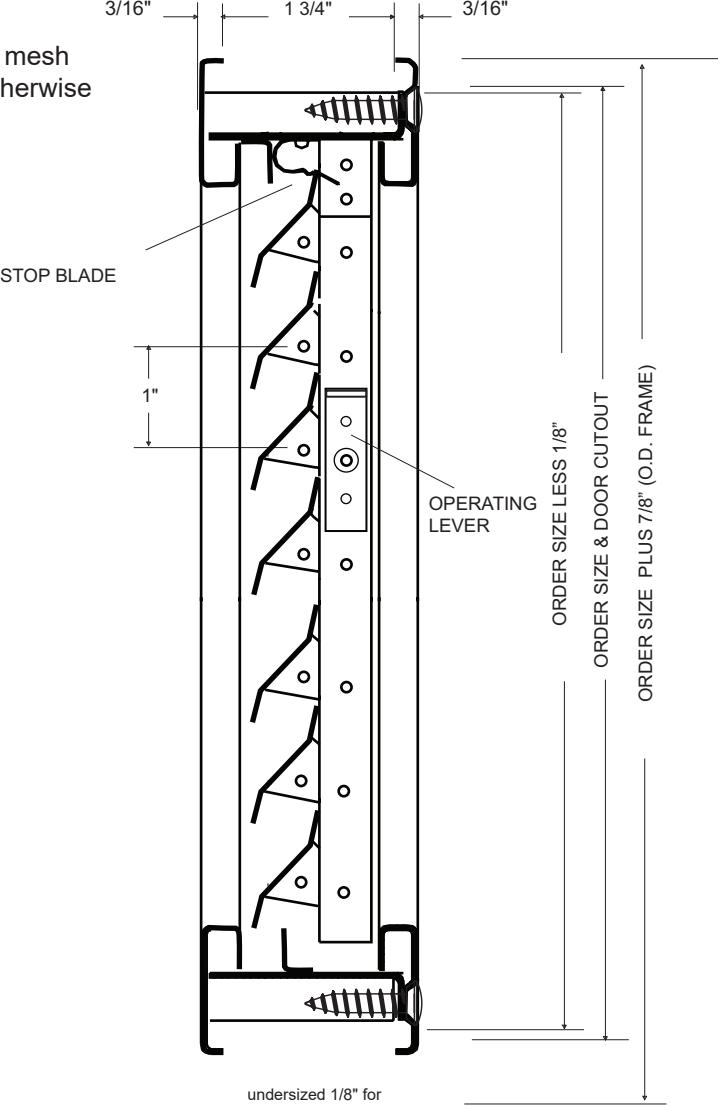

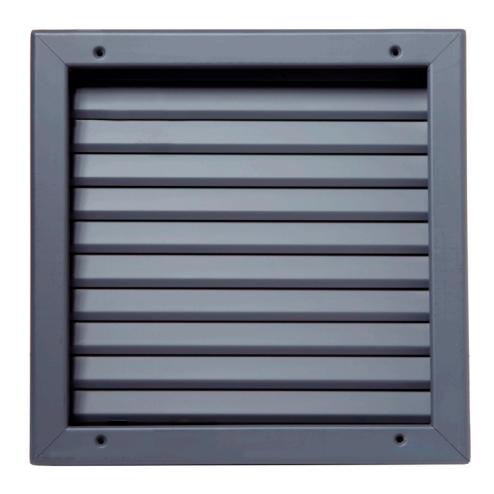

L-1800

Adjustable Blade Louver for 1-3/4" Thick Doors

Manually adjustable blades
18 ga. cold rolled steel frame
18 ga. cold rolled steel adjustable "Z" blades
Mitered corners secured with reinforcing clips
Free area 40%
#8 x 3/4" Phillips head SMS
Gray Primer (GPZ) powder coat finish

Available Options

Aluminum insect screen 22 ga. 1/8" square mesh installed on exterior side unless requested otherwise
Torx Security screws
Galvanneal A40 steel

Size Information: Available in whole inch increments Minimum size: 10" x 6"

Maximum size: 24" x 30"

clearance

not to scale

L 27

Phone: 800-647-7874 Fax: 800-255-7874

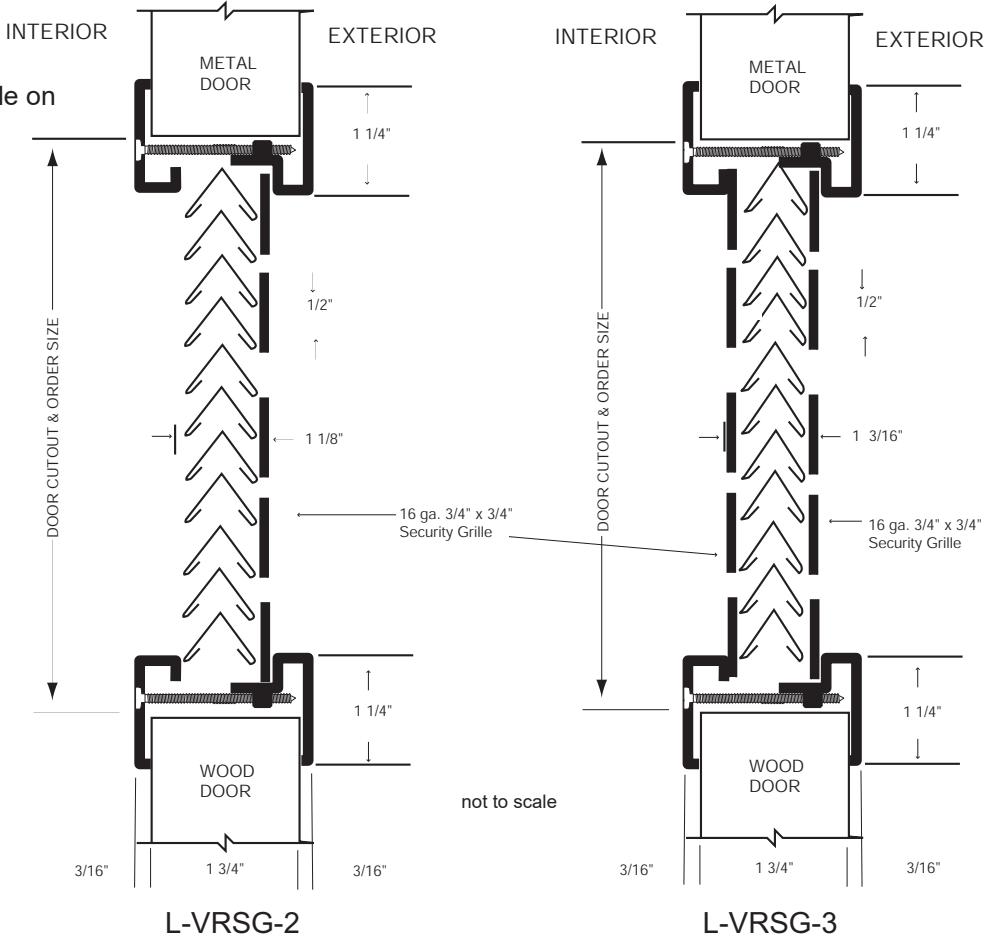

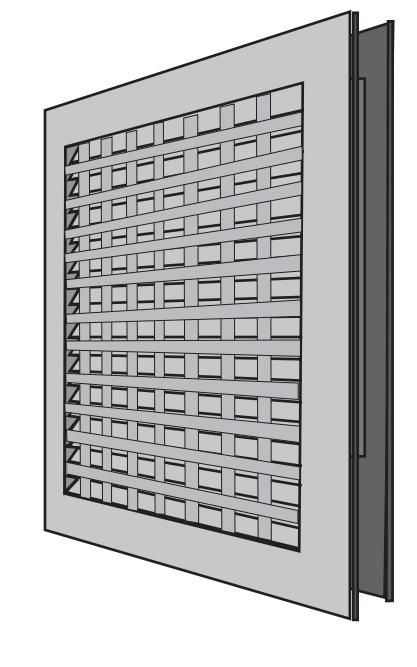

L-VRSG-2, L-VRSG-3

Vandal Resistant Security Louver for 1-3/4" Thick Doors

18 ga. cold rolled steel frame
· Mitered and welded corners
· Welded reinforcing clips at corners
· Inverted "V" design
· Blades 24 ga. steel, hemmed edges
16 ga. steel, 3/4" x 3/4" security grille
#6 x1-3/4" Phillips Truss Head SMS
· Gray Primer (GPZ) powder coat finish
Free area 45%

Available Options

Powder coat color options see page L2
Thru bolts (TB) for 1-3/4" thick doors
Aluminum Insect screen 22 ga. 1/8" square mesh installed exterior side unless requested otherwise

Zinc Electro-plating (not available on insect screen)

Undersized 1/16" for clearance

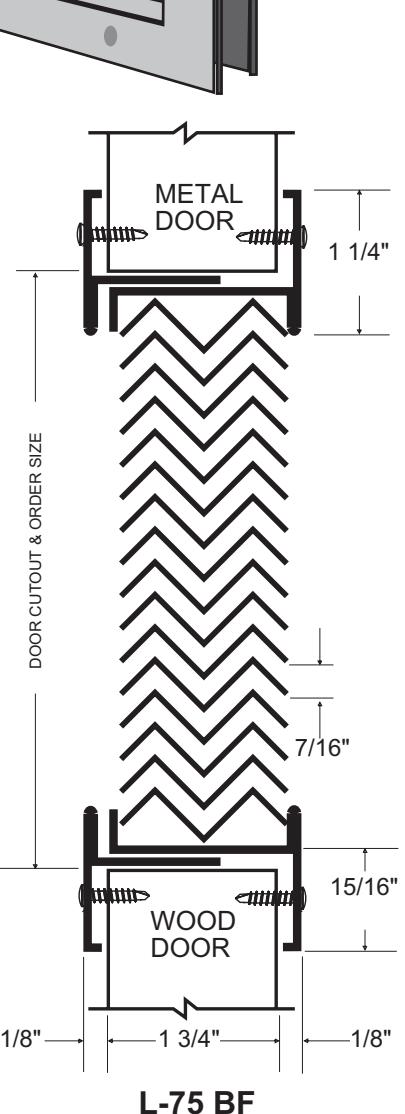

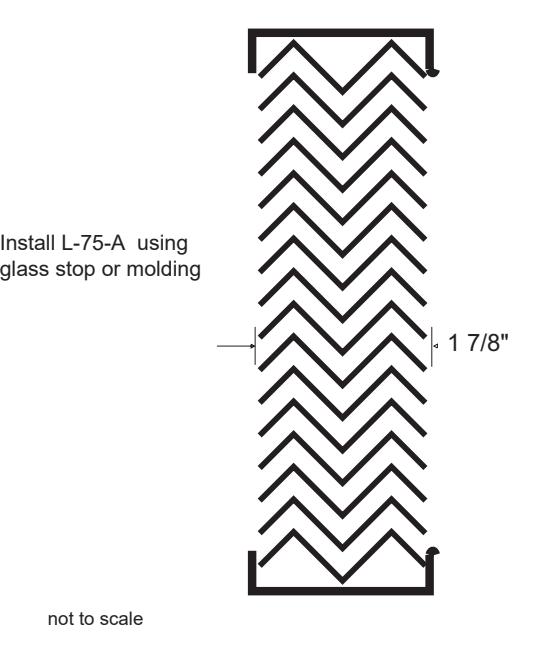

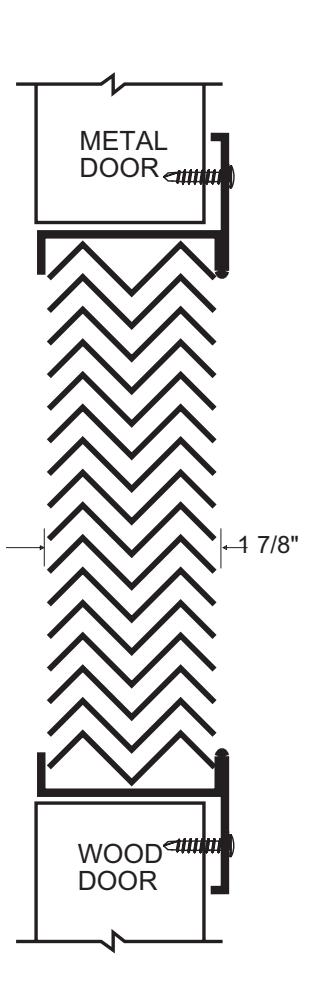

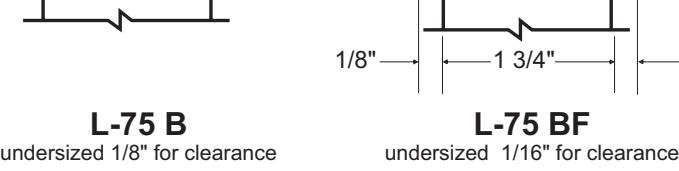

L-75 SERIES

Darkroom Louver for 1-3/4" up to 2-1/4" Thick Doors

20 ga. cold rolled steel frame
Mitered and welded corners
Welded reinforcing clips at corners
Blades .040" aluminum
Counter-sunk mounting screw holes
#8 x 3/4" Phillips head SMS
Available in uneven and fractional sizes
Free area 55%
Textured Black (TBL) powder coat finish

Available Options

Powder coat color options see page L2
Thru Bolts (TB) for 1- 3/4" thick doors
Aluminum Insect screen 22 ga. 1/8" square mesh installed exterior side unless requested otherwise
Torx Security Screws
Zinc electro-plating (not available on insect screen)
