Hospitality

Hospitality Product Index:

	Page
Adhesive Smoke Seal	H4
Door Shoes	H4-H5
Security Door Guard	H6
Security Door Guard Bracket	H7
Vinyl Thresholds	H2-H3

Numerical Index:

SDG-3	92T
SDG-4H6	99T
SDG-10B	319ETH5
SDG-26	344
SDG-26D	344NFH4
SDG-BRKT-WB H7	398 H2
SDG-BRKT-MW H7	399 H2
SDG-DS	400
SDG-ET	401 H2
SDG-HO	402X400X400X402 H3
SDG-WS	402X400X402H3
12T H5	402 H2
13T H5	407
35ETH5	5075
00ET 11E

Rating Symbols Legend

ADA COMPLIANT Barrier Free Thresholds meet the requirements of ADA Standards for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.

POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C; complies with IBC. NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B; complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

SMOKE & DRAFT CONTROL GASKETING, Classified by UL to ANSI/UL10C and ANSI/ UL1784 Category 'H'; complies with IBC and NFPA 105 for use on 'S' labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and wood fire doors rated up to 90 minutes.

ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G4 and G5 for test result data.

AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

ANTI-MICROBIAL. Treated with an anti-microbial additive to inhibit the growth of microorganisms.

ANSI/BHMA CERTIFIED Certified products comply with American National Standard for Thresholds ANSI/BHMA A156.21 or Door Gasketing and Edge Seal Systems ANSI/BHMA A156.22, and are listed in the BHMA Certified Products Directory.

Online product listings: www.ul.com/database

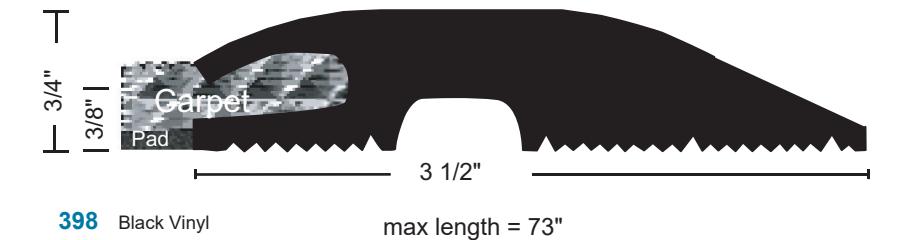

Vinyl Thresholds

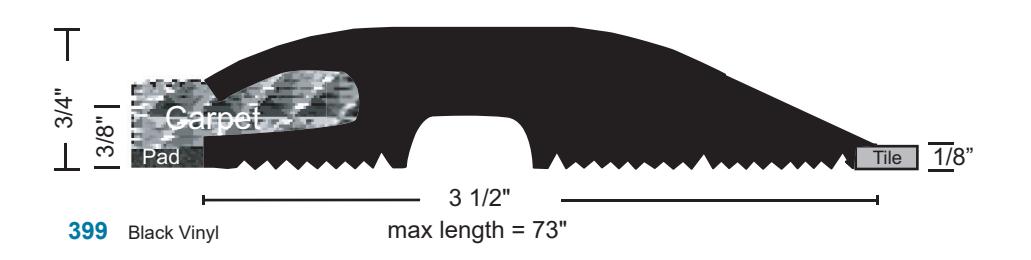

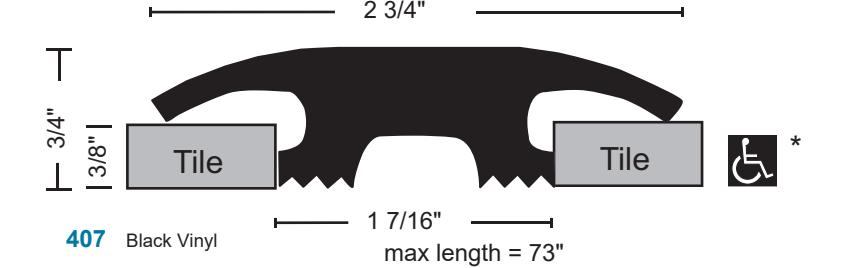

For transition between two different carpets or carpet to tile. Easy to install using adhesive like NGP RR5007BL, Black RTV silicone rubber construction sealant. Each tube bonds 4' of 398 or 399, 8' of 401, 12' of 402, or 15' of 407.

Carpet/Tile Divider Thresholds

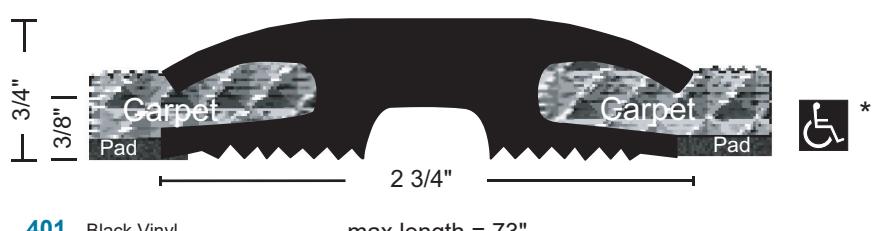

401 Black Vinyl max length = 73"

All products this page

* when installed as illustrated between carpet and/or tile

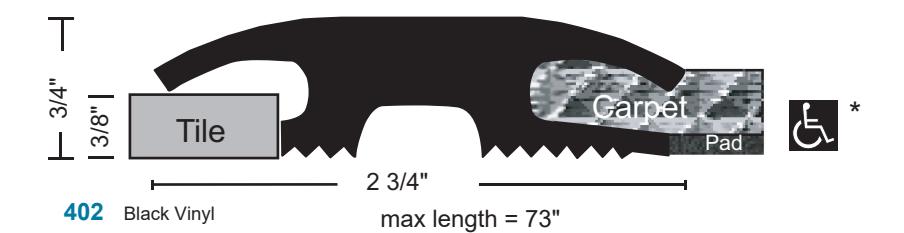

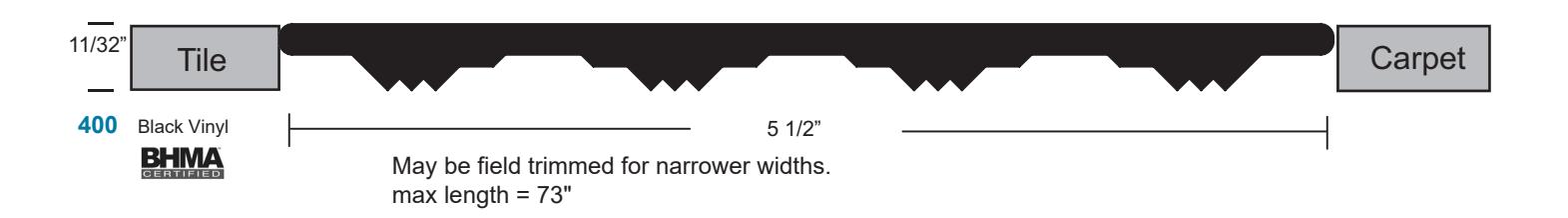

Vinyl Thresholds

For transition between two different carpets or carpet to tile. Easy to install using adhesive like NGP RR5007BL, Black RTV silicone rubber construction sealant. Each tube bonds 12' of 402 or 8' of 400

All products this page

* when installed as illustrated between carpet and/or tile

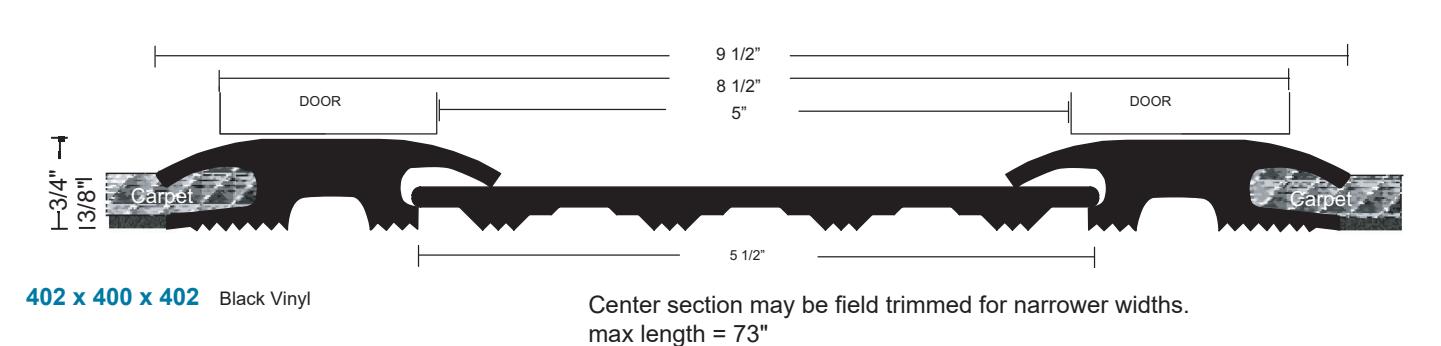

Communicating Door Thresholds

402 x 400 x 400 x 402 Black Vinyl

Center sections may be field trimmed for narrower widths. max length = 73"

TPE Triple Fin Smoke Seal

Properties:

• Thermo-Plastic Elastomer (TPE)
• · Good abrasion resistance
• · Moisture resistant
• BHMA certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
• Adhesive specifications shown on page G9
• Rigid PVC base with flexible elastomeric fins
• Flame resistant
• Temperature range -60°F to 275°F
• Anti-microbial: treated with an anti-microbial additive to inhibit the growth of microorganisms
• REACH and RoHS compliant

5075B Brown 5075CL Clear

*Anti-microbial not available in clear

Available in 36", 48", 72", 84", 96" and 108" lengths

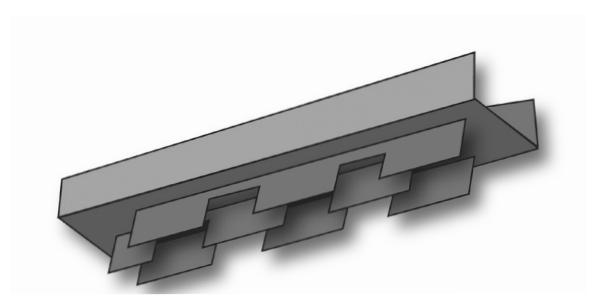

Thermoplastic Door Shoe with Soft Vinyl Fins

Available with Notched Fins "NF" to allow air flow while restricting light infiltration.

344NF-36" Dark Brown 344NF-48"

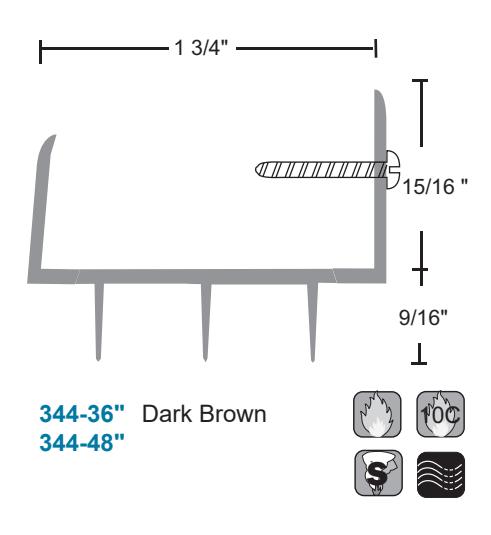

Thermoplastic Door Shoes

Thermoplastic polymer seal features rigid base and soft vinyl fins. Available with Notched Fins to allow air flow while restricting light, suffix NF.

48" maximum length

Option: Notched Fins - suffix NF.

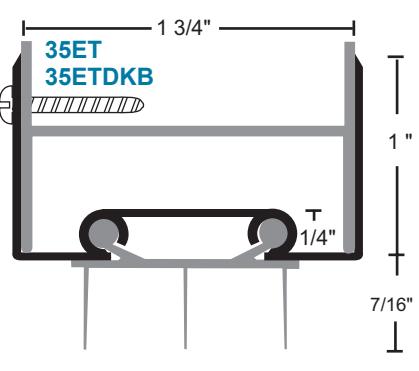

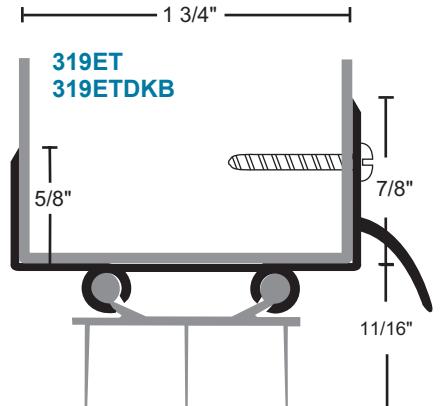

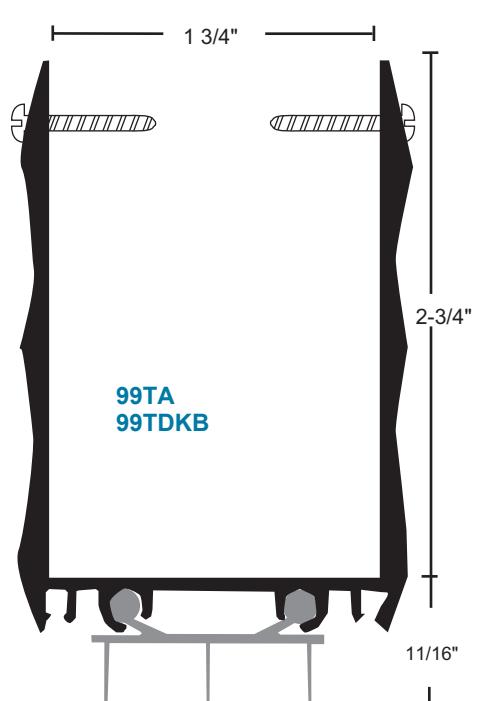

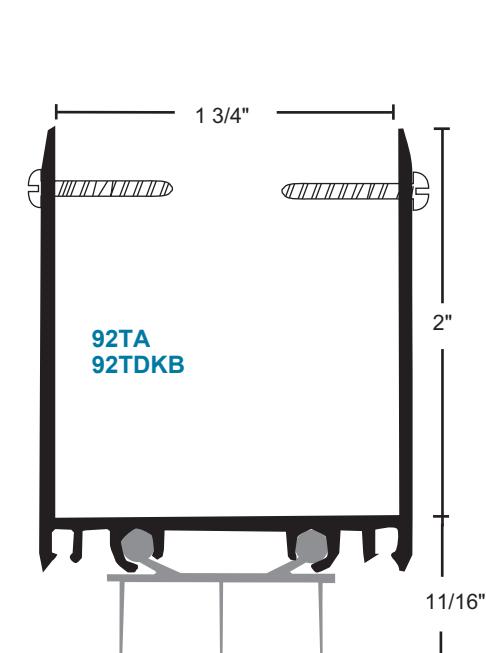

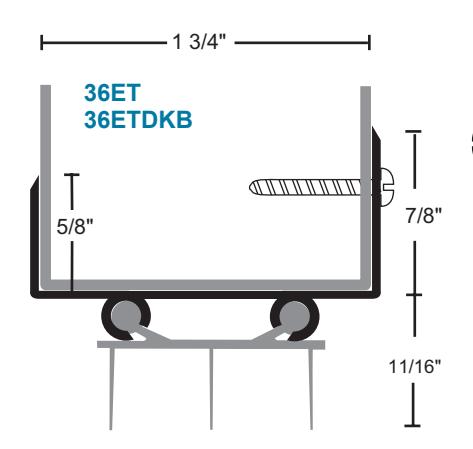

Extended Door Shoes

11/16"

Material Finishes: A - clear anodized DKB - dark bronze no suffix - mill aluminum thermoplastic is dark brown

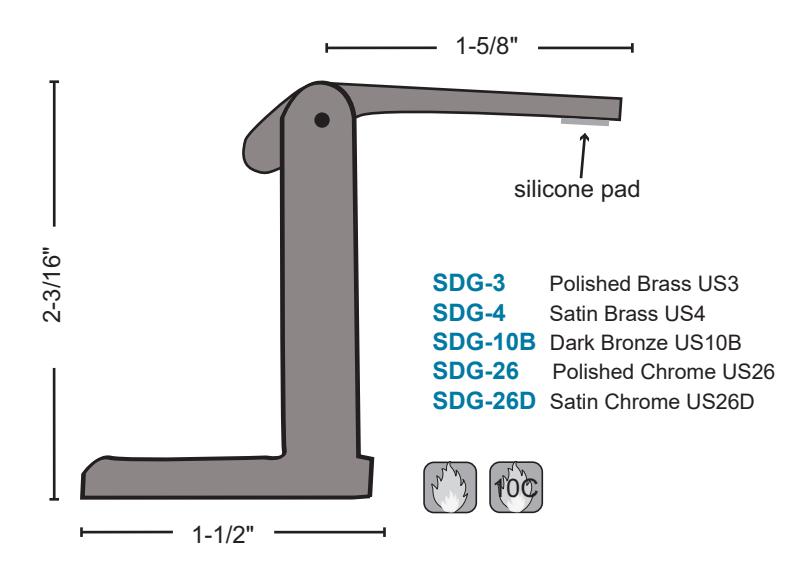

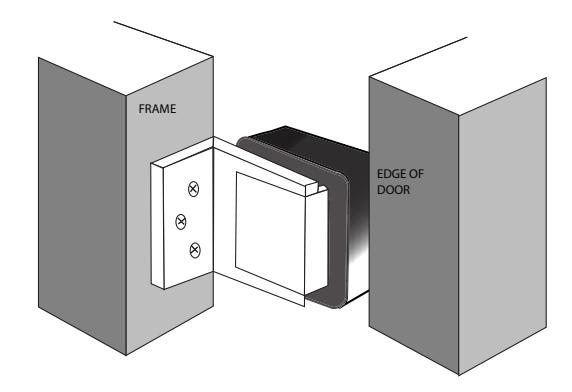

Security Door Guard

• Prevents door from opening, allowing guest or resident privacy when engaged
• Disengage to operate door normally
• Can not be used to prop door open
• Silicone pad at door contact point
• UL listed fire door accessory
• Mount 48" or less above floor for ADA compliance

Hold-Open Accessory

SDG-HO

• Foam rubber block with slot
• Slides onto Security Door Guard allowing the door to be held open by housekeeping or service personnel
• Will not mark or mar door or security door guard

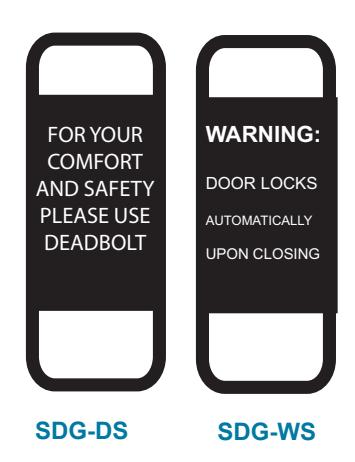

Stickers for Retrofit

• Covers holes left in door and frame from removal of swing-bar type door guards

SDG-ET Emergency Tool (not illustrated)

• Used to deactivate security door guard for emergency access

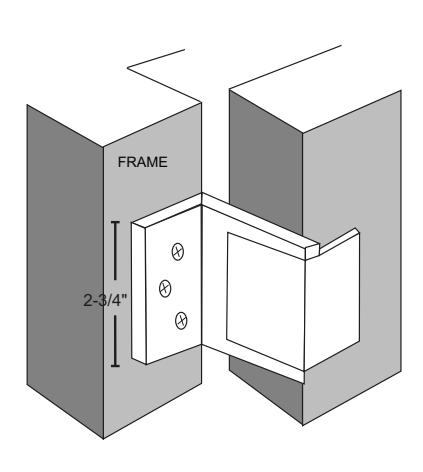

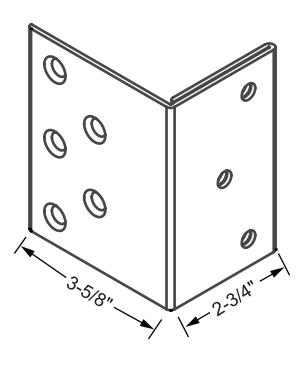

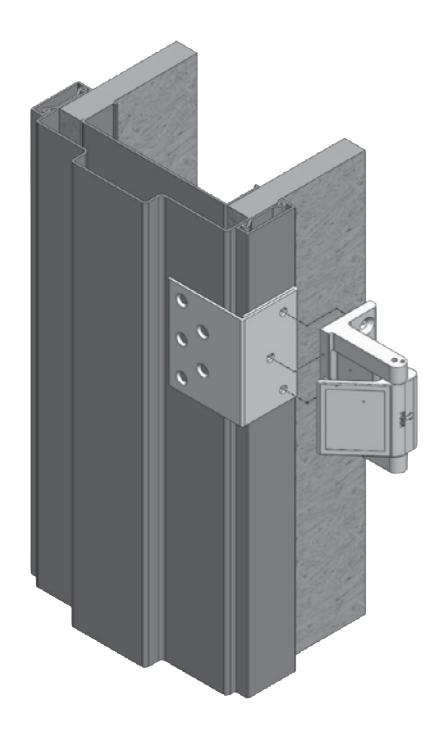

Security Door Guard Bracket

• Designed for Timely or Redi-Frame pre-finished steel doorframes with snap on trim
• Bracket allows SDG to be installed in the correct position for proper operation

SDG-BRKT-MW Magnolia White SDG-BRKT-WB Walnut Brown
