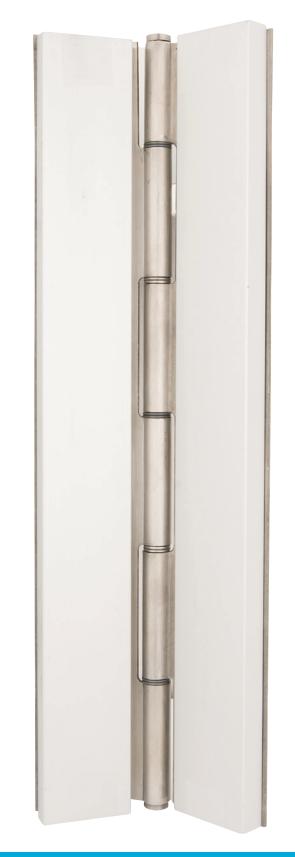

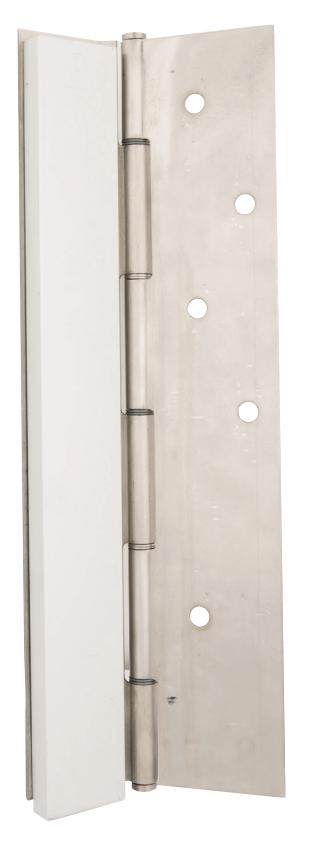

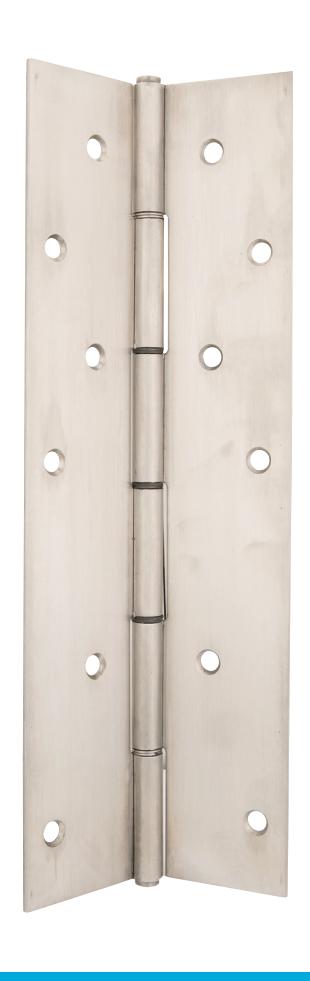

Aluminum Continuous Geared Hinge and Stainless Steel Continuous Hinge Product Index

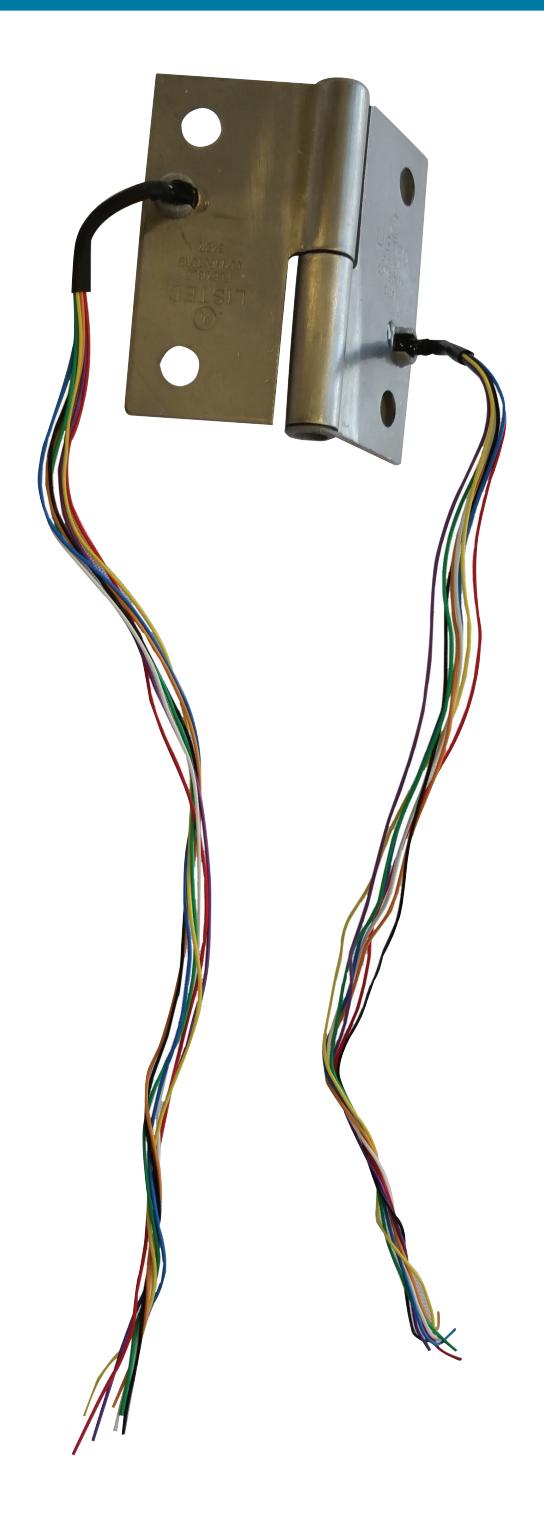

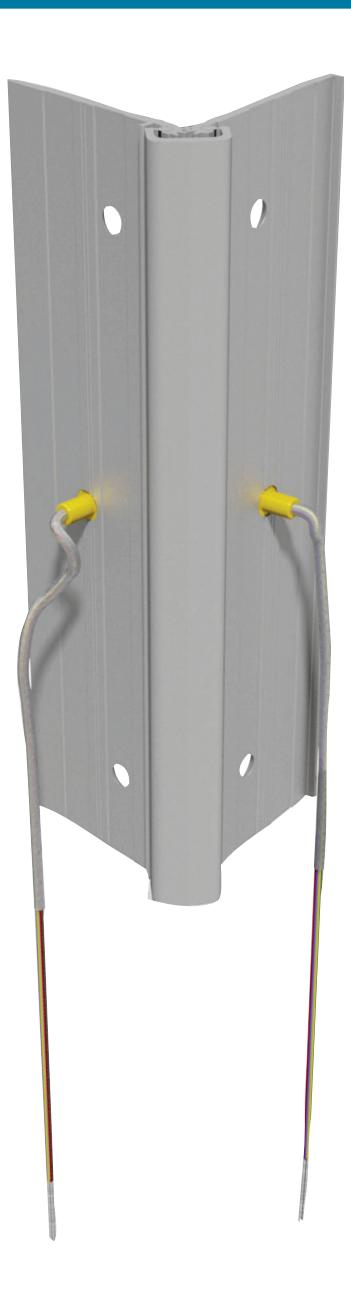

Page Aluminum Concealed CH2 - CH7 Electric Thru Wire CH13 EPT Prep CH14 Full Surface CH8 - CH9 Half Surface CH10 - CH12 Swing Clear CH7, CH9, CH12 Anti-ligature Hospital Tip CH14A Stainless Steel Concealed CH15 Electric Thru Wire, Electric Power Transfer Prep CH22 Full Surface CH19 Full Wrap Edge Guard, Concealed CH16 Half Mortise CH20 Half Mortise with Half Wrap Edge Guard CH21 Half Wrap Edge Guard, Concealed CH17 Swing Clear with Half Wrap Edge Guard CH18

continuous GEARED HingeS

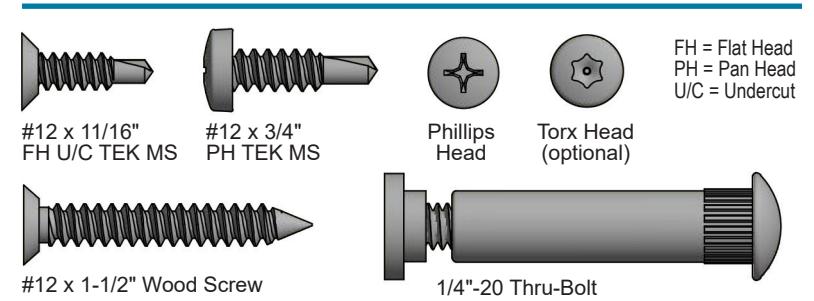

Numerical Index: Fasteners:

ALHT CH14A EPT PREP . CH14, CH22 ETW8 CH13, CH22 ETW8-Molex . CH13 HD1100 . CH2	HD2400 . CH5 HD2700 . CH6 HD4100 . CH7 HD4200 . CH12 HD5300 . CH10	SS302 . CH19 SS304 . CH20 SS305 . CH16 SS306 . CH21 SS311 . CH18
HD1400 . CH4 HD1800 . CH3 HD2100 . CH9	HD5400 . CH11 HD5700 . CH8 SS300 . CH15	SS315 . CH17 TIPIT® LG . CH14A

Rating Symbols Legend

POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C; complies with IBC,

NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to to 90 minutes. See individual products for maximum door size.

ANSI/BHMA CERTIFIED. Certified hinges comply with American National Standard for Continuous Hinges ANSI/BHMA A156.26 and are listed in the BHMA Certified Products Directory.

ANSI/BHMA

The following explains ANSI/BHMA numbers which identify material and type of products. Look for the BHMA certified logo next to the product in our catalog. For a complete listing refer to the BHMA Certified Products Directory online at www.buildershardware.com

ANSI/BHMA A156.26 American National Standard for Continuous Hinges

1 Product Section	2 Material	3 Product Type	4 Electrical Modifications	5 Door Weight (lbs.)	6 Grade	7 Hinge Type
"A" designates Hinges	1. Brass Bronze 3. Aluminum 5. Stainless Steel 8. Steel	1. Edge Mounted 2. Half Edge Mounted 3. Full Surface 4. Half Surface 5. Swing Clear 6. Raised Barrel 7. Wide Throw 0. Other	0. None 1. Concealed Wire Transfer 2. Monitor 3. Power Transfer 4. Other	1. 150 2. 300 3. 600 4. 1200	1. Grade 1 2. Grade 2 3. Grade 3	B. Barrel G. Geared

LEED Green Building

The LEED (Leadership in Energy and Environmental Design) Green Building Rating System® is a national standard for developing high-performance, sustainable buildings developed by the U. S. Green Building Council. Our current LEED letter containing LEED qualification information for all our products is available at www.ngp.com

Environmental Product Declarations (EPD) prepared and certified by an Independent Laboratory based on Life Cycle Assessments (LCA) of our products and Health Product Declarations (HPD) may be viewed on our website, www.ngp.com

National Guard Products sustainability report may be viewed on our website, www.ngp.com

Buy American Requirements

Over 99% of our products are produced in the United States as a domestic construction material, as defined in the Buy American Act (BAA) of March 1933 and amended by the Buy American Act of 1988 and FAR 52.225-9. A Buy American certificate may be obtained on our website, www.ngp.com

HD1100 HD1100-LL

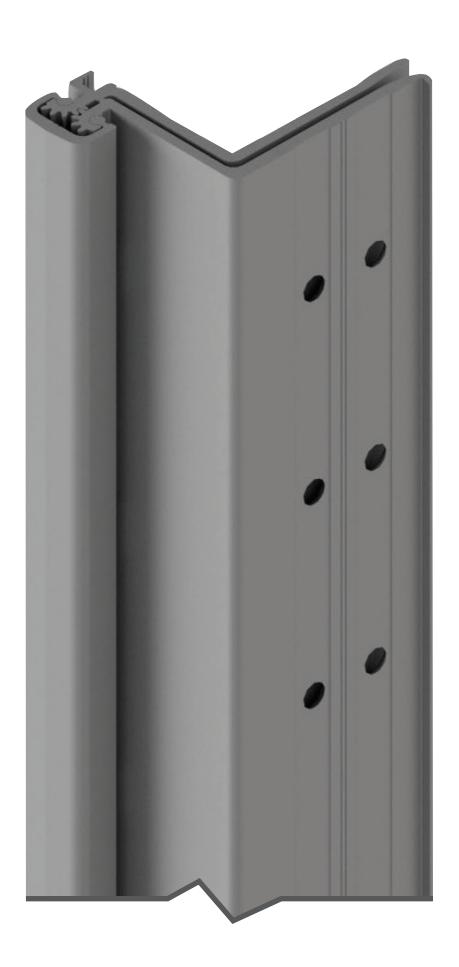

Concealed Continuous Geared Hinge No Door Inset, Flush Mount for 1-3/4" Doors

Continuous geared aluminum hinges run the full height of the door evenly distributing the weight of the door along the full height of the frame. Ideal for high frequency and heavy weight doors in new construction and retrofit applications.

Aluminum alloy 6063-T6; Anodized after machining
Specially designed involute intermeshing gears
Wear surfaces are lifetime anti-friction lubricated with a naturally hydrophobic graphite that doesn't attract dust or dirt
Proprietary teflon infused self-lubricating wear resistant bearings
No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
Lifetime of the door opening warranty
#12-24 TEK MS
"LL" model for doors up to 1,000 lbs. features lead-lined dual row hole pattern
Standard lengths: 83", 85", 95", 119"

Available Options:

#12 x 1-1/2" wood screws
Torx security TEK screws
1/2 Torx security wood screws
Cut to net length

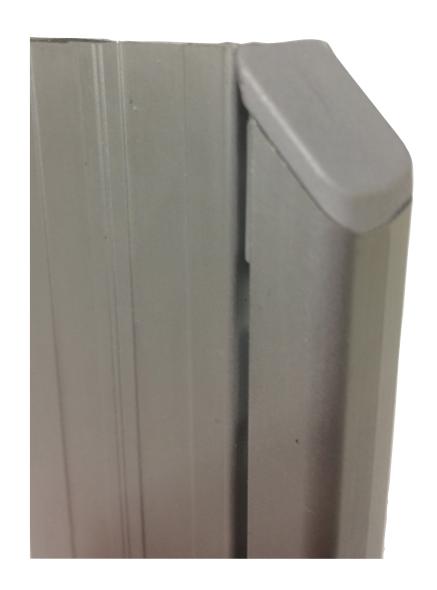

Anti-ligature hospital tip specify "ALHT"
Dutch door prep specify door handing, top door leaf length, and clearance between leafs

Finishes:

A - anodized aluminum DKB - dark bronze anodized

10C Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 8'0" and steel stiffened doors up to 4'0" x 7'2".

ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges:

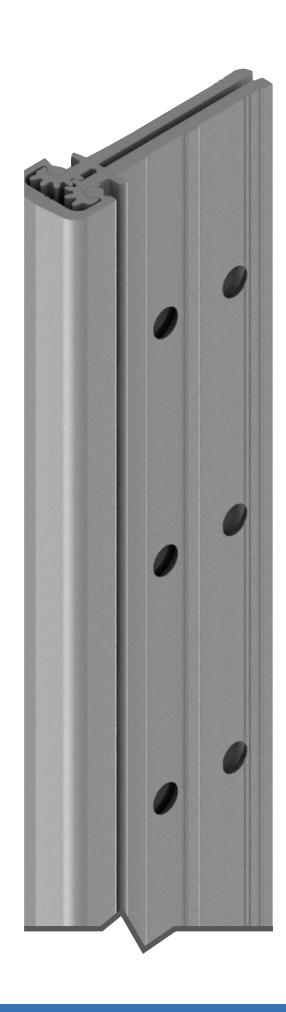

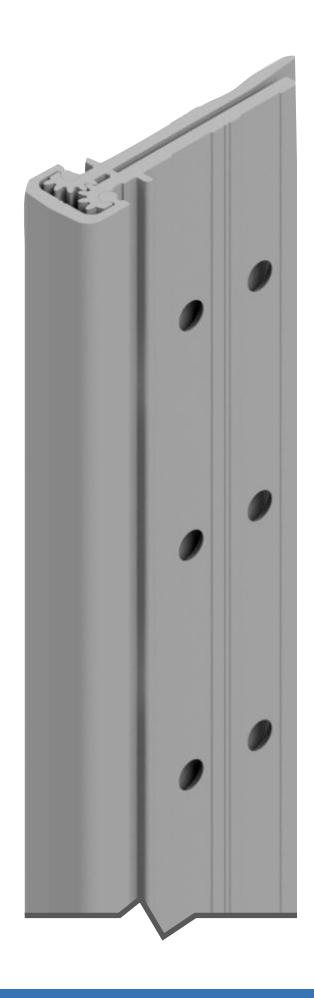

HD1800 HD1800-LL

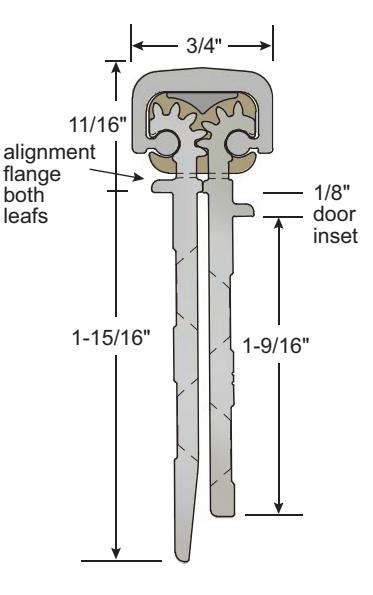

Concealed Continuous Geared Hinge 1/8" Door Inset, for 1-3/4" Doors

Aluminum alloy 6063-T6; Anodized after machining
Specially designed involute intermeshing gears
Wear surfaces are lifetime anti-friction lubricated with a naturally hydrophobic graphite that doesn't attract dust or dirt
Proprietary teflon infused self-lubricating wear resistant bearings
No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
Lifetime of the door opening warranty
#12-24 TEK MS
"LL" model for doors up to 1,000 lbs. features lead-lined dual row hole pattern
Standard lengths: 83", 85", 95", 119"

Available Options:

#12 x 1-1/2" wood screws
Torx security TEK screws
1/2 Torx security wood screws
Cut to net length specify door handing
Anti-ligature hospital tip specify "ALHT" and door handing
Dutch door prep specify door handing, top door leaf length, and clearance between leafs

Finishes:

A - anodized aluminum DKB - dark bronze anodized

10C Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 8'0" and steel stiffened doors up to 4'0" x 7'2".

ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges:

Frame leaf covers butt hinge preps

Phone: 800-647-7874 Fax: 800-255-7874

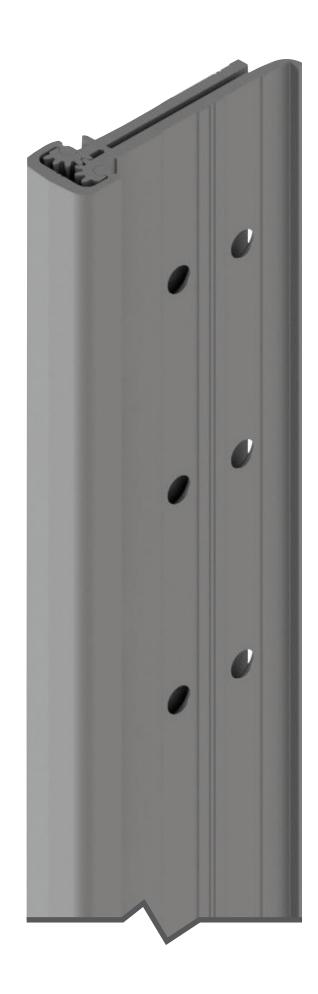

HD1400 HD1400-LL

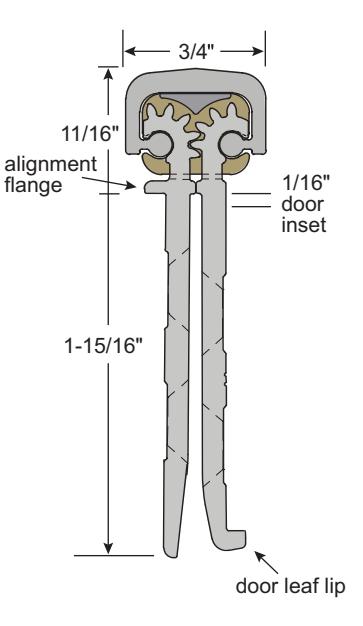

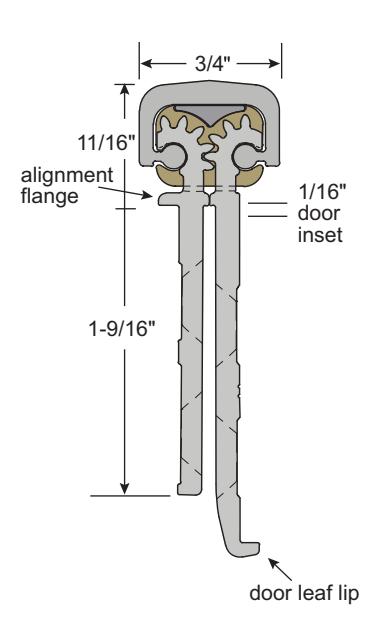

Concealed Continuous Geared Hinge 1/16" Door Inset, for 1-3/4" Doors

Aluminum alloy 6063-T6; Anodized after machining
· Specially designed involute intermeshing gears
Wear surfaces are lifetime anti-friction lubricated with a naturally hydrophobic graphite that doesn't attract dust or dirt
· Proprietary teflon infused self-lubricating wear resistant bearings
No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
· Lifetime of the door opening warranty
#12-24 TEK MS
"LL" model for doors up to 1,000 lbs. features lead-lined dual row hole pattern
Standard lengths: 83", 85", 95", 119"

Available Options:

#12 x 1-1/2" wood screws
· Torx security TEK screws
1/2 Torx security wood screws
· Cut to net length specify door handing
· Anti-ligature hospital tip specify "ALHT" and door handing
Dutch door prep specify door handing, top door leaf length, and clearance between leafs

Finishes:

A - anodized aluminum DKB - dark bronze anodized

Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 8'0" and steel stiffened doors up to 4'0" x 7'2".

ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges:

Narrow frame leaf allows NGP 2525 bulb seal

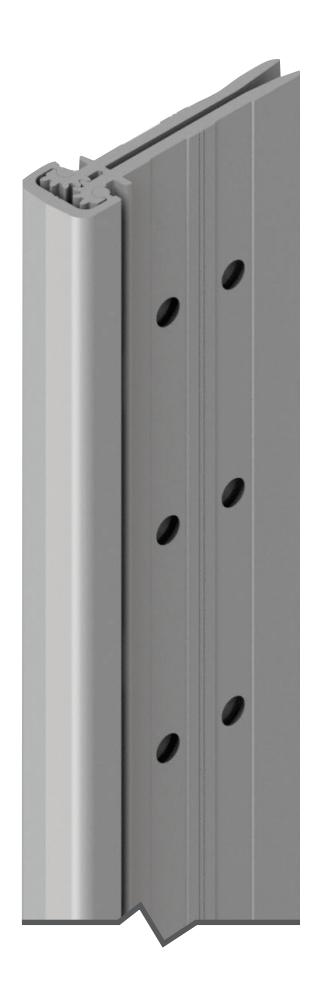

HD2400 HD2400-LL

Concealed Continuous Geared Hinge 1/16" Door Inset, for 1-3/4" Doors

· Aluminum alloy 6063-T6; Anodized after machining
· Specially designed involute intermeshing gears
· Wear surfaces are lifetime anti-friction lubricated with a naturally hydrophobic graphite that doesn't attract dust or dirt
Proprietary teflon infused self-lubricating wear resistant bearings
· No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
Lifetime of the door opening warranty
#12-24 TEK MS
"LL" model for doors up to 1,000 lbs. features lead-lined dual row hole pattern
Standard lengths: 83", 85", 95", 119"

Available Options:

#12 x 1-1/2" wood screws
· Torx security TEK screws
1/2 Torx security wood screws
· Cut to net length specify door handing
Anti-ligature hospital tip specify "ALHT" and door handing
Dutch door prep specify door handing, top door leaf length, and clearance between leafs.

Finishes:

A - anodized aluminum DKB - dark bronze anodized

Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 8'0" and steel stiffened doors up to 4'0" x 7'2".

ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges:

Frame leaf covers butt hinge preps

HD2700 HD2700-LL

Concealed Continuous Geared Hinge No Door Inset, Flush Mount for 2" to 2-1/4" Doors

Aluminum alloy 6063-T6; Anodized after machining
Specially designed involute intermeshing gears
Wear surfaces are lifetime anti-friction lubricated with a naturally hydrophobic graphite that doesn't attract dust or dirt
Proprietary teflon infused self-lubricating wear resistant bearings
No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
Lifetime of the door opening warranty
#12-24 TEK MS
"LL" model for doors up to 1,000 lbs. features lead-lined dual row hole pattern
Standard lengths: 83", 85", 95", 119"

Available Options:

#12 x 1-1/2" wood screws
Torx security TEK screws
1/2 Torx security wood screws
Cut to net length
Anti-ligature hospital tip specify "ALHT"
Dutch door prep specify door handing, top door leaf length, and clearance between leafs

Finishes:

A - anodized aluminum DKB - dark bronze anodized

10C Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 8'0" and steel stiffened doors up to 4'0" x 7'2".

ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges:

Frame leaf covers butt hinge preps

HD4100 HD4100-LL

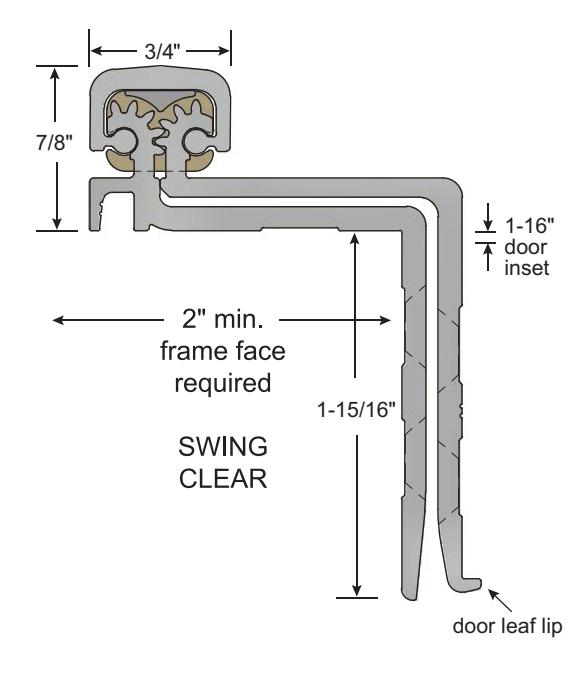

Concealed Swing-Clear Continuous Geared Hinge 1/16" Door Inset for 1-3/4" Doors

Aluminum alloy 6063-T6; Anodized after machining
Specially designed involute intermeshing gears
Wear surfaces are lifetime anti-friction lubricated with a naturally hydrophobic graphite that doesn't attract dust or dirt
Proprietary teflon infused self-lubricating wear resistant bearings
No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
Lifetime of the door opening warranty
#12-24 TEK MS
"LL" model for doors up to 1,000 lbs. features lead-lined dual row hole pattern
Standard lengths: 83", 85", 95", 119"

Available Options:

#12 x 1-1/2" wood screws
Torx security TEK screws
1/2 Torx security wood screws
Cut to net length specify door handing

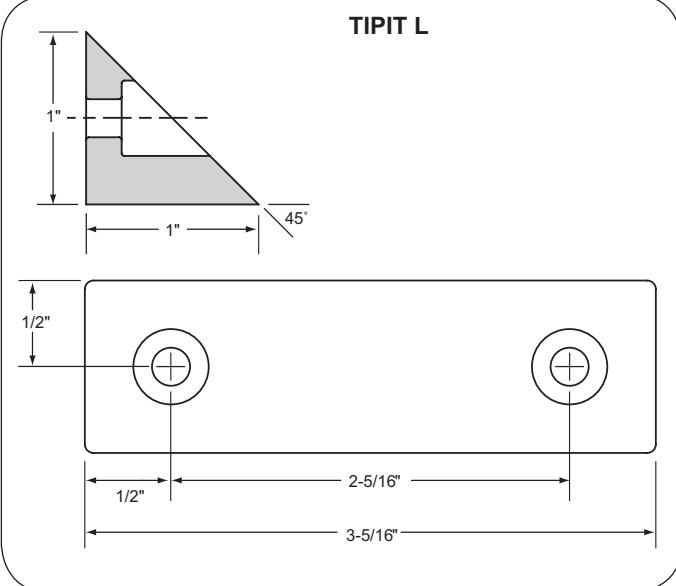

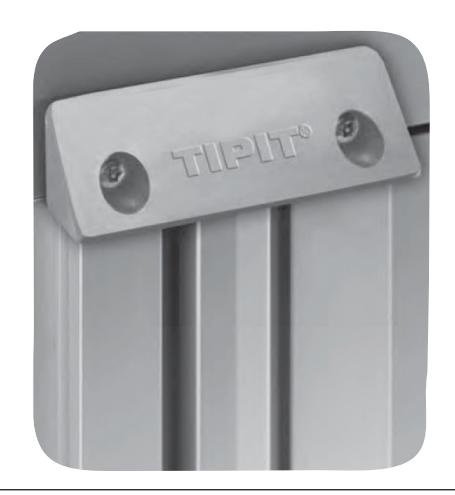

Anti-ligature hospital tip specify "TIPIT-LG"
Dutch door prep specify door handing, top door leaf length, and clearance between leafs

Finishes:

A - anodized aluminum DKB - dark bronze anodized

10C Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 8'0" and steel stiffened doors up to 4'0" x 7'2".

ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges:

Frame leaf covers butt hinge preps

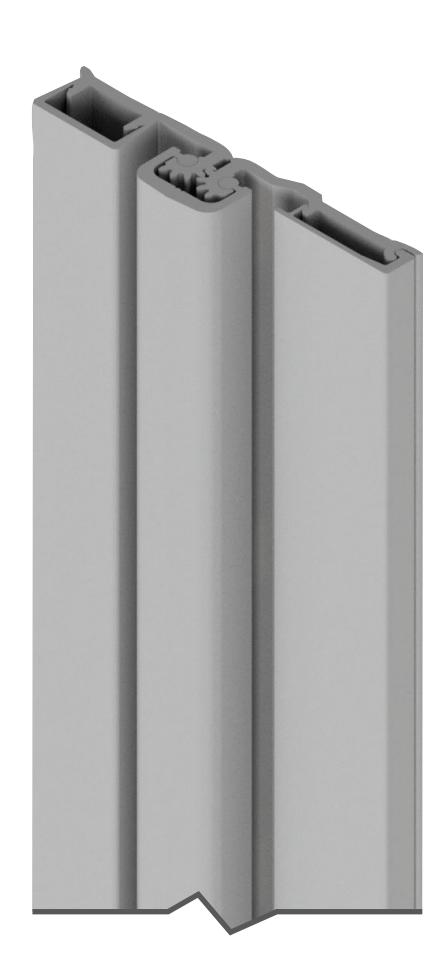

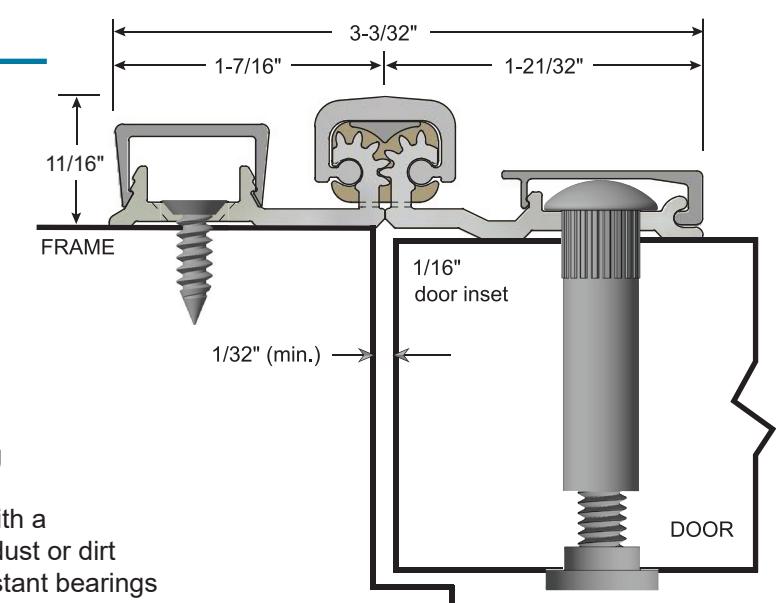

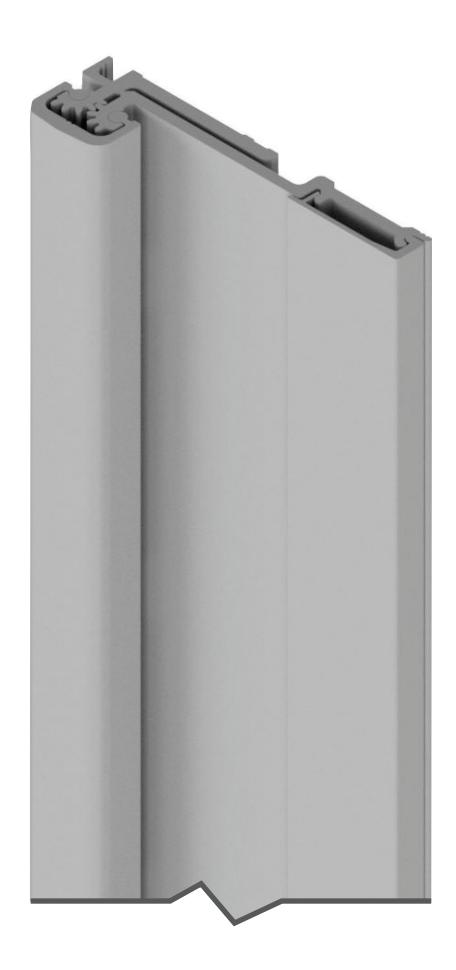

Full Surface Continuous Geared Hinge 1/16" Door Inset for 1-3/4" to 2-1/4" Doors

Aluminum alloy 6063-T6; Anodized after machining
Specially designed involute intermeshing gears
Wear surfaces are lifetime anti-friction lubricated with a naturally hydrophobic graphite that doesn't attract dust or dirt
Proprietary teflon infused self-lubricating wear resistant bearings
No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
Lifetime of the door opening warranty
Frame leaf: #12-24 TEK flat head MS
Door leaf: #12-24 TEK pan head MS and 1/4"-20 thru-bolts
Standard lengths: 83", 85", 95", 119"

Available Options:

#12 x 1-1/2" wood screws
Torx security TEK & T.B. M.S.
1/2 Torx security wood screws
Cut to net length specify door handing
Anti-ligature hospital tip specify "TIPIT-LG"
Dutch door prep specify door handing, top door leaf length, and clearance between leafs

Finishes:

A - anodized aluminum DKB - dark bronze anodized

10C Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 7'2".

ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges:

Grade 1 - 150 lb. door Grade 1 - 600 lb. door

Concealed fastener covers on both leafs

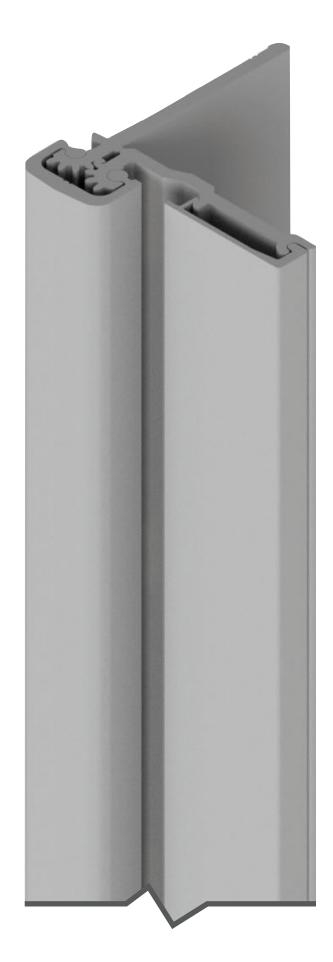

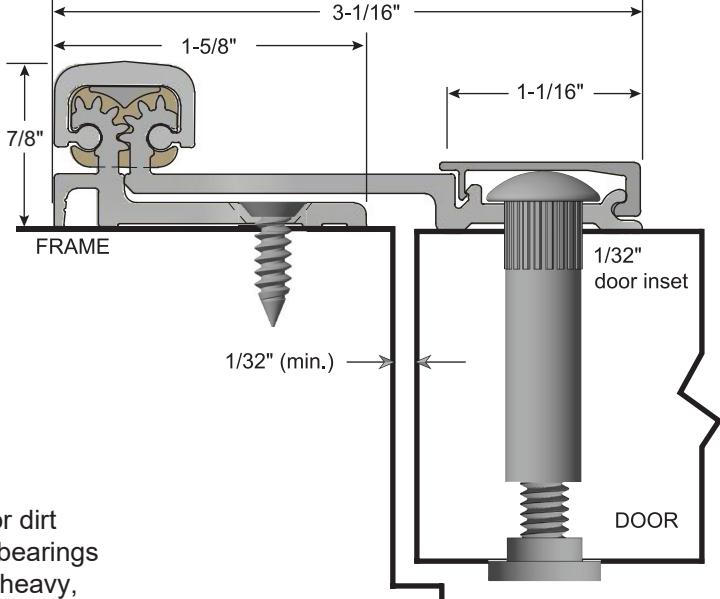

Full Surface Swing Clear Continuous Geared Hinge 1/32" Door Inset for 1-3/4" to 2-1/4" Doors

Aluminum alloy 6063-T6; Anodized after machining
Specially designed involute intermeshing gears
Wear surfaces are lifetime anti-friction lubricated with a naturally hydrophobic graphite that doesn't attract dust or dirt
Proprietary teflon infused self-lubricating wear resistant bearings
No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
Lifetime of the door opening warranty
Frame leaf: #12-24 TEK flat head MS
Door leaf: #12-24 TEK pan head MS and 1/4"-20 thru-bolts
Standard lengths: 83", 85", 95", 119"

Available Options:

#12 x 1-1/2" wood screws
Torx security TEK & T.B. M.S.
1/2 Torx security wood screws
Cut to net length specify door handing
Anti-ligature hospital tip specify "TIPIT-LG"
Dutch door prep specify door handing, top door leaf length, and clearance between leafs

Finishes:

A - anodized aluminum DKB - dark bronze anodized

10C Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 7'2".

ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges:

Concealed fastener cover on door leaf

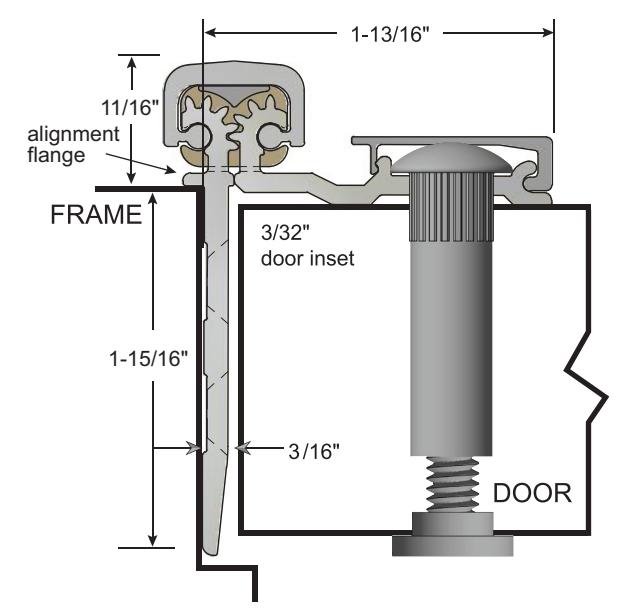

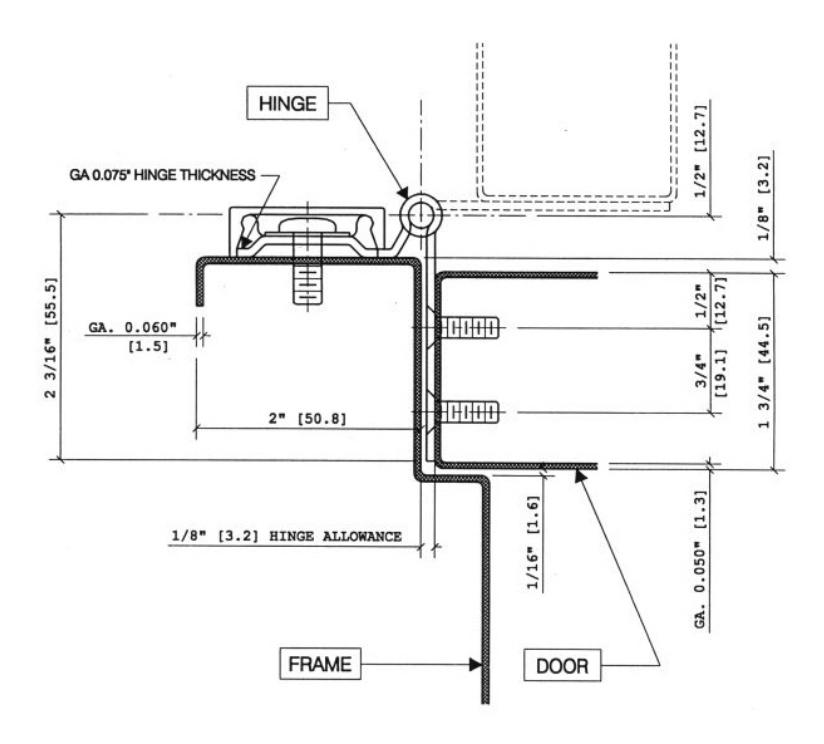

Half Surface Continuous Geared Hinge 3/32" Door Inset for 1-3/4" to 2-1/4" Doors

Aluminum alloy 6063-T6; Anodized after machining
Specially designed involute intermeshing gears
Wear surfaces are lifetime anti-friction lubricated with a naturally hydrophobic graphite that doesn't attract dust or dirt
Proprietary teflon infused self-lubricating wear resistant bearings
No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
Lifetime of the door opening warranty
Frame leaf: #12-24 TEK flat head MS
Door leaf: #12-24 TEK pan head MS and 1/4"-20 thru-bolts
Standard lengths: 83", 85", 95", 119"

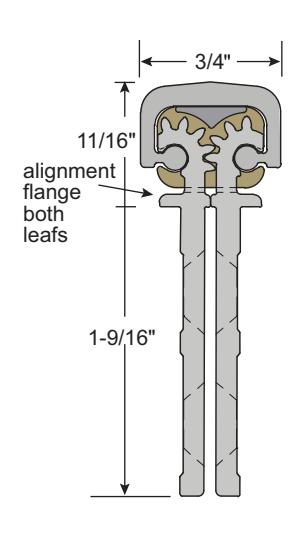

1-9/16"

alignment flange

11/16"

Narrow frame leaf allows NGP 2525 bulb seal Concealed fastener cover on door leaf

Available Options:

#12 x 1-1/2" wood screws
Torx security TEK & T.B. M.S.
1/2 Torx security wood screws
Cut to net length specify door handing
Anti-ligature hospital tip specify "TIPIT-LG"
Dutch door prep specify door handing, top door leaf length, and clearance between leafs

Finishes:

A - anodized aluminum DKB - dark bronze anodized

10C Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 7'2".

ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges:

Half Surface Continuous Geared Hinge 3/32" Door Inset for 1-3/4" to 2-1/4" Doors

Aluminum alloy 6063-T6; Anodized after machining
Specially designed involute intermeshing gears
Wear surfaces are lifetime anti-friction lubricated with a naturally hydrophobic graphite that doesn't attract dust or dirt
Proprietary teflon infused self-lubricating wear resistant bearings
No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
Lifetime of the door opening warranty
Frame leaf: #12-24 TEK flat head MS
Door leaf: #12-24 TEK pan head MS and 1/4"-20 thru-bolts
Standard lengths: 83", 85", 95", 119"

Available Options:

#12 x 1-1/2" wood screws
Torx security TEK & T.B. M.S.
1/2 Torx security wood screws
Cut to net length specify door handing
Anti-ligature hospital tip specify "TIPIT-LG"
Dutch door prep specify door handing, top door leaf length, and clearance between leafs

Finishes:

A - anodized aluminum DKB - dark bronze anodized

10C Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 7'2".

ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges:

Frame leaf covers butt hinge preps Concealed fastener cover on door leaf

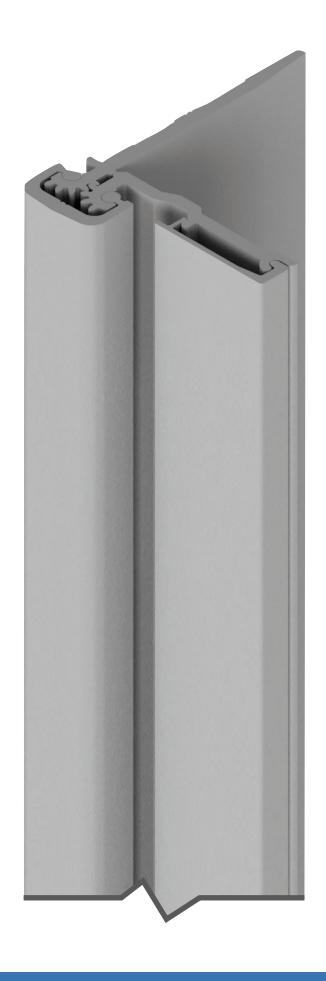

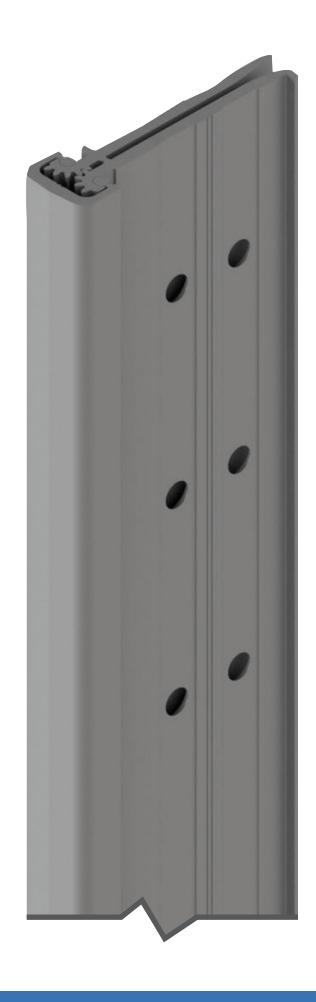

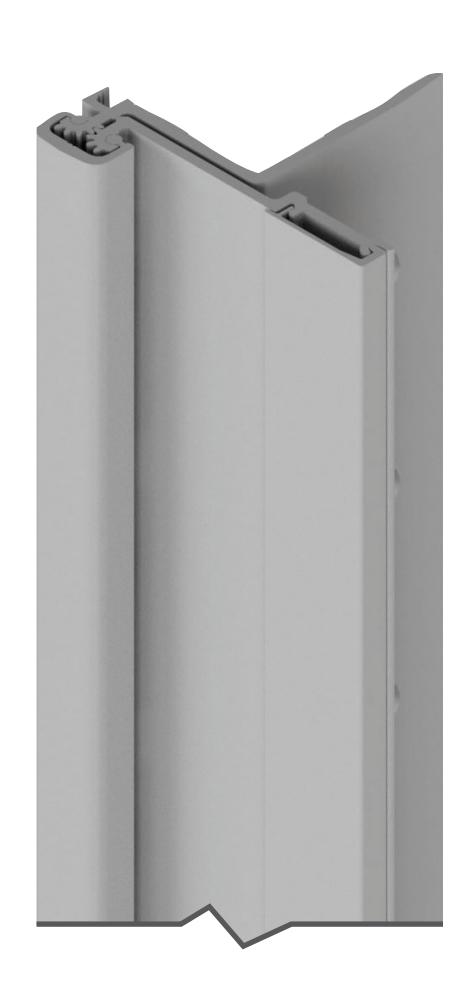

Half Surface Swing Clear Continuous Geared Hinge 1/32" Door Inset for 1-3/4" to 2-1/4" Doors

Aluminum alloy 6063-T6; Anodized after machining

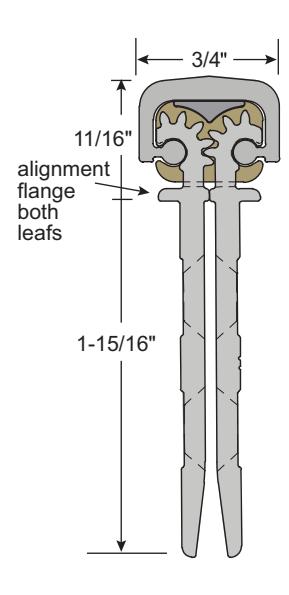

Specially designed involute intermeshing gears
extremely high frequency or extra wide doors

• Wear surfaces are lifetime anti-friction lubricated with a naturally hydrophobic graphite that doesn't attract dust or dirt • Proprietary teflon infused self-lubricating wear resistant bearings • No hinge reinforcement necessary except on extremely heavy, • Lifetime of the door opening warranty • Frame leaf: #12-24 TEK flat head MS • Door leaf: #12-24 TEK pan head MS and 1/4"-20 thru-bolts • Standard lengths: 83", 85", 95", 119" Frame leaf covers butt hinge preps Concealed fastener cover on door leaf 1-15/16"

7/8"

Available Options:

#12 x 1-1/2" wood screws
Torx security TEK & T.B. M.S.
1/2 Torx security wood screws
Cut to net length specify door handing
Anti-ligature hospital tip specify "TIPIT-LG"
Dutch door prep specify door handing, top door leaf length, and clearance between leafs

Finishes:

A - anodized aluminum DKB - dark bronze anodized

10C Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 7'2".

ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges:

ETW8

Electric Thru Wire

Transfers electric power through the hinge to power certain types of electronic builders hardware.

Removable Electric Hinge Section

8 wires, 28 AWG
Each wire is rated 50V AC/DC at 3.5A (max.) continuous, or 16A (max.) pulse; maximum pulse width is 400 msec with 10 second minimum off time between pulses
12" minimum wire leads
5 year warranty

ETW8 - Molex

Electric Thru Wire with Molex Connectors

• Same features as above with molex connectors installed on wires both sides

Available on Models

HD1100

HD2400 (Handed)

HD2700

Standard Locations

Hinge	Top of Hinge
Length	to Centerline
83"	40-1/2"
85"	42-1/2"
95"	52-1/2"
119"	76-1/2"

All sizes located 42-1/2"

centerline from bottom of hinge.

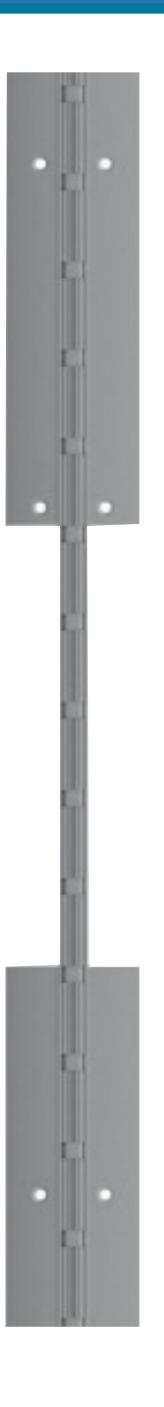

EPT PREP

Electric Power Transfer Prep

Allows use of electric power transfer units required to power certain types of electronic builders hardware.

Prep available for the following electric power transfer units
- Von Duprin EPT-2, EPT-10, EPT-10C, PNT-1
- Adams Rite 4612 (short version only)
- Securitron EPT, EPT-SC, EL-EPT, EL-EPT-SC
- Dorma ES105

Available on all concealed and half surface type hinges

Non-Handed Models:

HD1100 HD2700

Handed Models - Specify Door Hand

HD1400 HD1800 HD2400 HD4100

HD4200 HD5300 HD5400

Standard Locations:

Hinge	Top of Hinge
Length	to Centerline of Prep
83"	28-7/16"
85"	30-7/16"
95"	40-1/2"
119"	64-3/8"

TIPIT® LG

Anti-ligature Hospital Tip

For use in Hospitals, Correctional Facilities, Schools and other Institutions

Make rooms safer and meet legal requirements by retrofitting doors with the patented TIPIT® hospital tip. The tip deters patients or inmates from harming themselves by hanging objects from the hinge.

Prevents objects from being attached to top of hinge (ligature-resistant)
Made from durable, high-tech polymer
Securely fastens to door frame header
Works for retrofit or new applications
Fits most other brands of geared continuous hinges
Includes #10 Torx® SST security screws
Color: Gray

TIPIT hospital tip works with our geared continuous hinges to meet institutional requirements for preventing objects from being hung from the hinge.

Order the TIPIT hospital tip with any new geared continuous hinge, or add this safety feature to most other brands of full surface, half surface, concealed or swing clear geared continuous hinges (new or retrofit applications).

ALHT

Anti-ligature Hospital Tip

For use in Hospitals, Behavioral Health, Prisons and anywhere anti-ligature protection is required.

Available on concealed model hinges only.

Phone: 800-647-7874 | www.ngp.com

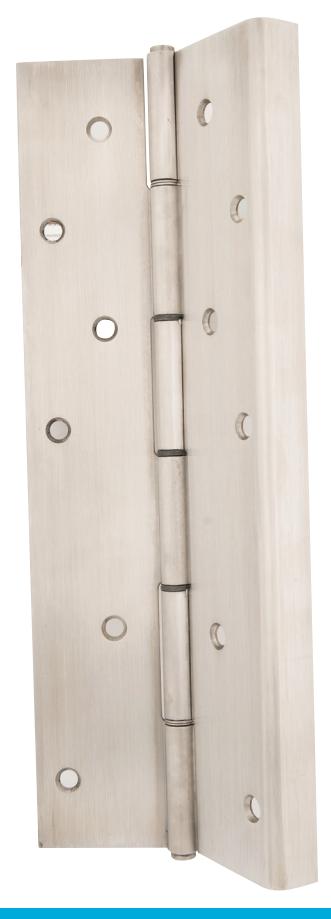

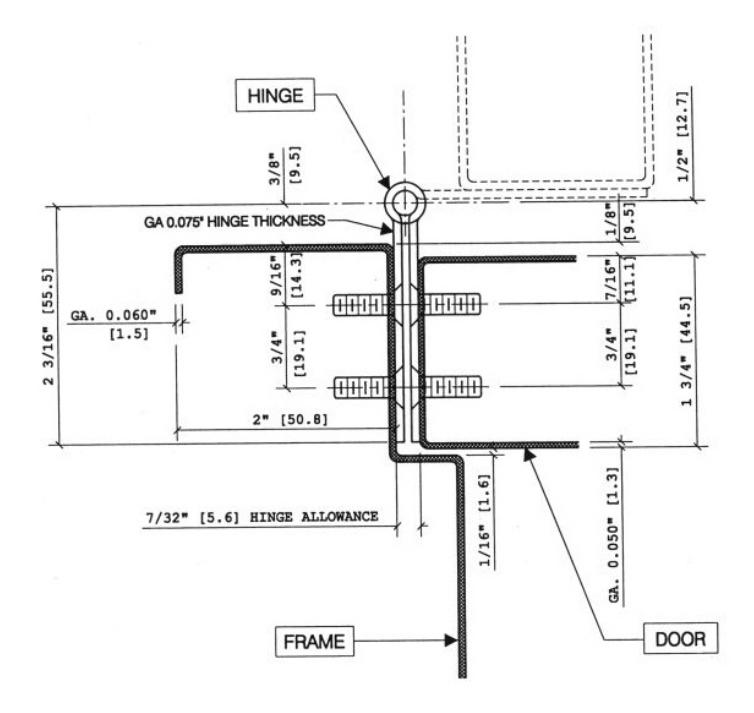

Stainless Steel Continuous Hinge Concealed, up to 1/8" Inset, for 1-3/4" Doors

Stainless steel continuous hinges run the full height of the door evenly distributing the weight of the door along the full height of the frame. Ideal for high frequency and heavy weight doors in new construction and retrofit applications.

Heavy duty 14 gauge type 304 stainless steel
Pin and barrel design
Stainless steel hinge pins
Medical type self-lubricating flanged bearings between each 2" knuckle provide dust-free quiet and smooth operation
For doors weighing up to 600 lbs.
25 year warranty
#10 x 1/2" TEK screws for metal doors and frames
#10 x 1" wood screws for wood doors
US32D (630) brushed finish
Standard lengths: 83", 85", 95", 119"

Available Options:

Torx security TEK Screws
Cut to net length
Anti-ligature welded hospital tip specify "ALHT"
Dutch door prep specify door handing, bottom door leaf length, and clearance between leafs
Electric thru wire ETW8 see page CH22
Electric power transfer prep see page CH22
US32 (629) polished finish
Welded tips for non-rising pins

10C Fire-rated 3 hours on hollow metal doors and 90 minute on wood doors. Maximum size 4'0" x 10'0".

ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges:

Stainless Steel Continuous Hinge Full Wrap Edge Guard, Concealed for 1-3/4" Doors

Heavy duty 14 gauge type 304 stainless steel
Pin and barrel design
Stainless steel hinge pins
Medical type self-lubricating flanged bearings between each 2" knuckle provide dust-free quiet and smooth operation
For doors weighing up to 600 lbs.
25 year warranty
#10 x 1/2" TEK screws for metal doors and frames
#10 x 1" wood screws for wood doors
US32D (630) brushed finish
Standard lengths: 83", 85", 95", 119"

Available Options:

Torx security TEK Screws
Cut to net length specify door handing
Anti-ligature welded hospital tip specify "ALHT"
Dutch door prep specify door handing, bottom door leaf length, and clearance between leafs
Electric thru wire ETW8 see page CH22
Electric power transfer prep see page CH22
US32 (629) polished finish
Welded tips for non-rising pins

Fire-rated 3 hours on hollow metal doors and 90 minute on wood doors. Maximum size 4'0" x 10'0".

ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges:

Stainless Steel Continuous Hinge Half Wrap Edge Guard, Concealed for 1-3/4" Doors

Heavy duty 14 gauge type 304 stainless steel
Pin and barrel design
Stainless steel hinge pins
Medical type self-lubricating flanged bearings between each 2" knuckle provide dust-free quiet and smooth operation
For doors weighing up to 600 lbs.
25 year warranty
#10 x 1/2" TEK screws for metal doors and frames
#10 x 1" wood screws for wood doors
US32D (630) brushed finish
Standard lengths: 83", 85", 95", 119"

Available Options:

Torx security TEK Screws
Cut to net length specify door handing
Anti-ligature welded hospital tip specify "ALHT"
Dutch door prep specify door handing, bottom door leaf length, and clearance between leafs
Electric thru wire ETW8 see page CH22
Electric power transfer prep see page CH22
US32 (629) polished finish
Welded tips for non-rising pins

10C Fire-rated 3 hours on hollow metal doors and 90 minute on wood doors. Maximum size 4'0" x 10'0".

ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges:

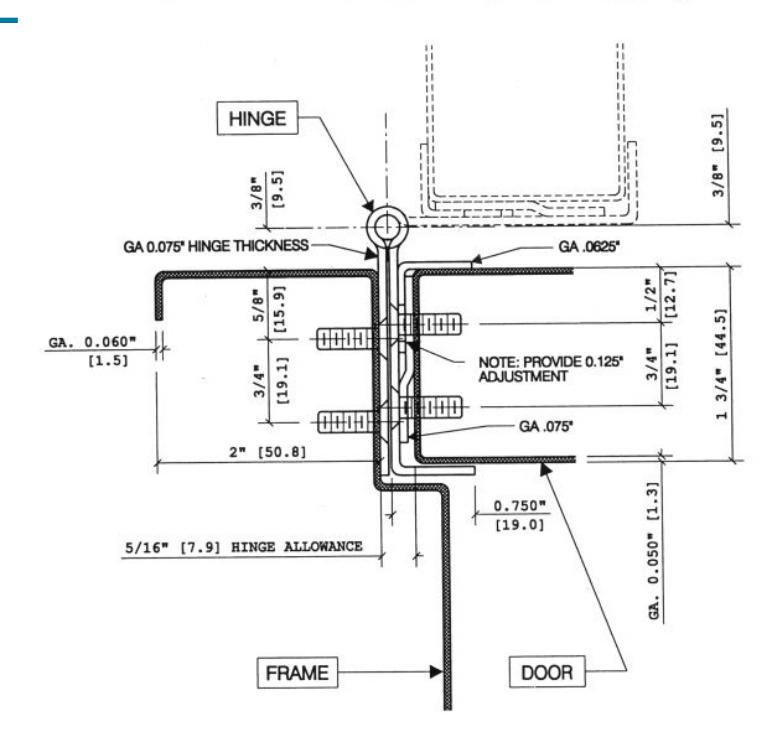

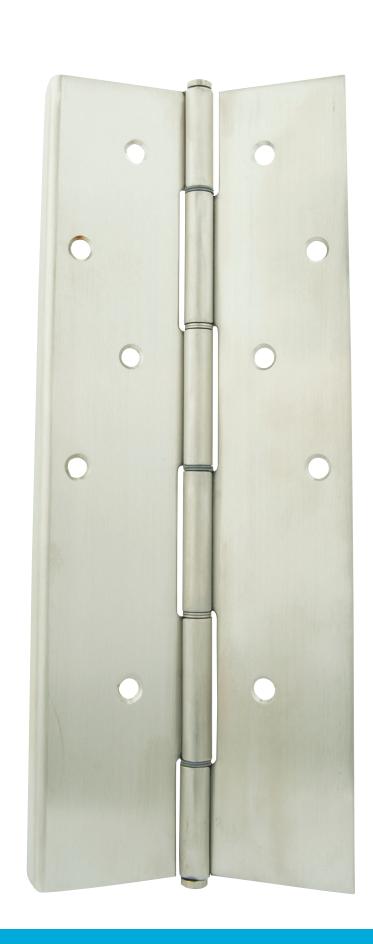

Stainless Steel Continuous Hinge Swing Clear with Half Wrap Edge Guard, for 1-3/4" Doors

Heavy duty 14 gauge type 304 stainless steel
Pin and barrel design
Stainless steel hinge pins
Medical type self-lubricating flanged bearings between each 2" knuckle provide dust-free quiet and smooth operation
For doors weighing up to 600 lbs.
25 year warranty
#10 x 1/2" TEK screws for metal doors and frames
#10 x 1" wood screws for wood doors
US32D (630) brushed finish
Standard lengths: 83", 85", 95", 119"

Available Options:

Torx security TEK Screws
Cut to net length specify door handing
Anti-ligature welded hospital tip specify "ALHT"
Dutch door prep specify door handing, bottom door leaf length, and clearance between leafs
US32 (629) polished finish
Welded tips for non-rising pins

Fire-rated 3 hours on hollow metal doors and 90 minute on wood doors. Maximum size 4'0" x 10'0".

ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges:

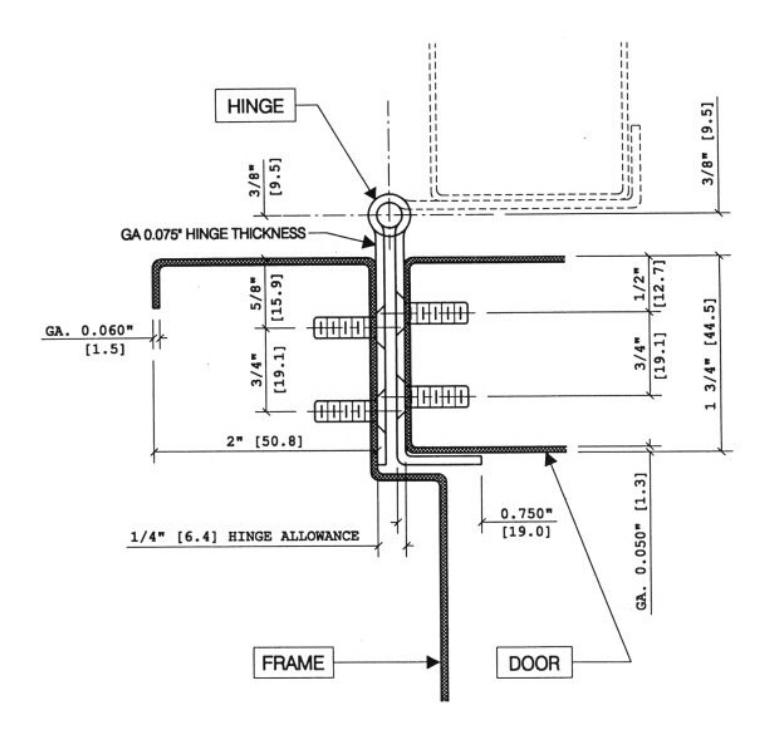

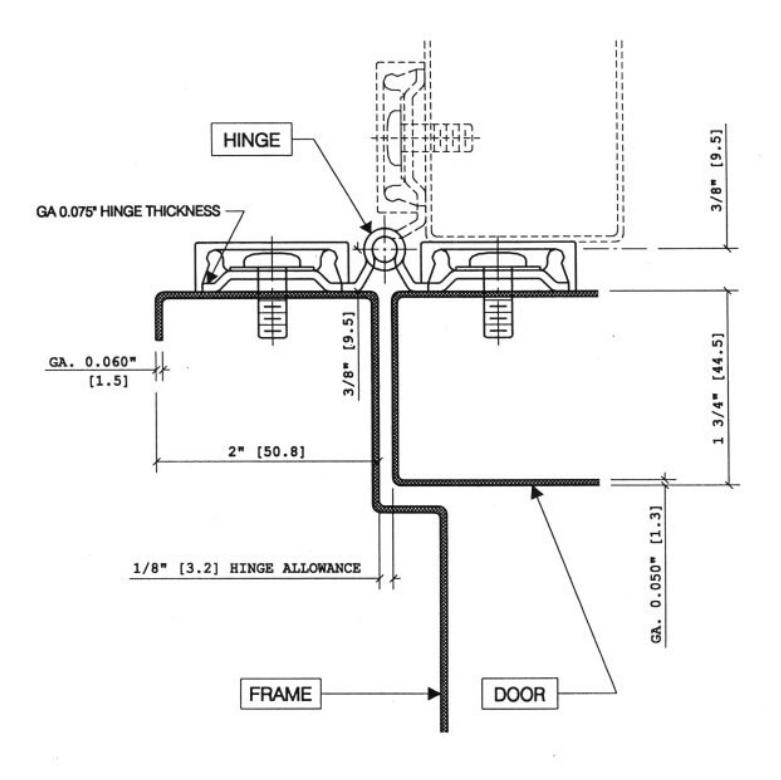

Stainless Steel Continuous Hinge Full Surface

Heavy duty 14 gauge type 304 stainless steel
Pin and barrel design
Stainless steel hinge pins
Medical type self-lubricating flanged bearings between each 2" knuckle provide dust-free quiet and smooth operation
For doors weighing up to 600 lbs.
25 year warranty
#1/4-20 x 3/4" TEK screws for metal doors and frames
US32D (630) brushed finish
Standard lengths: 83", 85", 95", 119"

Available Options:

Torx security TEK Screws
Cut to net length specify door handing
Anti-ligature welded hospital tip specify "ALHT"
Dutch door prep specify door handing, bottom door leaf length, and clearance between leafs
US32 (629) polished finish
Welded tips for non-rising pins

10C Fire-rated 3 hours on hollow metal doors and 90 minute on wood doors. Maximum size 4'0" x 10'0".

ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges:

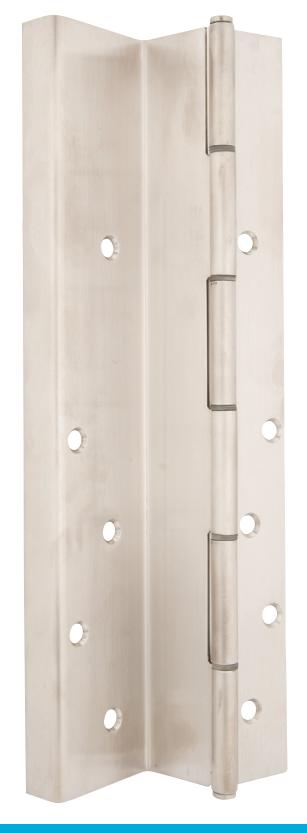

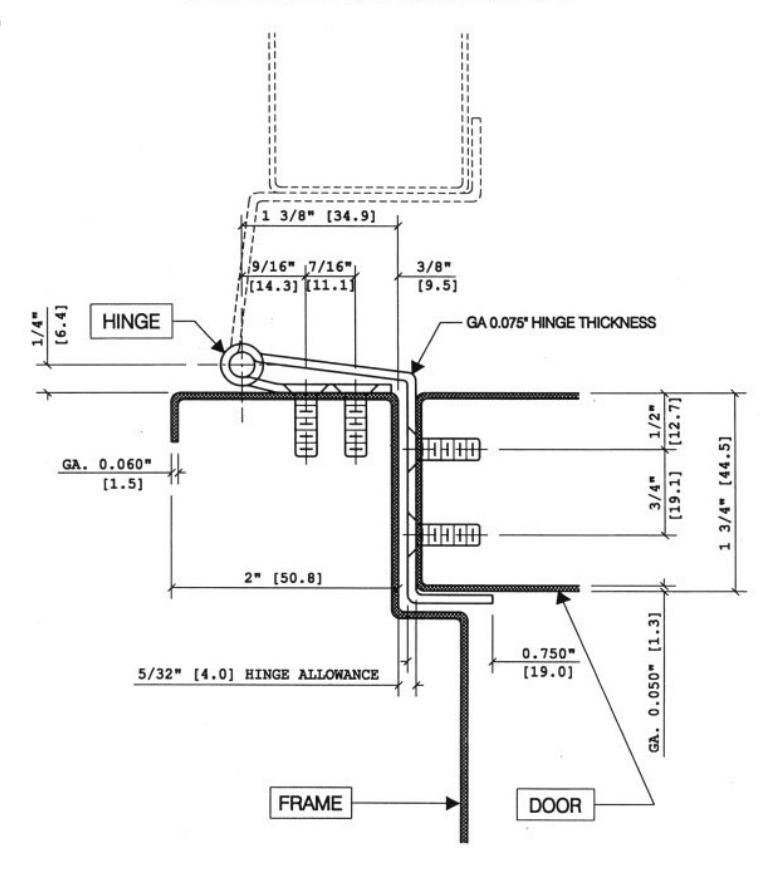

Stainless Steel Continuous Hinge Half Mortise, for 1-3/4" Doors

Heavy duty 14 gauge type 304 stainless steel
Pin and barrel design
Stainless steel hinge pins
Medical type self-lubricating flanged bearings between each 2" knuckle provide dust-free quiet and smooth operation
For doors weighing up to 600 lbs.
25 year warranty
#1/4-20 x 3/4" TEK screws for metal frames
#10 x 1/2" TEK screws for metal doors
#10 x 1" wood screws for wood doors
US32D (630) brushed finish
Standard lengths: 83", 85", 95", 119"

Available Options:

Torx security TEK Screws
Cut to net length specify door handing
Anti-ligature welded hospital tip specify "ALHT"
Dutch door prep specify door handing, bottom door leaf length, and clearance between leafs
Electric power transfer prep see page CH22
US32 (629) polished finish
Welded tips for non-rising pins

10C Fire-rated 3 hours on hollow metal doors and 90 minute on wood doors. Maximum size 4'0" x 10'0".

ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges: Grade 1 - 150 lb. door

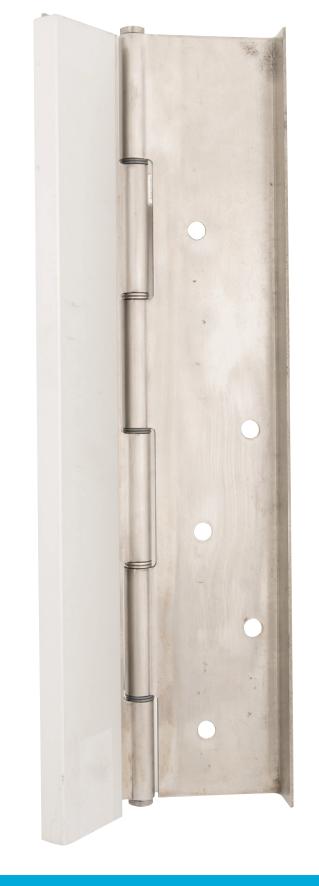

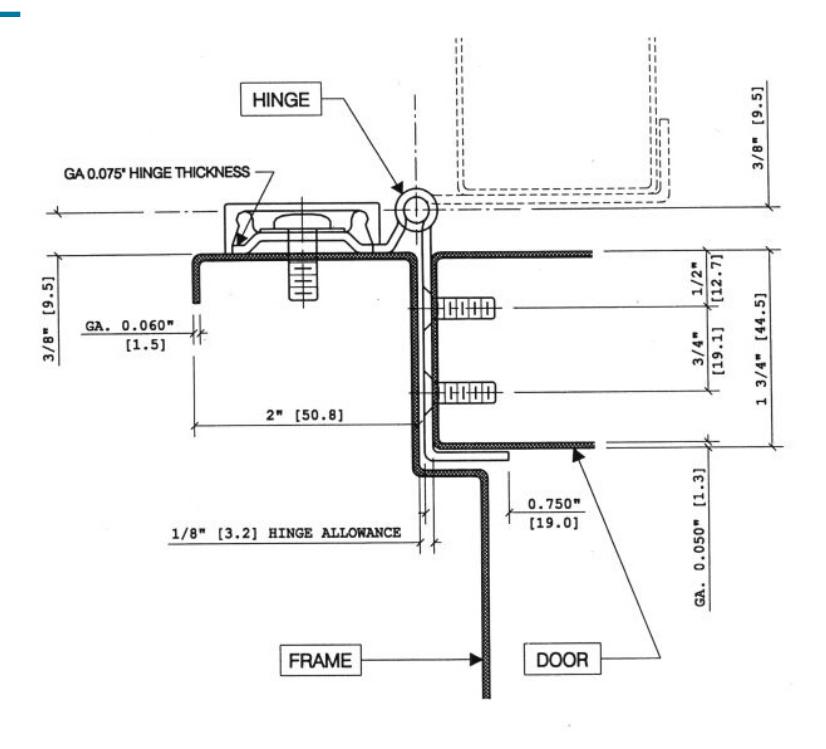

Stainless Steel Continuous Hinge Half Mortise with Half Wrap Edge Guard, for 1-3/4" Doors

Heavy duty 14 gauge type 304 stainless steel
Pin and barrel design
Stainless steel hinge pins
Medical type self-lubricating flanged bearings between each 2" knuckle provide dust-free quiet and smooth operation
For doors weighing up to 600 lbs.
25 year warranty
#1/4-20 x 3/4" TEK screws for metal frames
#10 x 1/2" TEK screws for metal doors
#10 x 1" wood screws for wood doors
US32D (630) brushed finish
Standard lengths: 83", 85", 95", 119"

Available Options:

Torx security TEK Screws
Cut to net length specify door handing
Anti-ligature welded hospital tip specify "ALHT"
Dutch door prep specify door handing, bottom door leaf length, and clearance between leafs
Electric power transfer prep see page CH22
US32 (629) polished finish
Welded tips for non-rising pins

10C Fire-rated 3 hours on hollow metal doors and 90 minute on wood doors. Maximum size 4'0" x 10'0".

ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges:

ETW8

Electric Thru Wire

Transfers electric power through the hinge to power certain types of electronic builders hardware.

Removable Electric Hinge Section

8 wires, 26 AWG
Each wire is rated 24V AC/DC at 0.5A (max.) continuous or pulse
12" wire leads
5 year warranty

Available on Models:

SS300

SS305 (Handed)

SS315 (Handed)

Standard Location, all sizes: 39-5/8" centerline from bottom of hinge

EPT PREP

Electric Power Transfer Prep

Allows use of electric power transfer units required to power certain types of electronic builders hardware.

Prep available for the following electric power transfer units
- Von Duprin EPT-2, EPT-10, EPT-10C, PNT-1
- Adams Rite 4612 (short version only)
- Securitron EPT, EPT-SC, EL-EPT, EL-EPT-SC
- Dorma ES105

Available on all concealed and half surface type hinges

Non-Handed Models:

SS300

Handed Models - Specify Door Hand SS304, SS305, SS306, SS315

Standard Locations:

Hinge Length	Top of Hinge to Centerline of Prep
83"	28-7/16"
85"	30-7/16"
95"	40-1/2"
119"	64-3/8"
