ACOUSTICAL

Acoustical Door Shoe A17 Acoustical Foam Pad A17 ADA Compliant Bumper Seal Thresholds A19 Automatic Door Bottoms - Mortise A18 Self-Adhesive Silicone GasketingA15 Self-Adhesive TPE Gasketing A16 Sound Transmission Class (STC) Rated Pairs of Doors A5 Sound Transmission Class (STC) Rated Single Door Assemblies A2 STC Lite Kit / Glass A20 STC Seal Charts - Pairs of Doors A4-A5 STC Seal Charts - Single Doors A2-A3 STC Seal Sets A6-A14		Page
	Thermoplastic Door Shoes A18

ACOUSTICAL

Numerical Index

Numerical Index:

L-FRA100 STC A20
L-FRA100-SP STC A20
STC Seal Charts - Single Doors A2-A3
STC Seal Charts - Pairs of Doors A4-A5
STC Seal Set 1 A6
STC Seal Set 2 A7
STC Seal Set 3 A8
STC Seal Set 4 A9
STC Seal Set 5 A10
STC Seal Set 6 A11
STC Seal Set 7 A12
STC Seal Set 8 A13
STC Seal Set 9 A14
12T6 A18
60FP A17
225S X STC2A18
312V X 131N A17
335S X STC2A18
896-ADJA19
2525A15
5050A15
5060A15
5075A16
8144S A19

Sound Transmission Class (STC) Rated Single Door Assemblies

The chart below indicates the STC rating of specially made acoustic doors using various applications of gasketing. The first column is the rating of the door panel only; tested in a static inoperable condition to determine the sound transmission through the door. The second column is the rating of the operable door installed with hardware and gasketing which provides the STC rating of the door assembly.

Acoustical testing to ASTM E90 Standard Test Method for Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods, and ASTM E1332 Standard Classification for Rating Outdoor - Indoor Sound Attenuation. The sound transmission class (STC) was calculated in accordance with ASTM E413 Classification for Rating Sound Insulation.

STC Rating Static Door Panel	STC Rating Operable Door w/ Gasketing	Perimeter Seals	Door Bottom	Threshold
30	30	103N, 107N, 120N, 122N 127N, 133N, 134N, 137N 137S, 303N, 700N, 700S	420N	897NS
30	30	130S	225S	896S
30	30	107S	220S	950S
33	31	5020	780S	513
35	33	5025	780S	513
36	33	5050	335N	513
35	34	5020, 5075	780S	513
35	35	5070, 9750, 9850	335S	896S
40	37	5020, 5025	780S	513
40	37	5075	12T	513

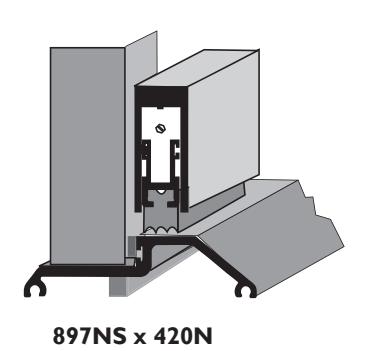

40	37	103N, 107N, 303N	420N	897NS
40	38	•(2) 5050	335N	896S
40	39	120N, 122N, 133N, 134N 137N, 137S, 700N, 700S	420N	897NS
40	39	107S	220S	950S
44	39	1038N, 3038N	423N	896S
43	39	•(2) 5050	420N	412
42	40		•(2) 5050 Mortise 312V	896S
43	40	•(2) 5050	423N	896S
44	40	131N	335N	896S
47	41	103NFS	422N	897NS
45	42	•(2) 5050	335N	896S
47	43	•(2) 5050	423N	896S
50	43	103N, 134N	420N	897NS
50	43	107S	220S	950S
51	43	159M	420N	897NS
48	44	•(2) 5050	423N	896S
49	44	103NFS	422N	8434S
52	44	107N, 131N, 1038N, 3038N	420N	897NS

^• Indicates 2 rows of 5050 installed as follows:

STC Seal Sets - Single Doors

NGP Seal Sets maintain the static door panel STC with NO DROP OFF , up to the STC rating indicated.

STC Seal Set	STC Rating	Perimeter Seals at Heads & Jambs	Door Bottom	Corner Pads	Threshold
1	33	5050 & 2525	312V X 131N	60FP (2 req.)	8144S*
2	45	5075 & 5060	312V X 131N	60FP (2 req.)	8144S*
3	52	5075 & 5060	335S X STC2	60FP (2 req.)	8144S*
4	52	5075 & 5060	12T6 X STC-FH	60FP (2 req.)	8144S*
5	52	5075 & 5060	225S X STC2	60FP (2 req.)	8144S*
6	52	5075 & 5060	None	60FP (2 req.)	896S-ADJ

STC #3 Illustration

*optional

TOP OF FRAME

^* For best acoustic results a 1/4" drop is recommended; 3/8" drop maximum

*optional

STC Seal Sets - Pairs of Doors

STC Seal Set	STC Rating	Perimeter Seals at Heads & Jambs	Door Bottom	Corner Pads	Meeting Edge Seals	Threshold
7	45	5075 & 5060	225S X STC2-PR	60FP (3 req.)	5060 (2 req.)	8144S*
8	45	5075 & 5060	12T6 X STC-FH	60FP (3 req.)	5060 (2 req.)	8144S*
9	45	5075 & 5060	335S X STC2-PR	60FP (3 req.)	5060 (2 req.)	8144S*

STC #7 Illustration

5060 8144 SMOOTH SIDE UP 5075 60FP 8144 SMOOTH SIDE UP (OPTIONAL) 60FP HINGE & STRIKE JAMBS WITH THRESHOLD 5075 5060 225S X STC2-PR

BOTTOM OF DOORS THRESHOLD AND FLOOR

^* For best acoustic results a 1/4" drop is recommended; 3/8" drop maximum

Sound Transmission Class (STC) Rated Pairs of Doors

Pairs of doors are intrinsically more difficult to control sound transmission through. Sealing the gap between the meeting edges under the doors is challenging, requiring a combination of properly coordinated and installed gasketing to seal all gaps.

STC Rating Static Door Panel	STC Rating Operable Door w/ Gasketing	Perimeter Seals	Door Bottom	Threshold	Astragal
35	35	5020		896S	5070
35	35	5070		896S	5070
35	34	5020	780S	512	5070
35	33	5025		896S	5070

Standard Doors without Special Acoustic Cores

Solid core wood doors with gasketing test to an STC rating of approximately 28 to 30. Mineral core wood doors and Honey comb core hollow metal doors with gasketing test to an STC rating of approximately 32 to 36. Without gasketing these doors have no sound control and test to an STC rating between 15 and 20.

To most effectively reduce sound transmission and maximize the acoustic performance we recommend the following be used:

PERIMETER AND DOOR BOTTOMS

107S Perimeter Seal

700S Seal at head if a parallel arm closer is used

220S Automatic Door Bottom

Any Threshold - To allow proper sealing of Automatic Door Bottom

MEETING EDGE of PAIRS

109N Overlapping Astragal 5070 Adhesive Astragal 115N Astragal Set

School Classroom Door STC Requirements

ANSI/ASA S12.60 Acoustical Performance Criteria, Design Requirements, and Guidelines for schools requires interior doors opening into core learning spaces to achieve STC 30 or greater in their operable condition and interior doors into music rooms at least STC 40.

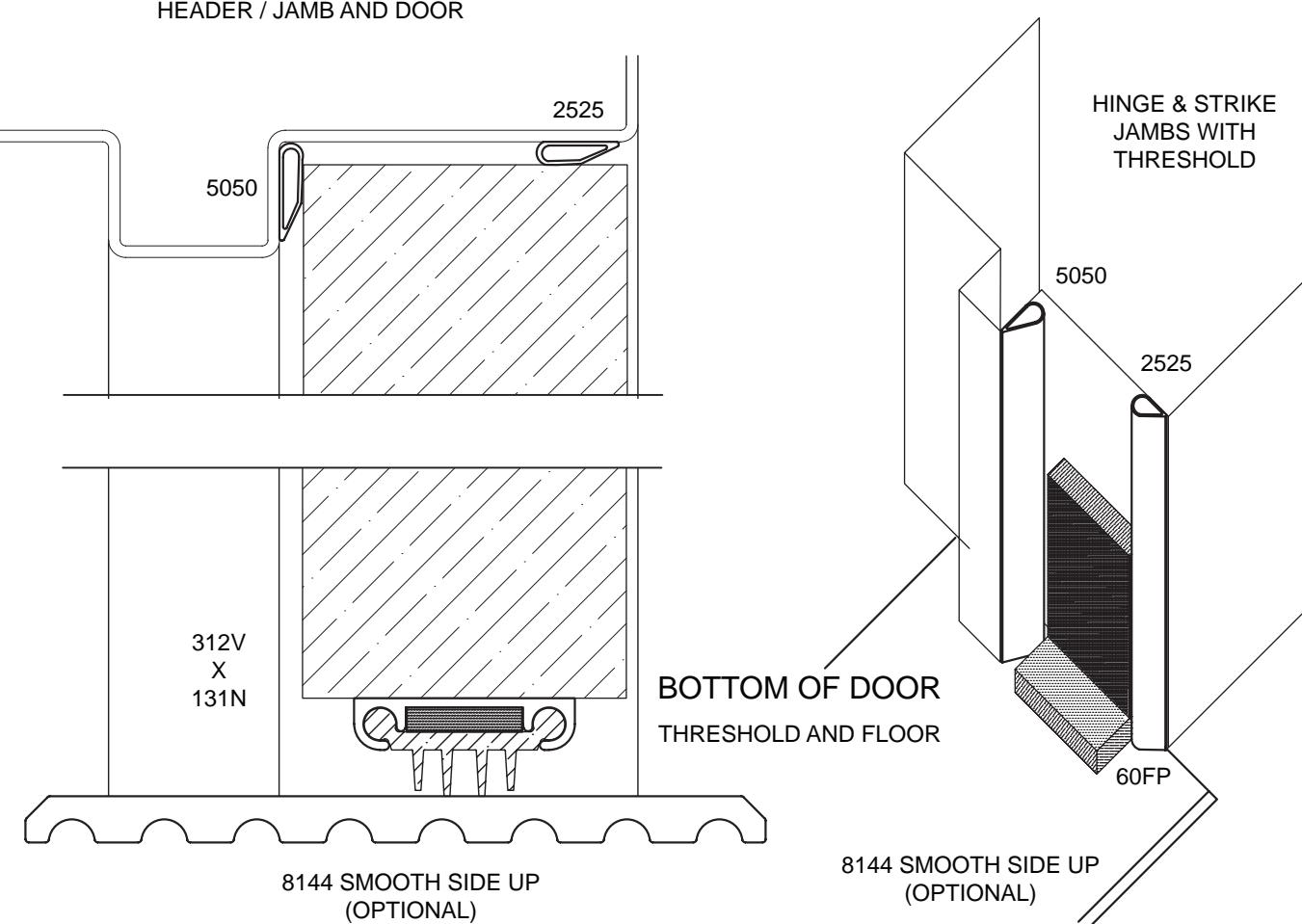

NGP STC SEAL SET #1 FOR USE WITH STC 33 AND BELOW

LIST OF MATERIALS
ITEMS	LOCATION
5050	JAMBS & HEADER
2525	JAMBS & HEADER
60FP (2 req.)	FRAME, LOWER CORNERS
312V X 131N	DOOR BOTTOM

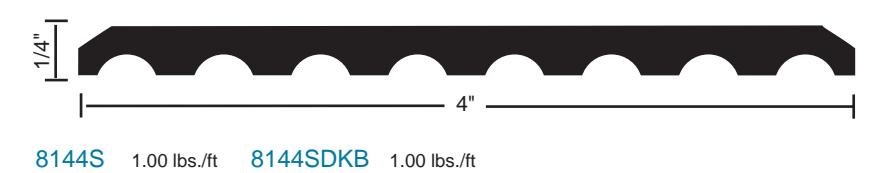

8144S	THRESHOLD (OPTIONAL)

8144 SMOOTH SIDE UP

TOP OF FRAME

NGP STC SEAL SET #2 FOR USE WITH STC 45 AND BELOW

LIST OF MATERIALS
ITEMS	LOCATION
5075	JAMBS & HEADER
5060	JAMBS & HEADER
60FP (2 req.)	FRAME, LOWER CORNERS
312V X 131N	DOOR BOTTOM
8144S	THRESHOLD (OPTIONAL)

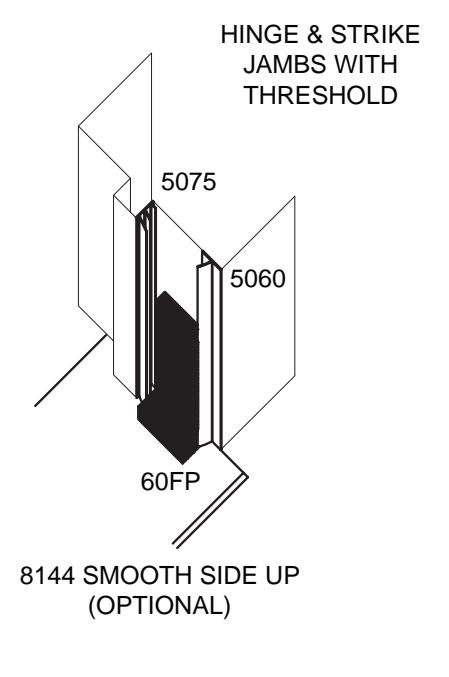

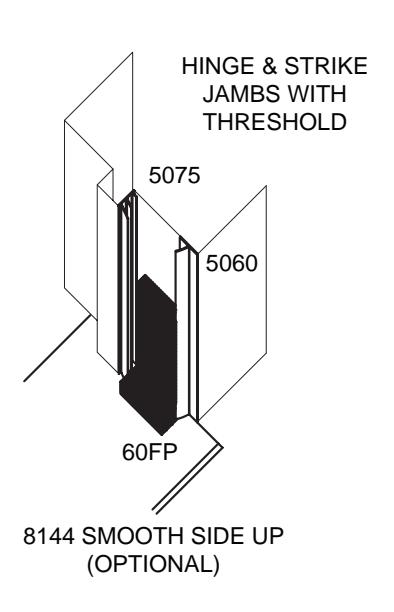

TOP OF FRAME HEADER / JAMB AND DOOR HINGE & STRIKE JAMBS WITH THRESHOLD 8144 SMOOTH SIDE UP (OPTIONAL) BOTTOM OF DOOR THRESHOLD AND FLOOR 8144 SMOOTH SIDE UP (OPTIONAL) 5075 5060 5060 5075 312V X 131N 60FP

60FP

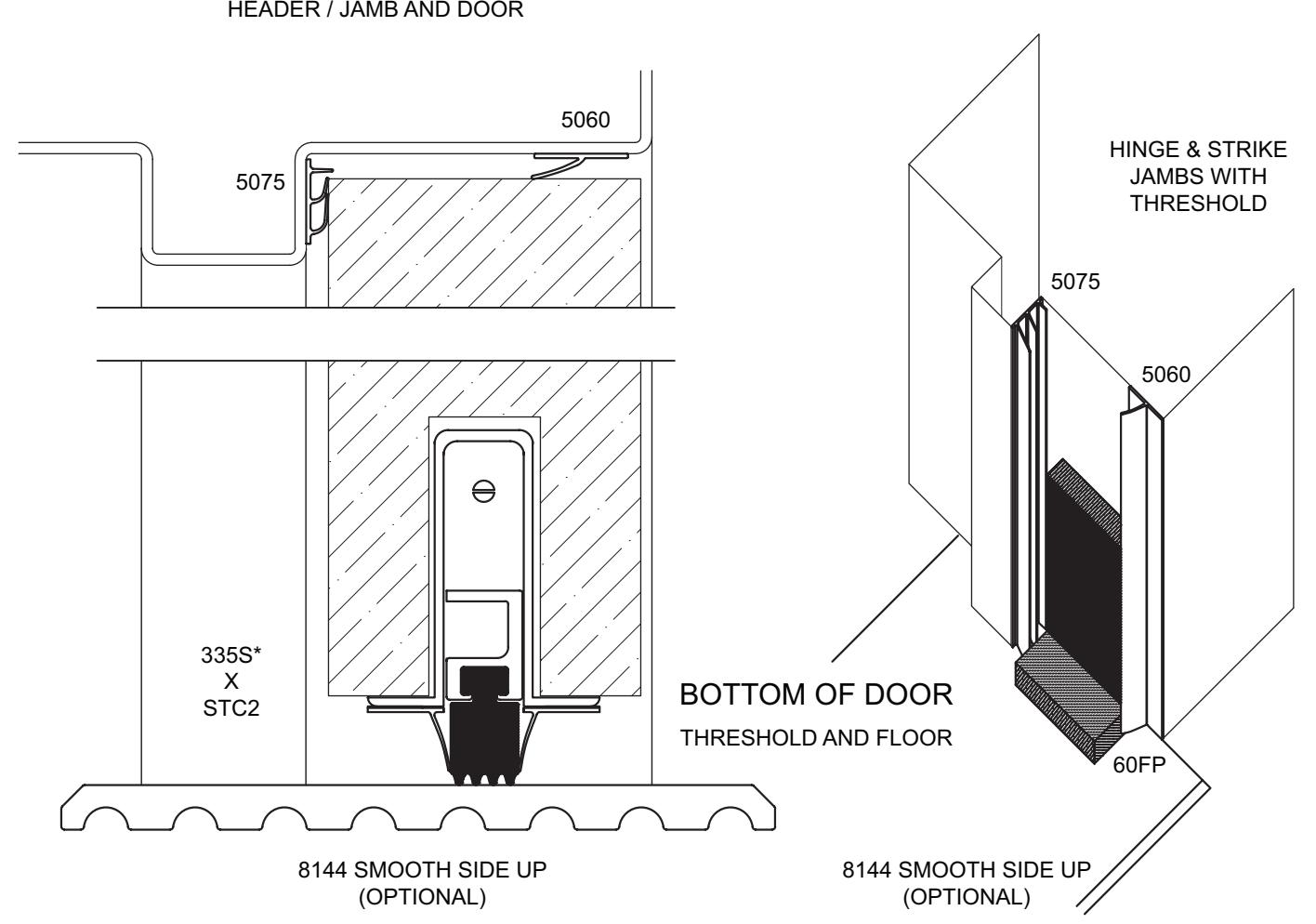

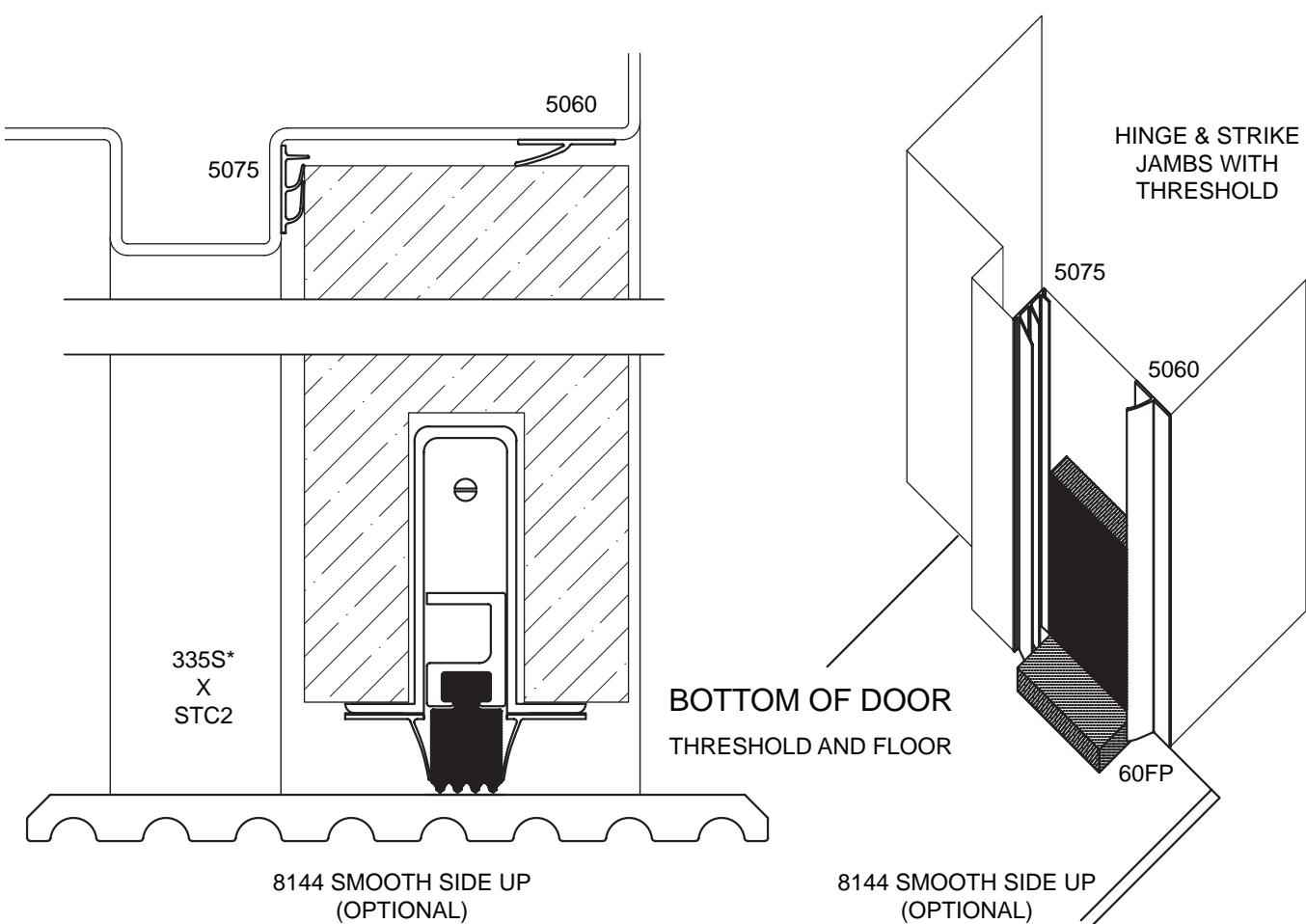

NGP STC SEAL SET #3 FOR USE WITH STC 52 AND BELOW

5060

5075

335S X STC2

8144 SMOOTH SIDE UP

LIST OF MATERIALS
ITEMS	LOCATION
5075	JAMBS & HEADER
5060	JAMBS & HEADER
60FP (2 req.)	FRAME, LOWER CORNERS
335S X STC2	DOOR, MORTISE ADB
8144S	THRESHOLD (OPTIONAL)

TOP OF FRAME

HEADER / JAMB AND DOOR

^* For best acoustic results a 1/4" drop is recommended; 3/8" drop maximum

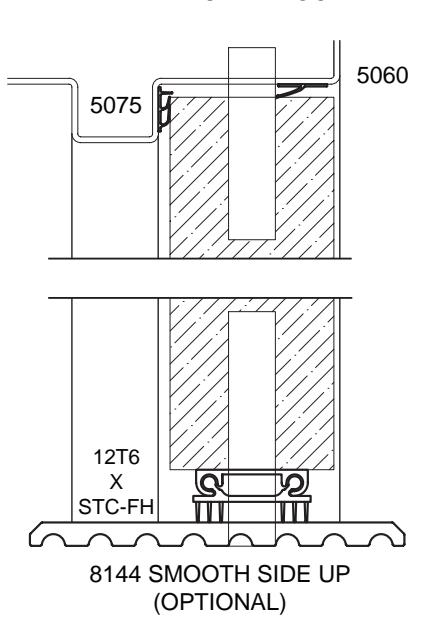

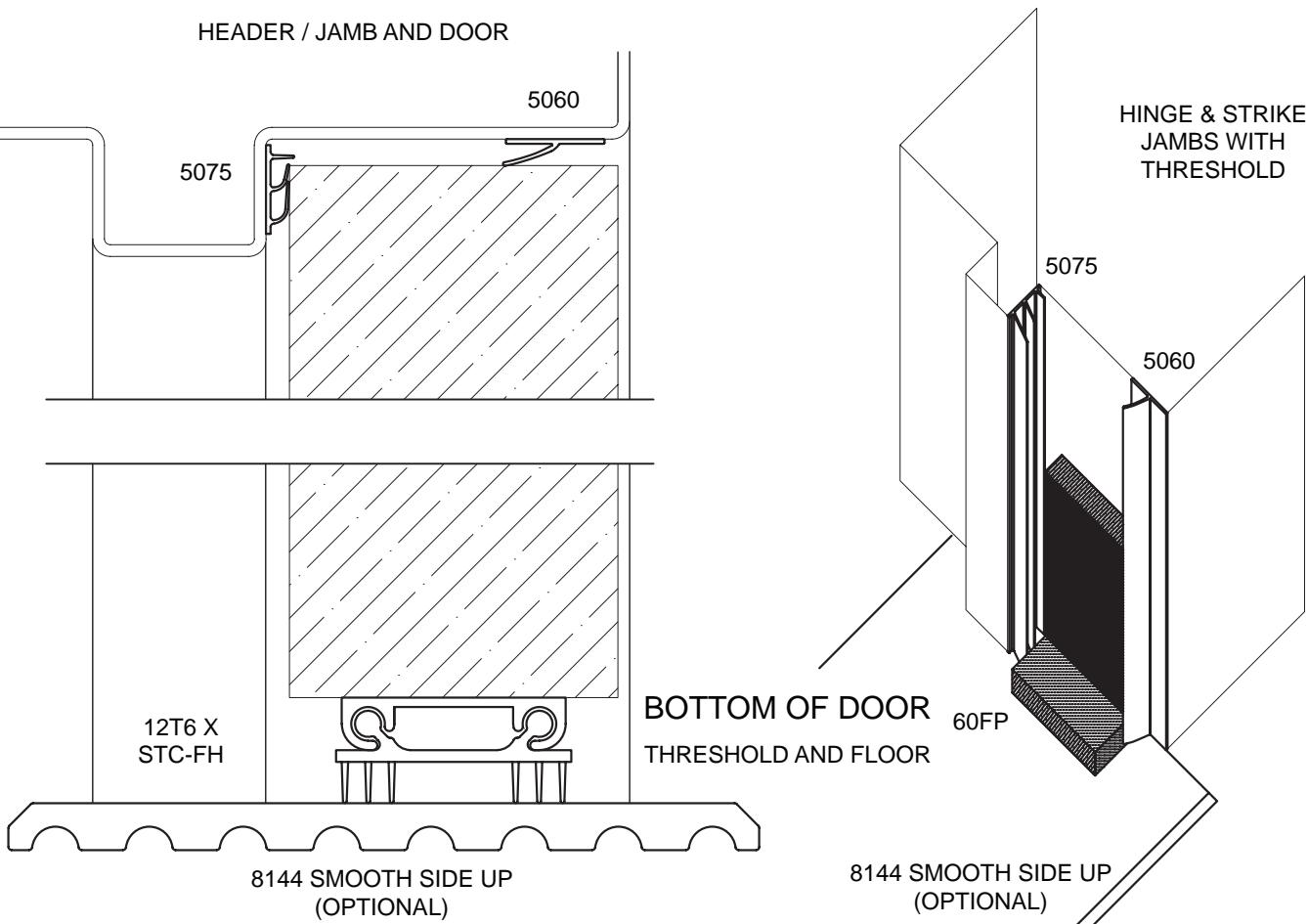

NGP STC SEAL SET #4 FOR USE WITH STC 52 AND BELOW

LIST OF MATERIALS
ITEMS	LOCATION
5075	JAMBS & HEADER
5060	JAMBS & HEADER
60FP (2 req.)	FRAME, LOWER CORNERS
12T6 X STC-FH	DOOR SHOE WITH STC FASTENER HOLES
8144S	THRESHOLD (OPTIONAL)

TOP OF FRAME

5075

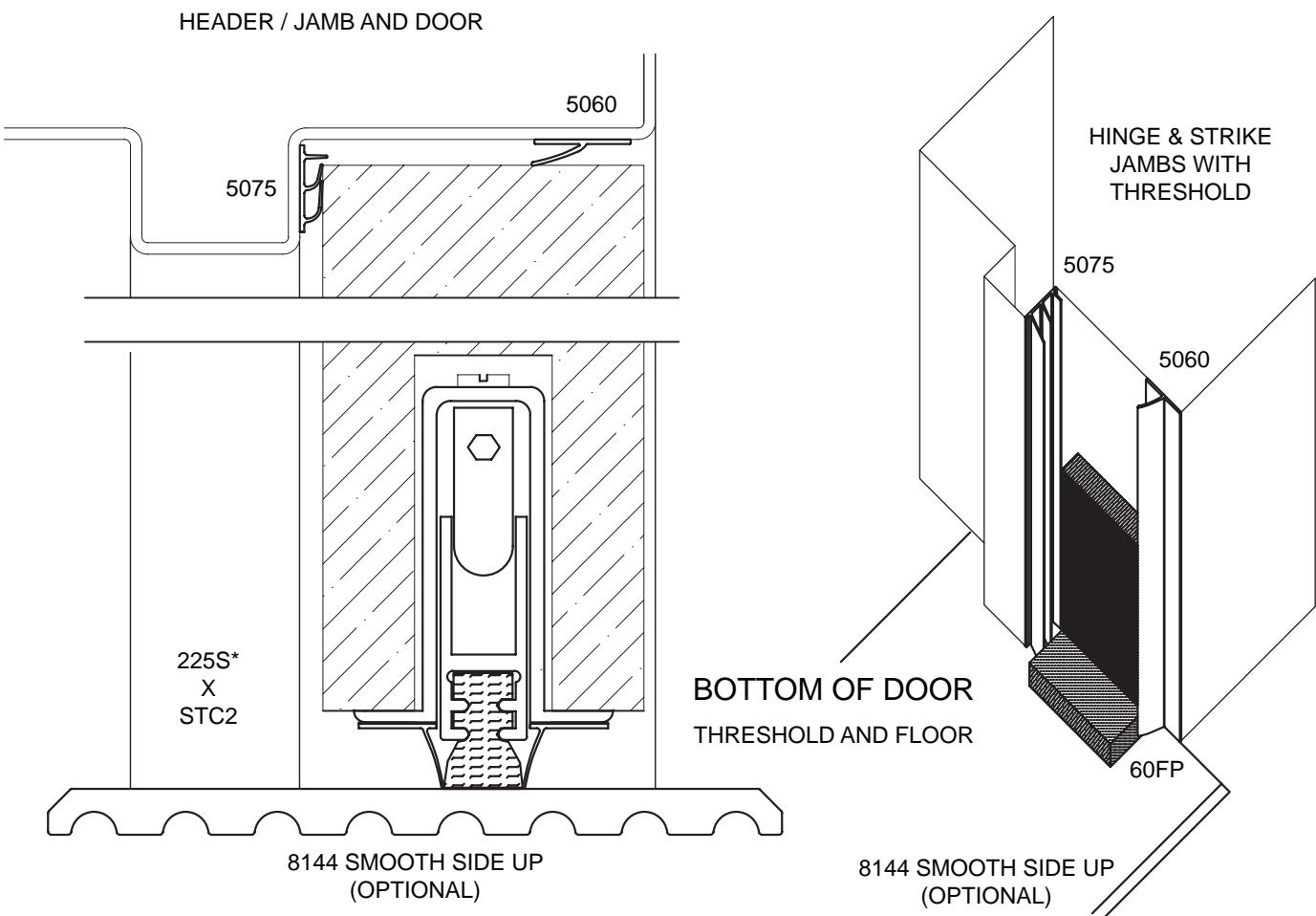

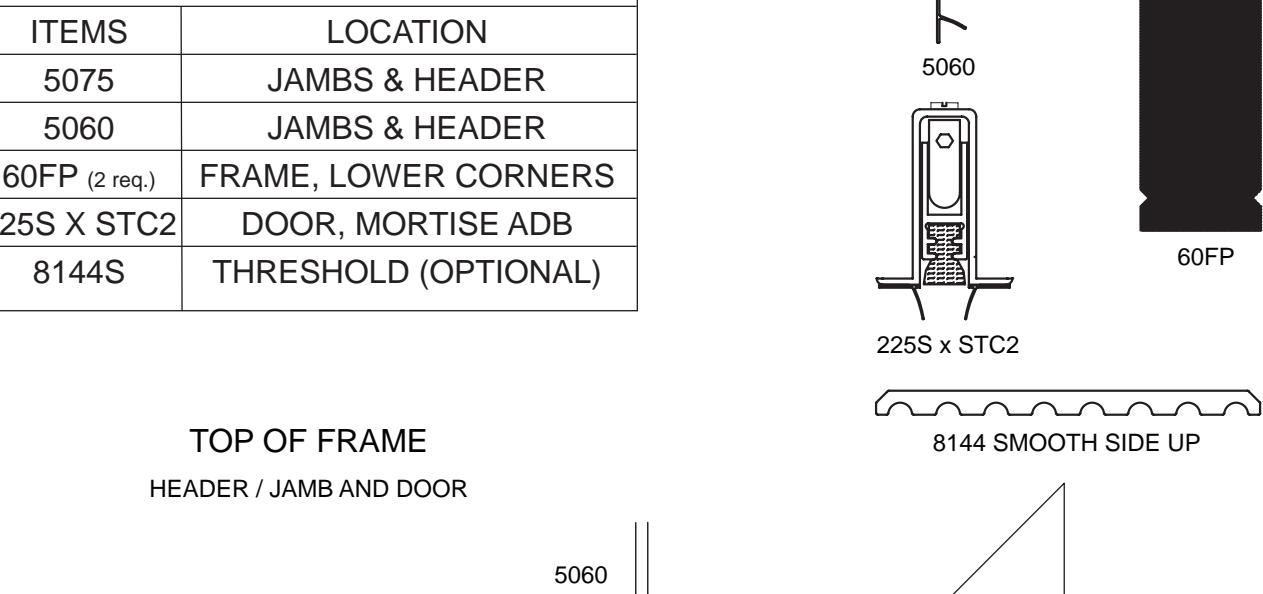

NGP STC SEAL SET #5 FOR USE WITH STC 52 AND BELOW

LIST OF MATERIALS
LOCATION
JAMBS & HEADER
JAMBS & HEADER
FRAME, LOWER CORNERS
DOOR, MORTISE ADB
THRESHOLD (OPTIONAL)

*For best acoustic results a 1/4" drop is recommended; 3/8" drop maximum

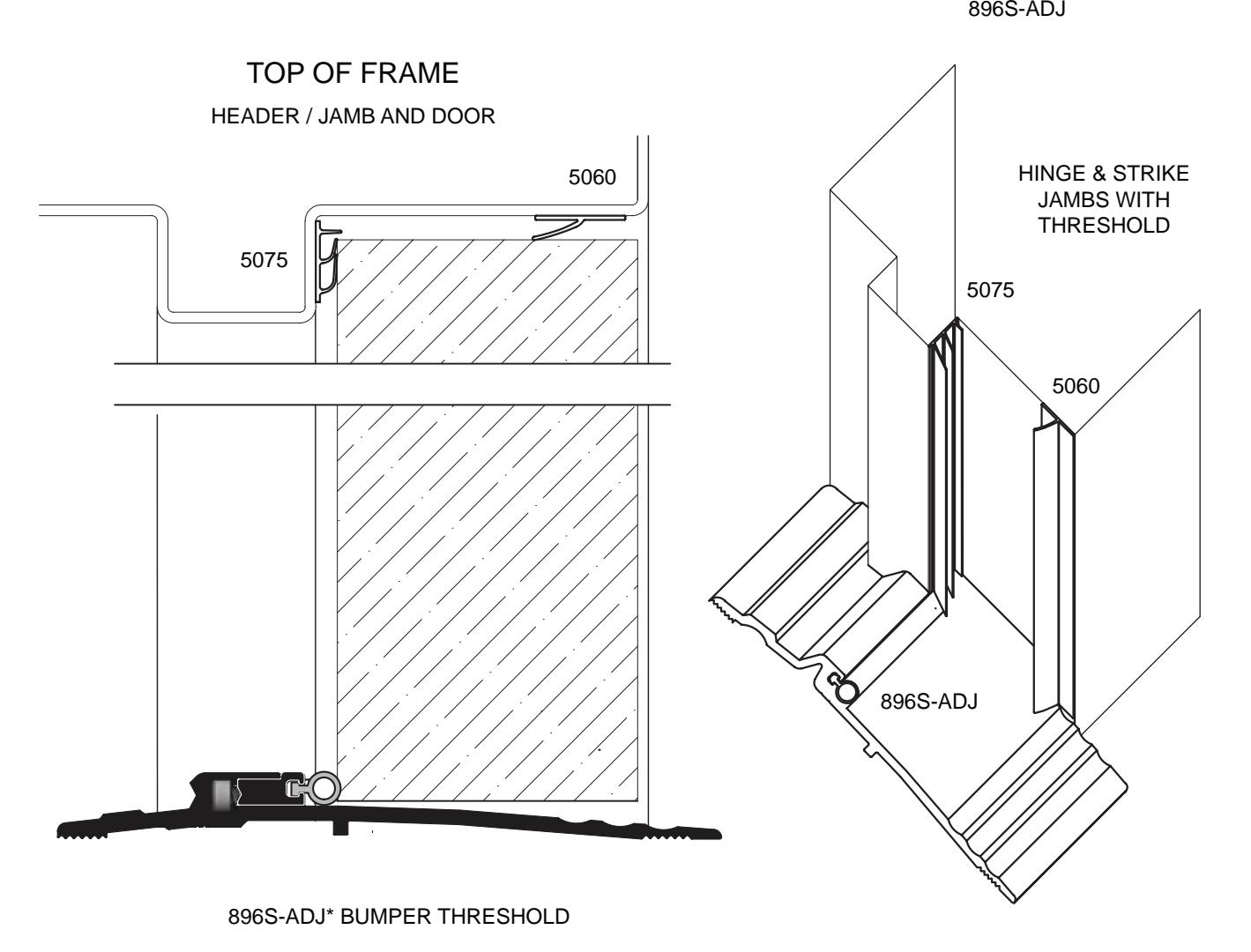

NGP STC SEAL SET #6 FOR USE WITH STC 52 AND BELOW

LIST OF MATERIALS
ITEMS	LOCATION
5075	JAMBS & HEADER
5060	JAMBS & HEADER
896S-ADJ	ADJUSTABLE BUMPER THRESHOLD

*ADA bumper style threshold, requires 3/8" undercut on doors

5060

225S X STC2-PR

5075

8144 SMOOTH SIDE UP

60FP

NGP STC SEAL SET #7 FOR USE WITH PAIRS OF DOORS STC 45 AND BELOW

LIST OF MATERIALS
ITEMS	LOCATION
5075	JAMBS & HEADER
5060	JAMBS & HEADER
60FP (2 req.) 60FP (1 req.)	FRAME, LOWER CORNERS INACTIVE DOOR, LOWER
225S X STC2-PR	DOOR, MORTISE ADB WITH STC2 & FLANGE SEAL
5060	INACTIVE DOOR, 2 ROWS
8144S	THRESHOLD (OPTIONAL)

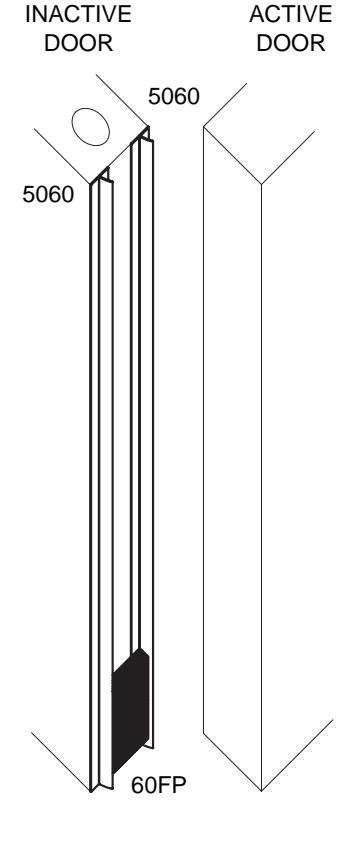

TOP OF FRAME HEADER / JAMB AND DOOR 5060 5075 5060 5060 INACTIVE DOOR ACTIVE DOOR TOP FLUSH BOLT INACTIVE DOOR BOTTOM-SURFACE BOLT INACTIVE DOOR 225S* X STC2-PR 8144 SMOOTH SIDE UP (OPTIONAL) 60FP MEETING EDGE

8144 SMOOTH SIDE UP (OPTIONAL) 60FP BOTTOM OF DOORS THRESHOLD AND FLOOR HINGE & STRIKE JAMBS WITH THRESHOLD 5075 5060

^* For best acoustic results a 1/4" drop is recommended; 3/8" drop maximum

NGP STC SEAL SET #8 FOR USE WITH PAIRS OF DOORS STC 45 AND BELOW

LIST OF MATERIALS
ITEMS	LOCATION
5075	JAMBS & HEADER
5060	JAMBS & HEADER
60FP (2 req.) 60FP (1 req.)	FRAME, LOWER CORNERS INACTIVE DOOR, LOWER
12T6 X STC-FH	DOOR SHOE WITH STC FASTENER HOLES
5060	INACTIVE DOOR, 2 ROWS
8144S	THRESHOLD (OPTIONAL)

TOP OF FRAME

HEADER / JAMB AND DOOR

FLUSH BOLTS INACTIVE DOOR

CAN BE USED WITH OR WITHOUT BOTTOM FLUSH BOLT

MEETING EDGE

BOTTOM OF DOORS

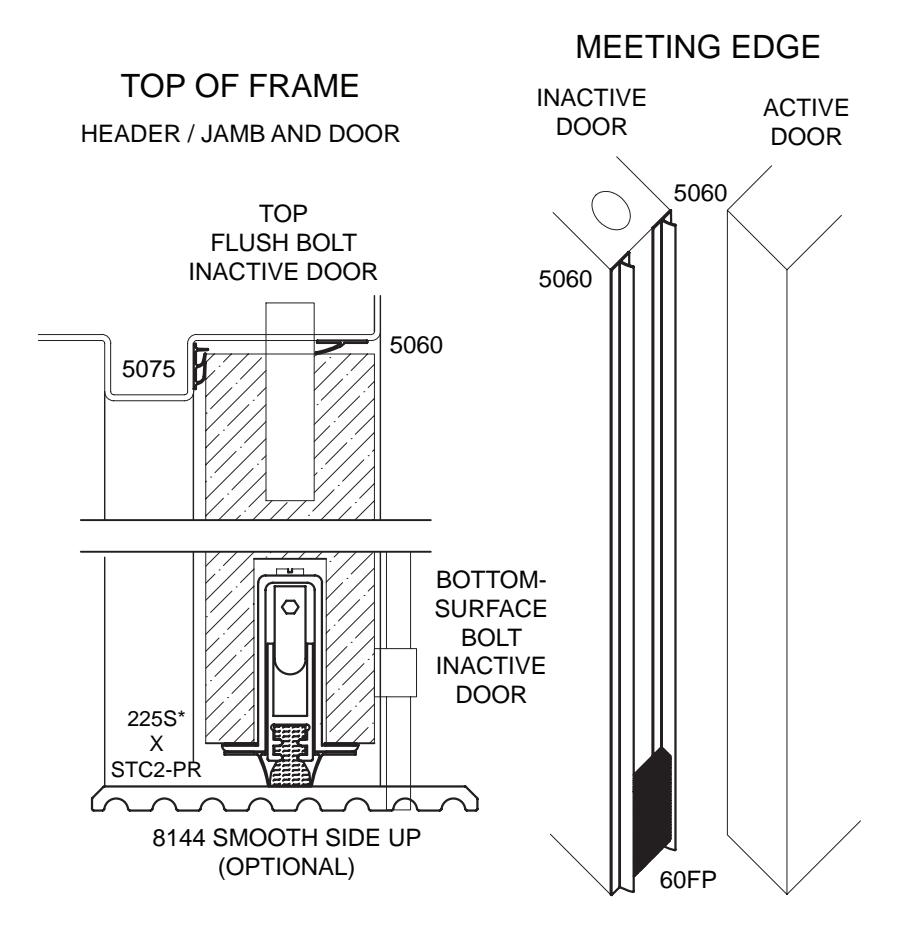

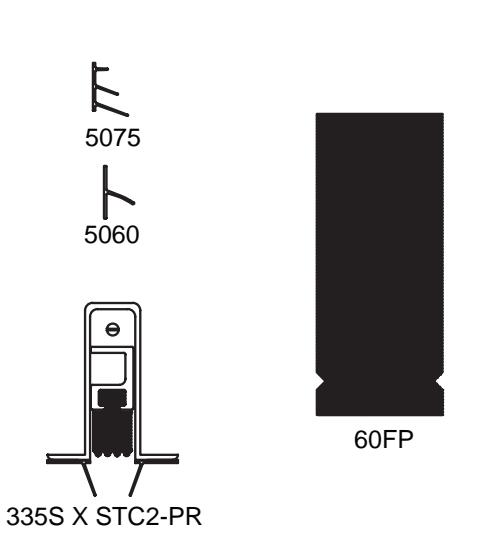

NGP STC SEAL SET #9 FOR USE WITH PAIRS OF DOORS STC 45 AND BELOW

LIST OF MATERIALS
ITEMS	LOCATION
5075	JAMBS & HEADER
5060	JAMBS & HEADER
60FP (2 req.) 60FP (1 req.)	FRAME, LOWER CORNERS INACTIVE DOOR, LOWER
335S X STC2-PR	DOOR, MORTISE ADB WITH STC2 & FLANGE SEAL
5060	INACTIVE DOOR, 2 ROWS
8144S	THRESHOLD (OPTIONAL)

TOP OF FRAME HEADER / JAMB AND DOOR INACTIVE DOOR ACTIVE DOOR TOP FLUSH BOLT INACTIVE DOOR 5060 5060 ^{5060 5075} BOTTOM SURFACE BOLT INACTIVE DOOR 335S* X STC2-PR 8144 SMOOTH SIDE UP (OPTIONAL) MEETING EDGE

BOTTOM OF DOORS THRESHOLD AND FLOOR

Self-Adhesive Silicone Gasketing

5050B Brown 5050C Charcoal 5050W White 5050T Tan 5050CL Clear

Available in 17', 20', 21', 25' and 300' rolls.

Silicone Bulb Fire and Smoke Seal

Edge Sealing System - Category "G" for 20 minute rated category B wood doors perimeter application up to:

single swing 4'0 x 8'0 pairs 8'0 x 8'0

use 9550 at the meeting edge of pairs

Smoke and Draft Control - Category "H" Up to 3 hours Hollow Metal fire doors Up to 90 minutes Wood fire doors

Meets requirements of RoHS Directive

2525B Brown 2525C Charcoal 2525W White

Silicone Bulb Smoke Seal

Available in 17', 20', 21', 25' and 300' rolls.

5/16" 1/2"

5060C Charcoal 5060CL Clear

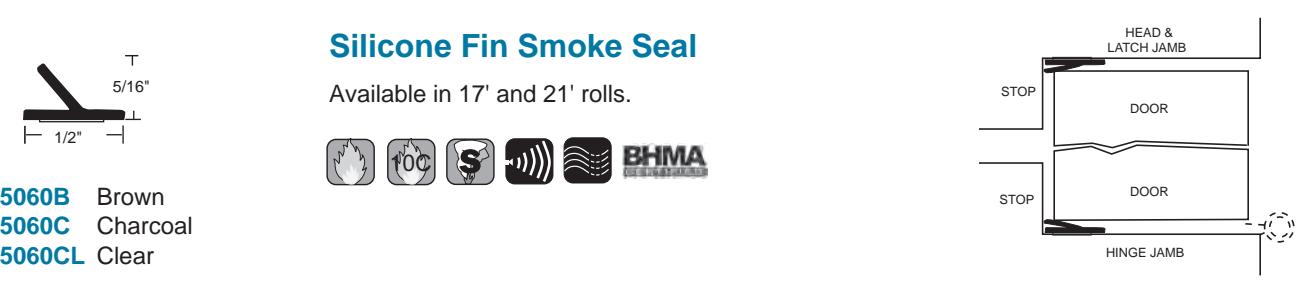

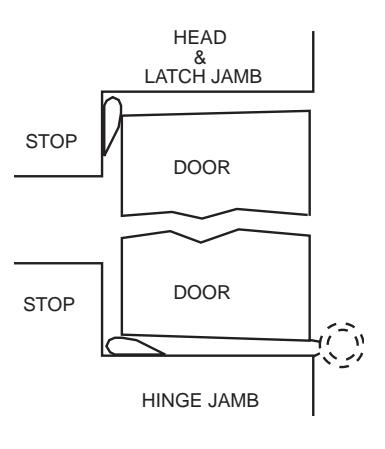

Silicone Fin Smoke Seal

Available in 17' and 21' rolls.

Adhesive specifications : Modified acrylic pressure sensitive adhesive protected by release liner. Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations. Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals. End use temperature range, long term exposure -30° F up to 250° F. Shelf life of adhesive prior to installation is one year when stored at 75° F and 50% relative humidity or less.

Self-Adhesive TPE Gasketing

Properties:

• Good abrasion resistance Flame resistant
• performance tests for heat, cold, air inhibit the growth of microorganisms
• Thermo-Plastic Elastomer (TPE) Rigid PVC base with flexible elastomeric fins
  • Moisture resistant Temperature range -60° F to 275° F
  • BHMA certified to ANSI/BHMA A156.22 Anti-microbial: treated with an anti-microbial additive to
  • infiltration and smoke infiltration REACH and RoHS compliant

5075B Brown 5075C Charcoal 5075CL Clear 1/2"

Available in 36", 48", 72", 84", 96" and 108" lengths

Adhesive specifications : Modified acrylic pressure sensitive adhesive protected by release liner. Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations. Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals. End use temperature range, long term exposure -30° F up to 250° F. Shelf life of adhesive prior to installation is one year when stored at 75° F and 50% relative humidity or less.

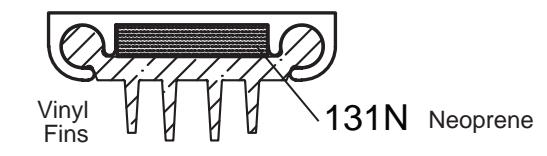

Acoustical Door Shoe

Aluminum alloy 6063, T5 temper Thermoplastic polymer: Polyvinyl Chloride (PVC) formulated with an environmentally friendly Bio-based plasticizer

• Economical
• Flame resistant
• Moisture resistant
• Temperature range 0°F to 140°F
• Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration
• #6 x 3/4" stainless steel SMS furnished
• Screw holes slotted for adjustment

MATERIALS & FINISHES no suffix - mill aluminum DKB - dark bronze

vinyl is gray

312V X 131N 312VDKB X 131N

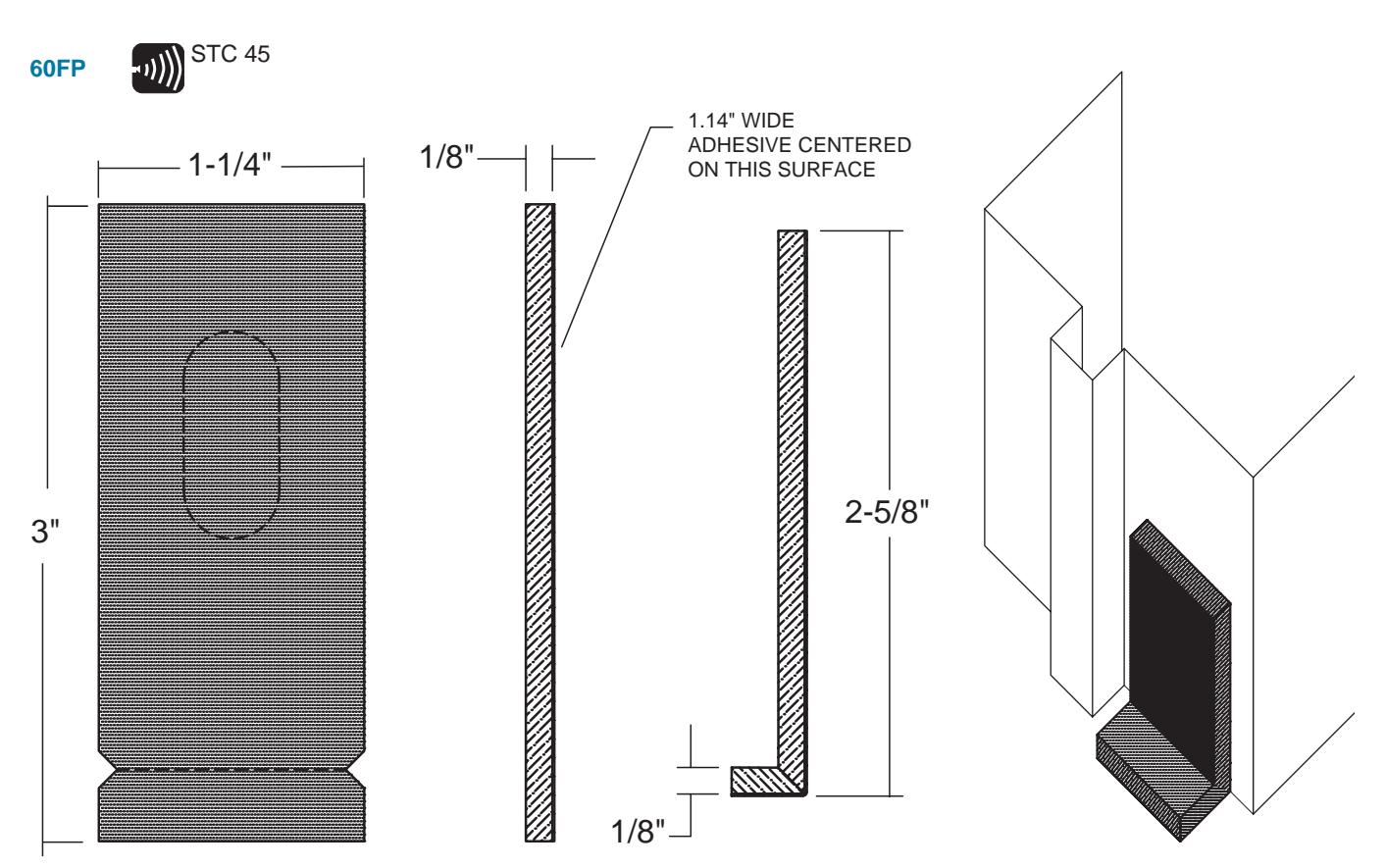

STC Rated Acoustical Foam Pad

Foam seal self adhesive

• Helps acoustics and seals at corner gap
• Apply to jambs on hinge and strike side
• Color is black

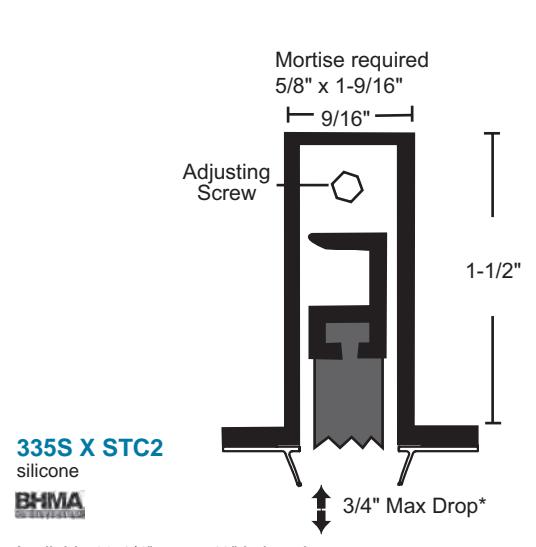

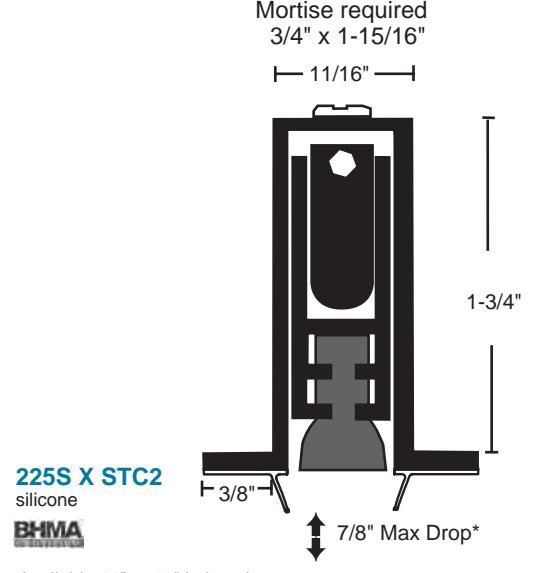

Automatic Door Bottoms - Mortise All products this page

• Use with a threshold for maximum sealing capability
• Specify exact net length required to avoid field sizing
• 36" and longer may be cut up to 4" in the field, under 36" should not be cut in the field, order net length
• End caps furnished standard
• Furnished 1/2" shorter than ordered to fit within net door size. (i.e. 36" is furnished 35-1/2").

Silicone is gray

Available 23-1/4" net to 48" in length Fits wood fire door mortise restrictions

Available 11" to 60" in length Available with lead insert for radiation shield - specify "lead-lined"

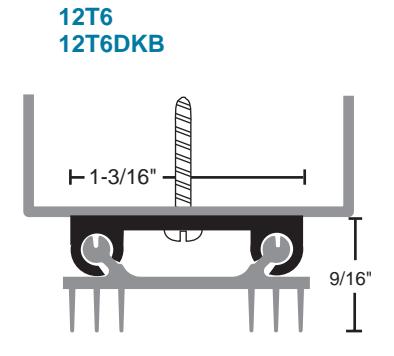

Thermoplastic Door Shoes

Thermoplastic polymer seal with rigid base and soft vinyl fins.

Material Finishes: A - anodized aluminum DKB - dark bronze no suffix = mill aluminum thermoplastic is dark brown

#6 x 3/4" stainless steel SMS furnished

^* For best acoustic results a 1/4" drop is recommended, 3/8" drop maximum.

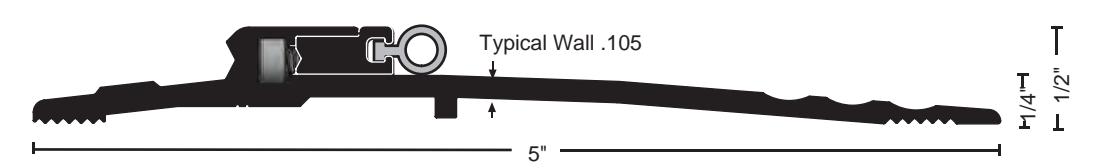

Adjustable ADA Compliant Bumper Seal Threshold

• Stainless steel adjustment screws on 10" centers allow adjustment without re-positioning mounting location.
• Adjusting range 1/4"

896-ADJ.78 lbs./ft.

MATERIALS & FINISHES

• Aluminum mill finish

• Optional: Slip Resistant SIA Finish

FASTENERS

#10 x 1-1/2" FH zinc plated wood screws furnished.

BUMPER SEAL

Seals against the door providing weather resistance

Vinyl ("V") supplied unless other material specified

Options: NGP-TPV ("N")

Thresholds

MATERIALS & FINISHES

• Aluminum mill finish
• DKB Aluminum dark bronze finish

• Optional: Slip Resistant SIA Finish

FASTENERS

#10 x 1-1/2" FH zinc plated wood screws furnished. Dark bronze supplied with DKB thresholds.

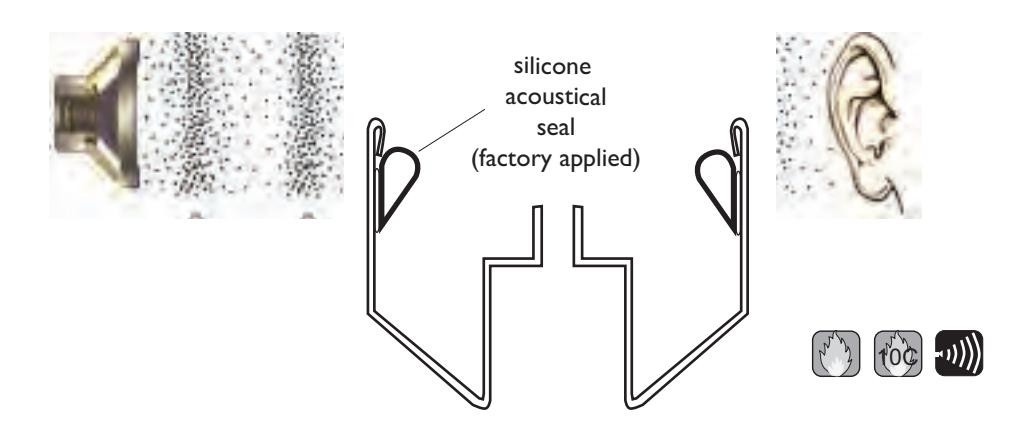

L-FRA100 STC & L-FRA100-SP STC

Low Profile Sound Rated Lite Kit Option - Suffix "STC"

Silicone acoustical seal applied to reduce sound transmission

Acoustical Testing performed at Intertek Testing, Inc. to:

ASTM E 90, Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements.

ASTM E 413, Classification for Rating Sound Insulation.

ASTM E 1332, Standard Classification for Rating Outdoor-Indoor Sound Attenuation.

ASTM E 2235, Standard Test Method for Determination of Decay Rates for Use in Sound Insulation Test Methods.

STC Ratings:

• SuperLite I-W	STC 28
• Pyran Platinum F	STC 31
• Pyran Platinum L	STC 36
• SuperLite I-20	STC 28
• SuperLite X-90	STC 38
• Wired	STC 28
• Tempered - 1/4"	STC 31
• Insulated Tempered - 1"	STC 35
• Polycarbonate 1/4"	STC 29
• Polycarbonate 1/2"	STC 34
• SuperLite II-XL (45 min.)	STC 40
