NB8700 Top Latch Surface Vertical Rod Exit Device (for Single Doors)

Open the original PDF document

SURFACE OF DOOR WHERE EXIT DEVICE IS TO BE APPLIED MUST BE FLUSH. TOLERANCE ON ALL DIMENSIONS +/- 1/64".

SEE STRIKE TEMPLATE No. 4413 FOR TOP STRIKE. SEE TEMPLATES 4414 AND 4530 FOR ET TRIM.

SEE TEMPLATES 4569 AND 4571 FOR ELECTROLYNX DETAILS WHEN NEEDED.

SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511

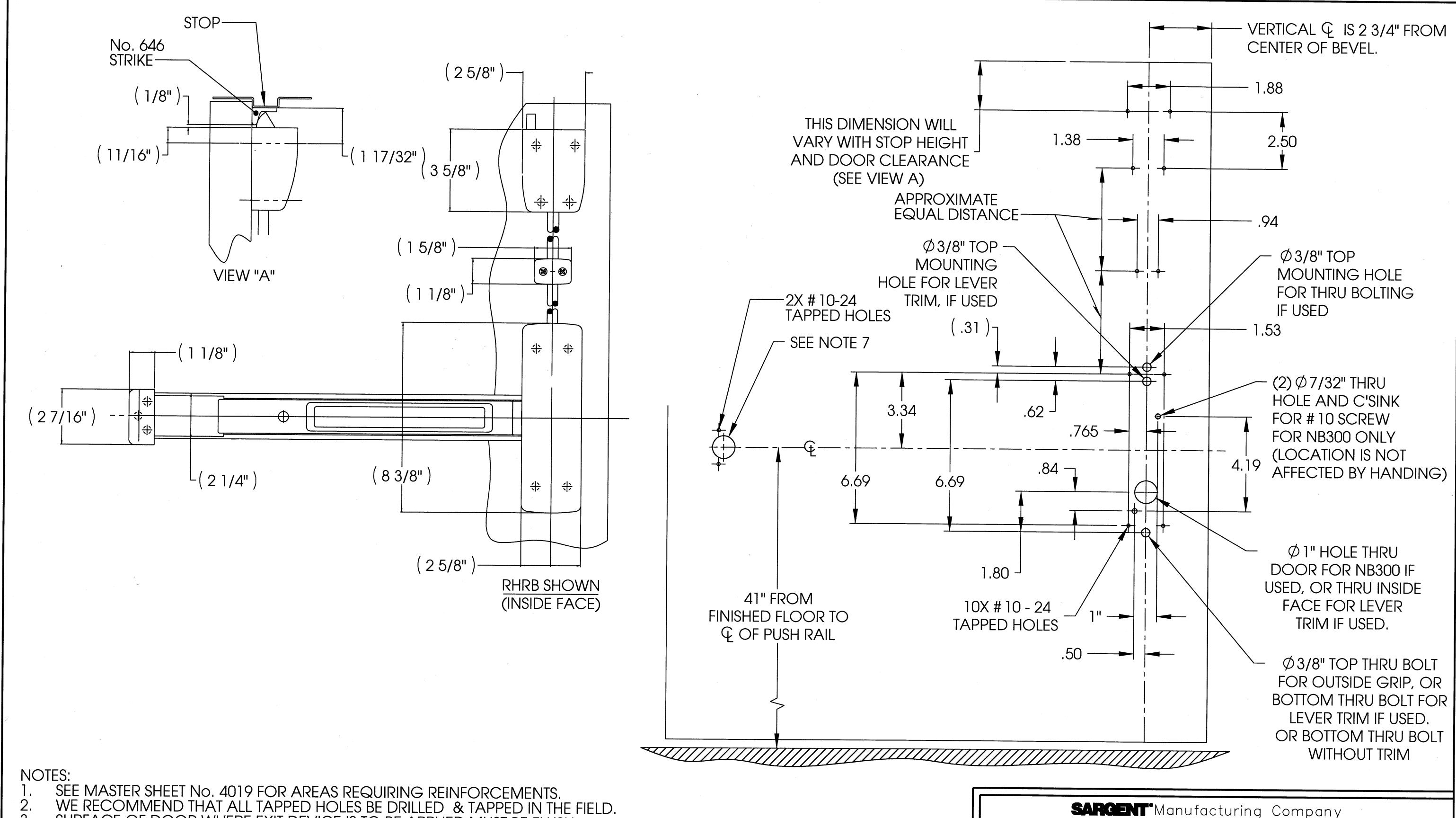

DOOR MANUFACTURERS TEMPLATE: NB-8700 SURFACE VERTICAL ROD EXIT DEVICE FOR SINGLE DOORS

RELEASE DATE

TEMPLATE NO.

4553
