Slide Bolts, Surface Bolts and Misc

Surface Bolts

N1805 Series

• All stainless steel components US32D finish
• 1" throw

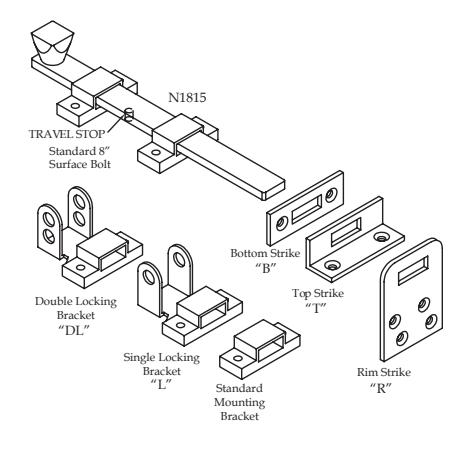

• Select the correct strike for your application see drawings on right for reference
  • B Bottom Strike

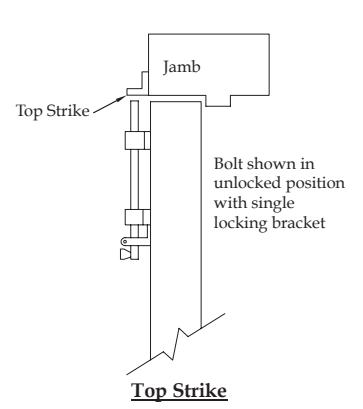

  • T Top Strike
  • R Rim Strike

Models

• N1815 8" long bar, $\backslash frac\{3\}\{16\}$ " thick x $\backslash frac\{3\}\{4\}$ " wide
• N1825 12" long bar, 3/16" thick x 3/4" wide

Options

• L Single locking bracket allows for one 3/8" diameter padlock to lock the surface bolt (padlock not included)
• DL Double locking bracket allows for two 3/8" diameter padlocks to lock the surface bolt (padlocks not included)
• Custom lengths available contact factory
• SEC Security fasteners
• SNB Sex bolts

HD1805 Series

• All stainless steel components US32D finish
• 1" throw
• Comes with top and bottom strike
• Sex bolts provided standard

Models

• HD1825 12" long bar, 3/4" thick x 3/4" wide
• HD1835 24" long bar, 3/4" thick x 3/4" wide

Options

• Custom lengths available contact factory
• SEC Security fasteners

Rim Strike

Bottom Strike
