Surface and Flush Mounting Boxes

Features

  • Industry's largest variety of mounting boxes, escutcheons, trim plates and sleeves.
  • Flame and impact resistant polymer (ABS) models.
  • Surface/flush mounting, indoor/outdoor and water tight applications.
  • · Heavy gauge stainless steel and aluminum models.

NARROW / JAMB MOUNTING BOXES CM-23 Narrow / Jamb width CM-23D Narrow / Jamb width, extra depth CM-23DSER CM-23D with 3/8" spacer plate 1-3/4' Type: Type: Type: [45mm] -1_3/4" < 1-3/4" Surface mount box Surface mount box Surface mount box (44 mm) (44mm) Construction: Construction: Construction: Flame & impact Flame & impact Flame & impact resistant black polymer resistant black resistant black polymer 4-5/8" 4-5/8" polymer (ABS) 4-5/8" (ABS) (116 mm) (116mm) [116mm] Application: Application: Application: Indoor/outdoor, wired. Indoor / outdoor, Indoor / outdoor, wired wired. Required Required for wireless. For Switch Series: for wireless. For Switch Series: 1-1/2 CM-25, CM-250, CM-310 (32mm) CM-25, CM-170, CM-250, (38 mm) For Switch Series: [10mm] Cover Plate: CM-23CP CM-310, CM-325N, CM-2200 CM-336

SINGLE GANG MOUNTING BOXES

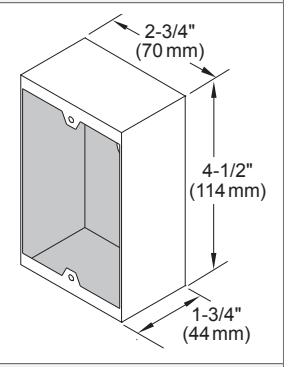

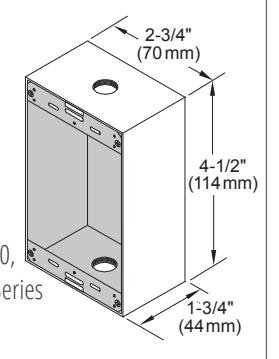

CM-34AL Single gang, standard depth

Type: Surface mount box, threaded conduit entry

Construction: Heavy duty cast aluminum

Application: Water tight, wired For Switch Series: CM-35, CM-180, CM-195, CM-280, CM-300, CM-324, CM-325, CM-336, CM-400, CM-4000, CM-5000, CM-700, CM-1100, CM-1200, supplied w/ CM-1000 Series

Gasket: CM-120G

CM-34BL Single gang, standard depth

Type: Surface mount box Construction: Double wall, black polymer (ABS)

Application: Indoor, wired or wireless For Switch Series: CM-35, CM-180.

CM-195, CM-280, CM-300, CM-324, CM-325, CM-336, CM-400, CM-700, CM-1200

Gasket: CM-120G Cover Plate: CM-34CP

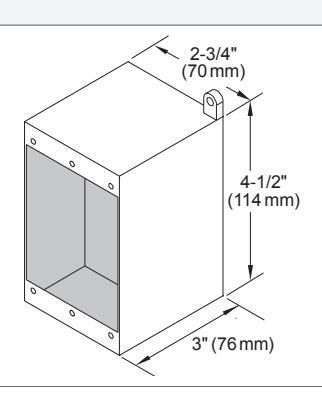

CM-34D Single gang, extra depth

Type: Surface mount box

Construction:

Heavy duty grey polymer

Application: Indoor/outdoor, wired. Required for wireless

For Switch Series:

CM-30, CM-3000,

CM-4085/5085/7085/8085

Gasket: CM-120G

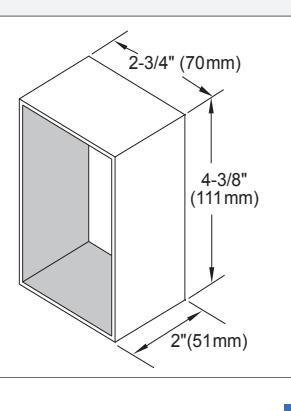

CM-31 Single Gang

Type: Sleeve for standard 2" x 4" surface electrical box

Construction:

Heavy gauge stainless steel

Application: Adds brushed stainless steel finish to standard electrical box

For Switch Series:

CM-35, CM-180, CM-195, CM-300, CM-324, CM-325, CM-1200

SINGLE GANG MOUNTING BOXES

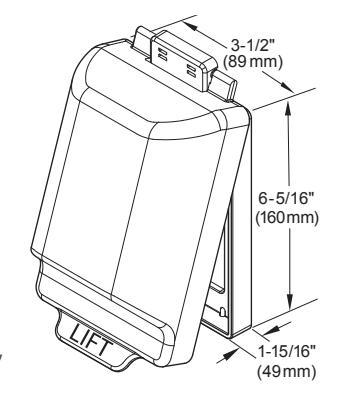

Type:

Clear plastic protection cover

Construction:

Molded polycarbonate

Application:

Indoor / outdoor

For Switch Series:

Any Camden single gang flush mounted Push/Exit Switch, Keypad / Key Switch

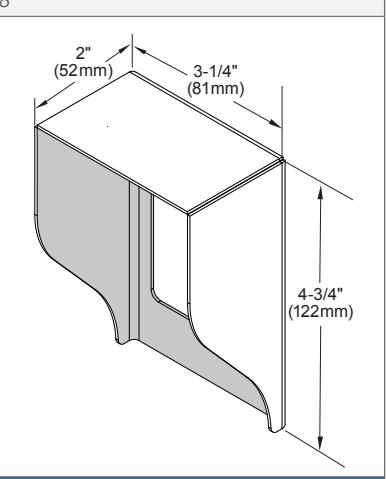

CM-CPC1 Single gang CM-RH-SG Single gang

Type: Flush mount rain hood

Construction:

Heavy gauge stainless steel

Application:

Foam gasket between hood and mounting surface on irregular surfaces

For Switch Series:

Any Camden single gang flush mounted Push/Exit Switch, Keypad / Key Switch

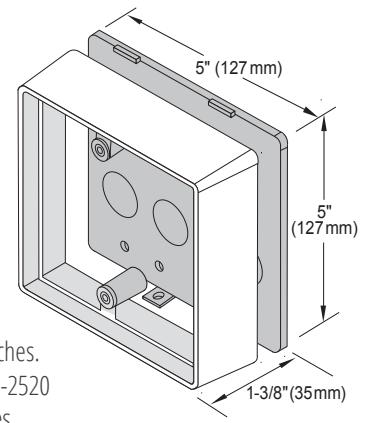

DOUBLE GANG / SQUARE MOUNTING BOXES - SURFACE

Type: Surface mount box Construction: Provision for

wireless, flame & impact resistant black polymer (ABS)

Application:

Indoor / outdoor

For Switch Series:

CM-41, CM-45, CM-46. Add suffix 'A' for use with CM-324 / 325 / 330 Series double gang Hands Free Switches. Add suffix 'B' for use with CM-2520 double gang vestibule switches

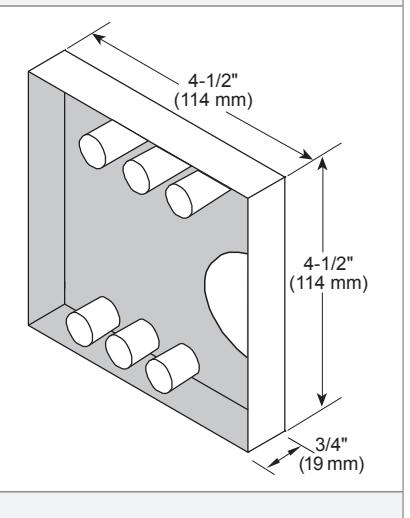

CM-43LP Double gang, 2 pieces, shallow CM-43CBL / CBLA 5" Square, standard depth

Type: Surface mount box

Construction:

Flame & impact resistant black polymer (ABS)

Application:

Indoor / outdoor, wired. Required for wireless.

For Switch Series:

CM-41, CM-45, CM-46 CM-43CBLA: surface box for CM-324 / 325 / 336W switches

Cover Plate: CM-43CP

Type:

Surface mount box

Construction:

Flame & impact resistant black polymer (ABS)

Application:

Indoor / outdoor, for double gang switches and vestibule switches

For Switch Series:

CM-500, CM-2510, CM-2520, CM-3200, CM-3500

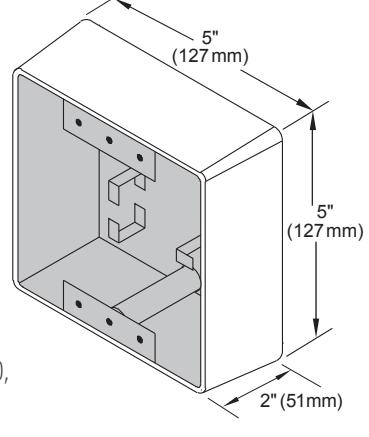

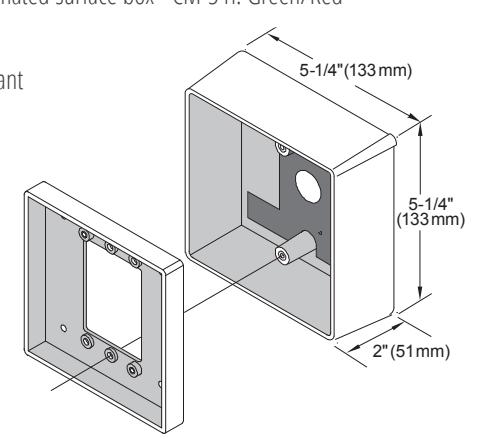

CM-53 5" Square, standard depth CM-54i 5-1/4" Square, standard surface depth

Type: AURA™: Illuminated surface box - CM-54i: Green/Red

Construction: Flame & impact resistant black polymer (ABS)

Application:

Surface 4-1/2" square push plate switch enclosure, room for wireless

For Switch Series:

CM-45, CM-46, SPDT models only

DOUBLE GANG / SQUARE MOUNTING BOXES - SURFACE

5"(127 mm)

5" (127 mm)

2" (51mm)

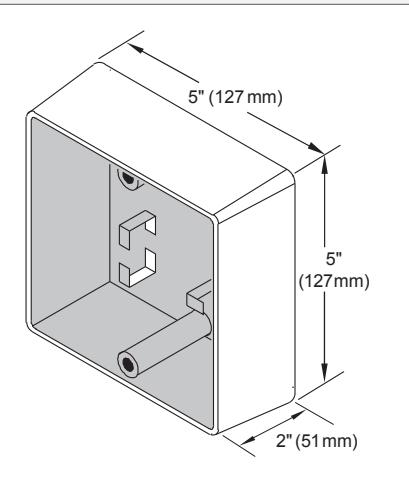

CM-63CBL 5" Square, standard depth CM-540B Double gang, shallow

Type:

Surface mount box

Construction:

Flame & impact resistant black polymer (ABS)

Application:

Indoor / outdoor, wired. Required for wireless.

For Switch Series:

CM-41, CM-60, CM-3200

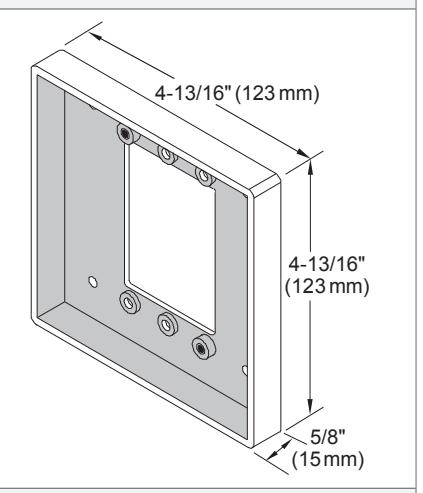

Semi-flush mount box

Construction:

Flame & impact resistant black polymer (ABS)

Application:

Indoor / outdoor, wired

For Switch Series:

CM-41, CM-45, CM-46

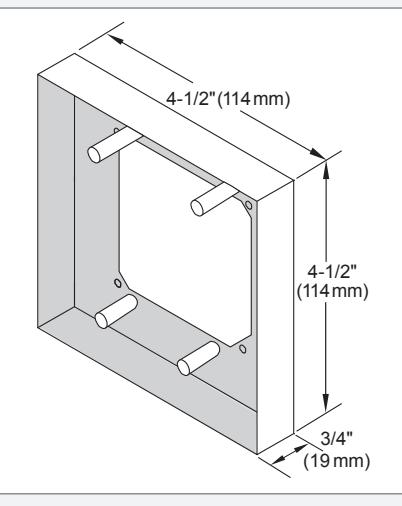

CM-48AL Double gang, shallow CM-44 Double gang, shallow

Type:

Surface mount box

Construction:

Anodized aluminum

Application:

Indoor / outdoor, wired

For Switch Series:

CM-41, CM-45, CM-46 (Requires CM-49C adaptor plate, sold separately)

Type:

Offset surface mount box

Construction:

Stainless steel

Application:

For mounting 4-1/2" square switches on narrow jambs, indoor/outdoor, wired

For Switch Series:

CM-41, CM-45, CM-46

CM-68AL/BZ Double gang, shallow CM-67 Double gang

Type:

Surface mount box

Construction:

Anodized aluminum finish or CM-68BZ Anodized dark bronze finish

Application:

Indoor /outdoor, wired

For Switch Series:

CM-60 (Requires CM-49C adaptor plate, sold with switch)

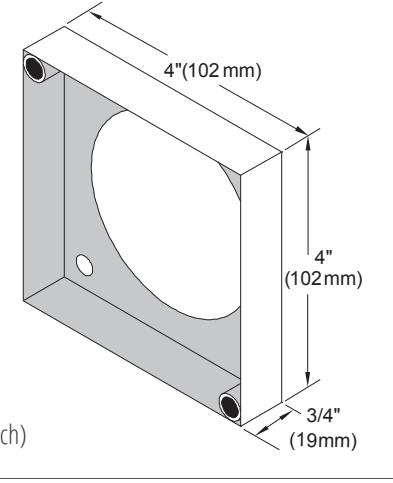

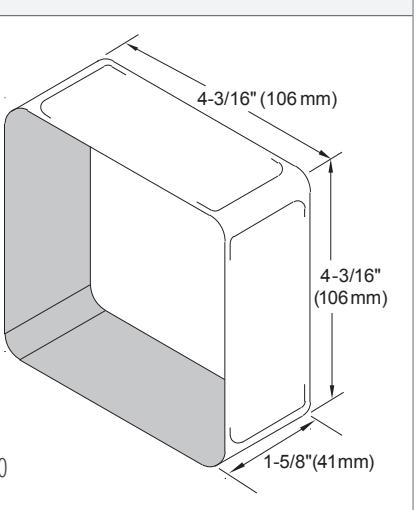

Type:

Sleeve for standard 4" x 4" surface electrical box

Construction:

Heavy gauge stainless steel

Application:

Adds brushed SS finish to standard electrical box

For Switch Series:

CM-41, CM-45, CM-46, CM-60

DOUBLE GANG / SQUARE MOUNTING BOXES - SURFACE

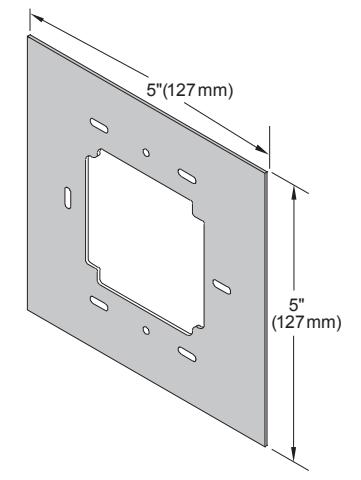

Type: 5" flush dress plate Construction: Stainless steel

Application: For mounting 4-1/2" round switch on standard single and double gang electrical box

For Switch Series: CM-40

CM-440 Double gang CM-660 Double gang CM-49C Double gang

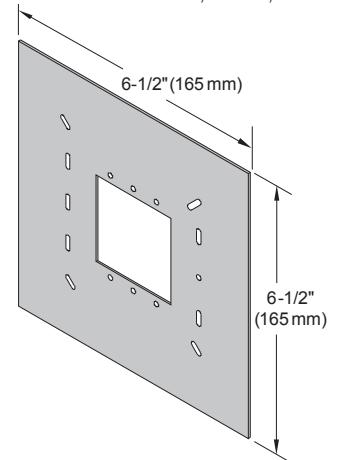

Type: 6-1/2" flush dress plate Construction: Stainless steel

Application: For mounting switches on standard single, double gang and 4" square electrical boxes

For Switch Series: CM-45, CM-46, CM-60

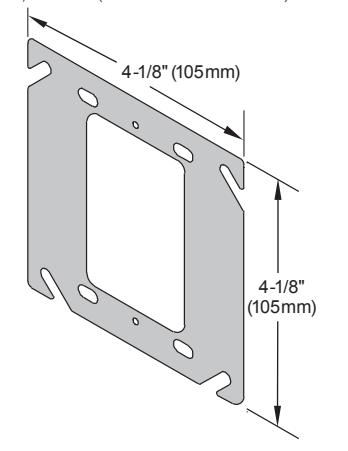

Type: Adapter plate

Construction: Galvanized steel

Application: For mounting CM-41, CM-45, CM-60 switches on double gang and 4"

square mounting boxes

For Switch Series:

CM-45, CM-46 (included with CM-60)

DOUBLE GANG / SQUARE MOUNTING BOXES - FLUSH

Type: AURA™: Illuminated flush box,

CM-55i: Green/Red

Construction: Flame & impact resistant

black polymer(ABS)

Application: Flush 4-1/2" square push plate

switch enclosure, room for wireless

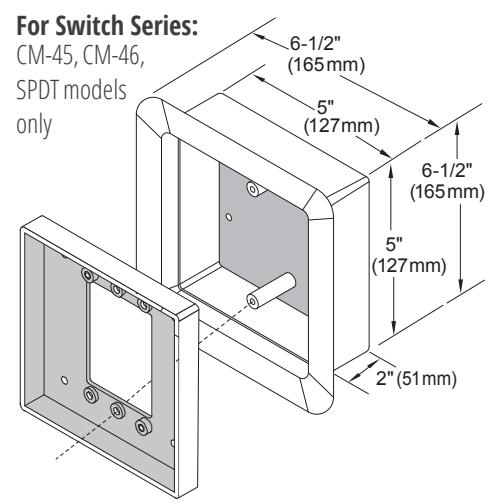

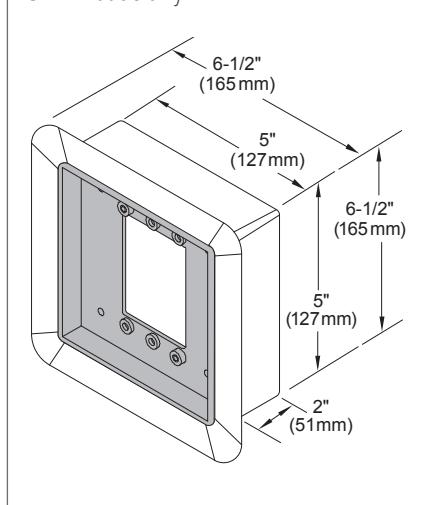

CM-55i 6-1/2" Square, flush CM-55CBL 6-1/2" Square, flush CM-RH-DG Double gang

Type: Flush mount box, 2 pieces

Construction: Flame & impact resistant

black polymer (ABS)

Application: Indoor / outdoor For Switch Series: CM-45, CM-46,

SPDT models only

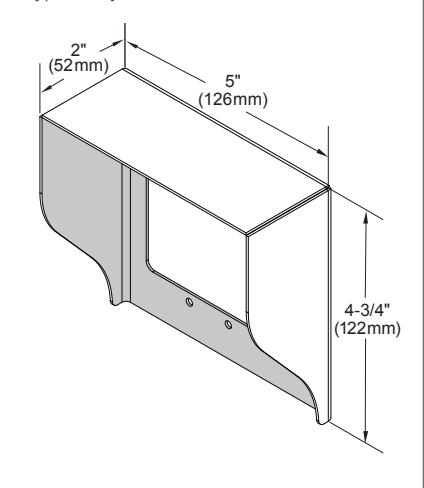

Type: Flush mount rain hood

Construction: Heavy gauge stainless steel

Application: Foam gasket between hood and mounting surface on irregular surfaces

For Switch Series: Any Camden double gang flush mounted Push/Exit Switch,

Keypad / Key Switch

4-1/2" ROUND MOUNTING ENCLOSURES - SURFACE

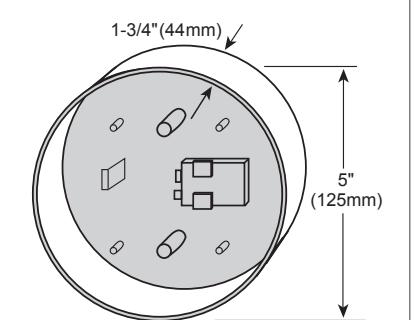

CM-47S 5" Round, standard depth

Type:

Surface mount box

Construction:

Flame & impact resistant black polymer (ABS)

Application:

Indoor / outdoor. wired / wireless

For Switch Series:

CM-40

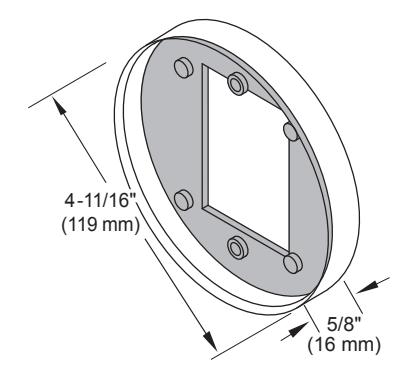

CM-570B 4-11/16" Semi-flush, mounting box

Type:

Semi-flush mount box

Construction:

Flame & impact resistant, black polymer (ABS)

Application:

Indoor / outdoor, wired

For Switch Series:

CM-40

1-3/4" (44mm)

CM-47S

(128mm)

CM-47-ADP1

5" (128mm)

CM-47SER For 4-1/2" round switches, optional extension ring

Type: Surface mount box and optional extension ring

Construction: Flame & impact resistant, black polymer (ABS)

Application: Indoor/outdoor, wired, or wireless

- CM-47S: Surface Mount Box, for 4-1/2" push plate switches Provision for Lazerpoint RF™ battery powered wireless transmitter

1-1/4" (31mm)

- CM-47-ADP1:

Retrofit extension ring and hardware for CM-47S mounting box. Required for Kinetic<sup>™</sup> no-battery wireless switch

- CM-47SER:

Surface mount box and extension ring for 4-1/2" push plate switches

For Switch Series:

CM-40, CM-40K, CM-324, CM-325, CM-336, CM-331,

for Kinetic<sup>™</sup> and SureWave<sup>™</sup> 4-1/2" switches

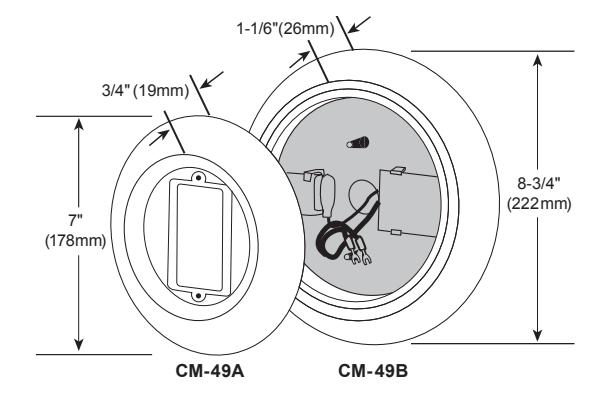

CM-49 8-3/4" Round, 1-13/16" depth

Type: 2 pieces surface / semi flush. Gasket and adapter plate included

Construction: Flame & impact resistant, black polymer (ABS)

Application: Indoor/outdoor, wired/wireless

- CM-49A: Semi flush on single gang electrical box

- CM-49B: Used with CM-49A

- CM-49C: Adapter plate for double gang and 4" square box

- CM-49G: Gasket

For Switch Series: (M-40

CM-332, CM-333. Extension rings required

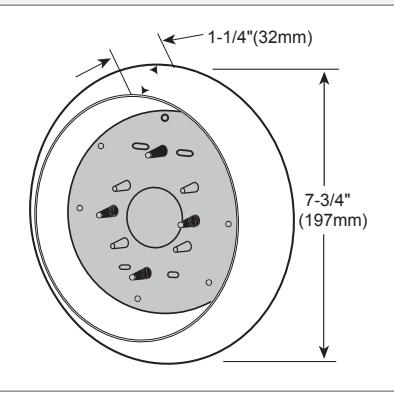

CM-59S 7-3/4" Round, standard depth

Type:

Surface mount escutcheon

Construction:

Heavy gauge stainless steel

Application:

Vandal resistant. Indoor / outdoor, wired

For Switch Series:

CM-40

4-1/2" ROUND MOUNTING ENCLOSURES - FLUSH

Type: AURA™ Illuminated flush box

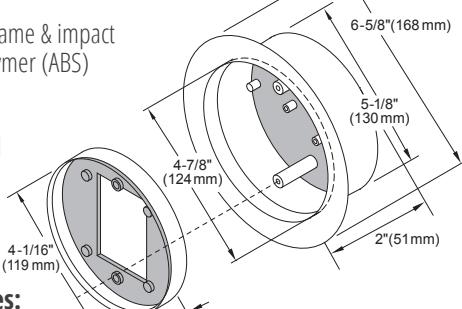

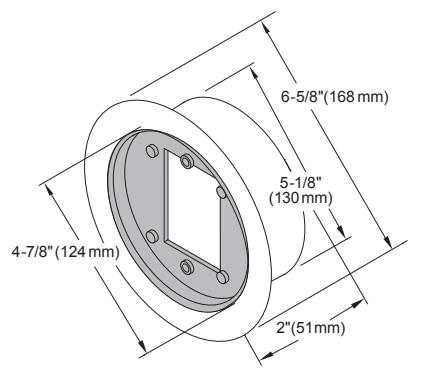

CM-57GR 6-5/8" Round, flush CM-57CBL 6-5/8" Round, flush

Construction: Flame & impact resistant black polymer (ABS)

Application:

Flush 4-1/2" round push plate switch enclosure, room

for wireless For Switch Series: CM-40, SPDT models only (119 mm)

5/8"(16 mm)

1-3/4"(44mm)

Type:

Flush mount box, 2 pieces

Construction:

Flame & impact resistant black polymer (ABS)

Application:

Indoor / outdoor

For Switch Series:

CM-40, SPDT models only

6" ROUND MOUNTING ENCLOSURES - SURFACE

Type: Surface mount box Construction:

Flame & impact resistant black polymer (ABS)

Application:

Indoor / outdoor, wired/wireless

For Switch Series: CM-60

CM-69S 6-1/2" round, standard depth CM-89S 9-5/8" round, standard depth

Type: Surface mount escutcheon

Construction:

Heavy gauge stainless steel

Application:

(165mm) 6-1/2"

Vandal resistant, indoor/outdoor, wired

For Switch Series: CM-60

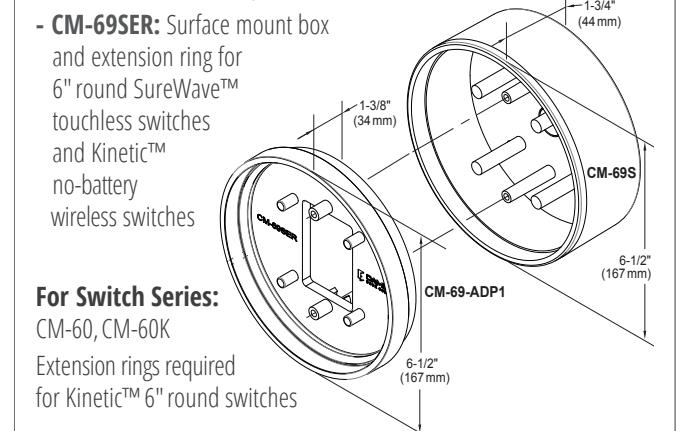

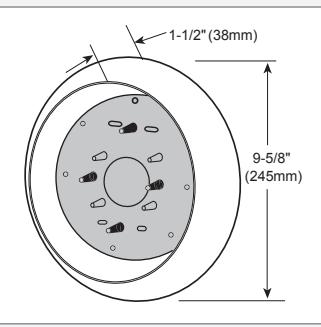

CM-69SER For 6" round switches, optional extension ring CM-79 9-5/8" round, 1-13/16" depth

Type: Surface mount box and optional extension ring

Construction: Flame & impact resistant black polymer (ABS)

Application: Indoor/outdoor, wired, or wireless, manual or touchless

  • CM-69S: Surface Mount Box, for 4-1/2" push plate switches Provision for Lazerpoint RF™ battery powered wireless transmitter
  • CM-69-ADP1: Retrofit extension ring and hardware for CM-69S mounting box. Required for SureWave™ touchless switches and Kinetic™ no-battery wireless switches

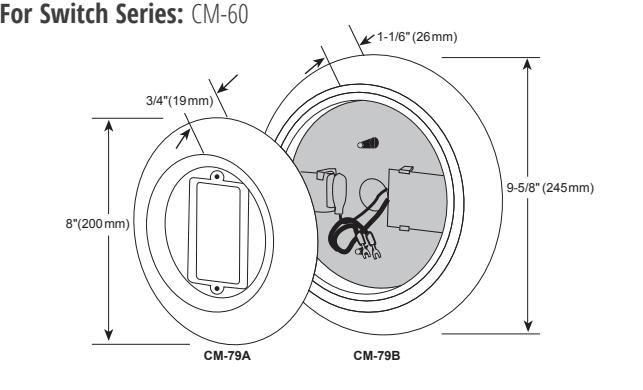

Type: 2 pcs. surface and semi flush mount escutcheon,

gasket and adapter plate included

Construction: Flame & impact resistant black polymer (ABS)

Application: Vandal resistant, indoor/outdoor

  • CM-79A: Semi-flush mounting on single gang electrical box, wired
  • CM-79B: Surface mount. Wired / wireless. Must be used with CM-79A
  • CM-79C: Adapter plate to mount CM-79A on double gang and 4" square electrical box
  • CM-79G: Gasket for CM-79A or CM-79B
