CAMDEN MOUNTING BOXES

FEATURES

THE INDUSTRY'S LARGEST ASSORTMENT OF MOUNTING BOXES, ESCUTCHEONS, TRIM PLATES AND SLEEVES.
SOLUTIONS FOR SURFACE AND FLUSH MOUNTING, INDOOR, OUTDOOR AND WATER TIGHT APPLICATIONS.
FLAME AND IMPACT RESISTANT POLYMER (ABS) MODELS.
HEAVY GAUGE STAINLESS AND ALUMINUM MODELS.

NARROW/JAMB MOUNTING BOXES

MODEL: CM-23

Size: Narrow/Jamb width Type: Surface mount box

Construction: Flame and Impact resistant black polymer (ABS)

Application: Indoor/outdoor, wired

For Switch Series: CM-25, CM-250, CM-310 Cover Plate: CM-23CP

MODEL: CM-23D

Size: Narrow/Jamb width, extra depth

Type: Surface mount box

Construction: Flame and impact resistant black polymer (ABS)

Application: Indoor/outdoor, wired.

Required for wireless.

For Switch Series: CM-25, CM-170,CM-250, CM-310, CM-325/N, CM-2200

2 3/4"

SINGLE GANG MOUNTING BOXES

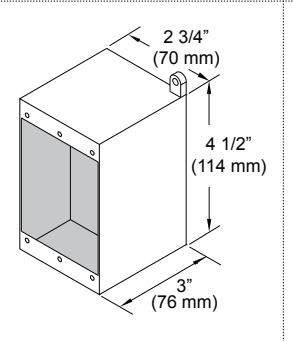

MODEL: CM-34AL

Size: Single gang, std. depth

Type: Surface mount box, threaded conduit entry

Construction: Heavy duty cast aluminum

Application: Water tight, wired

For Switch Series:

CM-35, CM-180, CM-195, CM-280, CM-300, CM-325, CM-400, CM-4000, CM-5000, CM-700, CM-1100, CM-1200, supplied with CM-1000 Series

Gasket: CM-120G

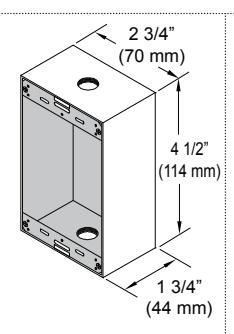

MODEL: CM-34BL

Size: Single gang, std. depth

Type: Surface mount box

Construction: Double wall,

black (ABS)

Application: Indoor, wired or

wireless

For Switch Series

CM-35, CM-180, CM-195, CM-280, CM-300 CM-324, CM-325, CM-400, CM-700, CM-1200

Gasket: CM-120G Cover Plate: CM-34CP

(70 mm) 4 1/2" (114 mm) M-300 (44 mm)

MODEL: CM-34D

Size: Single gang, extra depth

Type: Surface mount box

Construction: Heavy duty

grey polymer

Application: Indoor/outdoor, wired. Required for wireless

For Switch Series: CM-30, CM-3000, CM-4085/5085/7085/8085

Gasket: CM-120G

MODEL: CM-31

Size: Single gang

Type: Sleeve for standard 2" x 4" surface electrical box

Construction: Heavy gauge

Construction : Heavy gauge stainless steel

Application: Adds brushed SS finish to standard electrical box

For Switch Series: CM-35, CM-180, CM-195, CM-280, CM-300, CM-324, CM-325, CM-1200

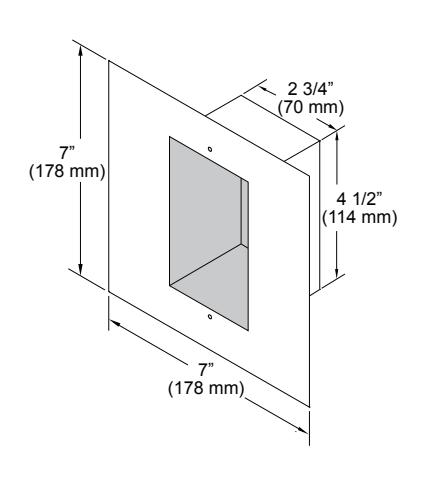

MODEL: CM-66

Size: Single gang, standard depth

Type: 7" x 7" dress plate and standard

2" x 4" flush electrical box

Construction: Heavy gauge stainless steel

Application: Extra wide trim plate c/w box to cover double gang sized openings

For Switch Series:

CM-35, CM-40, CM-41, CM-45, CM-60

DOUBLE GANG/SQUARE MOUNTING BOXES - SURFACE

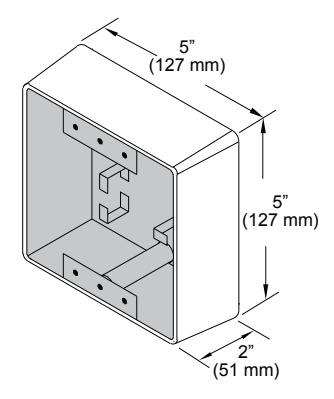

MODEL: CM-43CBL/CBLA

Size: 5" Square, std. depth

Type: Surface mount box

Construction: Flame and impact resistant black

polymer (ABS)

Application: Indoor/outdoor, wired. Required for wireless.

Cover Plate: CM-43CP

For Switch Series: CM-41, CM-45, CM-46

CM-43CBLA: Surface Box for CM-324 / 325 / 330W switches

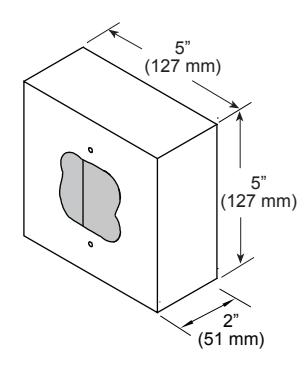

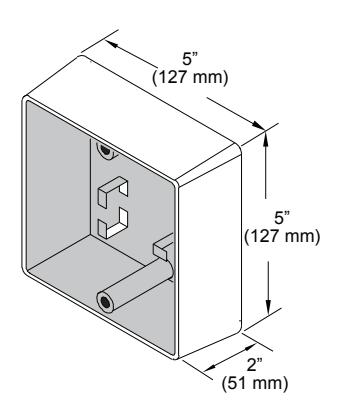

MODEL: CM-53

Size: 5" Square, std. depth

Type: Surface mount box

Construction: Flame and impact resistant black polymer (ABS)

Application: Indoor/outdoor, for double gang switches and vestibule switches.

For Switch Series: CM-500, CM-2510, CM-2520, CM-3200, CM-3500

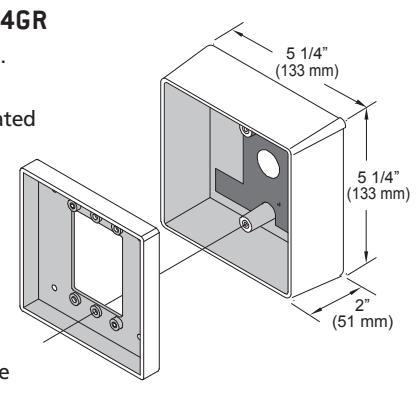

MODELS: CM-54B/54GR

Size: 5 1/4" Square, std. surface depth

Type: AURA™: Illuminated surface box

- CM-54B: Blue only

- CM-54GR: Green/Red

Construction: Flame and impact resistant black polymer (ABS)

Application: Surface 4 1/2" square push plate switch enclosure, room for wireless

For Switch Series: CM-45, CM-46, SPDT models only

MODEL: CM-63CBL

Size: 5" Square, std. depth

Type: Surface mount box,

Construction: Flame and impact resistant black polymer (ABS)

Application: Indoor/outdoor, wired. Required for wireless.

For Switch Series: CM-41, CM-60, CM-3200

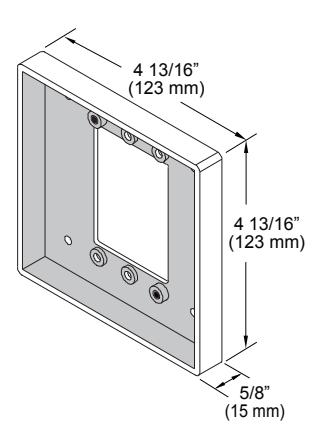

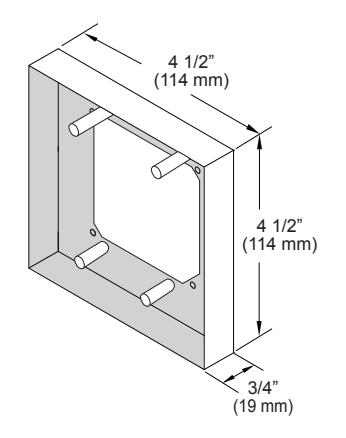

MODEL: CM-540B

Size: Double gang, shallow

Type: Semi flush mount box

Construction: Flame and impact resistant black polymer (ABS)

Application: Indoor/outdoor, wired

For Switch Series: CM-41, CM-45, CM-46

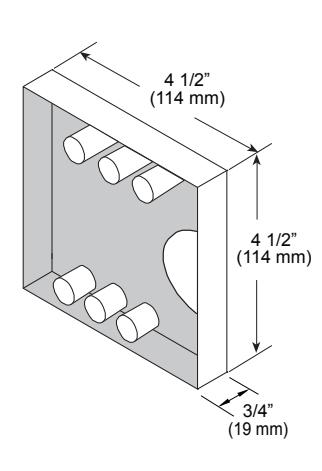

MODEL: CM-48AL

Size: Double gang, shallow

Type: Surface mount box

Construction: Anodized

aluminum

Application: Indoor/outdoor,

wired.

For Switch Series: CM-41, CM-45, CM-46 (Requires CM-49C adaptor plate, sold separately)

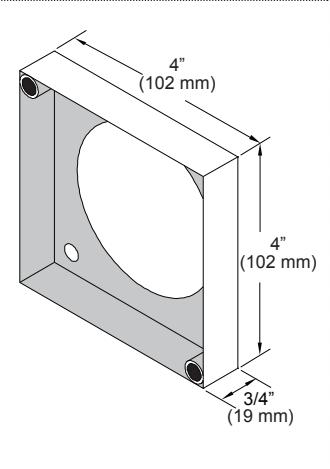

MODEL: CM-44

Size: Double gang, shallow

Type: Offset surface mount box

Construction: Stainless steel

Application: For mounting 4 1/2" square switches on narrow jambs, indoor/outdoor, wired.

For Switch Series: CM-41, CM-45, CM-46

MODEL: CM-68AL/BZ

(Anodized Aluminum finish) CM-68BZ (Anodized dark

bronze finish)

Size: Double gang, shallow Type: Surface mount box

Construction: Anodized

aluminum

Application: Indoor/outdoor,

wired

For Switch Series:

CM-60 (Requires CM-49C adaptor plate, sold with

switch)

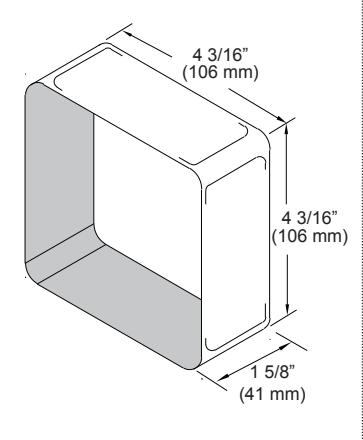

MODEL: CM-67

Size: Double gang

Type: Sleeve for standard 4" x 4" surface electrical box

Construction: Heavy gauge

stainless steel

Application: Adds brushed SS finish to standard electrical box

For Switch Series: CM-41, CM-45, CM-46, CM-60

MODEL: CM-440

Size: Double gang

Type: 5" flush dress plate

Construction: Stainless steel

Application: For mounting 4 1/2" round switch on standard single and double gang electrical box

For Switch Series:

CM-40

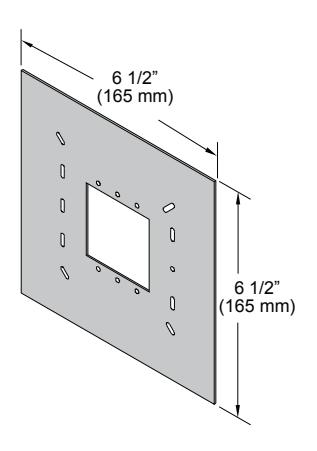

MODEL: CM-660

Size: Double gang

Type: 6 1/2" flush dress plate

Construction: Stainless steel

Application: For mounting switches on standard single, double gang and 4" square electrical boxes

For Switch Series: CM-45, CM-46, CM-60

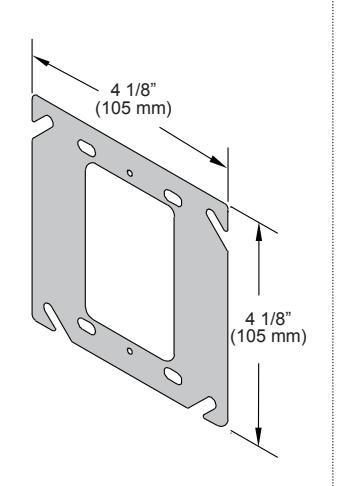

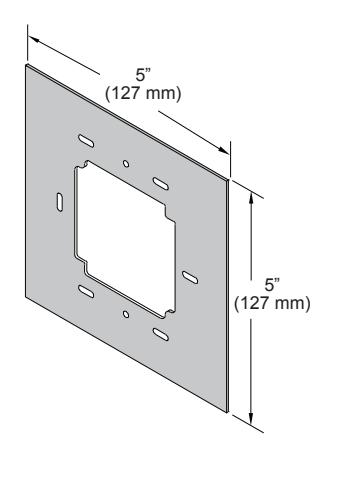

MODEL: CM-49C

Size: Double gang

Type: Adapter plate

Construction: Galvanized steel

Application: For mounting CM-41, CM-45, CM-60 switches on double gang and 4" square mounting boxes

For Switch Series: CM-45, CM-46 (included with CM-60)

DOUBLE GANG/SQUARE MOUNTING BOXES - FLUSH

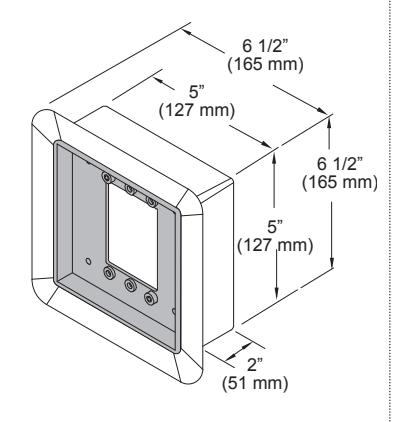

MODEL: CM-55B/55GR

Size: 6 1/2" Square, flush

Type: AURA™: Illuminated

flush box

- CM-55B: Blue only

- CM-55GR: Green/Red

Construction: Flame and impact resistant black polymer (ABS)

Application: Flush 4 1/2" square push plate switch enclosure, room for wireless

For Switch Series: CM-45, CM-46, SPDT models only

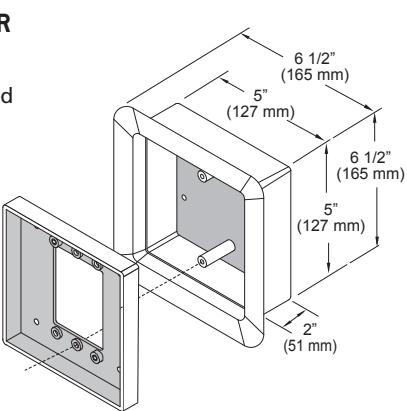

MODEL: CM-55CBL

Size: 6 1/2" Square, flush

Type: Flush mount box, 2 pcs.

Construction: Flame and impact resistant black polymer (ABS)

Application: Indoor/ outdoor

For Switch Series: CM-45, CM-46, SPDT models only

4 1/2" ROUND MOUNTING ENCLOSURES - SURFACE

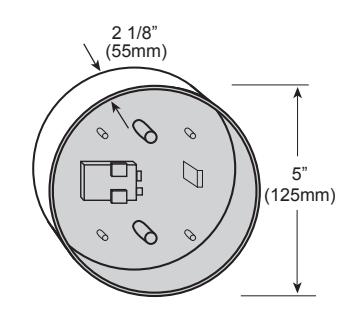

MODEL: CM-47S

Size: 5" round, std.depth

Type: Surface mount box

Construction: Flame and impact resistant black polymer (ABS)

Application: Indoor/outdoor,

wired or wireless

For Switch Series: CM-40

MODEL: CM-570B

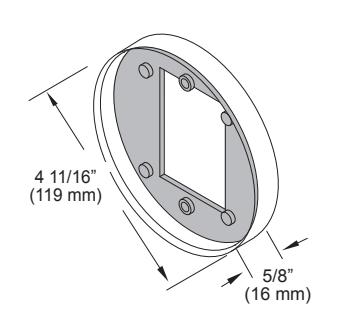

Type: 4 11/16" semi-flush mounting box

Construction: Flame and Impact resistant black polymer (ABS)

Application: Indoor/outdoor,

wired

For Switch Series: CM-40

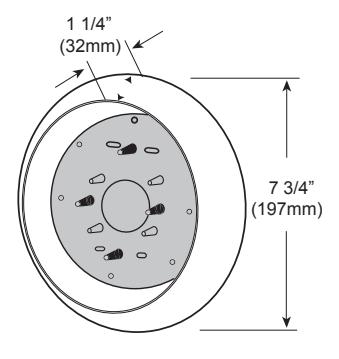

MODEL: CM-59S

Size: 7 3/4" round, std. depth

Type: Surface mount

escutcheon

Construction: Heavy gauge

stainless steel

Application: Vandal resistant indoor/outdoor, wired.

For Switch Series:

CM-40

MODEL: CM-49

Size: 8 3/4" round, 1 13/16" depth

Type: 2 pcs. surface or semi flush. Gasket and adapter plate included

Construction: Flame and impact resistant black polymer (ABS)

Application: Indoor/outdoor

wired or wireless

CM-49A: Semi flush on single gang electrical box
CM-49B: Surface must be used with CM-49A
CM-49C: Adapter plate for double gang and 4" square box
CM-49G: Gasket

For Switch Series: CM-40

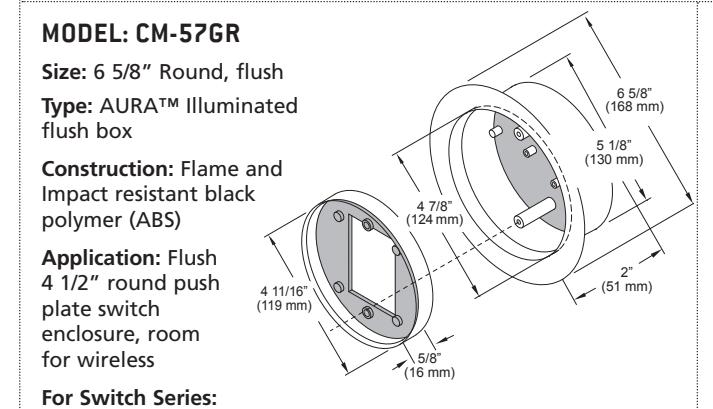

4 1/2" ROUND MOUNTING ENCLOSURES - FLUSH

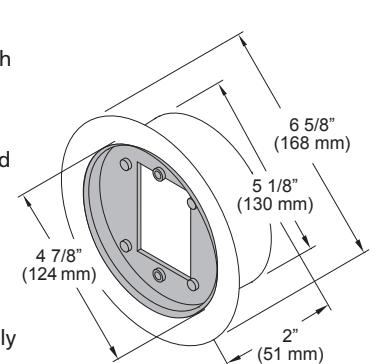

MODEL: CM-57CBL

Size: 6 5/8" Round, flush

Type: Flush mount box,

2 pcs.

Construction: Flame and impact resistant black

polymer (ABS)

Application: Indoor/

outdoor

For Switch Series:

CM-40, SPDT models only

(26mm) 1 1/6"

7" (222mm)

CM-49A CM-49B

8 3/4"

(19mm) 3/4"

(178mm)

6" ROUND MOUNTING ENCLOSURES - SURFACE

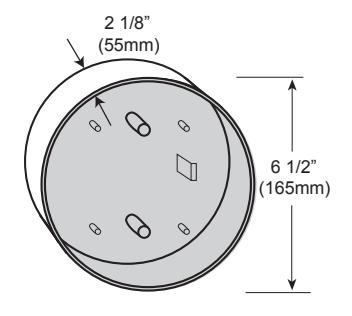

MODEL: CM-69S

Size: 6 1/2" round, std. depth

Type: Surface mount box

CM-40, SPDT models only

Construction: Flame and impact resistant black polymer (ABS)

Application: Indoor/outdoor, wired or wireless

For Switch Series: CM-60

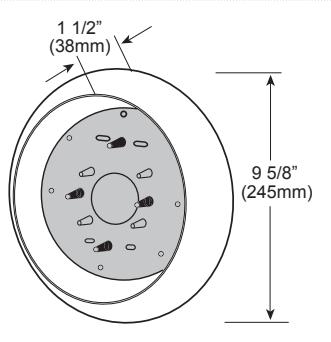

MODEL: CM-89S

Size: 9 5/8" round, std. depth

Type: Surface mount escutcheon

Construction: Heavy gauge

stainless steel

Application: Vandal resistant indoor/outdoor, wired.

For Switch Series: CM-60

CAMDEN MOUNTING BOXES

MODEL: CM-79

Size: 9 5/8" round, 1 13/16" depth

Type: 2 pcs. surface and semi flush mount escutcheon, gasket and adapter plate included

Construction: Flame and impact resistant black polymer (ABS)

Application: Vandal resistant indoor/outdoor

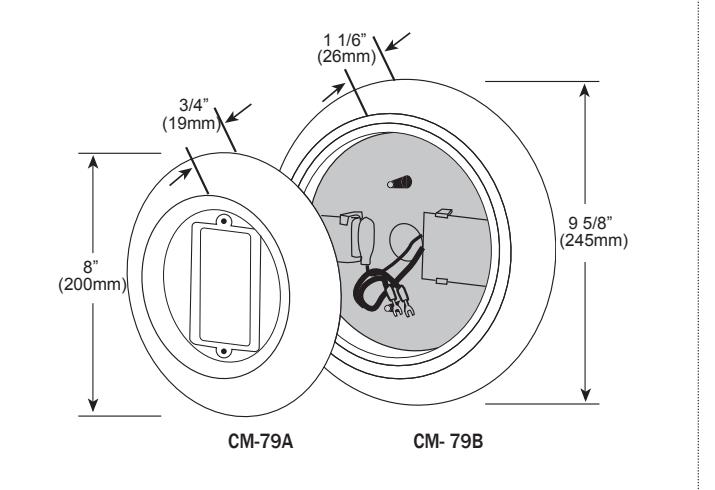

CM-79A: Semi flush mounting on single gang electrical box, wired
CM-79B: Surface mount. Wired or wireless. Must be used with CM-79A
CM-79C: Adapter plate to mount CM-79A on double gang and 4" square electrical box
CM-79G: Gasket for CM-79A or CM-79B

For Switch Series: CM-60
