Important notes!

• Before installing this product, please read carefully the installation and operating instructions.
• Locks can be installed in all traditional safes.
• Lock has to be mounted on secure storage metal (preferred steel) units only.
• Locks must be protected against external attacks, for this reason it is recommended to install them on the door away from any through holes.
• Any electronic part must be properly protected and not easily accessible even when the door is open.
• Locks have been developed to work correctly in a temperature range from -5 ° C to + 50 ° C and in an environment with non-condensing humidity between 25% and 90%.
• The mounting dimensions are standard (magic module).
• Locks are supplied with metric (M6) mounting screws. Upon request, Imperial 1/4-20 UNC format mounting screws are available.
• The type of material and the length of the screws must, in any case, be selected so as to guarantee long life and reliability.
• Tighten the screws so that the lock is firmly fixed to the mounting surface (recommended torque between 2.5 and 5.5 Nm).
• The mounting surface must be perfectly flat.
• In order to prevent loosening of the screws it is recommended the use of LOCTITE® threadlocker and/or specific washers positioned under the head of the fixing screw.
• The diameter of the passage hole for the connection cable or the spindle must not exceed 11 mm.
• The hole must be completely cleaned of drill dust and no edge should be sharp.
• Lock must not be lubricated.
• In the locked position, the distance between the bolt and the boltwork part that is moving the lock bolt must comply with the following specifications for each type of lock.
• Any component to be fixed to the lock bolt must be previously approved by Tecnosicurezza before installation. In any case, maximum load must not exceed 2.5 N.
• Secure the cables away from moving parts by using cable ties and cable ties bases.

If placed in normal domestic or office environments, the locks do not require particular maintenance; in any case, after 10,000 opening/locking cycles, it is recommended to run a test that verifies the correct and complete operation of the product.

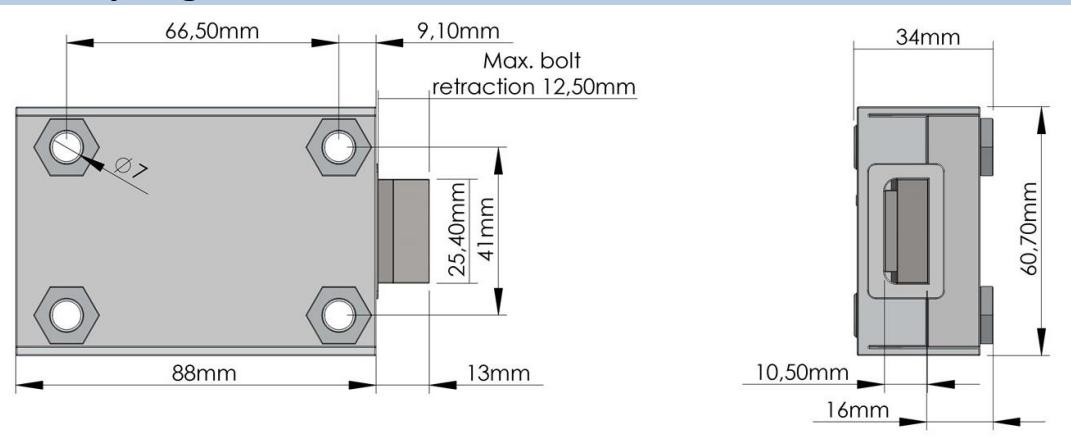

MotorLock lock dimensions

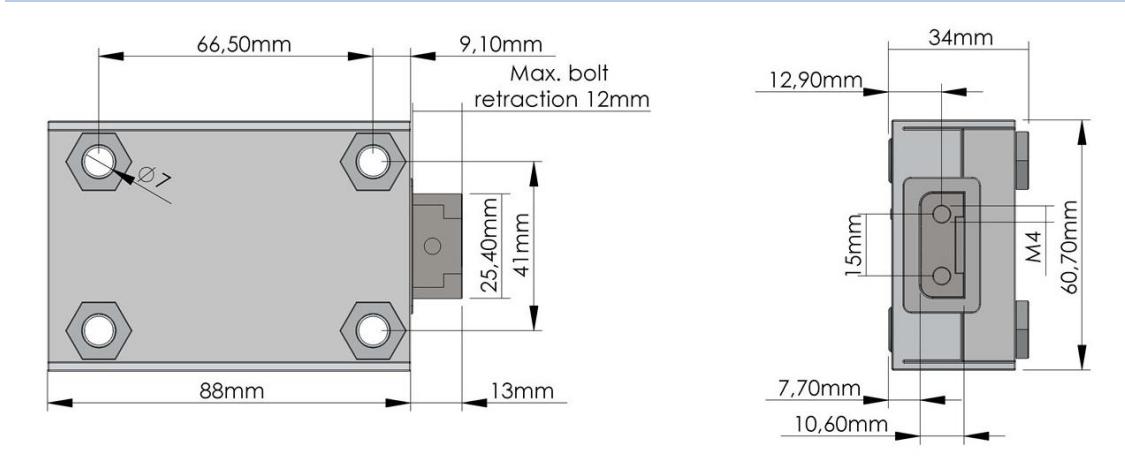

MotorSpringBolt dimensions

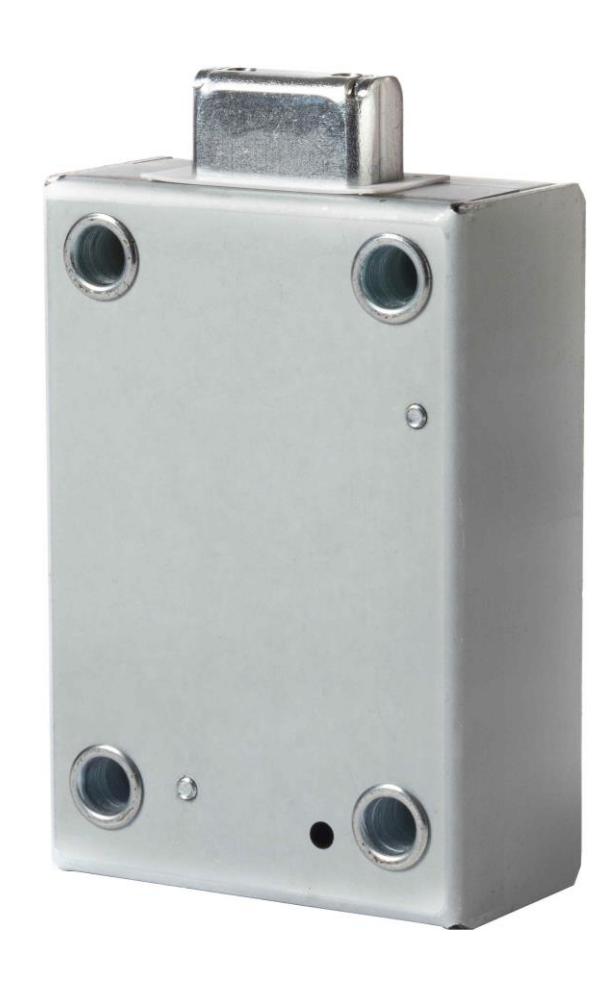

MotorLock and Motor SpringBolt locks installation instructions

MotorLock and Motor SpringBolt locks are locks with, respectively, a motor driven dead bolt and a motor driven spring bolt, whose block is carried out by a motor.

By powering the lock, the motor retracts the bolt with the opening command which remains in the open position until the closing command is performed and the bolt returns to the locked position.

In the locked position, there should be approximately 1 mm clearance between the lock bolt and the cavity in the blocking bar of the boltwork. The bolt must be able to move freely without force being applied to it.

In open position, there should be minimum 3mm and maximum 5 mm clearance between the lock bolt and the blocking bar of the boltwork.

The spring-latch version ( Motor SpringBolt) is specially designed to ensure self locking when the door closes.

The distance between the SpringBolt lock and the locking edge must be between a minimum of 3 mm and a maximum of 8 mm.

When locked, there must be a 0.5mm gap between lock bolt and locking surface.

Characteristics and Cabling

Caratteristiche

The lock T4500/M/C is a motorized lock that does not require a keypad or other control units, in fact, the opening and closing of the bolt is driven by means of electrical contacts.

In order to open the bolt is necessary to close the contact between the black and green wires for a period of one second.

In order to close the bolt it is necessary to close the contact between the black and red wires for a period of one second.

The power supply can be 9, 12 or 13.8 Volts (on connector ENT).

The locks series T4500 can be mounted in all four directions (RH, LH, VU, VD). Further, by flipping the lock, both blocking directions can be realized (DX/SX).

The mounting dimensions are standard (magic module).

The lock is delivered with M6 metric mounting screws. Withworth screws 1/4 – 20 are available on demand.

Cabling

Power supply:	Bolt control contacts	Bolt microswitch:
On connector ENT	Black wire – common	Blue wire – common
Red positive – Black negative.	Green wire – opening	Red wire – normally open
V = 9V – 12V – 13.8V	Red wire – closing	Green wire – normally closed
I run = 115mA @ 9V		Imax = 0,5A – Vmax = 50Vdc
I sleep = 5μA

Functional test

To be carried out with the door open.

Provide power to the lock.

Turn boltwork handle towards OPEN position. Bolt must move freely.

Cut power to the lock.

Turn boltwork handle towards LOCKED position.

The lock bolt must fully extend and secure.

Make sure there is an air space on all sides of the lock bolt when the safe's boltwork is fully thrown into LOCKED position.

Repeat functional test several times before locking the safe door.

Failure to follow these installation instructions or opening the lock by personnel not authorized by Tecnosicurezza will void the warranty.
