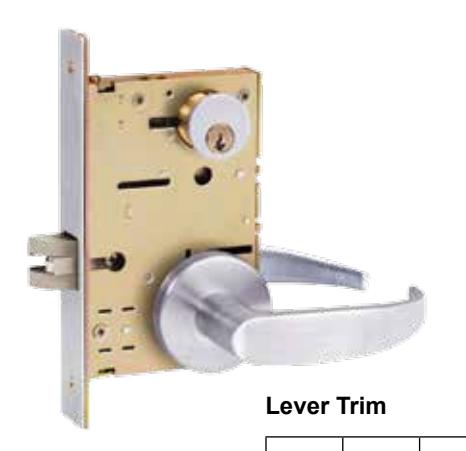

M7800 MECHANICAL GRADE 1 MORTISE LOCKSETS

MORTISE LOCKSETS

Grade 1 Mortise Locksets

IDC Heavy Duty Mortise Locks comply with American National Standard Institute requirement ANSI/ BHMA 156.13 Grade 1. All our locks are field reversible and require only simple steps for changing the hand of lock for easy installation.

• Reversible without disassembly
• May retrofit other brand lock sets (consult factory)
• Clutch for vandal resistance

Clutch

Internal clutch provides vandal resistance by permitting lever rotation without retracting latch when locked

Handing

M7800 Series locks are field reversible without disassembly.

Door Thickness

For use on 1-3/4'' (44mm) thick door standard. Specify thickness if other than standard for up to 2-1/4'' thick door.

Backset:

2-3/4'' (70 mm).

Armored Front:

1-1/4'' x 8'' x 7/32'' (32 mm x 203 mm x 6 mm) standard.

Case:

3-15/16'' x 6-1/16'' x 29/32'' (100 mm x 154 mm x 23 mm)

Bolts:

3/4'' (19mm) throw stainless steel latch with anti-friction tongue. 1'' (25mm) throw stainless steel dead bolt.

UL listed "A" label (3 hours) fire exit hardware in accordance with UL 10C, UBC 7-2(1997)

Levers:

Forged brass or bronze and cast stainless steel

Spring Cages

One or two heavy duty spring cages as required per function.

Rose and Escutcheon

Heavy wrought reinforced brass, bronze and stainless steel.

Strike:

ANSI curved lip strike 1-1/4'' x 4-7/8'' (32 mm x 124 mm) x 1-3/16'' (30 mm) lip to center with dust box standard.

Cylinder & Keys Optional:

1-1/8'' 6 pin with 'C' type keyway

I-Core

Compatible with Interchangeable Core Cylinders provided by others

Finishes

US26D (626) Dull Chrome US32D (630) Dull Stainless (upon availability)

International Door Closers, Inc.

West: 800-544-4422 • East: 800-225-6737

FUNCTION	MODEL	ANSI	DESCRIPTION
	M1001	F01	Passage - Latch bolt retracted by lever from either side at all times
	M3004	F04	Office - Latch bolt operated by lever from either side except when outside lever is made inoperative by key outside or by turning inside thumb turn. When outside lever is locked, latch bolt is retracted by key from outside or by operating inside lever. Outside lever remains locked until thumb turn is return to vertical position or unlock by key. Auxiliary latch deadlocks latchbolt when doors closed.
OCCUPIED	M2005	F05	Classroom - Latch bolt retracted by lever from either side unless outside is locked by key. Unlocked from outside by key. Inside lever always free for immediate exit. Auxiliary latch deadlocks latch bolt when door is closed.
OCCUPIED	M2007	F07	Storeroom - Latch bolt retracted by key outside or by knob/lever inside. Outside lever always inoperative. Auxiliary latch deadlocks latch bolt when door is closed.
	OCCUPIED M2009	F09	Apartment Entrance / Vestibule - Latch bolt operated by lever from either side, except when outside lever is locked by key from inside. When outside lever is locked, latch bolt is retracted by key from outside or by operating inside lever. Auxiliary dead latch.
OCCUPIED	M2413	F13	Corridor / Exit - Latch bolt operated by lever from either side. Dead bolt projected by key from outside and turn from inside. Operating inside lever retracts both bolts and unlocks outside.
OCCUPIED	OCCUPIED M3420	F20	Entrance - Latch bolt operated by lever from either side, except when outside lever is made inoperative by toggle button. Dead bolt operated by key outside or turn inside. Key outside operates both bolts. Operating inside lever retracts both bolts and outside remains locked. Latch bolt is deadlocked when outside lever is made inoperative or when the dead bolt is projected. When dead bolt is retracted, lever is unlocked by toggle button.
OCCUPIED	OCCUPIED M7822	F02 F04 F22	Privacy - Latch bolt operated by lever from either side except when outside lever is locked by inside thumb turn. Operating inside lever, closing door or operating outside emergency release unlocks outside lever.
OCCUPIED	OCCUPIED M0071		Single Dummy Trim - Lever on one side fixed by mounting bar.
	M0072		Double Dummy Trim - Lever on both sides fixed by mounting bar.
OCCUPIED	M0075		Single Dummy Trim - Lever on both sides fixed. Includes lock chassis and armor front.
OCCUPIED	M0076		Double Dummy Trim - Lever on both sides. Includes lock chassis and armor front.
