INSTALLATION INSTRUCTIONS

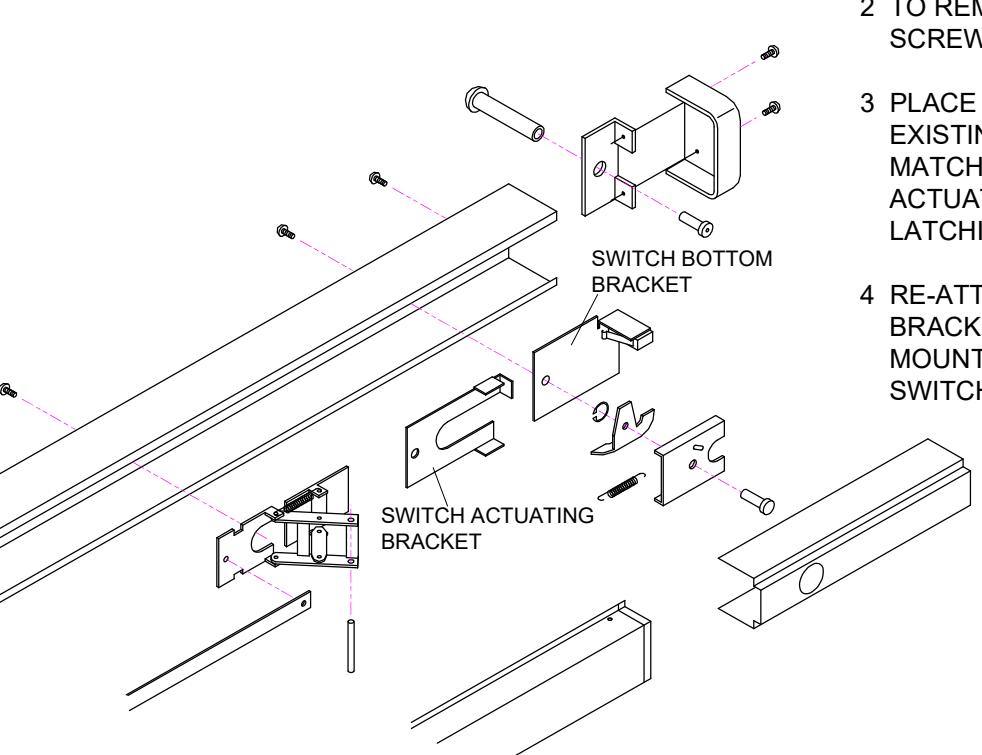

525 MONITORING SWITCH KIT MONARCH 18 & 19 SERIES

• 1 SLIDE END CHANNEL COVER OFF PANIC DEVICE TO EXPOSE DOGGING ASSEMBLY.
• 2 TO REMOVE THE ASSY. LOCATE THE MOUNTING SCREW ON THE BACK OF THE DEVICE.
• 3 PLACE BOTTOM SWITCH BRACKE OVER EXISTING PANIC BAR MOUNTING HOLE, MATCHING MOUNTING HOLE PREP. ATTACH ACTUATING SWITCH BRACKET TO PANIC LATCHING PIN ON PANIC PUSH PAD.
• 4 RE-ATTACH DOGGING ASSY. OVER BOTH BRACKETS AND RE-ASSEMBLE ALIGNING MOUNTING HOLES (TEST PAD TO MAKE SURE SWITCH ARM IS BEING DEPRESSED.

WIRING SPECIFICATION

WHT – COM YEL – N/O

ORG - N/C

5 AMP MAX.

525-2 CONTAINS TWO SWITCHES

Applications

Remote Latch Status Monitoring:

Retracting the latch by depressing the push pad provides an output signal for local or remote visual and audible annunciation indicating forced entry or unauthorized egress.

Access Control REX: When connected to the Request-To-Exit input of a keypad, card or biometric Access Controller, depressing the pushpad and retracting the latch actuates the Latch Status contact, shunting the control access control alarm to permit authorized egress and/or releases the magnetic door lock for uninhibited egress.

Magnetic Lock Release: Where Access Controller with REX input is unavailable, the N/C contact of the switch is wired in series between the power supply and fail safe magnetic lock. Depressing the exit device pushpad retracts the latch, causing the contact to open, thereby releasing the magnetic lock for uninhibited egress.

Mantrap Logic: Provides N/O and N/C contacts required for 2 or more communicating doors for Interlock and Mantrap applications.
