Modified Outside Housing Requires New Lever

ALARM LOCK

345 Bayview Avenue, Amityville, New York, U.S.A. 11701 For Sales and Repairs 1-800-ALA-LOCK • For Technical Service 1-800-645-9440 Fax: 631-789-3383 • info@alarmlock.com

Note: Technical Service is for security professionals only

ALARM LOCK Tech Support

Date: Wednesday, July 18, 2012

Subject: Modified Outside Housing Requires New Lever

Models: All Mortise and Exit Trim (except narrow-style) Models

A design modification to the outside housing requires a shorter outside Lever , as the existing Lever will not fit into the modified outside housing. A new Spindle Spacer must also be used.

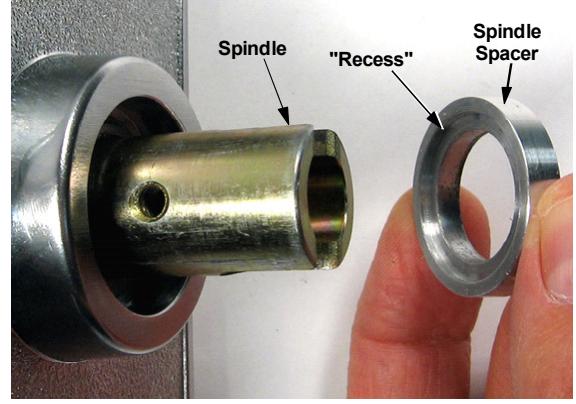

Therefore, when replacing the outside housing, ensure the new Spindle Spacer is fully inserted onto the spindle before attaching the new outside Lever (see photo below).

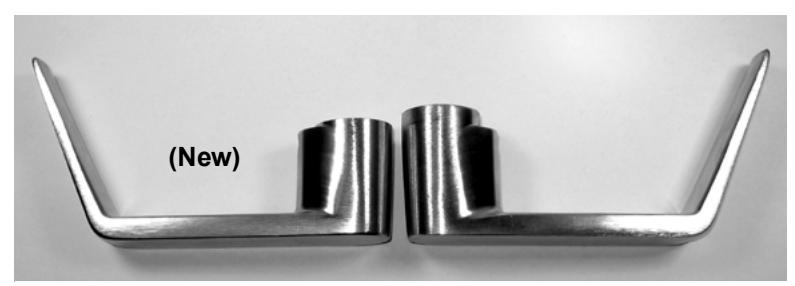

New Lever (left); Previous lever (right)

Note: The new Lever is NOT interchangeable with previous Levers .

If installing a Lever and Return Spring Upgrade Kit , see the complete step-by-step instructions detailed in WI2008.
