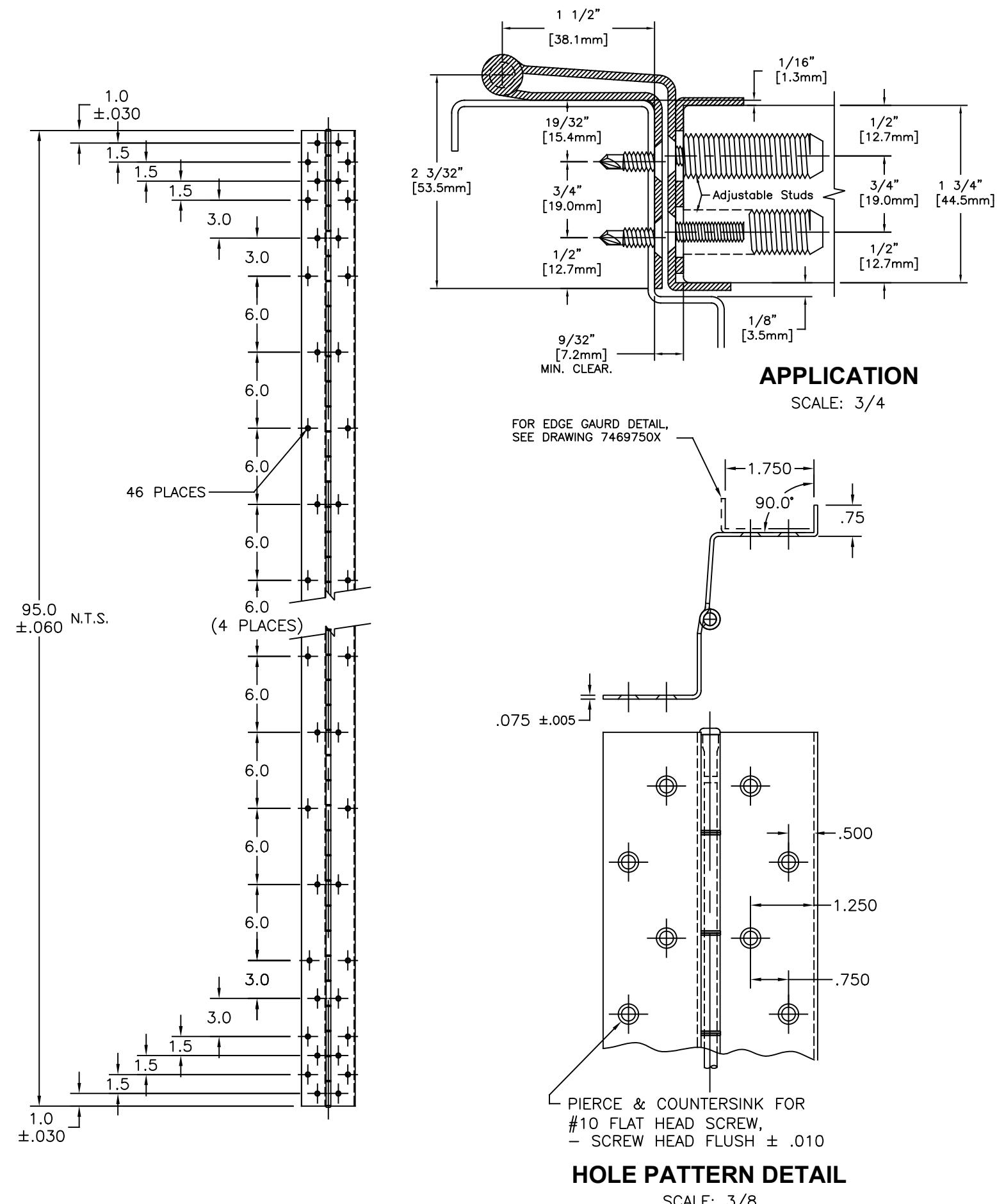

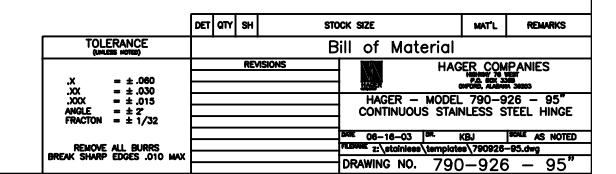

Model 790-926 – Continuous Stainless Steel Hinge – 95in – Template 790926 95
Open the original PDF document
View PDF
NOTES:
- MATERIAL: .075 STAINLESS STEEL #304-2B FINISH
- ALL DIMENSIONS ARE IN INCHES
- DRAWINGS ARE NOT TO SCALE
- KNUCKLE PATTERN MY VARY
SCALE: 3/8
