Model 790-915 – Continuous Stainless Steel Hinge – 119in – Template 790915_119

3/8" [9.5mm] REF. 2 1/4" [157.1mm] 3/4" [19.1mm] [144.5mm] 1/16" [1.7mm] REF. 1/16" [1.7mm] REF. 1/16" [1.7mm] REF. 1/16" [1.7mm] REF.

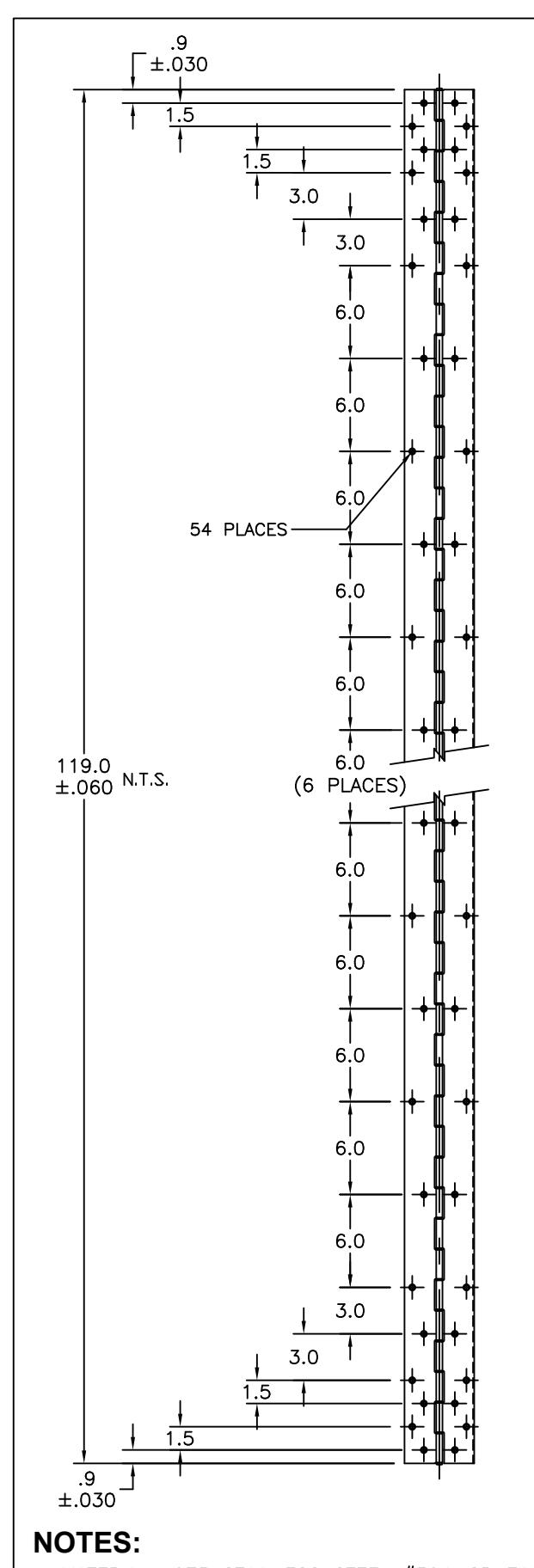

APPLICATION

SCALE: 3/4

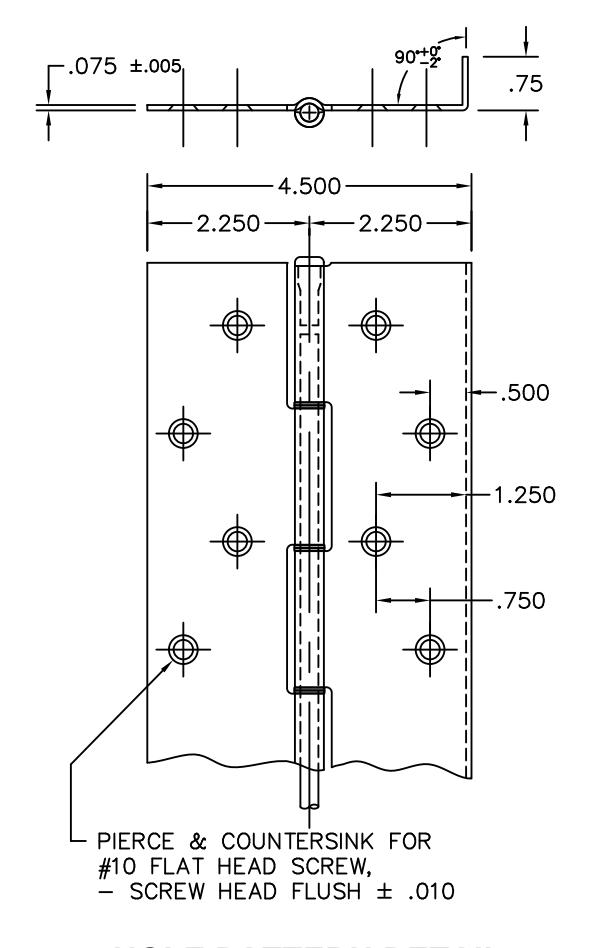

HOLE PATTERN DETAIL

SCALE: 3/8

| STOCK SUZ

• MATERIAL: .075 STAINLESS STEEL #304-2B FINISH
• ALL DIMENSIONS ARE IN INCHES
• DRAWINGS ARE NOT TO SCALE
• KNUCKLE PATTERN MY VARY
